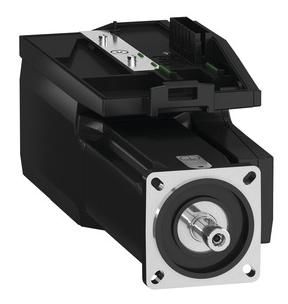

Schneider Electric BMI0702T02F motor 1P 70mm IP54, 640W NKY ENC MLT 128 BR content_copy

Drive unit of the integrated servo drive Lexium 32i. This integrated servo drive offers you a modular concept of drive unit, control unit and connection modules, which are plugged together according to the respective application. This BMI drive unit consists of the actual servo motor and the associated power level. The maximum standstill torque of the servo motor is 2.24 Nm. A single-phase mains connection with 110-120/200-240 VAC supplies the servo, for which the mains connection module VW3M9001 is required. The dimensions of the motor flange for fastening are 70 mm. The end of the motor shaft is smooth and is designed for protection class IP54, while the motor housing is designed for IP54. The servo motor is composed of 2 power levels. The built-in Sin/Cos Hiperface absolute encoder is designed as a multiturn with 128 periods per revolution (131072 points/rev x 4096 revolutions). A holding brake is integrated. Thanks to the Green Premium eco-label, you can receive detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
