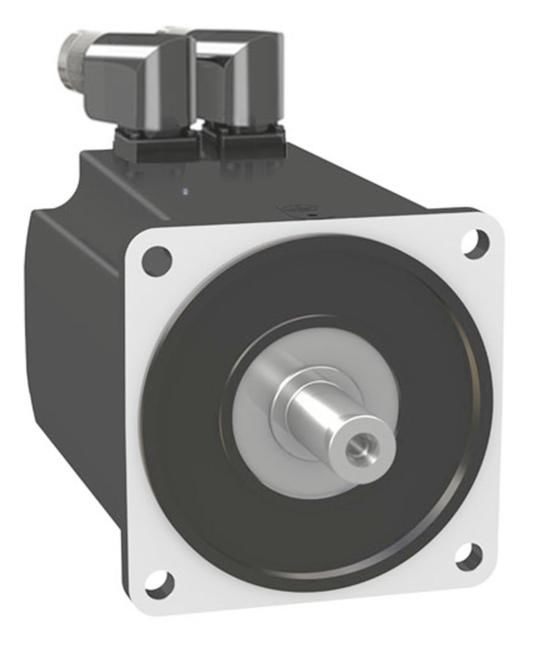

Schneider Electric BMH1402P06F2A
Schneider motor 18.5Nm IP54 Sigl. 16 BR off.
|
2.311,21 EUR 2.337,29 EUR |
|
|
( 2.750,34 EUR incl. VAT ) ≈ £1,983.02 | ≈ $2,678.69 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 405353 |
| Mfg Part No: | BMH1402P06F2A |
| UPC/EAN: | 3606485207780 |
| Weight: | 0.123 kg |
Further Engines and accessories from Schneider ElectricFurther products in category Engines and accessories
All products of Schneider Electric
Product information for Schneider Electric BMH1402P06F2A:
BMH servo motor from the Lexium 32 servo drive series. The BMH series of three-phase AC servo motors has a medium rotor moment of inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, a very high power density is achieved in a compact design. This servo has a nominal continuous stall torque of 16.8 Nm and reaches a peak torque of 50.4 Nm. Its nominal speed is up to 3000 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 3550 W. The built-in encoder is designed as a single-turn with 16 periods/revolution (16x1024) as a SinCos Hiperface. The electrical connection is made via 2x M23 connectors, angled by 90° and rotatable. The motor flange is 140 mm for fastening. The drive shaft has a diameter of 24 mm. The shaft end is smooth and conforms to protection class IP54. The motor housing conforms to protection class IP54. A holding brake is integrated. The servo amplifiers from the Lexium LXM32 series are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can obtain detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BMH1402P06F2A
Type: BMH1402P06F2A
Questions & answers
What is the delivery time of Schneider Electric BMH1402P06F2A Schneider motor 18.5Nm IP54 Sigl. 16 BR off.?
The article Schneider Electric BMH1402P06F2A Schneider motor 18.5Nm IP54 Sigl. 16 BR off. is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric BMH1402P06F2A to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric BMH1402P06F2A Schneider motor 18.5Nm IP54 Sigl. 16 BR off. always at the best possible price. We can give you a discount of 2% on Schneider Electric BMH1402P06F2A Schneider motor 18.5Nm IP54 Sigl. 16 BR off. if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
