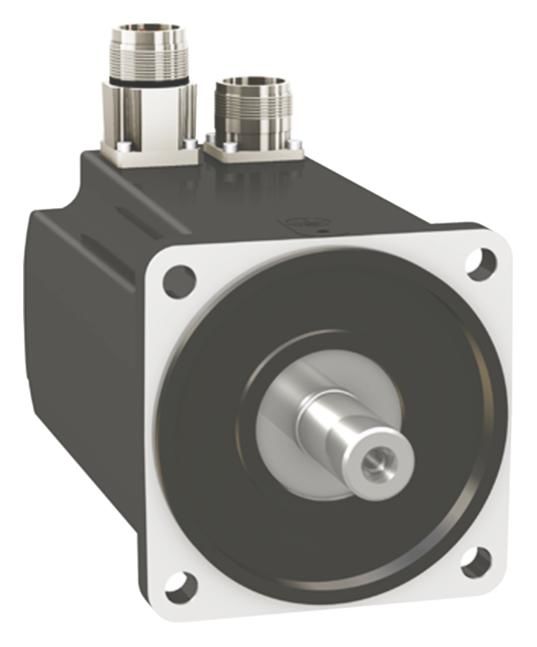

Schneider Electric BMH1001P07A1A Schneider servo motor 3 6000rpm smooth shaft end without brake IP54

BMH servo motor from the Lexium 32 servo drive series. The BMH series of three-phase AC servo motors has a medium rotor moment of inertia and is perfectly suited for applications with high loads. Thanks to the winding technology, a very high power density is achieved in a compact design. This servo has a nominal continuous stall torque of 3.4 Nm and achieves a peak torque of 10.2 Nm. Its nominal speed is up to 5000 rpm depending on the supply voltage. This results in a voltage-dependent nominal power of up to 1520 W. The built-in encoder is designed as a multiturn with 16 periods/revolution (16x1024x4096) as a SinCos Hiperface. The electrical connection is made via 2x M23 connectors in a straight design. The motor flange is 100 mm for fastening. The drive shaft has a diameter of 19 mm. The shaft end is smooth and conforms to protection class IP54. The motor housing conforms to protection class IP54. There is no holding brake. The Lexium LXM32 series servo drives are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can obtain detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Type: BMH1001P07A1A
