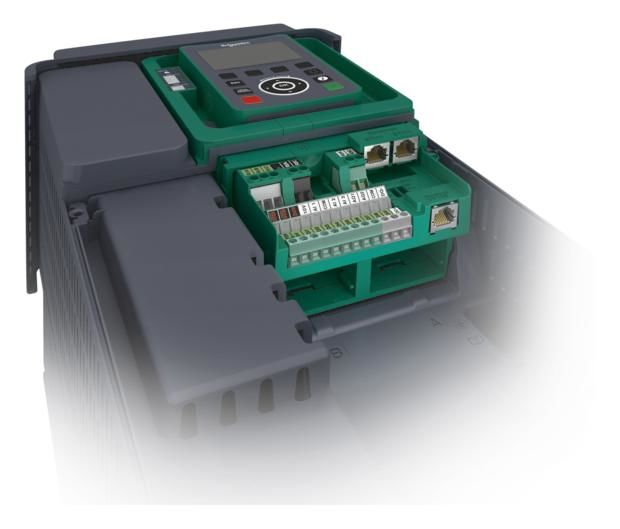

Schneider Electric ATV930D45M3C
Schneider frequency inverter IP21 45kW 200/240V without brake module
|
7.406,20 EUR 7.718,04 EUR |
|
|
( 8.813,38 EUR incl. VAT ) ≈ £6,354.52 | ≈ $8,583.79 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 1863552 |
|---|---|
| Mfg Part No: | ATV930D45M3C |
| UPC/EAN: | 3606480883705 |
| Weight: | 0.123 kg |
Further Frequency converter, soft starter from Schneider ElectricFurther products in category Frequency converter, soft starter
All products of Schneider Electric
Product information for Schneider Electric ATV930D45M3C:
Altivar 900 process frequency converter - converter for moving solid bodies & mechanics e.g. crushers, mixers, extruders, conveyor belts, cranes. Wall mounting. Frequency converter ATV930, without brake module. Dimensions 290 x 922 x 325.5 mm, power KW 45 kW. Supply voltage, three-phase 200-240 V 50/60 Hz. Output frequency 0.1-500 Hz. Overload in normal operation 120% for 60s, overload in high overload mode 150% for 60s (when downgrading by one power class). Control types asynchronous motors, constant torque, variable torque, optimized torque mode, synchronous motor PM, (permanent magnet) motor. Integrated web server with direct access to system configuration and monitoring, simple master/slave coupling via Ethernet, with load balancing. Application functions for e.g. conveyor belts or cranes. Continuous and historical real-time measurements with customizable dashboards. Integrated safety function STO (Safe Torque Off) SIL3. Number of integrated I/O Analog inputs 2 analog differential inputs, logic inputs 8, relay outputs 3, analog outputs 2. Integrated communication Ethernet-based (with 2 ports, internally switched) Modbus/TCP, Ethernet/IP. Serial communication Modbus RS485 interface. Configuration and control elements Decentralized graphical operator terminal, integrated web server, DTM (Device Type Manager), SoMove software. Optional I/O expansion cards, relay output cards. Optional communication cards (CANopen Daisy Chain RJ45, Sub-D and screw terminals, ProfiNet, Profibus DP V1, EtherCAT and DeviceNet).
Type: ATV930D45M3C
Type: ATV930D45M3C
Questions & answers
What is the delivery time of Schneider Electric ATV930D45M3C Schneider frequency inverter IP21 45kW 200/240V without brake module?
The article Schneider Electric ATV930D45M3C Schneider frequency inverter IP21 45kW 200/240V without brake module is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric ATV930D45M3C to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric ATV930D45M3C Schneider frequency inverter IP21 45kW 200/240V without brake module always at the best possible price. We can give you a discount of 2% on Schneider Electric ATV930D45M3C Schneider frequency inverter IP21 45kW 200/240V without brake module if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Schneider Electric ATV930D45M3C Schneider frequency inverter IP21 45kW 200/240V without brake module
 |
Schneider Electric VW3A3607 PROFIBUS option card DPv1, VW3-A3607
Communication cards for Altivar. Communication card Profibus DP V1, 1 x 9-pin SUB-D socket strip. Lieske Part No.: 323414 Mfg Part No: VW3A3607 |
235,50 EUR 245,41 EUR
 ≈ £202.06 | ≈ $272.94
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150B7 Contactor 3P, 1M + 1B 75kW 400VAC3 150A 24V 50 / 60Hz
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 359879 Mfg Part No: LC1D150B7 |
915,67 EUR 944,79 EUR
≈ £785.64 | ≈ $1,061.26
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3627 option card Profinet ATV32,
Communication cards for Altivar. ProfiNet communication card, 1 x 9-pin SUB-D connector. Lieske Part No.: 580178 Mfg Part No: VW3A3627 |
294,50 EUR 306,90 EUR
≈ £252.68 | ≈ $341.33
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150F7 Contactor, 3p + 1M + 1B 75kW / 400V / 150A AC3 110V50 / 60Hz
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 582166 Mfg Part No: LC1D150F7 |
955,84 EUR 986,25 EUR
≈ £820.11 | ≈ $1,107.82
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150E7 Contactor, 3p + 1M + 1B 75kW / 400V / 150A AC3 48V50 / 60Hz
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 583394 Mfg Part No: LC1D150E7 |
915,67 EUR 944,79 EUR
≈ £785.64 | ≈ $1,061.26
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150FE7 Contactor, 3p + 1M + 1B 75kW / 400V / 150A AC3 115V50 / 60Hz
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 583396 Mfg Part No: LC1D150FE7 |
955,84 EUR 986,25 EUR
≈ £820.11 | ≈ $1,107.82
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3609 option card, Devicenet f.Lxm32 & ATV32
Communication cards for Altivar. DeviceNet communication card, 1 x removable connector block with 5 screw terminals. Lieske Part No.: 608644 Mfg Part No: VW3A3609 |
233,70 EUR 243,54 EUR
≈ £200.51 | ≈ $270.86
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3608 option card CANopen Daisy Chain f.Lxm
Communication cards for Altivar. Communication card CANopen Daisy Chain, 2 x RJ45. Lieske Part No.: 609755 Mfg Part No: VW3A3608 |
109,72 EUR 114,35 EUR
≈ £94.14 | ≈ $127.17
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3618 option card ,, CANopen, SUB D9, f.LXM32 & ATV32
Communication cards for Altivar. CANopen communication card, 1 x 9-pin SUB-D connector. Lieske Part No.: 609758 Mfg Part No: VW3A3618 |
110,60 EUR 115,26 EUR
≈ £94.89 | ≈ $128.19
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A1112 Remote mounting kit IP65,
Communication. RJ45 cable entry for control cabinet front - mounting kit IP65. Door mounting kit, for graphic remote terminal, frequency converter, IP65. Lieske Part No.: 630917 Mfg Part No: VW3A1112 |
40,66 EUR 42,37 EUR
≈ £34.89 | ≈ $47.12
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150P7 Contactor LC1-D150P7, 75kW 230VAC 1 NO 1 NC
3-pole contactors LC 1- D Control voltage 230V 50/60 Hz - The contactors provide basically two integrated auxiliary switches: 1S + 1Ö NC - Connection type: Screw Motor rating AC-3: 75 kW . Lieske Part No.: 804266 Mfg Part No: LC1D150P7 |
827,44 EUR 827,44 EUR
≈ £709.94 | ≈ $959.00
Delivery time on requestinfo_outline
|
 |
Schneider Electric LC1D150BD Schneider contactor, 3 pole 150A 24VDC 1NO 1NC 80kW T = 136mm
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 811272 Mfg Part No: LC1D150BD |
1.002,36 EUR 1.034,25 EUR
≈ £860.02 | ≈ $1,161.74
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3628 Schneider option card CANopen KONN. LXM32
Kommunikationskarten für Altivar. Kommunikationskarte CANopen, 1 x 5-polige Schraubklemmenleiste. Lieske Part No.: 954407 Mfg Part No: VW3A3628 |
101,17 EUR 105,44 EUR
≈ £86.80 | ≈ $117.26
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3601 VW3-A3601 Ethercatmodul to ATV32 EtherCAT 2xRJ45
Communication cards for Altivar. Communication card Ethercat 2 x RJ45. Lieske Part No.: 958318 Mfg Part No: VW3A3601 Type: VW3-A3601 |
297,35 EUR 309,87 EUR
≈ £255.13 | ≈ $344.63
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3203 Schneider Extended I/O module digital 6E/2A analog 2E
This I/O extension module allows your drive to meet the needs of an application that manages additional or specific sensors. Thanks to its modular, withdrawable design, Altivar drives can be easily ... Lieske Part No.: 1345773 Mfg Part No: VW3A3203 |
320,15 EUR 333,63 EUR
≈ £274.69 | ≈ $371.05
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3721 Schneider OPTION ETHERNET/IP. MODBUS TCP. MD LINK
Accessories for frequency converters - perfectly coordinated. Lieske Part No.: 1769158 Mfg Part No: VW3A3721 |
511,10 EUR 532,62 EUR
≈ £438.52 | ≈ $592.36
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A3204 Schneider Advanced relay module 3 relays
Accessories for frequency converters - perfectly coordinated. Lieske Part No.: 1770025 Mfg Part No: VW3A3204 |
289,75 EUR 301,95 EUR
≈ £248.61 | ≈ $335.82
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric VW3A5306 Schneider Du/dt output filter for frequency inverter IP00
Output filter du/dt Three-phase supply voltage 200-240 V. Du/dt output filter for frequency converter, IP00, for ATV630D30M3 - D45M3 converters. Rated current 180 A, max. switching frequency 2.5 kHz. Lieske Part No.: 1770268 Mfg Part No: VW3A5306 |
1.207,45 EUR 1.258,29 EUR
≈ £1,035.99 | ≈ $1,399.43
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150V7 Schneider power contactor 3p 1S1Ö 75kW 400V AC3 150A 400V 50/60Hz
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 1771480 Mfg Part No: LC1D150V7 |
955,84 EUR 986,25 EUR
≈ £820.11 | ≈ $1,107.82
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150U7 Schneider power contactor 3p 1S1Ö 75kW 400V AC3 150A 240VAC
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 1771481 Mfg Part No: LC1D150U7 |
955,84 EUR 986,25 EUR
≈ £820.11 | ≈ $1,107.82
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Schneider Electric LC1D150ED Schneider power contactor 3p 1S1Ö 75kW 400V AC3 150A 48VDC
TeSys LC1D power contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC contact, rated operating power at AC-3, 400 V 75 kW, rated operating current Ie at AC-3, 400 V 150 A, ... Lieske Part No.: 1771483 Mfg Part No: LC1D150ED |
918,84 EUR 948,06 EUR
≈ £788.36 | ≈ $1,064.94
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
