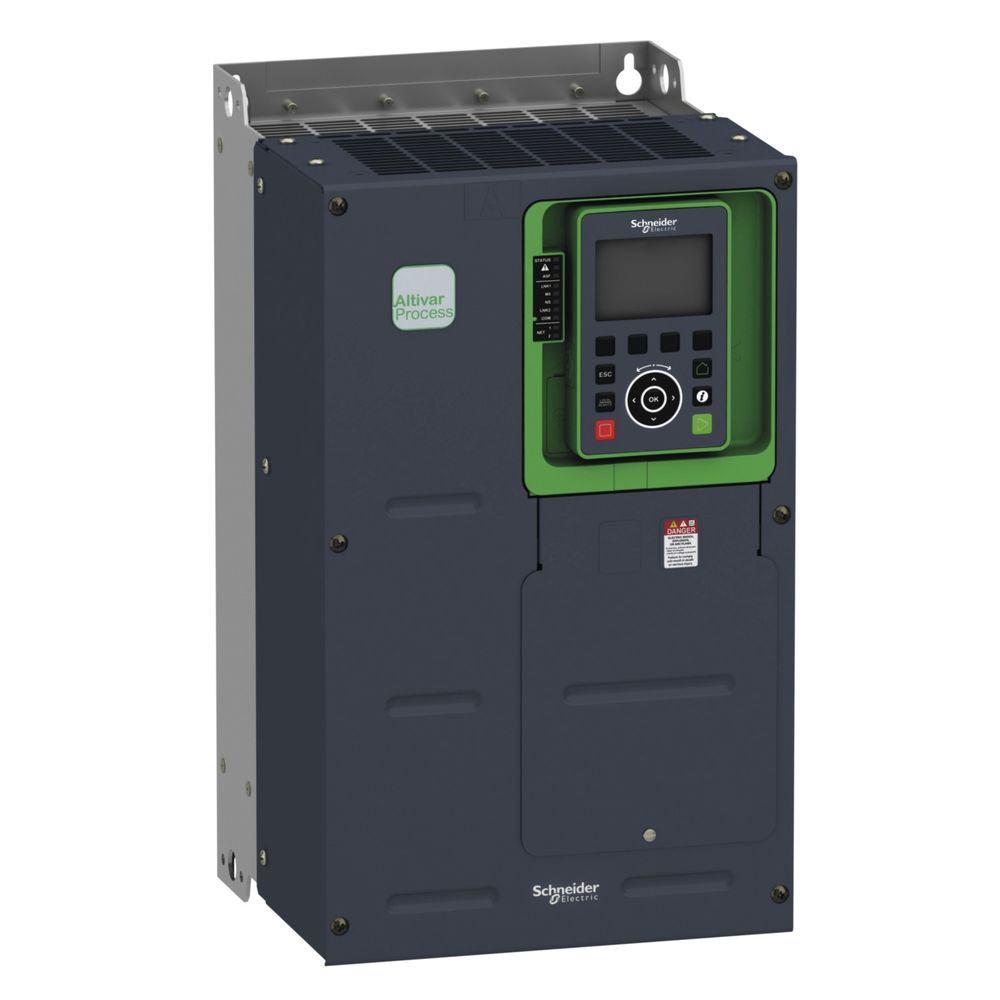

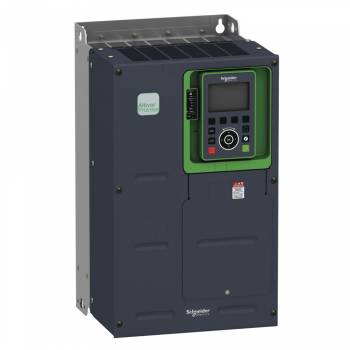

Schneider Electric ATV630D15Y6 Schneider ATV 630 15KW IP00 3x500-690V

This Altivar Process ATV600 variable speed drive can drive 3-phase synchronous and asynchronous motors. It comes standard with 3 built-in RJ45 communication ports, 1 Ethernet port, 2 serial ports. It operates on a nominal supply voltage of 500V to 690V AC. Thanks to the innovative ''Stop and Go'' operation, this drive saves up to 30% energy in standby mode at no additional cost. It is suitable for motors up to 15kW / 20HP for applications requiring light overload (up to 120%). It is suitable for motors up to 11kW / 15HP for applications requiring significant overload (up to 150%). It weighs 22kg and has the following dimensions: 246mm wide, 420mm high, 242mm deep. This drive is focused on fluid processing and energy savings. It offers complete flexibility in the water and wastewater, mining, minerals and metals, oil and gas, and food and beverage sectors. Accessories (fan kit, graphic terminal) and options (I/O extension modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives depending on the drive power. It is designed to be mounted in a vertical position (+/- 10°) on a wall. This new drive concept meets the most important requirements of process and utility companies in terms of plant efficiency and total cost of ownership. As it supports energy management, asset management and also the overall performance of the process.
Type: ATV630D15Y6
