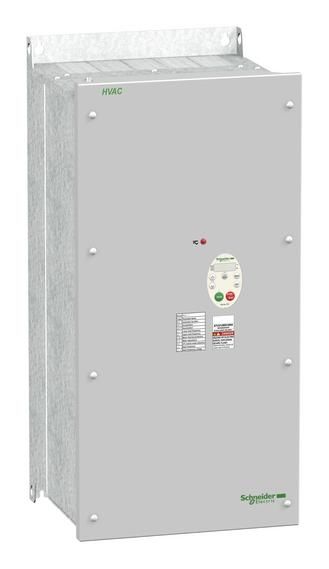

Schneider Electric ATV212WD18N4 Schneider frequency converter IP55 18
|
3.438,05 EUR 3.582,81 EUR |
|||||||||||
|
( 4.091,28 EUR incl. VAT ) ≈ £2,912.03 | ≈ $3,850.62 plus delivery charges |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 713760 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | ATV212WD18N4 | ||||||||||
| UPC/EAN: | 3606480322259 | ||||||||||
| Weight: | 40 kg | ||||||||||
| Type: | ATV212WD18N4 | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Frequency converter, soft starter from Schneider ElectricFurther products in category Frequency converter, soft starter
All products of Schneider Electric
Product information for Schneider Electric ATV212WD18N4:
Converter for HVAC applications. Frequency converter ATV212, EMC class C2, IP55. Power KW 18.5 kW. Mains 380-480 V, 3-phase, 50/60 Hz, can be connected in series. No additional DC choke required (current distortion factor THDi < 35%). Class C2 integrated (with protection class IP55 also class C1 possible). Plug & Drive version for immediate commissioning after connection. Max. overload torque 120%. Integrated communication buses for building technology Modbus, BACNet, METASYS N2, APOGEE FLN. Pluggable option cards for LonWorks. Low Harmonic Technology (LHT) for environmentally friendly use. No accessories are required to reduce harmonic currents as required by the building regulations (no DC chokes, line chokes) THDi (current distortion factor) < 35% (IEC 61000-3-12 < 48%). Self-adaptation of acceleration and deceleration ramps to optimise energy consumption. Remote control terminal for self-adjustment of functions and remote loading/saving of configurations. Excellent resistance to difficult environmental conditions (50°C in continuous operation).
Questions & answers
What is the delivery time of Schneider Electric ATV212WD18N4 Schneider frequency converter IP55 18?
The article Schneider Electric ATV212WD18N4 Schneider frequency converter IP55 18 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric ATV212WD18N4 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric ATV212WD18N4 Schneider frequency converter IP55 18 always at the best possible price. We can give you a discount of 2% on Schneider Electric ATV212WD18N4 Schneider frequency converter IP55 18 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Schneider Electric ATV212WD18N4 Schneider frequency converter IP55 18 we can offer you a price of 3.334,91 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
