Schneider Electric A9W22225

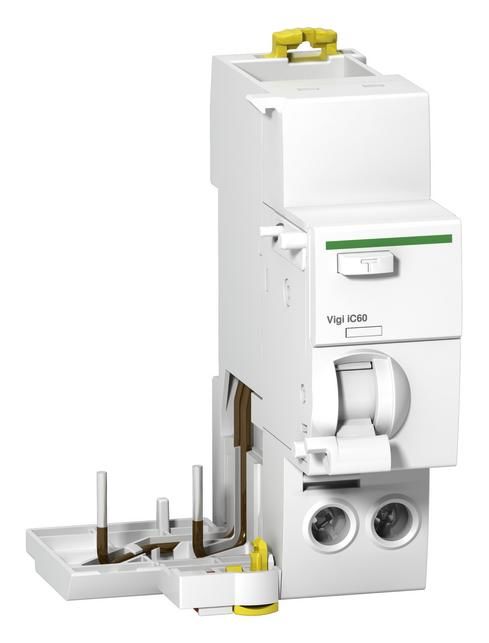

Schneider Fi-Block Vigi iC60N/H 2p 25A 100mA Type A
|
180,97 EUR 188,60 EUR |
|||||||||||
|
( 215,35 EUR incl. VAT ) ≈ £155.63 | ≈ $206.31 plus delivery charges: 53,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1856566 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | A9W22225 | ||||||||||
| UPC/EAN: | 3606480443619 | ||||||||||
| Weight: | 0.138 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Switching units / measuring, control relay from Schneider ElectricFurther products in category Switching units / measuring, control relay
All products of Schneider Electric
Product information for Schneider Electric A9W22225:
FI-Block Acti 9 Vigi iC60N/H. 2-pole, nominal current 25A, nominal residual current 100mA, type A, operating voltage (Ue) 400-415V AC, insulation voltage (Ui) 500V AC. Can be mounted on the right-hand side of the iC60N/H series circuit breaker. Tripping due to residual current is indicated by a red, mechanical indicator on the knob. Terminals IP 20. Test button for regular function testing. Technology of the trip unit - thermomagnetic. Additional auxiliary modules that can be added in series (optional) - fault signaling switch, auxiliary switch, undervoltage release, overvoltage release, shunt release. The Vigi iC60N/H FI-Block meets the following standards - IEC/EN 61009-1. This series is also VDE certified!
Type: A9W22225
Type: A9W22225
Questions & answers
What is the delivery time of Schneider Electric A9W22225 Schneider Fi-Block Vigi iC60N/H 2p 25A 100mA Type A?
The article Schneider Electric A9W22225 Schneider Fi-Block Vigi iC60N/H 2p 25A 100mA Type A is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric A9W22225 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric A9W22225 Schneider Fi-Block Vigi iC60N/H 2p 25A 100mA Type A always at the best possible price. We can give you a discount of 2% on Schneider Electric A9W22225 Schneider Fi-Block Vigi iC60N/H 2p 25A 100mA Type A if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Schneider Electric A9W22225 Schneider Fi-Block Vigi iC60N/H 2p 25A 100mA Type A we can offer you a price of 171,47 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
