Schneider Electric 5197100
Schneider floor outlet box UFB-800 gray for hole diameter 305 mm
|
99,56 EUR |
|
|
( 118,48 EUR incl. VAT ) ≈ £85.42 | ≈ $115.39 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 1859001 |
|---|---|
| Mfg Part No: | 5197100 |
| UPC/EAN: | 7315885197107 |
| Weight: | 0.123 kg |
Further Underfloor ducts and accessories from Schneider ElectricFurther products in category Underfloor ducts and accessories
All products of Schneider Electric
Product information for Schneider Electric 5197100:

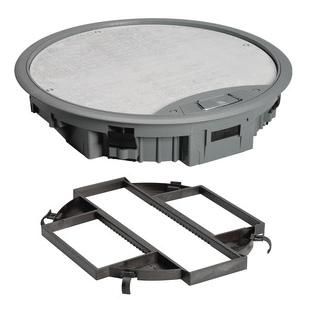

Floor tank UFB-800 grey similar to RAL 7011 for hole ø 305 mm / UFB-800-BAD 7011. Complete floor tank with grid, cover frame and lid. The lid can be aligned in four directions during installation. The grid has three F80 openings (1 x 284 and 2 x 142) for power, telecommunications and data sockets as well as four 17.5 x 18.2 mm openings for Actassi modular sockets. The openings can also be used for pipes if a continuous line is to be led through the tank. The grid can be snapped onto the cover frame and is adjustable in seven steps from 70 mm to 100 mm. Blanking cover UFB-L142 is used to fill empty openings in the grid. Suitable for raised floors, hollow floors and. Screed floors with a minimum height of 70 mm, in the latter case in conjunction with the underfloor box UFB-IG. Material: PA/ABS, PA6.6 with 35% glass fiber, sheet steel S 350 GD.
Type: 5197100
Type: 5197100
Questions & answers
What is the delivery time of Schneider Electric 5197100 Schneider floor outlet box UFB-800 gray for hole diameter 305 mm?
The article Schneider Electric 5197100 Schneider floor outlet box UFB-800 gray for hole diameter 305 mm is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Schneider Electric 5197100 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Schneider Electric 5197100 Schneider floor outlet box UFB-800 gray for hole diameter 305 mm always at the best possible price. We can give you a discount of 2% on Schneider Electric 5197100 Schneider floor outlet box UFB-800 gray for hole diameter 305 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
