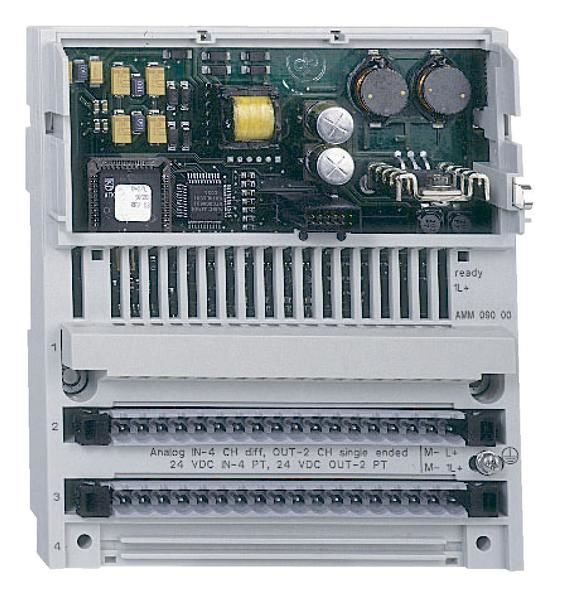

Schneider Electric 170AMM09000 MOMENTUM 2AI 2AO U/I 4DI 2DO 24VDC
|
-13% 1.381,16 EUR 1.580,85 EUR |
|
|
( 1.643,58 EUR incl. VAT ) ≈ £1,151.89 | ≈ $1,544.14 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 592637 |
| Mfg Part No: | 170AMM09000 |
| UPC/EAN: | 3595861000292 |
| Weight: | 0.412 kg |
| Type: | 170AMM09000 |
Further PLC Systems from Schneider ElectricFurther products in category PLC Systems
All products of Schneider Electric
Product information for Schneider Electric 170AMM09000:
Momentum. Analog and digital I/O units. Dec. anal./dig. I/O input. Modicon Momentum, input type 4 analog differential inputs 11-13 bit + sign (range dependent), 24V DC, 2 anal. outputs 12 bit + sign. Output 0-20 mA, ± 10 V, input ± 5 V, ± 10 V, 1-5 V, ± 20 mA, 4-20 mA.
| Complementary | |
| Conversion consistency | +/- 0.02 % +/- 10 V analogue input circuit; +/- 0.04 % +/- 20 mA analogue input circuit; +/- 0.04 % +/- 5 V analogue input circuit; +/- 0.04 % 1...5 V analogue input circuit; +/- 0.04 % 4...20 mA analogue input circuit |
| Current state 1 guaranteed | >= 2.5 mA (discrete input) |
| Input overvoltage protection | -50…50 V |
| Input resistance | 1 MOhm analogue input circuit; 4 kOhm discrete input |
| Output load | = 3 kOhm +/- 10 V analogue output |
| Fail state | For analogue input circuit: hold; For analogue input circuit: reset to zero |
| Operating rate | 100 cyc/s resistive 1 A discrete output; 1000 cyc/h inductive 1 A discrete output; 8 cyc/s tungsten |
| Isolation voltage | 500 V (duration = 1 min) between analogue I/O and operating voltage; 500 V (duration = 1 min) between operating voltage and I/O from ground |
| Discrete input voltage | 24 V DC |
| Discrete input logic | Positive |
| Voltage state 0 guaranteed | -3...5 V |
| Voltage state 1 guaranteed | 11...24 V |
| Analogue input type | Differential, input range: +/- 10 V; Differential, input range: +/- 20 mA; Differential, input range: +/- 5 V; Differential, input range: 1...5 V; Differential, input range: 4...20 mA |
| Analogue input resolution | 12 bits; 13 bits; 14 bits |
| Common mode rejection | > 54 dB for analogue input circuit |
| Input voltage limits | < 30 V |
| Discrete output logic | Positive |
| Discrete output current | 1 A per point; 2 A per group; 2 A per module |
| Maximum leakage current | 1 mA for discrete output |
| Analogue output resolution | 12 bits, +/- 10 V; 12 bits, 0...20 mA |
| Response time | < 0.1 ms from state 0 to state 1 for discrete output; < 0.1 ms from state 1 to state 0 for discrete output; 2.2 ms from state 0 to state 1 for discrete input; 3.3 ms from state 1 to state 0 for discrete input |
| [Us] rated supply voltage | 24 V DC |
| Local signalling | 8 LEDs for channel status |
| Maximum power dissipation in W | 6 W |
| Height | 125 mm |
| Width | 141.5 mm |
| Depth | 47.5 mm |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Protective treatment | TC |
| Marking | CE |
| Product certifications | UL; CSA; FM Class 1 Division 2 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % without condensation |
| Logistical informations | |
| Country of origin | ID |
| Main | |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue,discrete I/O base |
| Group of channels | 1 group of 2 discrete outputs; 1 group of 4 discrete inputs; 1 group of 4 analog differential inputs; 1 group of 2 analog outputs |
| Analogue output range | +/- 10 V 12 bits; 0...20 mA 12 bits |
| Output short-circuit protection | With discrete output |
| Output overload protection | With discrete output |
| Discrete input number | 4 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 412.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.780 kg |
