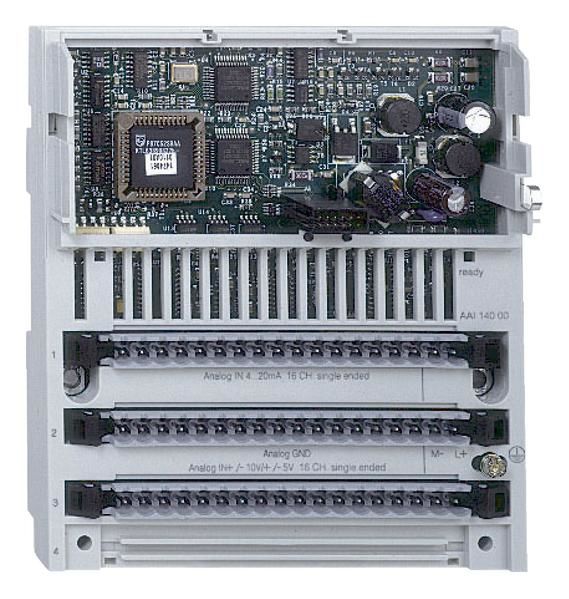

Schneider Electric 170AAI03000 MOMENTUM 8AI U/I 15BIT
|
-13% 1.223,67 EUR 1.400,59 EUR |
|
|
( 1.456,17 EUR incl. VAT ) ≈ £1,021.76 | ≈ $1,379.08 plus delivery charges: 55,00 € |
|
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 592490 |
| Mfg Part No: | 170AAI03000 |
| UPC/EAN: | 3595861147683 |
| Weight: | 0.4 kg |
| Type: | 170AAI03000 |
Further PLC Systems from Schneider ElectricFurther products in category PLC Systems
All products of Schneider Electric
Product information for Schneider Electric 170AAI03000:
Momentum. Analog input units. Dec. anal. Input unit, differential input, input type 14 bit + sign, ± 5 V, ± 10 V, ± 20 mA, 4-20 mA. Channels 8.
| Complementary | |
| Data format | Full 16 bits signed |
| Absolute accuracy error | +/- 0.13 % full scale 25 °C 1...5 V; +/- 0.19 % full scale 60 °C 1...5 V; +/- 0.21 % full scale 25 °C +/- 5 V; +/- 0.26 % full scale 60 °C +/- 5 V; +/- 0.27 % full scale 25 °C +/- 10 V; +/- 0.27 % full scale 25 °C 4...20 mA; +/- 0.32 % full scale 25 °C +/- 20 mA; +/- 0.32 % full scale 60 °C +/- 10 V; +/- 0.38 % full scale 60 °C 4...20 mA; +/- 0.41 % full scale 60 °C +/- 20 mA |
| Conversion time | 12 ms 8 |
| Permissible common mode voltage | 100 V 47...63 Hz DC between channels to ground; 250 V 47...63 Hz AC between channels to ground |
| Common mode rejection | > 80 dB between channels to ground |
| External power requirement | < 382 mA DC; 20.4...28.8 V DC; 24 V DC |
| Reverse polarity protection | Internal |
| Analogue input type | Differential +/-20 mA; Differential 4...20 mA; Differential +/- 10 V; Differential +/- 5 V; Differential 1...5 V; Differential +/- 20 mA |
| Analogue input resolution | 14 bits + sign +/- 20 mA; 15 bits + sign 4...20 mA; 14 bits + sign +/- 10 V; 14 bits + sign +/- 5 V; 15 bits + sign 1...5 V |
| Input impedance | 250 kOhm; > 0.1 kOhm |
| Isolation between channels | +/- 200 V |
| Isolation between channels and bus | 500 V AC |
| Isolation between channels and ground | 500 V AC |
| Electrical connection | 2 connectors for removable terminal blocks |
| Local signalling | 1 LED green for ready; 8 LEDs for channel status |
| Height | 125 mm |
| Width | 141.5 mm |
| Depth | 47.5 mm |
| Net weight | 0.215 kg |
| Contractual warranty | |
| Warranty (in months) | 18 |
| Environment | |
| Protective treatment | TC |
| Marking | CE |
| Product certifications | FM Class 1 Division 2; CSA; UL |
| Standards | EN 50081-2; IEC 1131 |
| Ambient air temperature for operation | 0…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Relative humidity | 0…95 % without condensation |
| Logistical informations | |
| Country of origin | ID |
| Main | |
| Range of product | Modicon Momentum automation platform |
| Product or component type | Analogue input base |
| Analogue input number | 8 |
| Packing Units | |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 400.000 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.421 kg |
