Sangoma A104E 4xPRI/E1 PCIe card

Your rating:
Average rating
product review for Sangoma A104E 4xPRI/E1 PCIe card
( 4.2 / 5 ) 9 ratings

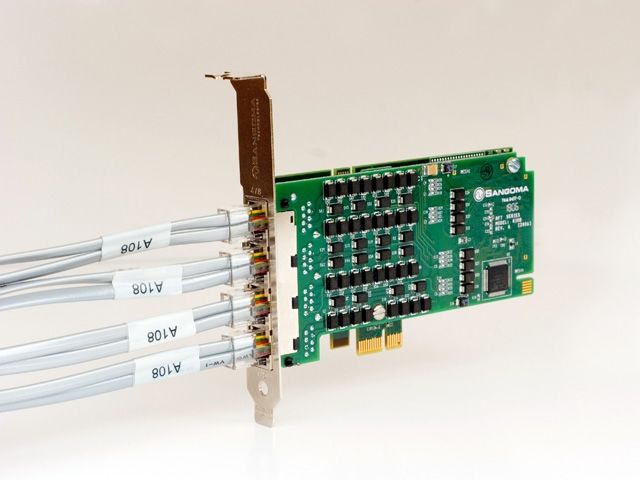

Sangoma A104E
This image may differ from the desired article.
1.433,76 EUR 1.433,76 EUR
( 1.706,17 EUR incl. VAT )
≈ £1,200.06  |  ≈ $1,575.70
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Sangoma A104E 4xPRI/E1 PCIe card
Lieske Part No.:940837
Mfg Part No: A104E
Weight:0.544 kg

Product information for Sangoma A104E:

The Sangoma A104E is a PCIe interface card for VoIP and telecommunications applications, supporting up to four T1/E1 or fractional T1/E1 data streams. This card serves as an interface module for digital telephony and data transmission systems, particularly in environments requiring PRI (Primary Rate Interface) or E1 connections. It is designed for use in servers, telephone systems, and network devices that require a stable and highly available connection to public telephone networks or private networks.

Applications

The card is used in professional communication infrastructures, for example in call centers, corporate networks, or by providers offering digital telephony over T1 or E1 lines. It enables the integration of analog or digital telephone connections into IP-based systems, with data streams transmitted to the host system via the PCI-Express interface. Support for fractional T1/E1 allows flexible use, where the full bandwidth of a channel is not required.

Functions and Features in Detail

The Sangoma A104E features four independent channels, each capable of processing a T1 or E1 data stream. T1 connections operate at a total bandwidth of 1.544 Mbit/s, with each channel providing 64 kbit/s. E1 connections utilize 2.048 Mbit/s total bandwidth with 32 channels at 64 kbit/s each. The card is designed for use in systems employing AFT technology (Analog Front End), enabling signal processing and connection to digital lines. The card is designed for operation in standard PC systems with a PCIe interface.

Technology Explained Simply

The A104E functions as a digital interface connecting analog or digital telephone and data channels to the host system via the PCI-Express bus structure. AFT technology ensures that signals from T1 or E1 lines are correctly received, processed, and forwarded to the software or operating system level. The card supports both full and fractional T1/E1 connections, enabling flexible use in various networks. The PCIe interface ensures high data transfer rates and a stable connection to the host system.

Compatibility and Accessories

The card is designed for use in standard PC systems with a PCIe interface. It is compatible with systems using PRI or E1 connections and can be integrated into VoIP platforms, PBX systems, or other communication solutions. Exact software compatibility depends on the operating system environment and installed drivers.

Installation and Mounting

Installation involves inserting the card into a free PCIe slot in the host computer. Physical mounting requires no special tools or additional components. After installation, the card must be activated via appropriate software or driver configuration. The exact configuration depends on the communication platform being used.

Operational Advantages

The Sangoma A104E provides a reliable and scalable solution for integrating T1/E1 connections into IP-based communication systems. Support for four channels enables a high number of simultaneous connections. The use of AFT technology ensures precise signal processing, which is important for the quality of telephony and data transmission. The PCIe interface ensures stable and fast data transfer to the host system. The card is designed for use in professional environments where high availability and reliability are required.

General
Number of channels4
Supported connectionsT1/E1 or fractional T1/E1
InterfacePCIe
TechnologyAFT


Questions & answers

What is the delivery time of Sangoma A104E 4xPRI/E1 PCIe card ?

The article Sangoma A104E 4xPRI/E1 PCIe card is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Sangoma A104E to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Sangoma A104E 4xPRI/E1 PCIe card always at the best possible price. We can give you a discount of 2% on Sangoma A104E 4xPRI/E1 PCIe card if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
