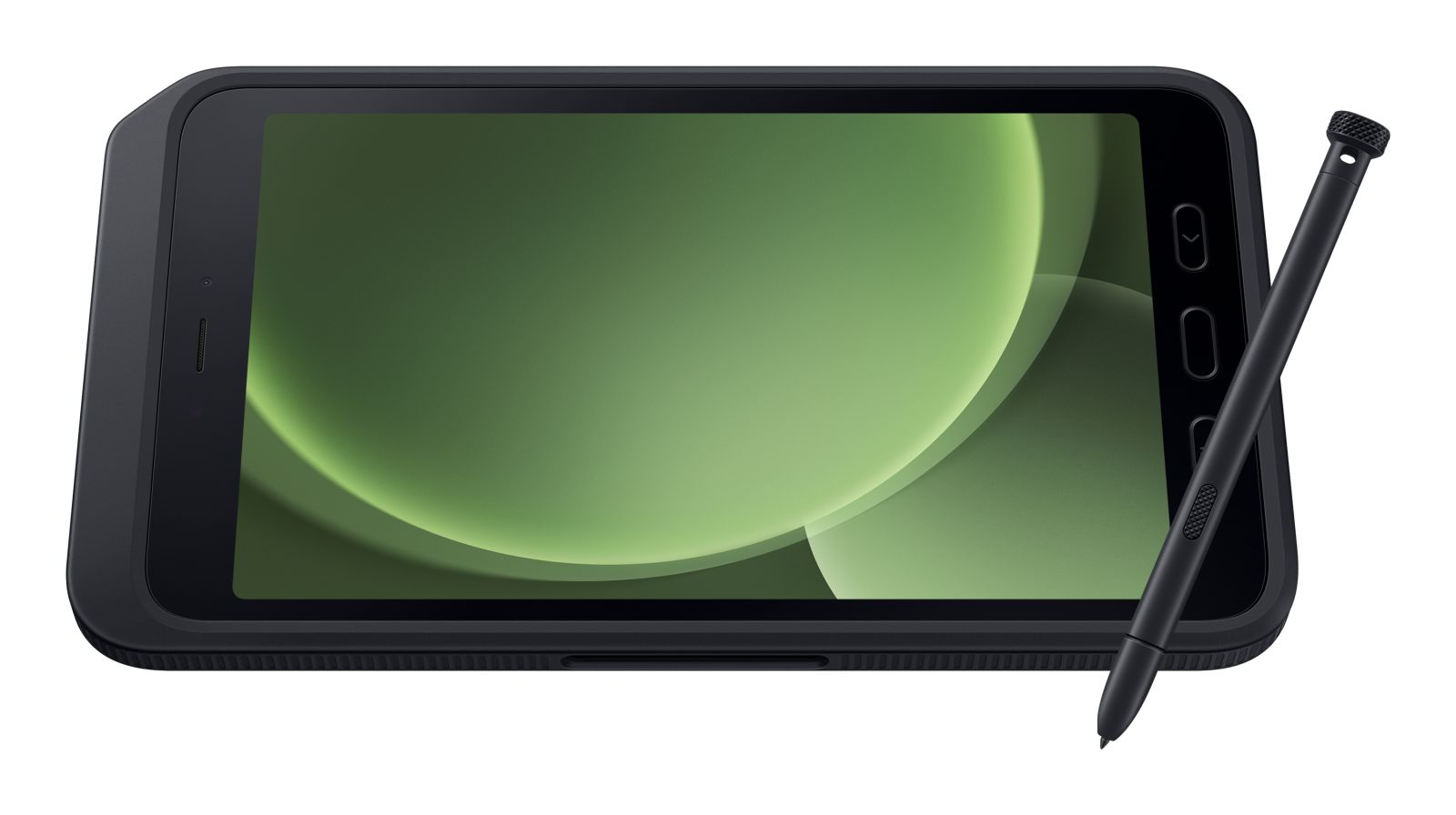

Samsung Galaxy Tab Active5 X306 128GB LTE Black/Size 20,3 cm ( 8 inch )(EU) Android content_copy

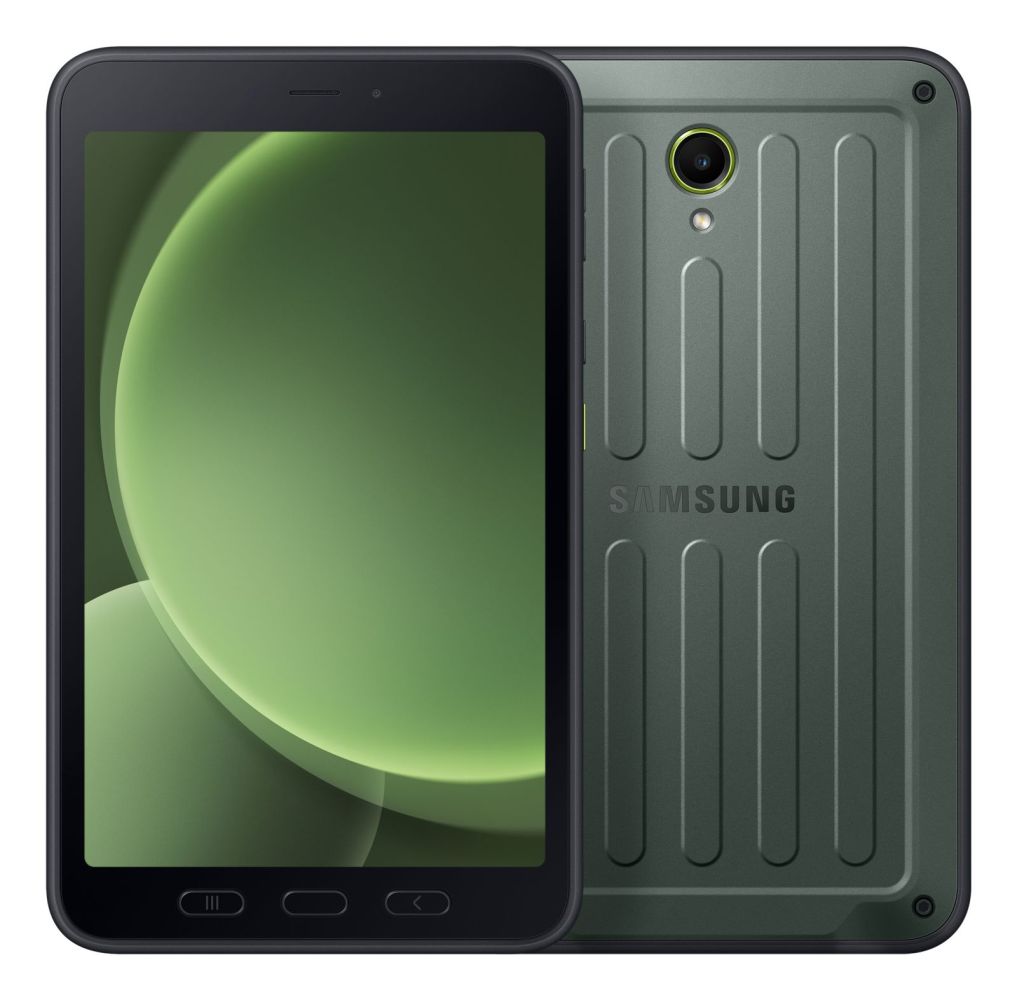

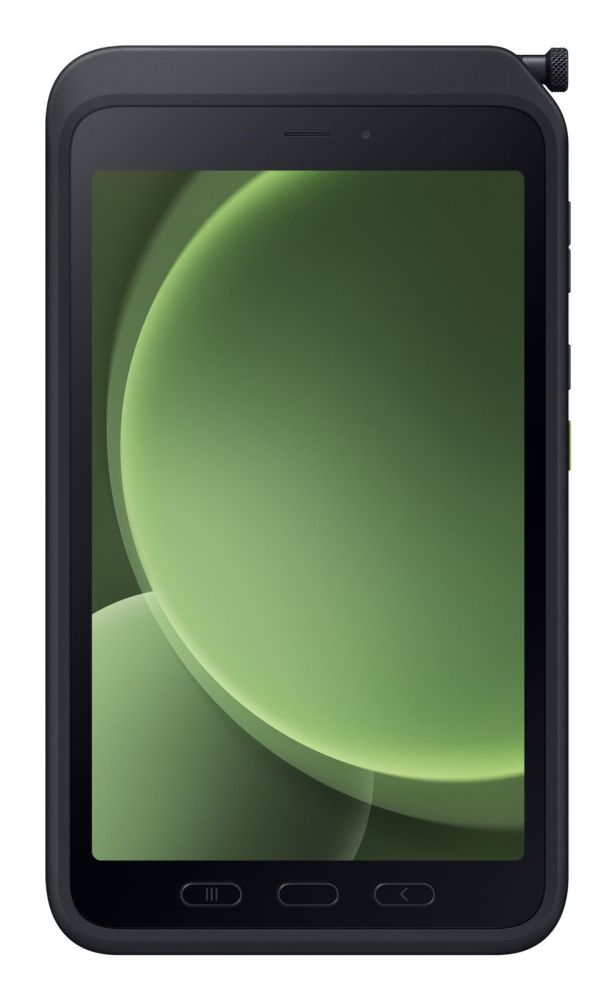

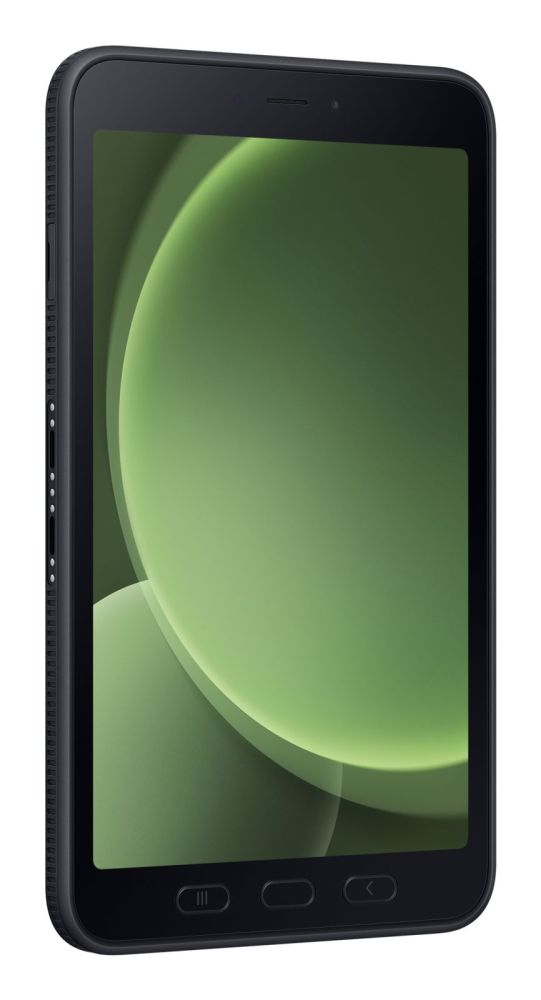

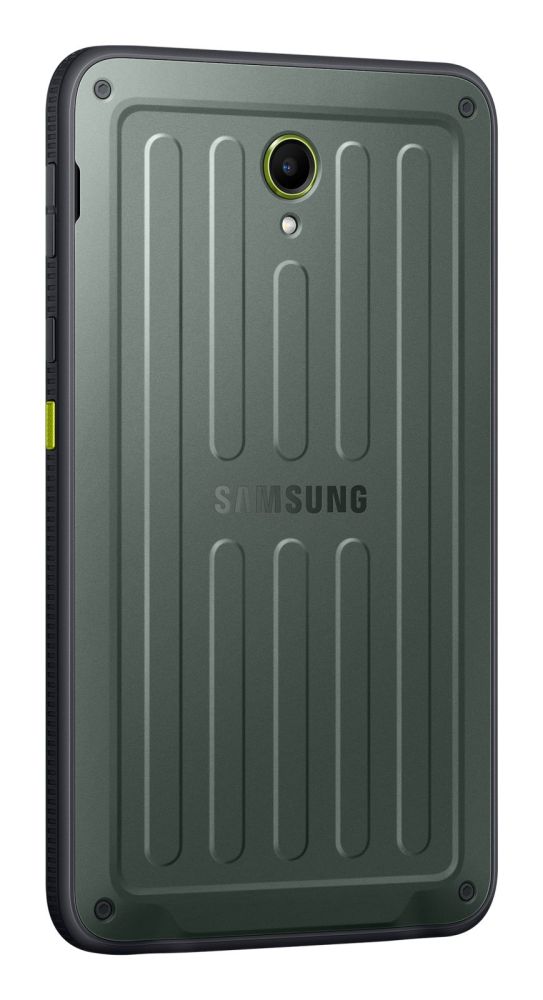

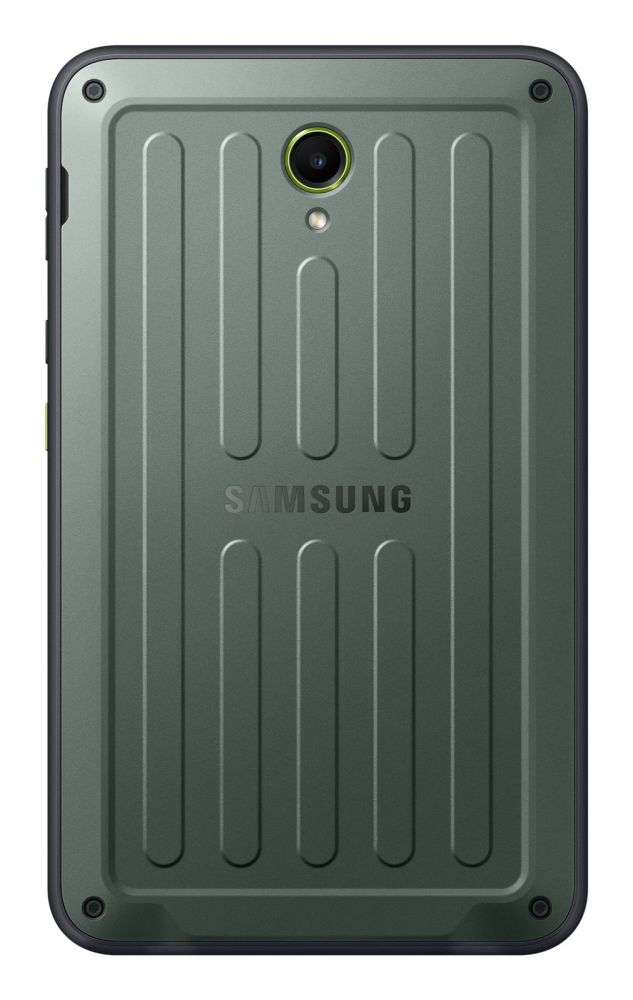

With the Galaxy Tab Active5, Samsung is presenting a new generation of particularly robust and versatile rugged tablets. The portable mobile devices were specially designed for use in harsh working environments, both indoors and outdoors. The Galaxy Tab Active5 with a 20.32 cm (8 inch) display diagonal has a replaceable battery and complies with the IP68 and MIL-STD-810H standards. A programmable button offers quick access to frequently used functions such as push-to-talk. This makes the device easy to integrate into everyday work. With the integration of Knox Vault and regular security updates, the new devices are also designed for high security and durability.

Highlights

• Portable 5G rugged tablet with a brilliant 20.31 cm (8 inch) display
• Robust and drop-proof according to IP68 and MIL-STD-810H
• Fast data transfer with 5G connectivity
• Dual SIM function enables eSIM and/or physical SIM card use
• Enterprise Edition: 3-year manufacturer's warranty, 2-year product life cycle and 1 year Knox Suite for corporate use
• 6 GB RAM and 128 GB internal memory (expandable)

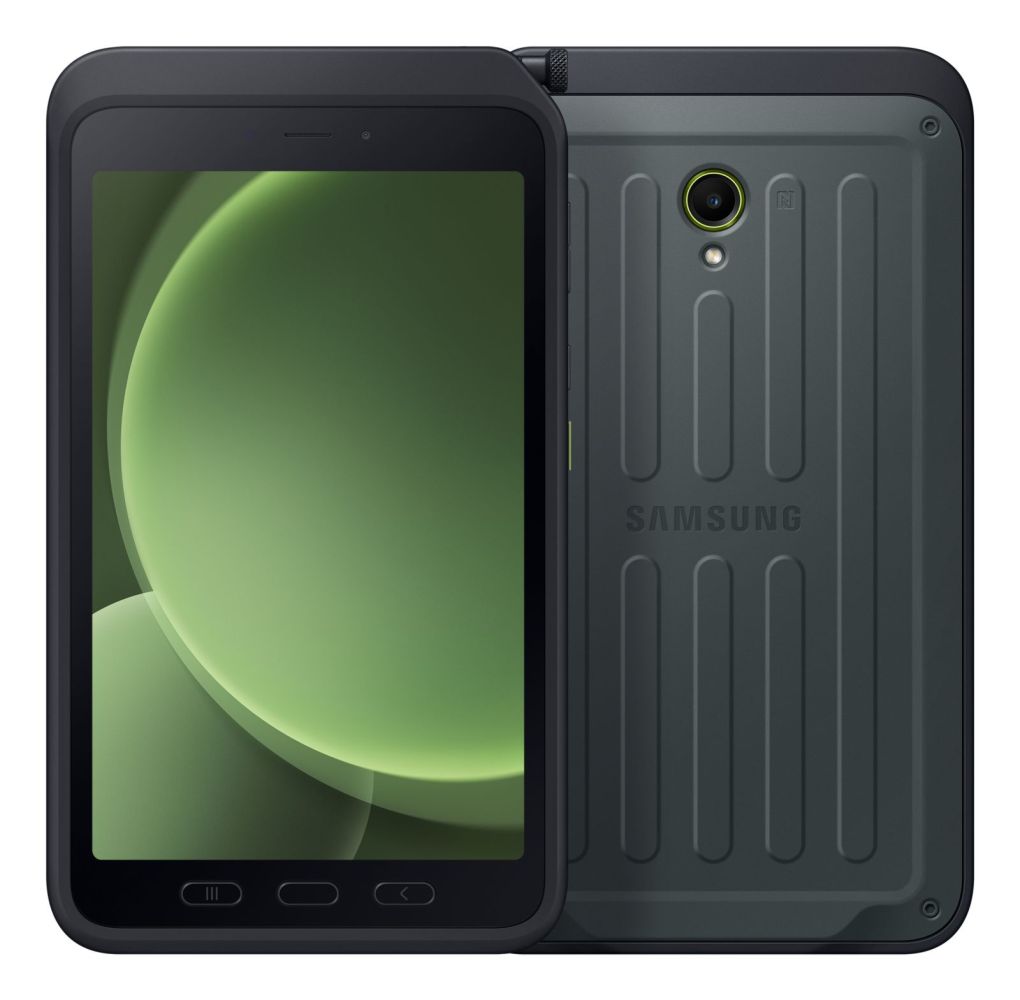

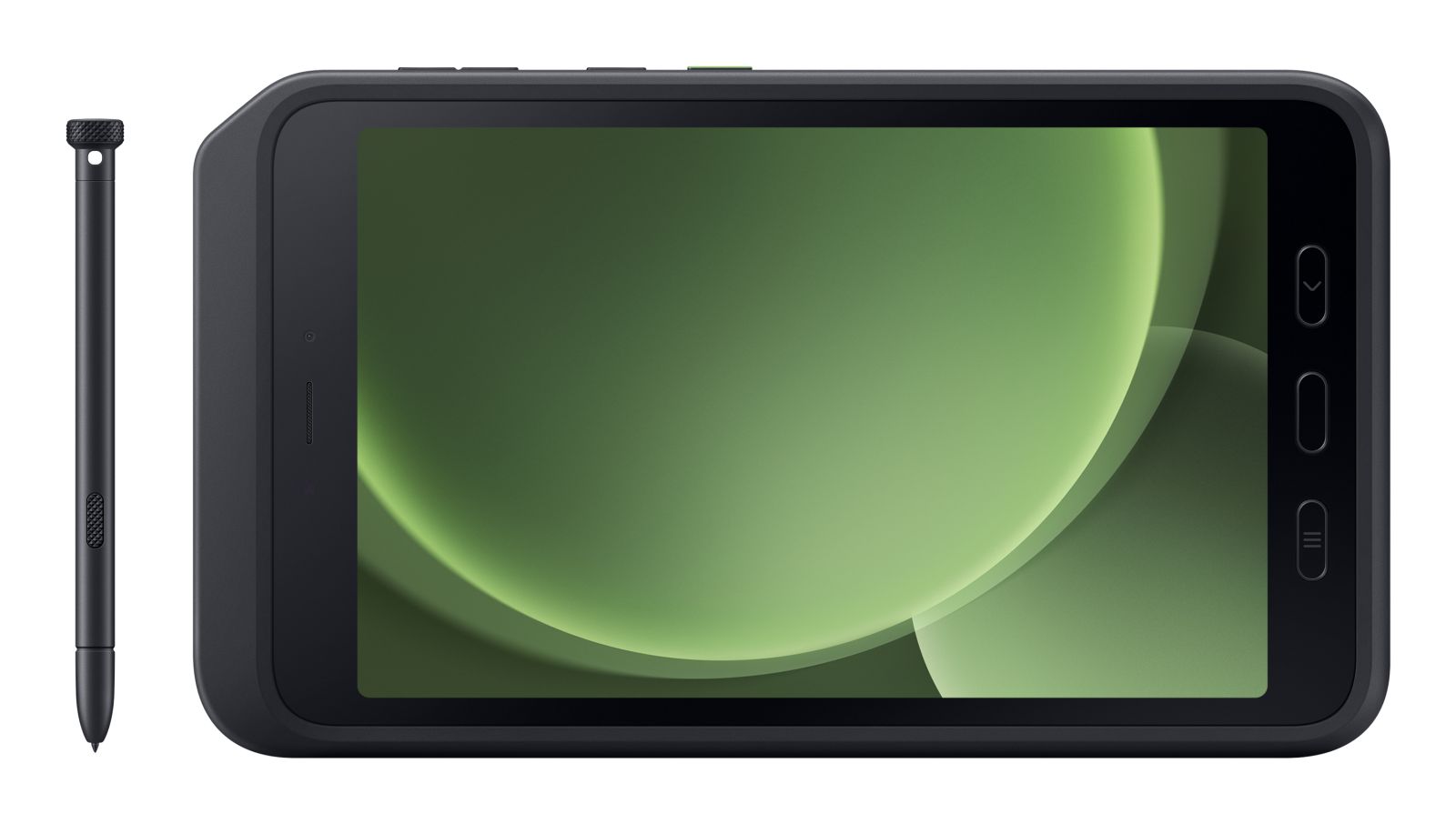

• Fast charger, protective cover and S Pen included
• Function key for quick access

Product type

• Tablet
• ear category (ElektroG): relevant, Category 6: small IT and telecommunications devices, small IT and telecommunications devices B2C

Specifications

• Protection class: MIL-STD-810H, IP68 - Dustproof, protection against permanent submersion
• Weight (including battery): 433 g

Shipping

• WEEE: 57734404
• Battery weight: 100.85 g
• Lithium weight: 1.47 g
• SCIP ID: 15d8d8be-e1db-4f19-94e9-a5c6bf966d51

Camera

• Number of front cameras: 1
• Max. front camera resolution: 5 MP
• Number of main cameras: 1
• Max. main camera resolution: 13 MP

Memory

• Internal memory: 128 GB
• Memory expandable by: 1 TB
• RAM: 6 GB
• Storage medium: microSD

Connections

• USB-C: 1
• Audio combo connection (3.5 mm jack): 1
• Connections highlights: POGO

Sensors

• Biometric sensors: face recognition, fingerprint

Display

• Display diagonal inches: 8 \dlash- Display diagonal cm: 20.3 cm
• Display technology: LCD-TFT
• Display glass: Corning Gorilla Glass 5
• Display resolution height: 1200 px
• Display resolution width: 1920 px
• Pixel density: 283 ppi
• Display brightness: 600 nt
• Refresh rate: 120 Hz

Cellular

• SIM card size: Nano-SIM (4FF)
• SIM card size SIM 2: eSIM
• Dual SIM

Input

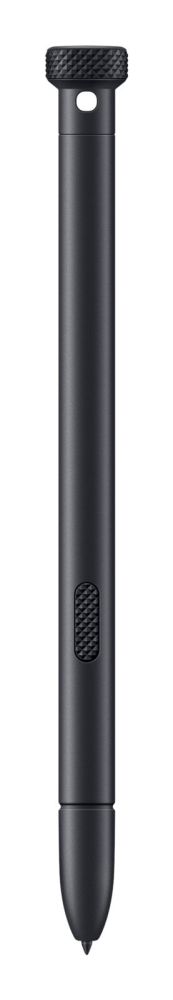

• Pen details: S Pen
• Pen
operation

Operating system

• Operating system version at launch: Android, 14
• User interface: One UI 6.0 > Power supply
• Battery capacity: 4900 mAh
• Battery technology: Li-Ion - Lithium-Ion
• Battery voltage: 3.85 V
• Battery installed: packed with device
• Battery highlights: Fast charging (15 W); Adaptive energy saving, Adaptive battery, Protect battery; POGO connector
• Charging time: 112 min
• Energy: 18.87 Wh

Processor

• Processor architecture: 64bit
• Processor series: Samsung Exynos
• Clock frequency: 2.4 GHz
• Processor name: Exynos 1380 (S5E8835)
• Number of processor cores: 8
• Processor highlights: Processor clock speed 4 x 2.4 GHz + 4 x 2.0 GHz

Data transfer

• Location: GPS, GLONASS, Beidou, Galileo, QZSS
• Bluetooth
• Bluetooth standard: 5.3
• Bluetooth profiles: A2DP - transmission (streaming) of audio data, AVRCP - remote control for audio/video, HFP - hands-free system, HID - connection to mouse or keyboard, HOGP - HID via GATT profile, HSP - voice output via headset, MAP - message exchange between devices, OPP - sending individual files, PAN - network connections, PBA, PBAP - access to phone book, PBP - Public Broadcast Profile, TMAP - Telephony and Media Audio Profile
• NFC
• 5G band: n1 (2100 MHz), n3 (1800 MHz), n5 (850 MHz), n7 (2600 MHz), n8 (900 MHz), n20 (800 MHz), n26 (850 MHz), n28 (700 MHz), n66 (1700 MHz), n38 (2600 MHz), n40 (2300 MHz), n41 (2500 MHz), n77 (3700 MHz), n78 (3500 MHz)
• WLAN standard: IEEE 802.11a - WiFi 2, IEEE 802.11b - WiFi 1, IEEE 802.11g - WiFi 3, IEEE 802.11n - WiFi 4, IEEE 802.11ac - WiFi 5, IEEE 802.11ax - WiFi 6
• Mobile standards: 4G - LTE Advanced (LTE-A from CAT 6), 5G
• LTE band: B1 (2100), B2 (1900 PCS), B3 (1800+), B4 (1700/2100 AWS 1), B5 (850), B7 (2600), B8 (900), B12 (700 ac), B13 (700 c), B17 (700 bc), B20 (800 DD), B26 (850+), B28 (700 APT), B32 (1500 L-band), B66 (1700/2100), B40 (TD 2300), B38 (TD 2600), B41 (TD 2500)
• SIM card size: Nano-SIM (4FF)
• SIM card size SIM 2: eSIM
• Dual-SIM
• WiFi Direct

Audio
Number of built-in speakers	1
Number of microphones	2
Speaker power	1.2 W
Battery
Battery capacity	5050 mAh
Battery endurance in cycles	2000
Continuous video playback time (max)	16 h
Browsing time (Wi-Fi) (max)	14 h
Browsing time (4G) (max)	15 h
Talk time (4G) (max)	33 h
Battery included
Removable battery
Camera
Rear camera type	Single camera
Rear camera resolution (numeric)	13 MP
Rear camera aperture number	1.9
Maximum video resolution	3840 x 2160 pixels
Video recording modes	2160p
Resolution at capture speed	3840x2160@30fps
Front camera resolution (numeric)	5 MP
Front camera aperture number	2.2
Auto focus
Rear camera flash
Front camera
Design
Device type	Mobile tablet
Form factor	Slate
Product colour	Green
Protection features	Dust resistant, Water resistant
Display
Display diagonal	20.3 cm (8")
Display resolution	1920 x 1200 pixels
Panel type	TFT
Display brightness	600 cd/m²
Display glass type	Gorilla Glass
HD type	WUXGA
Native aspect ratio	16:10
Display number of colours	16 million colours
Rounded display corners
Endurance
Energy efficiency class	E
Energy efficiency scale	A to G
Battery endurance per cycle	3751 min
Repeated free fall reliability class	E
Repairability class	B
Repairability index	3.6
International Protection (IP) code	IP68
Media formats
Audio formats supported	MP3, M4A, 3GA, AAC, OGG, OGA, WAV, AMR, AWB, FLAC, Mid, MIDI, XMF, MXMF, IMY, RTTTL, RTX, OTA
Video formats supported	MP4, M4V, 3GP, 3G2, AVI, FLV, MKV, WEBM
Memory
Internal memory	6 GB
Network
Mobile network generation	5G
3G standards	UMTS
4G standard	LTE-TDD & LTE-FDD
5G standard	Sub6 FDD, Sub6 TDD
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
3G bands supported	850,900,1900,2100 MHz
4G bands supported	2100,1900,1800,850,2600,900,700,800,1500 MHz
5G bands supported	2100,1800,850,2600,900,800,700,600,2300,2500,3700,3500 MHz
Mobile network connection
Bluetooth
Wi-Fi Direct
Near Field Communication (NFC)
Dual SIM support
Other features
Speakers	Mono
Packaging content
AC adapter included
Stylus pen
Tablet case included
Performance
Military standard	MIL-STD-810H
GLONASS
BeiDou
GPS (satellite)
Galileo
Quasi-Zenith Satellite System (QZSS)
Position location
Refurbished
Ports & interfaces
USB 2.0 Type-C ports quantity	1
Headphone connectivity	3.5 mm
3.5 mm connector
Headphone out
Processor
Processor manufacturer	Samsung
Processor family	Samsung Exynos
Processor model	1380
Processor cores	8
Processor frequency	2.4 GHz
Security
Fingerprint reader
Face recognition
Sensors
Accelerometer
Ambient light sensor
Gyroscope
Proximity sensor
Hall sensor
Software
Platform	Android
Operating system installed	Android 14
Storage
Internal storage capacity	128 GB
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	1 TB
User memory	108.7 GB
Card reader integrated
Weight & dimensions
Width	213.8 mm
Depth	10.1 mm
Height	126.8 mm
Weight	433 g

---
