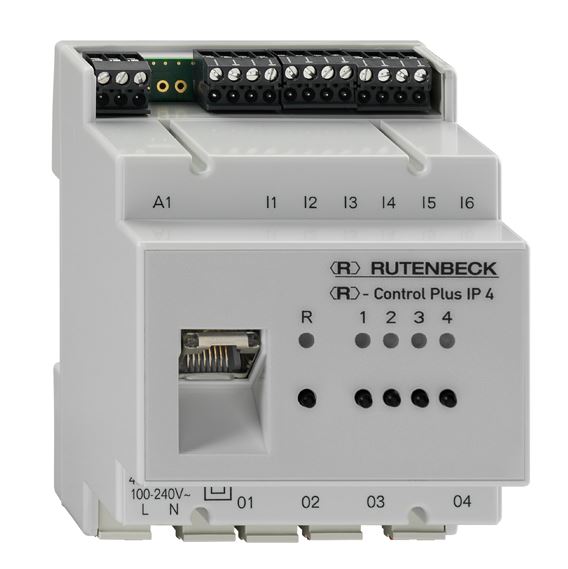

Rutenbeck 700802615 IP switch actuator/sensor, 4 x 16 A, 1 A/D input, with network connection, Control Plus IP 4 content_copy

IP switching actuator/sensor, 4 x 16 A, 1 A/D input, with network connection, REG mounting, light grey (similar to RAL 7035), - for DIN rail mounting (4TE, approx. 72 mm), - protection class IP 20, - nominal operating voltage: 100-240 V~/50-60 Hz, - power consumption: 4 VA max., - temperature range: -5°C - 40°C, - 4 potential-free switching outputs 16 A/230 V (cos phi 1, plug-in terminals up to 2.5 mm), - switching outputs can be parameterised as roller shutter outputs (max. 2), - LED status display of the switching outputs, - local operation of the switching outputs, - A/D input for sensors 0-10 V/4-20 mA, parameterisable, - 6 digital inputs for potential-free contacts (removable screw/plug-in terminals), - extensive logic functions for linking all input parameters such as:, - AND/OR links of the inputs, - time switch functions (year-round timer), with random generator, - reporting functions by email, - and much more, - prepared scenes such as everything off/on, presence simulation and much more, - 3 user-defined scenes can be freely defined, - easy configuration via web browser, - RJ45 network connection, - link and activity display for the network connection, - front-side reset button, - access protection through passwords, - Amazon Alexa connection with additional hardware (APP module), - cross-platform operation via web browser, - smartphone operation via free -Control app (iOS/Android), - UDP protocol control of all functions/parameters, - API interface for controlling all functions/parameters, - function extension with -Control Extension 4 via side interface, - manual address assignment or dynamic via DHCP, - user interface in the languages D/GB/NL/F
