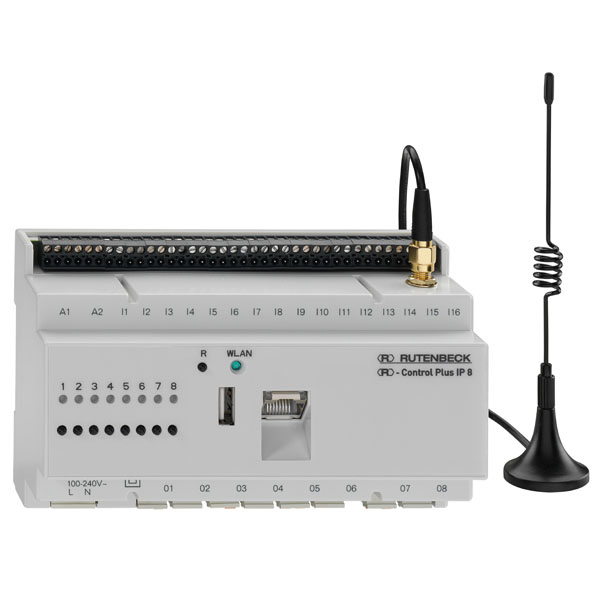

Rutenbeck 700802611 IP switch actuator/sensor, 8 x 16 A, 2 A/D inputs, with network connection, R-Control Plus IP 8 content_copy

IP switching actuator/sensor, 8 x 16 A, 2 A/D inputs, with network connection and integrated WLAN access point, REG mounting, light grey (similar to RAL 7035), - for DIN rail mounting (8TE, approx. 144 mm), - protection class IP20 in accordance with EN60529, - nominal operating voltage: 100-240 V~/50-60 Hz, - power consumption: 10 VA max., - local operation of the switching outputs, - temperature range: -5°C - 45°C, - 8 potential-free switching outputs 16 A/230 V (cos phi 1, plug-in terminals up to 2.5 mm), - 16 digital inputs for potential-free contacts, - switching outputs can be parameterised as roller shutter outputs (max. 4), - LED status display of the switching outputs, - local operation of the switching outputs, - 2 A/D inputs for sensors 0-10 V/4-20 mA, parameterizable, - 16 digital inputs for potential-free contacts (removable screw/plug-in terminals), - extensive logic functions for linking all input parameters such as:, - AND/OR links of the inputs, - time switch functions (year-round timer), with random generator, - reporting functions by email, - and much more, - cross-platform operation via web browser, - smartphone operation via free app (iOS/Android), - UDP protocol control of all functions/parameters, - manual address assignment or dynamic via DHCP, - user interface in the languages D/GB/NL/F, - light gray (similar to RAL7035), '- prepared scenes such as ''All off/on'', presence simulation and much more.', - 3 user-defined scenes freely definable, - simple configuration via web browser, - network integration via LAN or WLAN, - network connection RJ45, - Link and activity display for the network connection, - integrated WLAN access point (IEEE 802.3 b/g/n, 150 Mbit/s), - WLAN antenna with 2 m supply cable included, - control LED for WLAN, - front-side USB 2.0 interface for LTE/GSM stick, - front-side reset button, - access protection through passwords, - Amazon Alexa connection with additional hardware (APP modules), - cross-platform operation via web browser, - SmartPhone operation via free -Control app (iOS/Android), - UDP protocol control of all functions/parameters, - API interface for controlling all functions/parameters, - function expansion with -Control Plus Extension 4 via side interface, - manual address assignment or dynamic via DHCP, - user interface in the languages D/GB/NL/F
