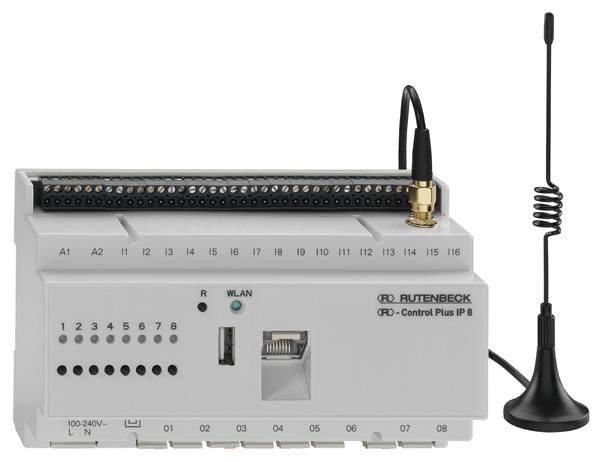

IP switching actuator/sensor, 8 x 16 A, 2 A/D inputs, with network connection and integrated WLAN access point, REG mounting, light grey (similar to RAL 7035), - for DIN rail mounting (8TE, approx. 144 mm), - protection class
IP20 in accordance with EN60529, - nominal operating voltage: 100-240 V~/50-60 Hz, - power consumption: 10 VA max., - local operation of the switching outputs, - temperature range: -5°C - 45°C, - 8 potential-free switching outputs 16 A/230 V (cos phi 1, plug-in terminals up to 2.5 mm), - 16 digital inputs for potential-free contacts, - switching outputs can be parameterised as roller shutter outputs (max. 4), - LED status display of the switching outputs, - local operation of the switching outputs, - 2 A/D inputs for sensors 0-10 V/4-20 mA, parameterizable, - 16 digital inputs for potential-free contacts (removable screw/plug-in terminals), - extensive logic functions for linking all input parameters such as:, - AND/OR links of the inputs, - time switch functions (year-round timer), with random generator, - reporting functions by email, - and much more, - cross-platform operation via web browser, - smartphone operation via free app (iOS/Android), - UDP protocol control of all functions/parameters, - manual address assignment or dynamic via DHCP, - user interface in the languages D/GB/NL/F, - light gray (similar to RAL7035), '- prepared scenes such as ''All off/on'', presence simulation and much more.', - 3 user-defined scenes freely definable, - simple configuration via web browser, - network integration via LAN or WLAN, - network connection RJ45, - Link and activity display for the network connection, - integrated WLAN access point (IEEE 802.3 b/g/n, 150 Mbit/s), - WLAN antenna with 2 m supply cable included, - control LED for WLAN, - front-side USB 2.0 interface for LTE/GSM stick, - front-side reset button, - access protection through passwords, - Amazon Alexa connection with additional hardware (APP modules), - cross-platform operation via web browser, - SmartPhone operation via free -Control app (iOS/Android), - UDP protocol control of all functions/parameters, - API interface for controlling all functions/parameters, - function expansion with -Control Plus Extension 4 via side interface, - manual address assignment or dynamic via DHCP, - user interface in the languages D/GB/NL/F
Type:
TCR IP 8
Questions & answers
What is the delivery time of Rutenbeck R-Control Plus IP 8 IP switching actuator/sensor for REG installation 700802611?
The article Rutenbeck R-Control Plus IP 8 IP switching actuator/sensor for REG installation 700802611 is currently
not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days.
The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time.
Just send us an inquiry about the desired quantity of Rutenbeck 700802611 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rutenbeck R-Control Plus IP 8 IP switching actuator/sensor for REG installation 700802611 always at the best possible price. We can give you a discount of 2% on
Rutenbeck R-Control Plus IP 8 IP switching actuator/sensor for REG installation 700802611 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Rutenbeck R-Control Plus IP 8 IP switching actuator/sensor for REG installation 700802611 we can offer you a price of 537,20 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
