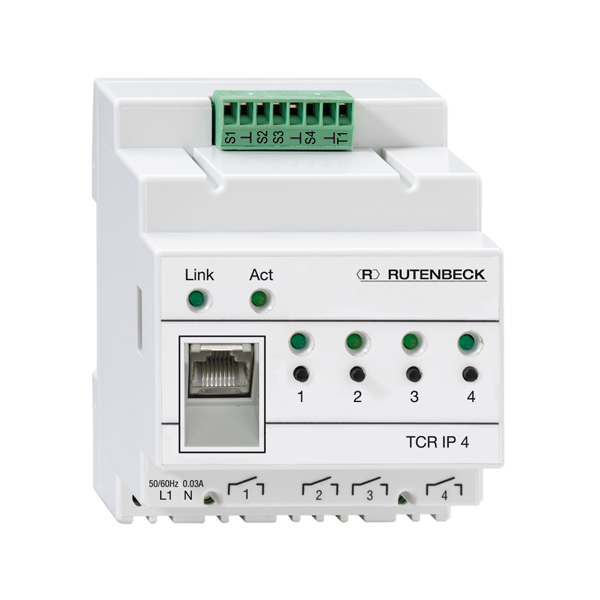

Rutenbeck 700802610 IP switch actuator R-Control IP 4 (former TCR IP 4) content_copy

700802610, * Order-related, cannot be canceled*, IP switching actuator, switching via a TCP/IP network, 4 switching outputs, REG mounting, light gray (similar to RAL 7035) Product description IP switching actuator, switching via a TCP/IP network, 4 Switching outputs, REG mounting, light gray (similar to RAL 7035) - for DIN rail mounting (4HP, approx. 72 mm) - Protection class IP 20 - Rated operating voltage: 100-240 V~/50-60 Hz - Power consumption: 1 VA typical - Temperature range : -5°C - 45°C - 4 potential-free switching outputs 10 A/230 V (cos phi 1, screw terminals up to 1.5 mm) - LED status display of the switching outputs - local operation of the switching outputs - any name assignment of the 4 switching outputs to the desired ones Consumers - 4 digital inputs for potential-free buttons (removable screw/plug-in terminals) - one input for the direct connection of a temperature sensor (optional) - temperature query and display via web browser - evaluation range -25° C to 55° C, resolution 1° C - buffering the settings and time in the event of a power failure - operation as a timer with 5 switching times for each switching output - automatic time synchronization - RJ45 network connection - link and activity display for the network connection - reset via front button - access protection through optional passwords for administrator and user - cross-platform operation via web browser - SmartPhone Operation via the free Rutenbeck Remote app (iOS) - UDP protocol control of all functions/parameters - manual address assignment or dynamically via DHCP - user interface in D/GB languages
