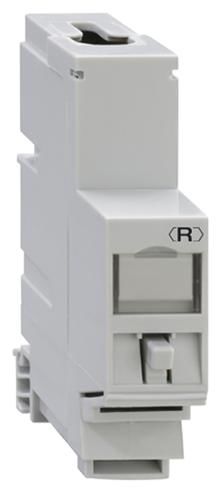

Rutenbeck UM-Cat.6A iso 10G-REG mounting adapter with universal module 13910200

REG mounting adapter, with universal module UM-Cat.6A iso 10G, for mounting on a DIN standard rail, - for use in 10 Gigabit networks (transmission bandwidth up to 500 MHz), - for standard DIN rail mounting, - insulation class II (without earth connection), - insulation class I (with earth connection), - defined earth connection possible using standard flat plug connectors on the module, - RJ45 angled outlet (approx. 45°), - front-side plug release, - captive cover cap, - can be individually labeled using label holder, Module properties:, - Cat.6A iso universal module, shielded, - for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz), - 1 x RJ45 plug opening, - fits in standard keystone openings (14.8 x 19.3 mm), - Die-cast zinc design, - nickel-plated housing surface, - 360° strain relief and shielding, - for data cables with 6-10 mm diameter, - solid conductors: IDC terminals for one conductor 0.51 - 0.64 mm Ø, AWG 24-22, outer diameter 0.7-1.6 mm (PE), - flexible conductors: IDC terminals for one conductor 0.13-0.22 mm Ø, AWG 26 (PE-Foamskin), AWG 24 (PE-solid), outer diameter 0.9-1.1 mm (PE), - 1 wire per contact, can be reused >10 times (with the same or larger cross-section), - bending radius-optimized feed of the connecting cables (30°), - defined earth connection possible using standard flat plug connectors, - installation without special pliers/tools, - integrated dust protection cap (removable/replaceable if required), - Color code T568A and T568B according to TIA/EIA-568-B.2, - suitable for PoE++ / 4PPoE according to IEEE 802.3bt, - UPOE compliant, - HDBaseT compliant, - according to the following standard requirements:, - ISO/IEC 11801, Cat.6A, shielded, - DIN EN 50173-1, Cat.6A, shielded, - ANSI TIA/EIA-568-C.2 Category 6A, - DIN EN 60603-7-51, 500 MHz, shielded, - service life > 750 mating cycles, - RJ11/12 mismating protected, - GHMT counter-certified
Type: UM-Cat.6A iso-REG
