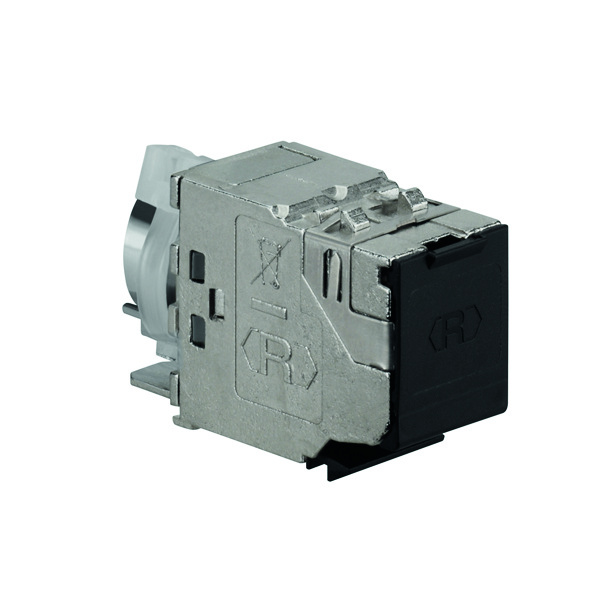

Rutenbeck 13900310 Module, CAT8.1 Class I, 1xRJ45, Keystone, UM-Cat.6A iso 25/10G, content_copy

25GB universal module, shielded, for keystone module cutouts, - for use in 25 Gigabit Ethernet networks (transmission bandwidth up to 1250 MHz), - for use in 10 Gigabit Ethernet networks (transmission bandwidth up to 500 MHz), - 1 x RJ45 plug-in opening, - fits in standard keystone openings (14.8 x 19.3 mm), - zinc die-cast design, - nickel-plated housing surface, - 360° strain relief and shielding, - for data cables with 6-10 mm diameter, - solid conductors: IDC terminals for one conductor 0.57-0.64 mm Ø, AWG23-22, outer diameter 0.9-1.6 mm (PE), - 1 wire per contact, can be reused 4 times (with the same or larger cross-section), - standard-compliant shield contact, - defined earth connection possible using standard flat plug connectors, - suitable for construction sites (only 2 parts), - integrated dust protection cap (removable/replaceable if required), - color code T568A and T568B in accordance with TIA/EIA-568 B.2, - suitable for PoE+ in accordance with IEEE 802.3at, - UPOE-compliant, - HDBaseT-compliant, - with separately available mounting adapter to match TAE design covers from the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.), - in accordance with the following standard requirements for 25Gbit:, - ISO/IEC TR 11801-9905, - ISO/IEC 11801, Class I up to 1250 MHz, shielded, - in accordance with the following standard requirements for 10Gbit:, - ISO/IEC 11 801, Cat.6A, shielded, - DIN EN 50173-1, Cat.6A, shielded, - ANSI TIA/EIA-568-C2 Category 6A, - DIN EN 60 603-7-51, 500 MHz, shielded, - service life > 750 mating cycles, - GHMT counter-certified

The item price shown refers to 12 pieces Rutenbeck 13900310
