Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit

Your rating:
Average rating
product review for Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit
( 4.4 / 5 ) 8 ratings

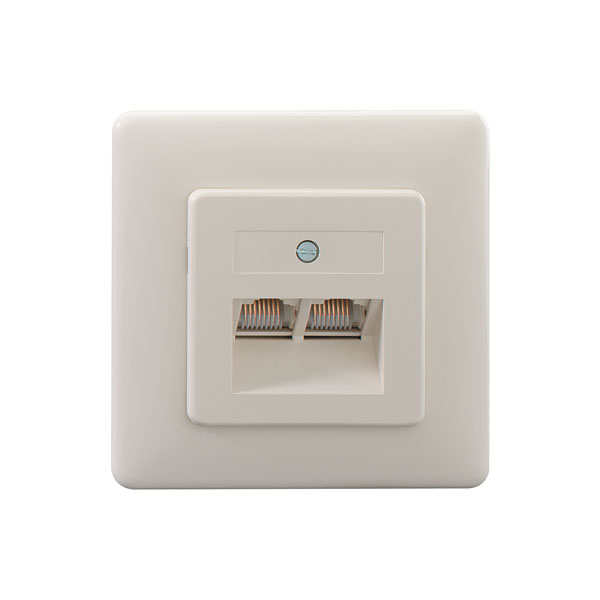

Rutenbeck 13011216Rutenbeck 13011216
Rutenbeck 13011216
This image may differ from the desired article.
13,96 EUR 14,55 EUR
( 16,61 EUR incl. VAT )
≈ £11.70  |  ≈ $15.68
plus delivery charges: 53,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit
End-Of-Life: 26. Jul 2026
Lieske Part No.:125179
Mfg Part No: 13011216
UPC/EAN: 4043921061664
Weight:0.123 kg
Type:UAE 8/8 (8/8) LSA Up rw
Graduated prices net
From piecesPrice per pieces
1513,02 EUR
3012,08 EUR
7011,13 EUR
10010,19 EUR

Product information for Rutenbeck 13011216:

UAE connection box, 2-way, flush-mounted, with LSA connection contacts, 2 x 8-pin, 2 x 8 LSA contacts, with plastic support bars, with expanding claws, pure white (similar to RAL 9010), - 8-pin socket elements, for 6- and 8-pin plugs, - RJ11/12 compatibility without additional reducing elements, - plastic support bars, - with expanding claws, - plug opening inclined downwards, - screw contacts for a conductor up to 1mm Ø, 2 wires per contact, - LSA terminals for a conductor 0.4-0.63 mm Ø, AW 26-22, re-assignable > 50 times, - gold-plated contact surfaces, - nominal voltage: 125 V, - nominal current: 1 A at 50° C, - dielectric strength: 1000 V, 50 Hz, 1 Min., - contact resistance: 2500 mating cycles, - suitable for UAE design covers of the switch industry (Berker, Busch-Jaeger, GIRA, Jung, Merten, etc.)


Please note...
We have listed this article as 'end-of-life', which means that it will only be sold until it is completely sold out ! Please mind that we cannot guarantee you, you will receive the article, although it may be betokened as available. You can find the date from when the article was marked end-of-life to the top.

Questions & answers

What is the delivery time of Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit ?

The article Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rutenbeck 13011216 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit always at the best possible price. We can give you a discount of 2% on Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of Rutenbeck 13011216 UAE 8/8 (8/8) LSA Up rw universal connection unit we can offer you a price of 13,02 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
