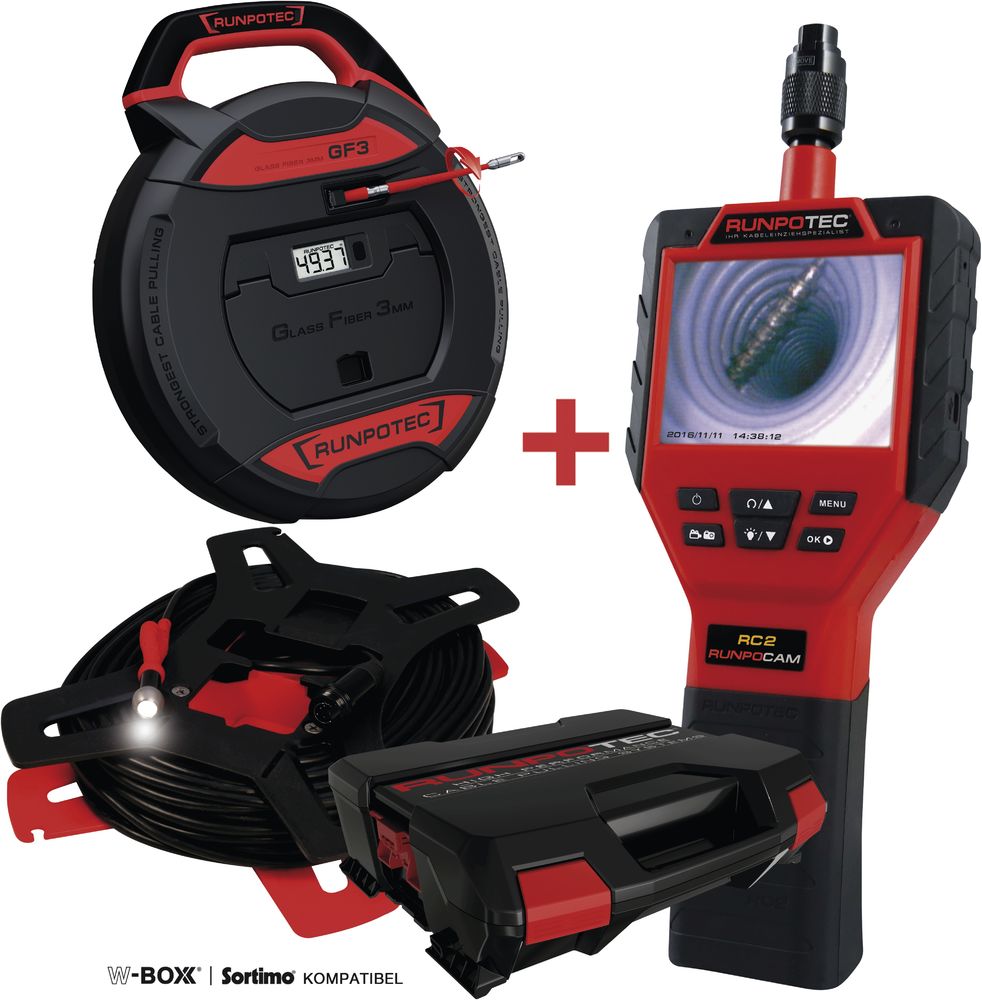

RUNPOTEC 11146 RUNPOCAM RC 2 +GF3-30m

RUNPOCAM RC2 multifunctional camera with cable length 30 m with coil including monitor holder. In W-Boxx system case - compatible with Sortimo. Extra large 3.5' TFT LCD 16M color display, protection class IP 67, ¬Continuous battery operation up to 6 hours. Evidence preservation/storage function: ¬Photo, video and audio. CAMERA HEAD with 6 integrated LEDs, set in robust stainless steel head ¬(Ø 13 mm) with RTG Ø 6 mm internal thread. Compatible with all RUNPOTEC products with RTG Ø 6 mm thread (POWER REX, RUNPOSTICKS, RUNPO 1, fiberglass rod Ø 4.5 - 6 - 7.5 - 9 - 11 - 15 mm).
Optimal area of application: For pipe inspections over long distances of up to 50m. From 14 mm inner diameter (corresponds to empty pipe Ø 20mm), but also for larger pipe cross-sections (ventilation systems, drainage, sewage pipes, etc..:.). In combination with the RUNPOSTICKS, excellent for cavity wall inspections, suspended ceilings (over high ceiling profiles), shaft and underfloor ducts, maintenance and system inspection. +
GF3 - cable pulling device including digital meter counter, fiberglass rod Ø 3 mm with anti-kink end sleeve (internal thread RTG Ø 6 mm) and patented guide tip with twist compensation (2 x external thread RTG Ø 6 mm). Stored in an impact-resistant plastic box. The box is splash-proof and dust-proof, extremely impact-resistant and therefore ideal for the construction site. The GF3 plastic box can be opened with just one screw for service work. The push-back lock prevents the fiberglass rod from accidentally slipping back into the box. The box also has an ergonomic handle and an anti-slip coating. The newly developed anti-kink technology enables bending radii of up to R = 38 mm to be overcome. The specified total breaking load of 130 kg refers to the fiberglass rod including anti-kink sleeves. The included cable pulling loop (Ø 14 mm outside) with built-in twist compensation and protective cap can be used for one or more cables up to a cable diameter of Ø 12 mm. The cables can be quickly attached to the loop. Any plugs are protected by the tensile load on the cable.
Optimal area of application: for pipe dimensions 10 mm - 50 mm.
Application film: you can watch a short, very informative application film by scanning the QR code or at www.runpotec.com
Scope of delivery: RUNPOCAM RC 2: 1 x RUNPOCAM RC2 with 30 m cable including spool, 1 x RUNPOTEC system case, 1 x RUNPOGLEITER with front thread, 1 x system glider, 1 x LED battery-powered high-performance lamp 320 lumens, 1 x Micro Memory Card 8 GB, 1 x magnet catch set, 1 x connecting thread set RTG Ø 6 mm (3 parts), 1 x catch hook, 1 x 2-way USB charging plug 12 V, 1 x flexible attachment 12 cm, 1 x USB cable 3 m, 1 x 2-way USB charging plug 230 V, 1 x threaded attachment RC 2, 1 x USB charging cable for LED battery lamp
GF3: 1 x GF3 including meter counter in plastic box, length 30 m, 1 x guide tip with twist compensation, 1 x anti-kink end sleeve RTG Ø 6 mm, 1 x pulling aid, 1 x special adhesive 3 g, 1 x cable pulling loop (Ø 14 mm outside), 6 x adhesive sleeve Ø 3 mm, 3 x pulling eye Ø 7 mm, 1 x bulb Ø 11 mm, 1 x connecting sleeve, 2 x assembly key, 1 x button battery CR2032
Type: 11146
