RUNPOTEC 10193 GF3 fiberglass rod Ø3mm-30m

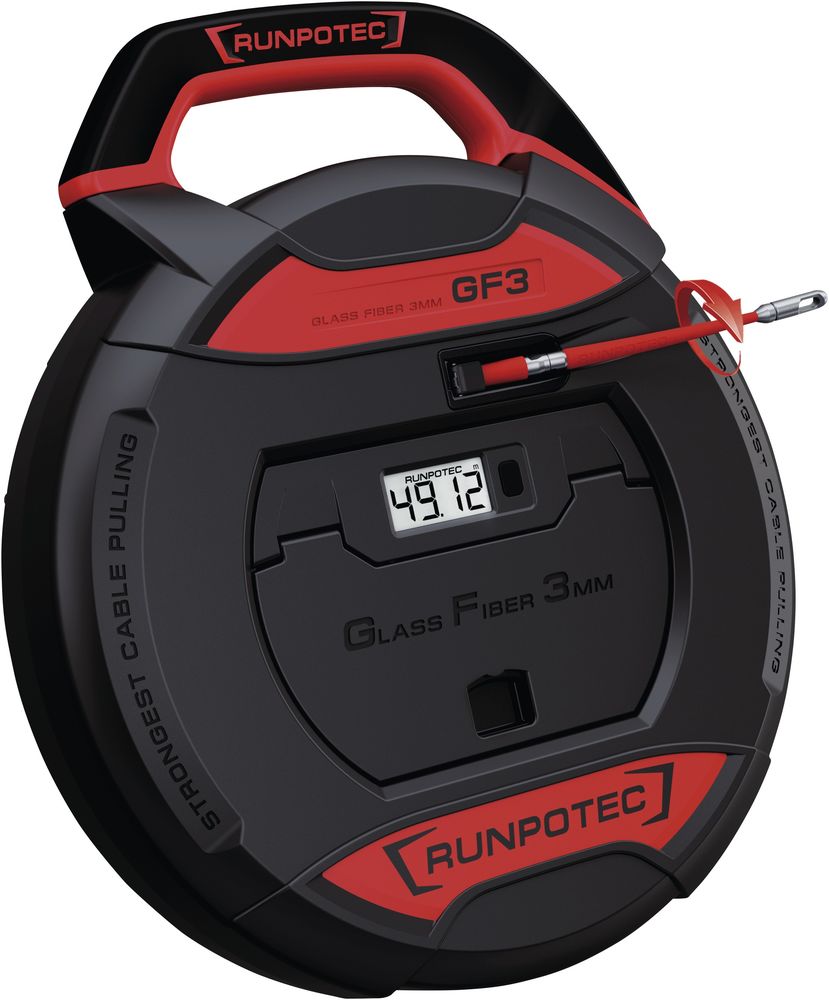

GF3 - cable pulling device including digital meter counter, fiberglass rod Ø 3 mm with anti-kink end sleeve (internal thread RTG Ø 6 mm) and patented guide tip with twist compensation (2 x external thread RTG Ø 6 mm). Stored in a shock-proof plastic box. The box is splash-proof and dust-proof, extremely shock-proof and therefore ideal for construction sites. The GF3 plastic box can be opened with just one screw for service work. The anti-return device prevents the fiberglass rod from accidentally slipping back into the box. The box also has an ergonomic carrying handle and an anti-slip coating. An 18-piece accessory set is included in the scope of delivery. The newly developed anti-kink technology enables bending radii of up to R = 38 mm to be overcome. The specified total breaking load of 130 kg refers to the fiberglass rod including anti-kink sleeves. Excellent in combination with the RUNPOTEC inspection cameras.
The included cable pull loop (Ø 14 mm outside) with built-in twist compensation and protective cap can be used for one or more cables up to a cable diameter of Ø 12 mm. The cables can be quickly attached to the loop. Any plugs are protected by the tensile load on the cable.
Optimal area of application: for pipe dimensions 10 mm - 50 mm.
Application video: You can watch a short, very informative application video by scanning the QR code or at www.runpotec.com.
Scope of delivery: 1 x GF3 including meter counter in plastic box, length 30 m, anti-kink end sleeve on both sides (start/end), contents of accessory box: 1 x guide tip with twist compensation, 1 x anti-kink end sleeve RTG Ø 6 mm, 1 x pulling aid, 1 x special adhesive 3 g, 1 x cable pulling loop (Ø 14 mm outside), 6 x adhesive sleeve Ø 3 mm, 3 x pulling eye Ø 7 mm, 1 x starting bulb Ø 11 mm, 1 x connecting sleeve, 2 x assembly key, 1 x button battery CR2032
Type: 10193
