RUNPOTEC 10170
XB 300 COMPLETE SET including multifunctional mandrel in the system case

The multi-function mandrel has been specially developed for the X BOARD XB 300 and XB 500 cable unwinding system. By attaching it to the stainless steel central mandrel of the XB 300 and then unfolding the 4 side brackets, loose cable bundles can also be unrolled. The telescopic central mandrel has a diameter of 72 mm. This makes it ideal for unrolling thinner cable bundles with a small inner diameter or single wires. The normal height of the multi-function mandrel is 196 mm and can be extended to a maximum of 294 mm using the telescopic mechanism. This means that high cable bundles or corresponding pipe bundles can be unrolled. When the 4 side brackets are unfolded, there is a total support surface with a diameter of 430 mm. Ideally, this should correspond to the respective cable or pipe bundle. The option of combining it with the RUNPOSTICKS is still possible thanks to a given opening.
Optimal application area: Unrolling (damaged) drums up to max. 300 kg as well as loose cable bundles or single wires up to max. 290 mm high and max. diameter of 430 mm
Application video: you can watch a short, very informative application video by scanning the QR code or at www.runpotec.com

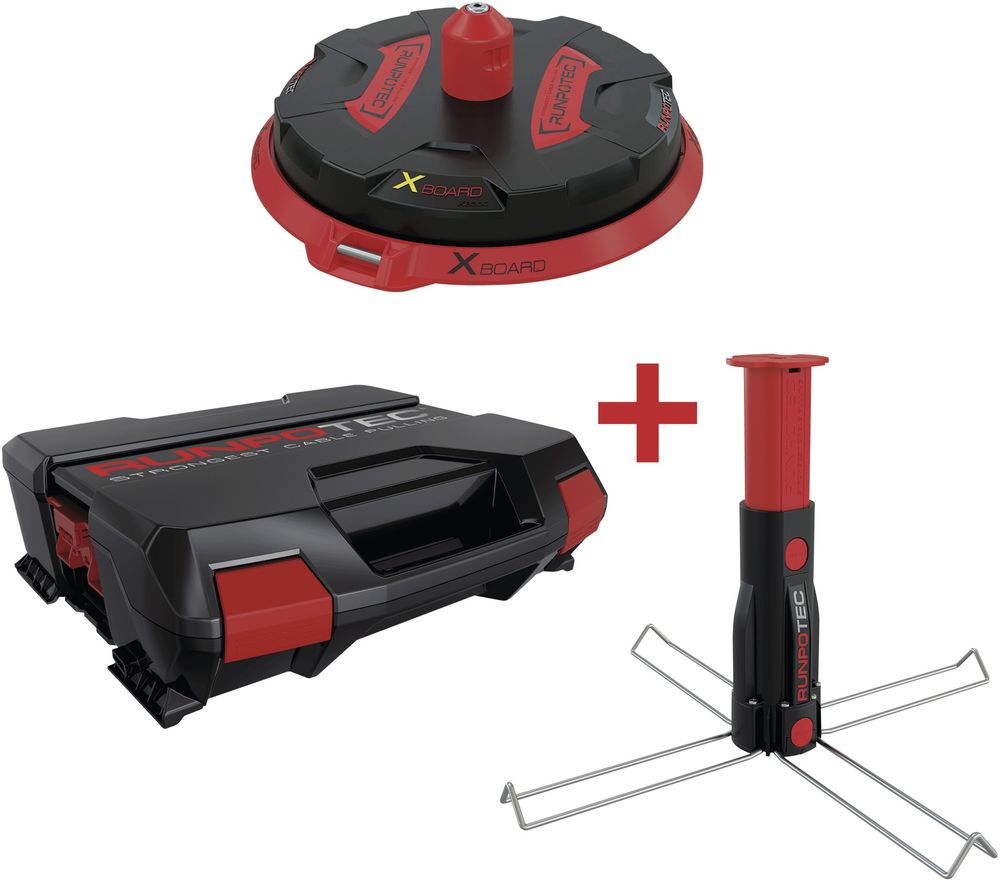

Scope of delivery: 1 x X BOARD XB 300, 1 x multifunctional mandrel, 1 x RUNPOTEC system case
Type: 10170
