RUNPOTEC 10162

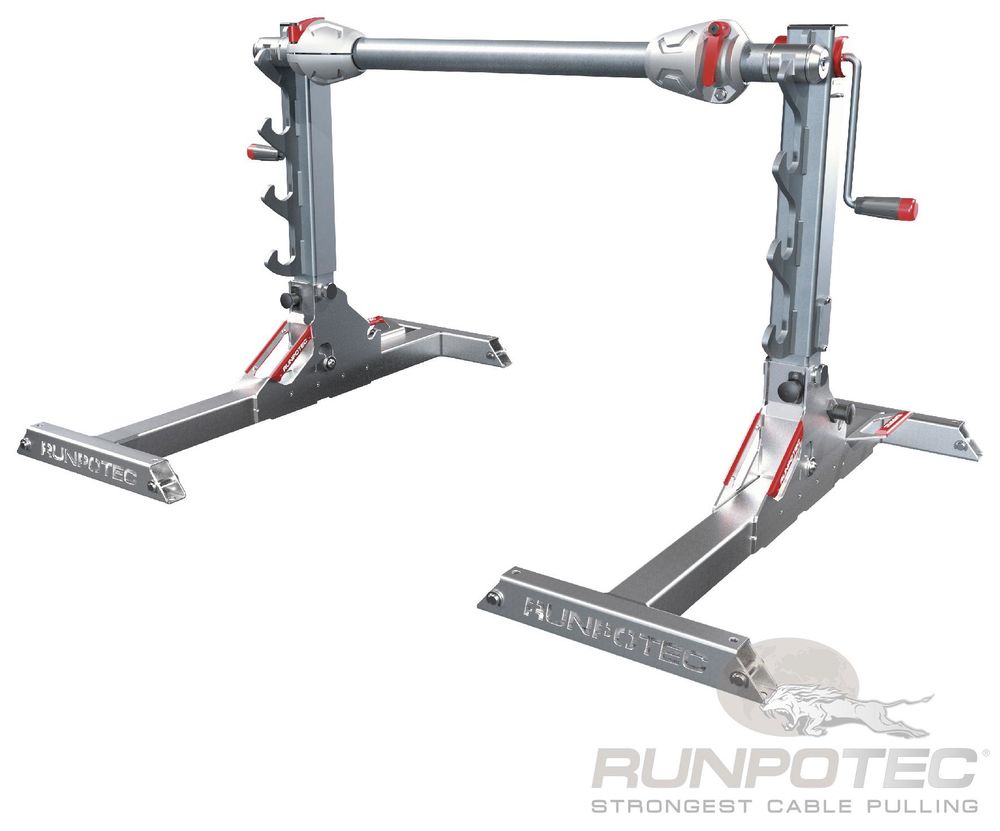

RUNPOLIFTER 4500 L 1150 drum lifter up to 4500 kg W 800mm content_copy

The RUNPOLIFTER 4500 is a collapsible cable drum lifter that can lift drums up to a maximum diameter of 1600 mm and a maximum weight of 4,500 kg. Thanks to its lightweight design (22 kg per lifting support), it can be easily transported and yet has excellent stability on a wide variety of ground conditions. The two lifting supports have a 2-stage gear. The rapid gear for the idle lift and the working gear for the load lift. Switching between the two gears can be controlled by pulling out the crank. With the RUNPOLIFTER 4500, it is not necessary to unplug the lifted load because a self-locking spindle is built into the gear. The included drum shaft has two heavy-duty plain bearings and thus offers comfortable and trouble-free unrolling of the respective drum. The 1150 mm drum shaft is included. The following lengths are also available: 1350 mm or 1600 mm. The two included centering cones each have a quick-release fastener and thus enable the drum to be fixed quickly and centered. Drums with a maximum inner diameter of Ø 115 mm can be fixed here.
Optimal area of application: For lifting and then unrolling cable drums up to Ø 1600 mm, max. width of 800 mm and a max. weight of 4,500 kg
Application video: You can watch a short, very informative application video by scanning the QR code or at www.runpotec.com
Scope of delivery: 1 x RUNPOLIFTER 4500 (1 x support right, 1 x support left), 1 x drum shaft 1150 mm, 2 x centering cones with quick-release fastener
