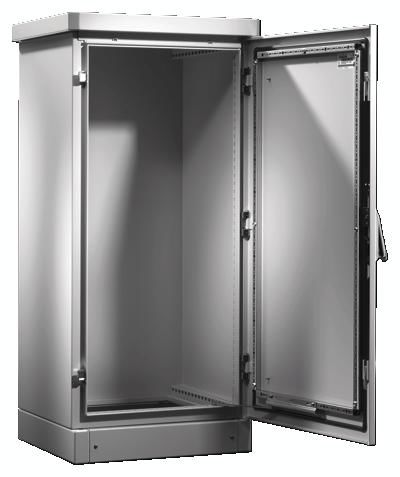

Rittal 9783530 CS New Basic enclosure, WHD: 600x1200x500 mm, aluminum, with 100 mm transport plinth and rain canopy, single door at the front
|
-7% 972,19 EUR 1.040,25 EUR |
|||||||||||
|
( 1.156,91 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 910351 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9783530 | ||||||||||
| UPC/EAN: | 4028177569133 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9783530:
Material: Aluminium AlMg3
Surface finish: Powder-coated
UV-resistant pure polyester
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Protection category NEMA: NEMA 3R
IK Code: IK07
Supply includes: Single-walled outdoor enclosure, fully preconfigured
Basic enclosure with gland plate, three-part
25 mm system punchings in the roof, base, front and in the enclosure depth
Front door(s) with door stay, swing lever handle and semi-cylinder, lock BJ 20027
Transport plinth with screw-fastened trim panels front and rear
Rain canopy
Packs of: 1 pc(s).
EAN: 4028177569133
Customs tariff number: 94032080
eCl@ss 5.1: 27180302
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 600 mm
Height: 1200 mm
Height (base/plinth): 100 mm
Height (mounted): 1355 mm
Depth: 500 mm
Clearances: Clearance width: 512 mm
Clearance height: 1112 mm
Clearance depth: 449 mm
Rain canopy: Width: 650 mm
Height: 55 mm
Depth: 550 mm
Number of doors: 1
Weight/pack: 38 kg
Type: CS 9783.530
Questions & answers
What is the delivery time of Rittal 9783530 CS New Basic enclosure, WHD: 600x1200x500 mm, aluminum, with 100 mm transport plinth and rain canopy, single door at the front?
The article Rittal 9783530 CS New Basic enclosure, WHD: 600x1200x500 mm, aluminum, with 100 mm transport plinth and rain canopy, single door at the front is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9783530 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9783530 CS New Basic enclosure, WHD: 600x1200x500 mm, aluminum, with 100 mm transport plinth and rain canopy, single door at the front always at the best possible price. We can give you a discount of 2% on Rittal 9783530 CS New Basic enclosure, WHD: 600x1200x500 mm, aluminum, with 100 mm transport plinth and rain canopy, single door at the front if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Rittal 9783530 CS New Basic enclosure, WHD: 600x1200x500 mm, aluminum, with 100 mm transport plinth and rain canopy, single door at the front we can offer you a price of 957,61 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
