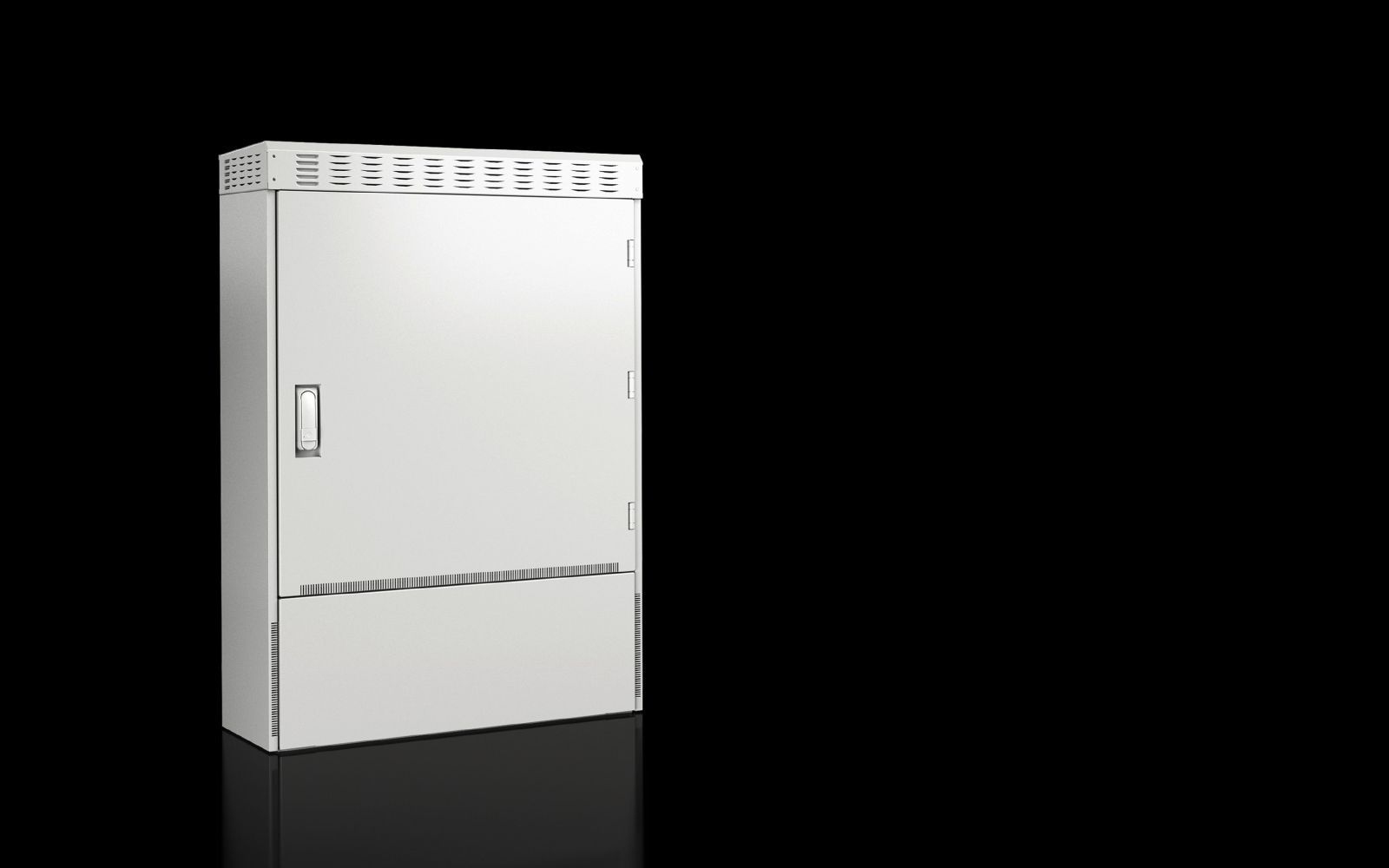

Rittal 9751908 CS multifunction enclosure Outdoor MFG8 1000x1600x500 mm
|
-10% 3.130,77 EUR 3.495,57 EUR |
|
|
( 3.725,62 EUR incl. VAT ) ≈ £2,620.45 | ≈ $3,440.72 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 893485 |
| Mfg Part No: | 9751908 |
| UPC/EAN: | 4028177980860 |
| Weight: | 92 kg |
| Type: | CS 9751908 |
Product information for Rittal 9751908:
Applications
This enclosure is suitable for outdoor use, for example in industry, telecommunications installations, or energy supply. The double-walled construction made of aluminium AlMg3 with a wall thickness of 2.0 mm ensures high mechanical stability and weather resistance. The surface is powder-coated with UV-resistant pure polyester in the colour RAL 7035, ensuring long durability and resistance against weather influences.
Functions and Equipment in Detail
The enclosure features a door with a 3-point locking system, equipped with a single and double locking cylinder as well as the lock insert BJ20027. The door can be held open up to an opening angle of approximately 155° using a mechanical door holder. The swing handle and profile half-cylinder ensure secure and comfortable operation. The door is fitted with internal, non-removable hinges allowing an opening angle of 170°.
Technology Explained Simply
The protection rating IP 55 according to IEC 60 529 means that the enclosure is protected against dust and splashing water, making it suitable for outdoor use. Additionally, it meets the protection ratings NEMA 3R and NEMA 12, confirming protection against rain, splashing water, and dust. The total height is 1,600 mm, with the cable routing plinth being 400 mm high and the rain roof having a height of 130 mm. The mounting plate has dimensions of 841 mm x 948 mm and is made of aluminium AlMg3 with a thickness of 3.0 mm.
Compatibility and Accessories
The enclosure is prepared for mounting a Direct Air Cooling System (DAC), enabling cooling of electronic components inside. The holding rail is made of stainless steel 1.4016 (AISI 430), ensuring high corrosion resistance. The gland plates allow for secure fastening of the enclosure to the base. The interior equipment can optionally be supplemented with 48,3 cm ( 19 inch ) or ETSI combination rails made of stainless steel.
Installation and Mounting
The enclosure is fully pre-assembled and can be installed directly. Mounting is done via the gland plates on the base sheet. The lifting eyes on the inner roof allow crane transport of the fully equipped unit. The cable routing plinths are fully panelled, ensuring orderly cable routing and secure access to the cables.
Operational Advantages
The double-walled construction and powder-coated surface ensure long service life and high weather resistance. The integrated door latch and 3-point locking system provide high security. The preparation for a DAC system enables efficient cooling of installed components. The combination of mechanical stability, weather resistance, and security makes the Rittal CS 9751908 a reliable solution for outdoor use.
| General | |
| Material | Housing, roof, door(s), floor sheet: Aluminium, AlMg3, 2.0 mm, mounting plate(s): Aluminium, AlMg3, 3.0 mm, holding rail: Stainless steel 1.4016 (AISI 430) |
| Surface protection | Powder-coated, UV-resistant pure polyester |
| Colour | RAL 7035 |
| Scope of delivery | Double-walled outdoor enclosure, fully pre-assembled, weather protection roof with ventilation, prepared for installation of a Direct Air Cooling System (DAC), door latching via mechanical support (approx. 155°), swivel handle and profile half-cylinder, locking BJ20027, cable management socket, fully panelled, flange plates, base plate, mounting plate |
| Width | 1.000 mm |
| Height | 1.050 mm |
| Depth | 500 mm |
| Dimensions | Overall height: 1,600 mm, Rain canopy height: 130 mm, Base height: 400 mm |
| Mounting plate dimensions (W x H) | 841 mm x 948 mm |
| Number of doors | 1 |
| Door opening angle | ca. 155° |
| Lock | Locking system: 3-point locking system with single and double cylinder lock, number of locks: 1, lock insert: BJ20027 |
| Flange plate | Size: 2, Quantity: 2 |
| Degree of protection IP according to IEC 60 529 | IP 55 |
| NEMA degree of protection | NEMA 3R, NEMA 12 |
| Note on part number | lead time on request |
| Base material | Aluminium |
