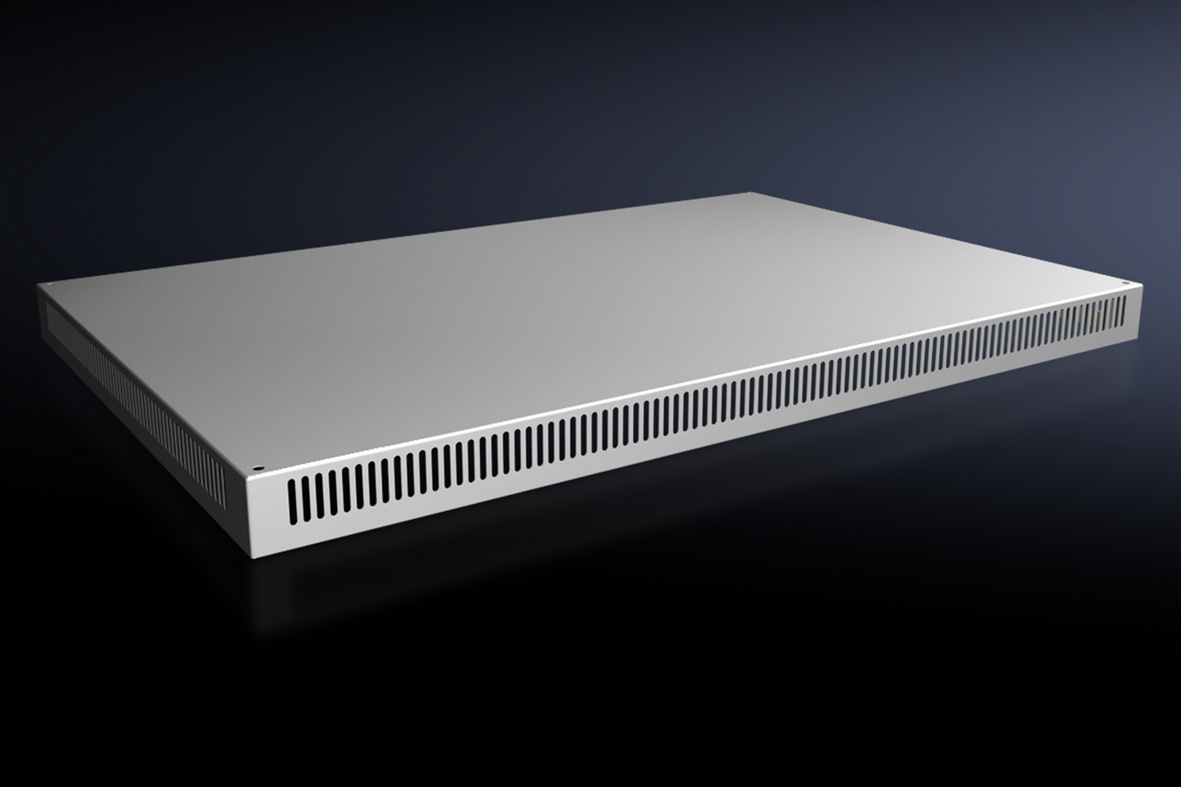

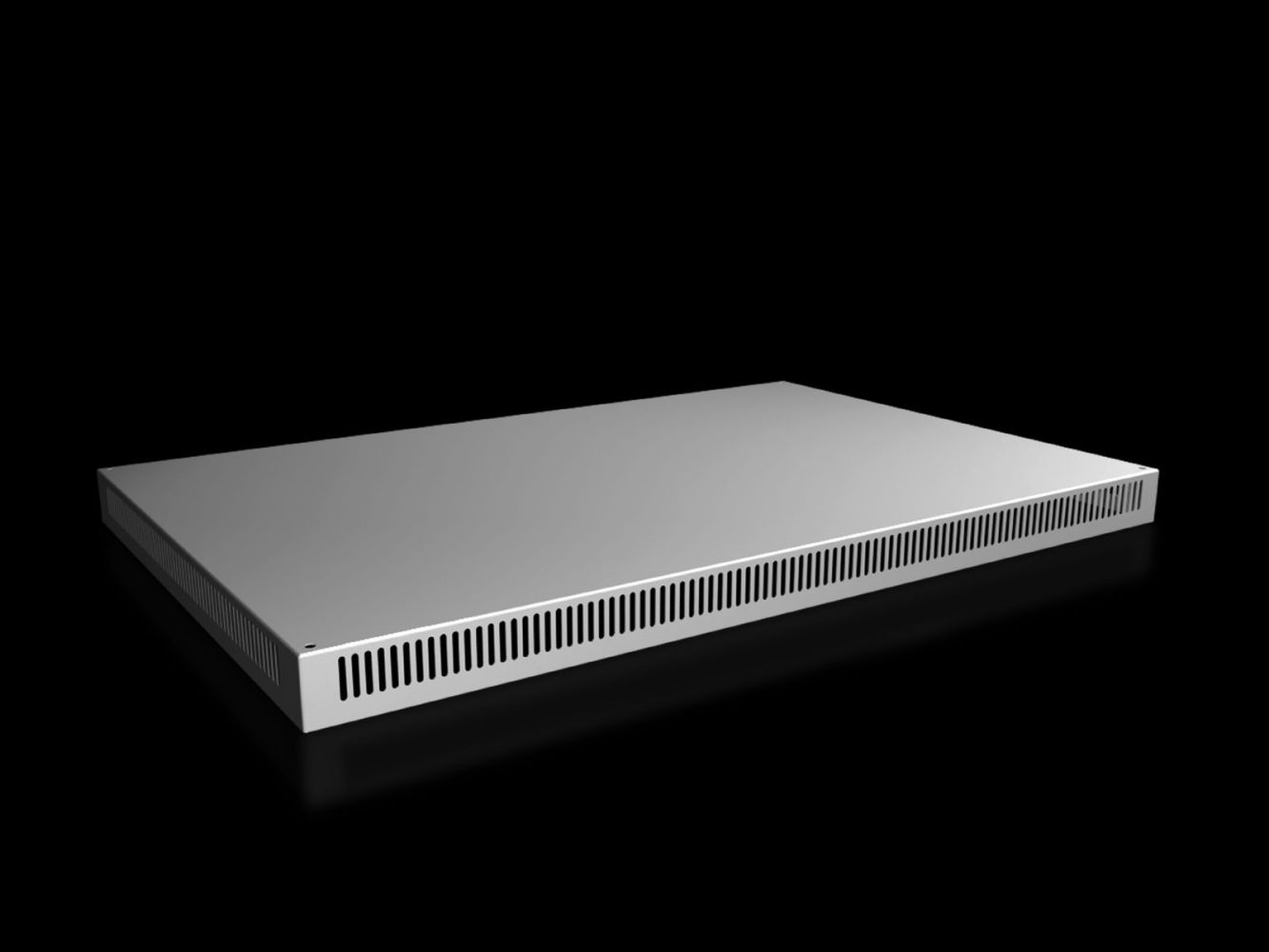

Rittal 9681828 SV roof plate for VX, width: 1200 mm, depth: 800 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681828 SV roof plate for VX, width: 1200 mm, depth: 800 mm, IP 2X
( 4.5 / 5 ) 2 ratings
Rittal 9681828
This image may differ from the desired article.
Rittal 9681828Rittal 9681828Rittal 9681828
-12% 128,69 EUR 146,50 EUR
( 153,14 EUR incl. VAT )
≈ £107.58  |  ≈ $142.20
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9681828 SV roof plate for VX, width: 1200 mm, depth: 800 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903710
Mfg Part No: 9681828
UPC/EAN: 4028177926653
Weight:15.7 kg
Type:SV 9681828

Product information for Rittal 9681828:

The Rittal SV 9681828 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 1,200 mm and a depth of 800 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of steel sheet with a thickness of 1.5 mm and features a surface coated with textured paint in the colour RAL 7035, ensuring a robust and uniform coating. The build height is 72 mm, allowing it to integrate seamlessly into the standard construction of the VX enclosure series.

Applications

The roof plate is designed for use in industrial environments, particularly in installations using VX series enclosures. It is suitable for applications where additional covering or replacement of the existing roof is required. The IP 2X protection rating ensures protection against contact with fingers and larger solid objects, but does not provide specific resistance against water or dust. The ventilation opening in the roof plate enables natural air circulation, contributing to the cooling of components installed inside the enclosure.

Features and Equipment in Detail

The roof plate is equipped with a ventilation opening that supports passive ventilation of the enclosure interior. This is particularly important for regulating the temperature inside the enclosure and extending the service life of the installed electronic components. The use of steel sheet with a thickness of 1.5 mm ensures high mechanical stability and resistance to external influences. The textured paint surface in RAL 7035 provides a uniform, abrasion-resistant coating suitable for industrial applications.

Technology Explained Simply

The IP 2X protection rating means the roof plate is protected against contact with fingers and larger solid objects, but does not offer specific resistance against water or dust. The ventilation opening in the roof plate supports natural air circulation, promoting heat dissipation within the enclosure. The material thickness of 1.5 mm steel sheet ensures sufficient strength to withstand mechanical loads during operation. The textured paint finish in RAL 7035 provides a uniform, abrasion-resistant surface suitable for industrial environments.

Compatibility and Accessories

The roof plate is specifically designed for enclosures of the VX series with dimensions width 1,200 mm and depth 800 mm. It is intended as a replacement for the standard roof or as an addition for enclosures without a roof plate. Compatibility is limited to these specific enclosure dimensions. The product is delivered with mounting hardware required for installation on the enclosure.

Installation and Mounting

Mounting is carried out at the designated attachment points of the enclosure. The included mounting hardware enables secure and stable fixation of the roof plate. Installation requires no additional tools or components, as the roof plate is directly attached to the enclosure. The build height of 72 mm is designed to integrate seamlessly into the standard construction of the VX enclosure series.

Operational Advantages

The roof plate provides a mechanically stable cover that protects the enclosure from external influences. The ventilation opening supports cooling of components installed inside the enclosure, enhancing operational reliability. The use of steel sheet with textured paint in RAL 7035 ensures a durable and low-maintenance surface. The inclusion of mounting hardware simplifies installation and reduces additional procurement effort.

Scope of Delivery

The product is delivered inclusive of mounting hardware. It consists of a single roof plate designed for the specified enclosure dimensions. The packaging unit is 1 piece.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 1,200 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681828, EAN: 4028177926653

Questions & answers

What is the delivery time of Rittal 9681828 SV roof plate for VX, width: 1200 mm, depth: 800 mm, IP 2X?

The article Rittal 9681828 SV roof plate for VX, width: 1200 mm, depth: 800 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681828 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681828 SV roof plate for VX, width: 1200 mm, depth: 800 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681828 SV roof plate for VX, width: 1200 mm, depth: 800 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
