Rittal 9681826 SV roof plate for VX, width: 1200 mm, depth: 600 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681826 SV roof plate for VX, width: 1200 mm, depth: 600 mm, IP 2X
( 5 / 5 ) 1 ratings
Rittal 9681826
This image may differ from the desired article.
Rittal 9681826Rittal 9681826Rittal 9681826
104,19 EUR
( 123,99 EUR incl. VAT )
≈ £87.10  |  ≈ $115.13
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9681826 SV roof plate for VX, width: 1200 mm, depth: 600 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903709
Mfg Part No: 9681826
UPC/EAN: 4028177926783
Weight:12.1 kg
Type:SV 9681826

Product information for Rittal 9681826:

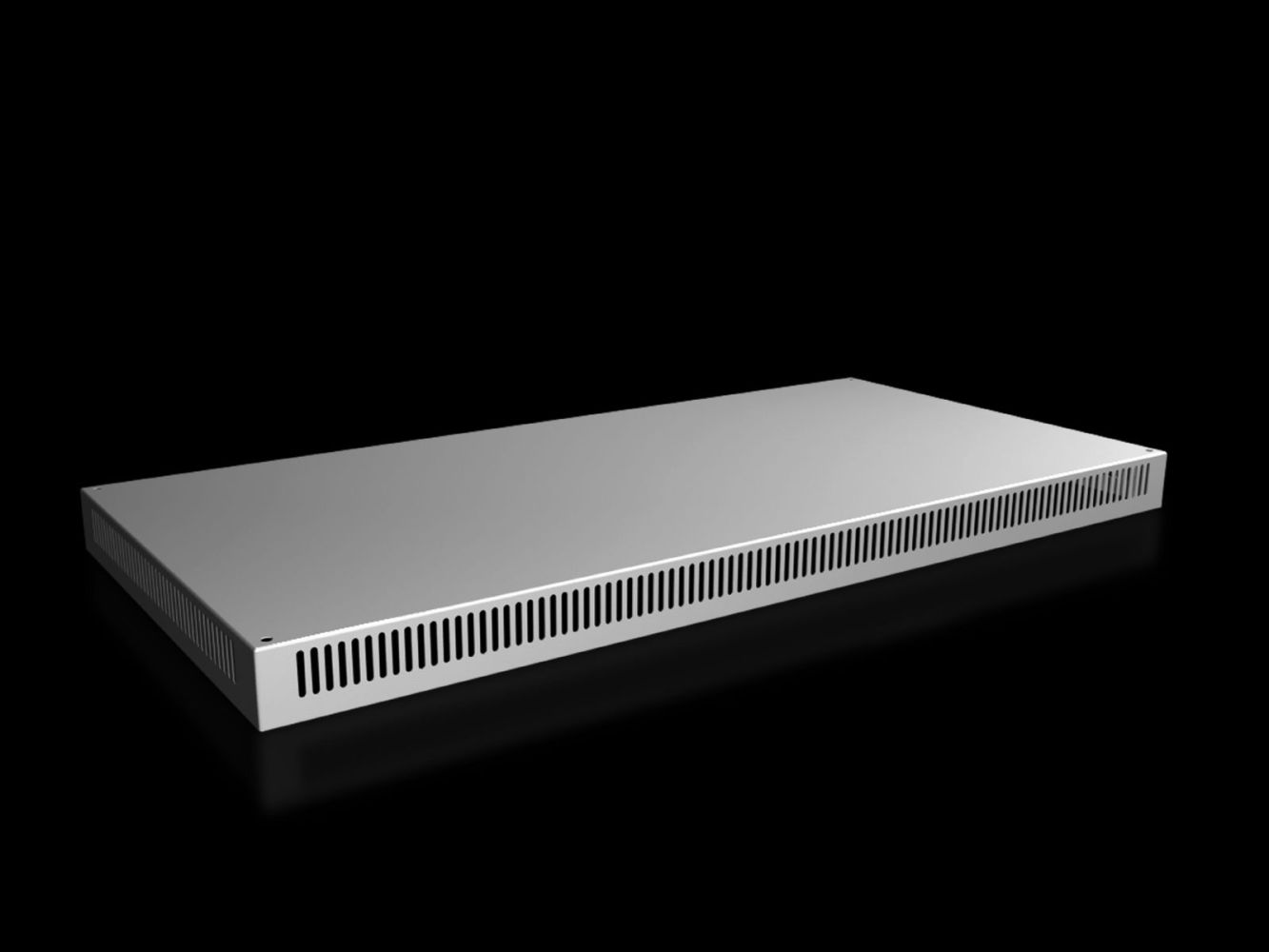

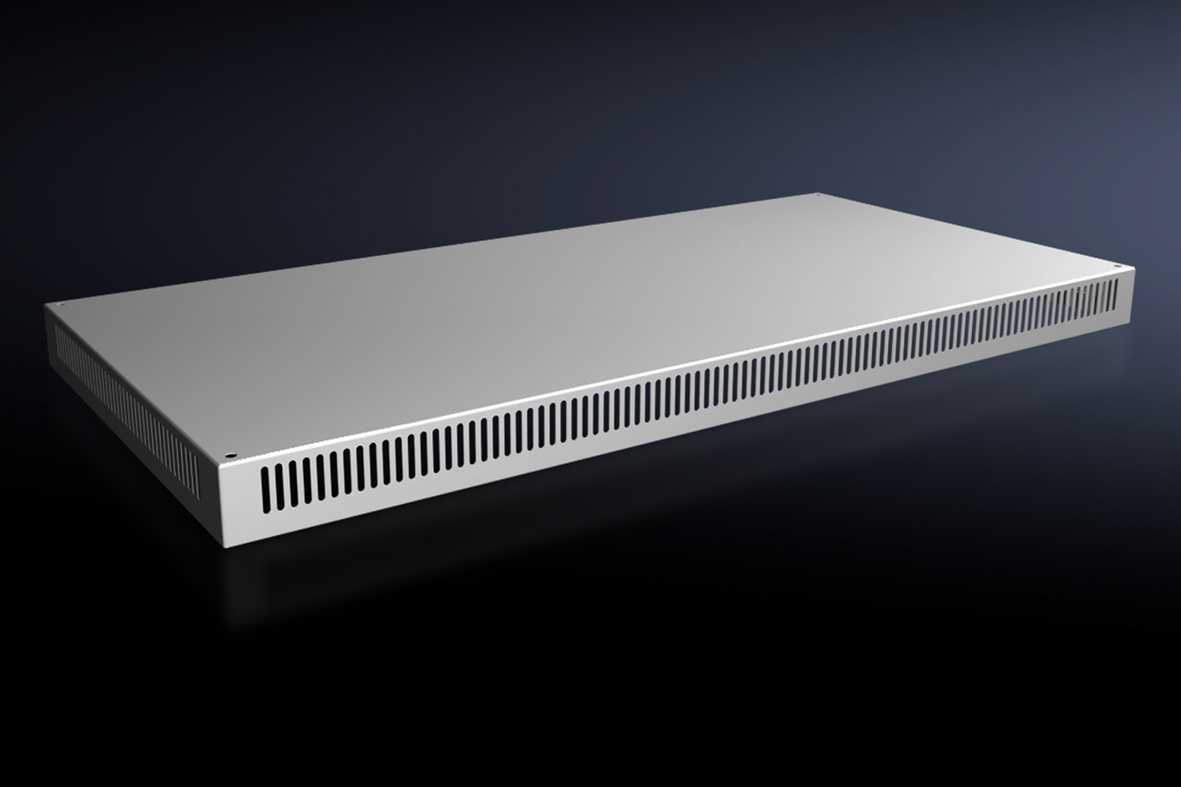

The Rittal SV 9681826 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 1,200 mm and a depth of 600 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of sheet steel with a wall thickness of 1.5 mm and features a structured coating in the colour RAL 7035, ensuring a robust and uniform surface with good weather resistance. The construction height is 72 mm, allowing it to fit perfectly into the standard construction of the VX enclosure series.

Applications

The roof plate is intended for use in industrial environments, particularly in enclosures of the VX and VX IT series. It is commonly used in automation technology, power supply systems, or process control applications where mechanical shielding of the upper enclosure area is required. The integrated ventilation opening enables targeted air circulation to regulate the internal temperature of the enclosure and prevent overheating of installed components. The protection rating IP 2X ensures protection against contact with fingers and larger solid objects, but does not provide water or dust tightness — it is therefore suitable for indoor use, not for outdoor or damp environments.

Functions and Equipment in Detail

The roof plate is equipped with a ventilation opening that supports natural ventilation within the enclosure. This opening is dimensioned to allow sufficient airflow for cooling electrical components without compromising the mechanical stability of the roof. The surface made of structured coating offers high mechanical strength and is resistant to mechanical stress, such as light scratching or impact. The colour RAL 7035 corresponds to a grey, neutral tone that blends well in industrial environments.

Technology Explained Simply

The roof plate is made of sheet steel with a thickness of 1.5 mm, providing sufficient strength for use in enclosures. The structured coating ensures a uniform, scratch-resistant surface that is easy to clean and guarantees a long service life. The protection rating IP 2X means the roof plate is protected against contact with fingers and larger solid objects, but does not meet specific requirements for resistance to water or dust. The construction height of 72 mm is matched to the standard height of the VX enclosure construction, allowing the roof plate to be installed without altering the enclosure geometry.

Compatibility and Accessories

The roof plate is specifically designed for enclosures with a width of 1,200 mm and a depth of 600 mm. It is compatible with VX and VX IT enclosure models from Rittal. It can be used both as a replacement for the standard roof and as an addition for enclosures without a roof plate. The product is delivered inclusive of mounting hardware, enabling installation without additional purchases.

Mounting and Installation

Installation is carried out at the top edge of the enclosure, where the roof plate is placed onto the designated mounting points and secured with the included mounting hardware. The construction height of 72 mm ensures that the roof plate fits exactly into the designated position and creates a flat surface. The ventilation opening should be oriented during installation to support air circulation within the enclosure, without being obstructed by other components.

Operational Advantages

The roof plate provides mechanical shielding of the upper enclosure area, protecting against mechanical damage. The integrated ventilation opening supports cooling of installed electrical components, which can extend the service life of the devices. The robust construction from sheet steel with structured coating ensures long-term durability even under industrial conditions. Compatibility with VX enclosure models and delivery with mounting hardware simplifies installation and reduces mounting effort.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 1.200 mm, Depth: = 600 mm


Product data sheet
Datasheet for Rittal 9681826, EAN: 4028177926783

Questions & answers

What is the delivery time of Rittal 9681826 SV roof plate for VX, width: 1200 mm, depth: 600 mm, IP 2X?

The article Rittal 9681826 SV roof plate for VX, width: 1200 mm, depth: 600 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681826 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681826 SV roof plate for VX, width: 1200 mm, depth: 600 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681826 SV roof plate for VX, width: 1200 mm, depth: 600 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
