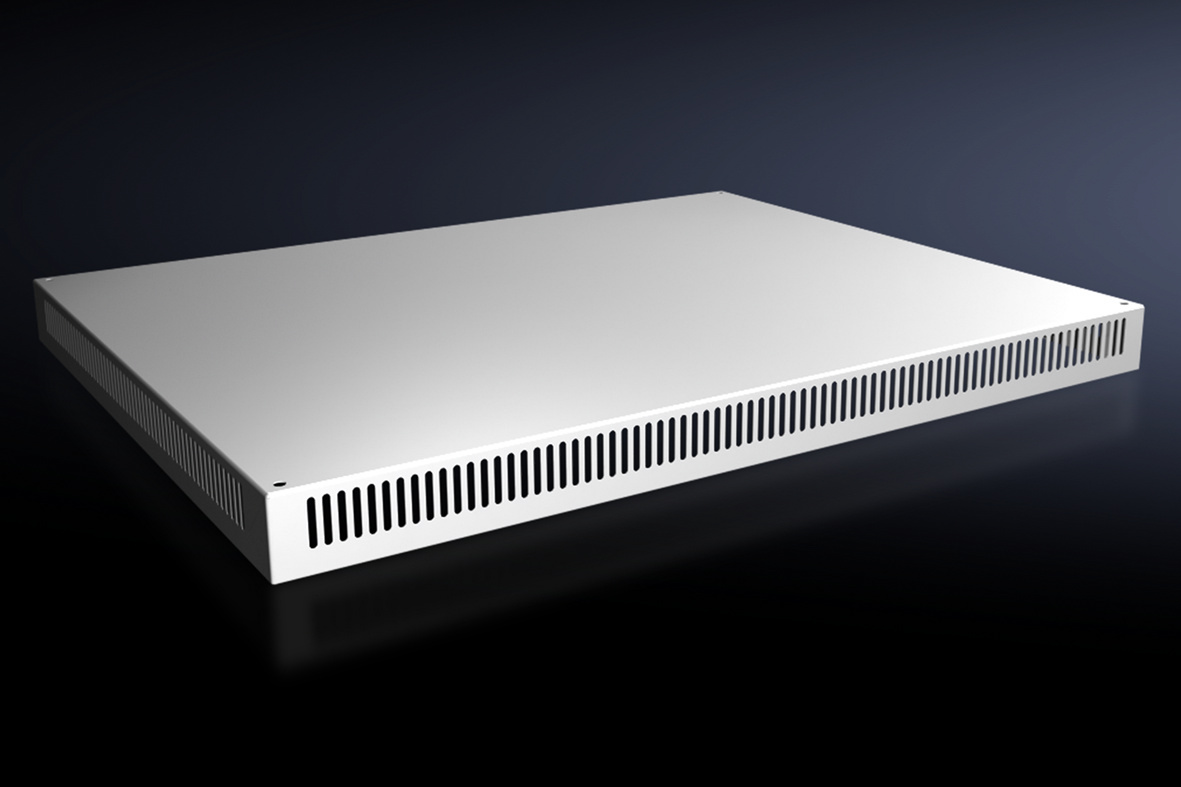

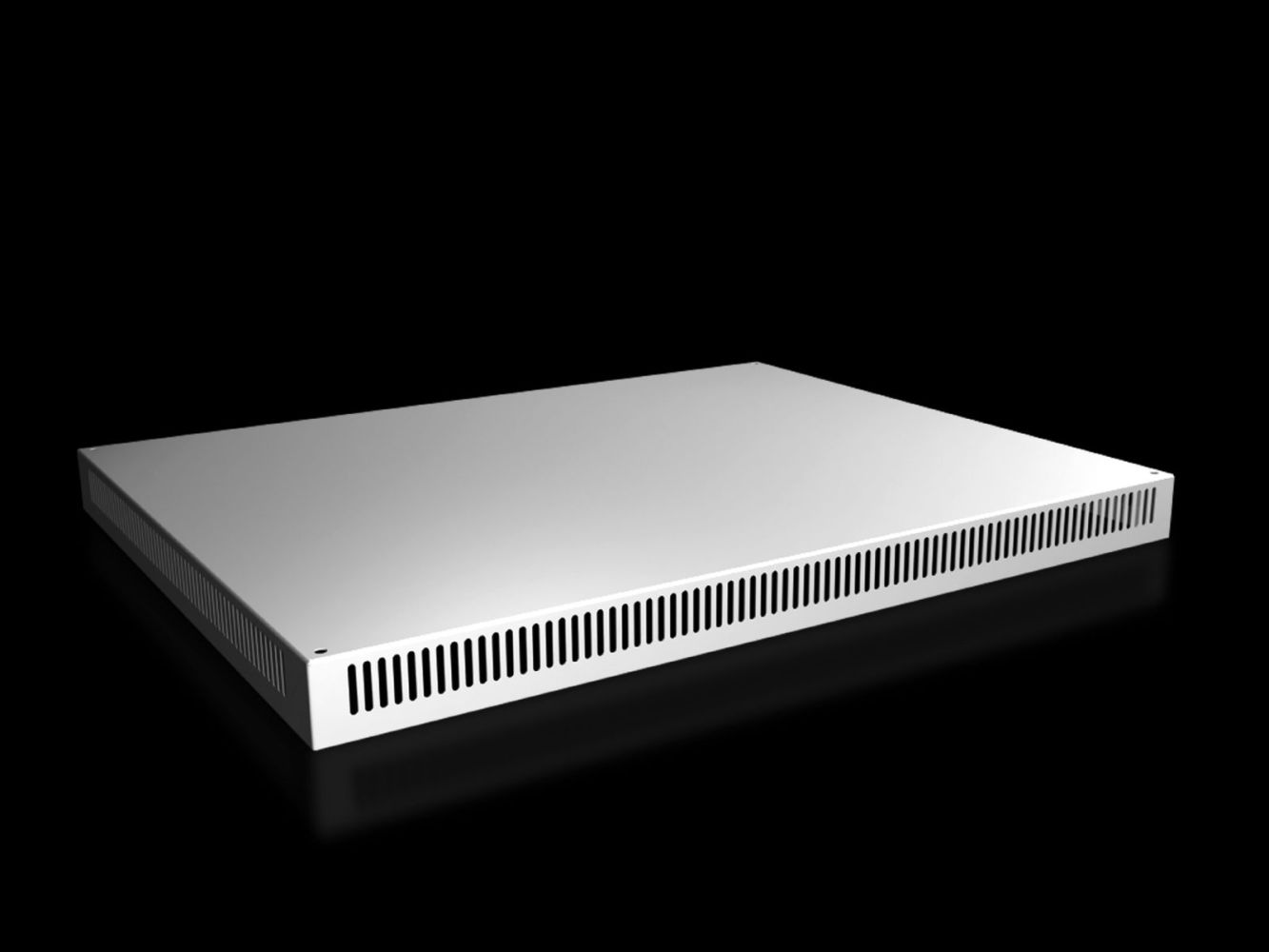

Rittal 9681808 SV roof plate for VX, width: 1000 mm, depth: 800 mm, IP 2X

Your rating:
Average rating
product review for Rittal 9681808 SV roof plate for VX, width: 1000 mm, depth: 800 mm, IP 2X
( 4 / 5 ) 3 ratings
Rittal 9681808
This image may differ from the desired article.
Rittal 9681808Rittal 9681808Rittal 9681808
-11% 96,37 EUR 108,54 EUR
( 114,68 EUR incl. VAT )
≈ £80.57  |  ≈ $106.49
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 9681808 SV roof plate for VX, width: 1000 mm, depth: 800 mm, IP 2X
Datasheet:file_download Download
Lieske Part No.:1903708
Mfg Part No: 9681808
UPC/EAN: 4028177926677
Weight:13.52 kg
Type:SV 9681808

Product information for Rittal 9681808:

The Rittal SV 9681808 is a roof plate for enclosures of the VX series, specifically designed for enclosures with a width of 1,000 mm and a depth of 800 mm. It serves as a replacement for the standard roof or as an addition for enclosures originally delivered without a roof plate. The product is made of steel sheet with a thickness of 1.5 mm and features a surface coated with textured paint in the colour RAL 7035, providing a robust and uniform coating. The mounting height is 72 mm, enabling a compact installation without disproportionately increasing the overall height of the enclosure.

Applications

The roof plate is intended for use in industrial environments, particularly in enclosures of the VX and VX IT series. It is suitable both as a replacement for existing roof constructions and as a new installation for enclosures originally delivered without a roof plate. The IP 2X protection rating ensures protection against contact with fingers and larger solid objects, but does not provide protection against water or dust. The ventilation opening in the roof plate supports natural air circulation within the enclosure, contributing to heat dissipation from electronic components.

Functions and Equipment in Detail

The roof plate is equipped with a ventilation opening that improves air circulation inside the enclosure. This is particularly important for regulating the temperature of installed devices and preventing overheating. The surface coated with textured paint in RAL 7035 provides a uniform, abrasion-resistant coating suitable for industrial applications. The steel sheet material with a thickness of 1.5 mm ensures high mechanical stability and resistance to external influences.

Technology Explained Simply

The IP 2X protection rating means that the roof plate is protected against contact with fingers and larger solid objects, but does not offer protection against water or dust. This makes it suitable for indoor environments where no special environmental conditions such as humidity or dust exposure are present. The ventilation opening in the roof plate enables passive cooling by exhausting warm air from inside the enclosure. The mounting height of 72 mm is designed to fit optimally into the standard heights of VX enclosures without creating additional space requirements.

Compatibility and Accessories

The roof plate is specifically designed for enclosures with a width of 1,000 mm and a depth of 800 mm. It is compatible with the VX and VX IT series from Rittal. It can be used both as a replacement for existing roof constructions and as a new installation for enclosures without a roof plate. The delivery includes the roof plate and the required mounting hardware intended for securing to the enclosure edges.

Installation and Mounting

Installation is carried out by securing to the upper edges of the enclosure. The included mounting hardware enables a secure and stable fixation. The mounting height of 72 mm ensures that the roof plate integrates seamlessly into the existing enclosure structure. The ventilation opening must be kept clear during installation to avoid obstructing air circulation.

Operational Advantages

The roof plate provides a robust and stable cover for the upper section of the enclosure. The ventilation opening supports cooling of installed components, which can extend the service life of the devices. The textured paint surface in RAL 7035 ensures a uniform and abrasion-resistant coating that has proven reliable in industrial environments. Compatibility with VX and VX IT enclosures, along with easy installation, makes the roof plate a practical solution for enclosure covering.

General
MaterialSheet steel, 1.5 mm
Surface protectionStructured lacquer
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Mounting height72 mm
Suitable forWidth: = 1.000 mm, Depth: = 800 mm


Product data sheet
Datasheet for Rittal 9681808, EAN: 4028177926677

Questions & answers

What is the delivery time of Rittal 9681808 SV roof plate for VX, width: 1000 mm, depth: 800 mm, IP 2X?

The article Rittal 9681808 SV roof plate for VX, width: 1000 mm, depth: 800 mm, IP 2X is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9681808 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9681808 SV roof plate for VX, width: 1000 mm, depth: 800 mm, IP 2X always at the best possible price. We can give you a discount of 2% on Rittal 9681808 SV roof plate for VX, width: 1000 mm, depth: 800 mm, IP 2X if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
