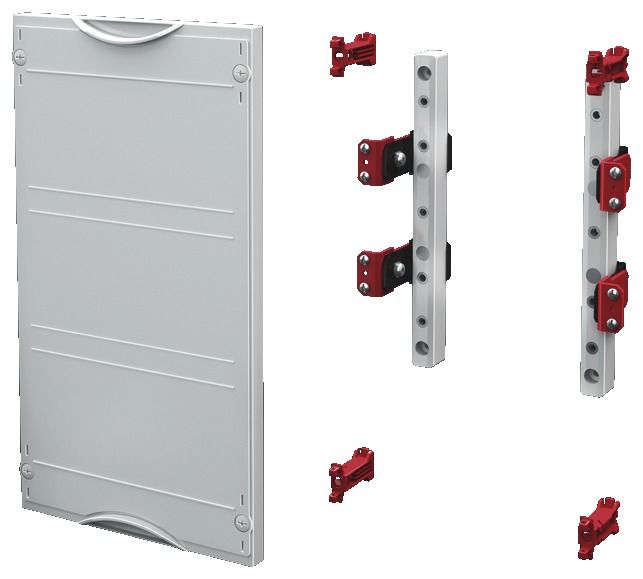

Rittal 9666550 SV NH fuse-switch disconnector module (ISV), 2 WU (500 mm), 5 U (750 mm), for 8 x size 00, 4 x size 1-3, (SV 9346XXX, 185 mm)
|
102,12 EUR 103,96 EUR |
|
|
( 121,52 EUR incl. VAT ) ≈ £87.82 | ≈ $116.42 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Lieske Part No.: | 984831 |
|---|---|
| Mfg Part No: | 9666550 |
| UPC/EAN: | 4028177676435 |
| Weight: | 3.89 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 9666550:
For NH slimline fuse-switch disconnectors, sizes 00 to 3 (100/185 mm bar centre distance).
Material: Cover: Polystyrene
Colour: RAL 7035
Note: In order to ensure problem-free cable connection, a contact hazard protection module or an N/PE busbar module must be installed above or below the NH slimline fuse-switch disconnector modules.
Busbars are not included with the supply
Packs of: 1 pc(s).
EAN: 4028177676435
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27142409
ETIM 6.0: EC001893
Design: For size: 00
For size: 1
For size: 2
For size: 3
To fit: Model No.: 9346.040
Model No.: 9346.050
Model No.: 9346.110
Model No.: 9346.115
Model No.: 9346.210
Model No.: 9346.215
Model No.: 9346.310
Model No.: 9346.315
For NH slimline fuse-switch disconnectors: 8 x 00
4 x 1
4 x 2
4 x 3
Centre-to-centre spacing of busbars: 185 mm
Dimensions: Width: 500 mm
Height: 750 mm
Size: Width units (WU) @ 250 mm: 2
Height units (U) @ 150 mm: 5
For no. of NH slimline fuse-switch disconnectors: 8
4
4
4
Weight/pack: 3.9 kg
Type: SV 9666550
Material: Cover: Polystyrene
Colour: RAL 7035
Note: In order to ensure problem-free cable connection, a contact hazard protection module or an N/PE busbar module must be installed above or below the NH slimline fuse-switch disconnector modules.
Busbars are not included with the supply
Packs of: 1 pc(s).
EAN: 4028177676435
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27142409
ETIM 6.0: EC001893
Design: For size: 00
For size: 1
For size: 2
For size: 3
To fit: Model No.: 9346.040
Model No.: 9346.050
Model No.: 9346.110
Model No.: 9346.115
Model No.: 9346.210
Model No.: 9346.215
Model No.: 9346.310
Model No.: 9346.315
For NH slimline fuse-switch disconnectors: 8 x 00
4 x 1
4 x 2
4 x 3
Centre-to-centre spacing of busbars: 185 mm
Dimensions: Width: 500 mm
Height: 750 mm
Size: Width units (WU) @ 250 mm: 2
Height units (U) @ 150 mm: 5
For no. of NH slimline fuse-switch disconnectors: 8
4
4
4
Weight/pack: 3.9 kg
Type: SV 9666550
