Rittal 9666030 ISV shock protection module W/H 1/4

Your rating:
Average rating
product review for Rittal 9666030 ISV shock protection module W/H 1/4
( 4.4 / 5 ) 9 ratings
Rittal 9666030
This image may differ from the desired article.
Rittal 9666030Rittal 9666030
-12% 33,81 EUR 38,49 EUR
( 40,23 EUR incl. VAT )
≈ £28.30  |  ≈ $37.16
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 9666030 ISV shock protection module W/H 1/4
Datasheet:file_download Download
Lieske Part No.:1132620
Mfg Part No: 9666030
UPC/EAN: 4028177675940
Weight:0.84 kg
Type:SV 9666030

Product information for Rittal 9666030:

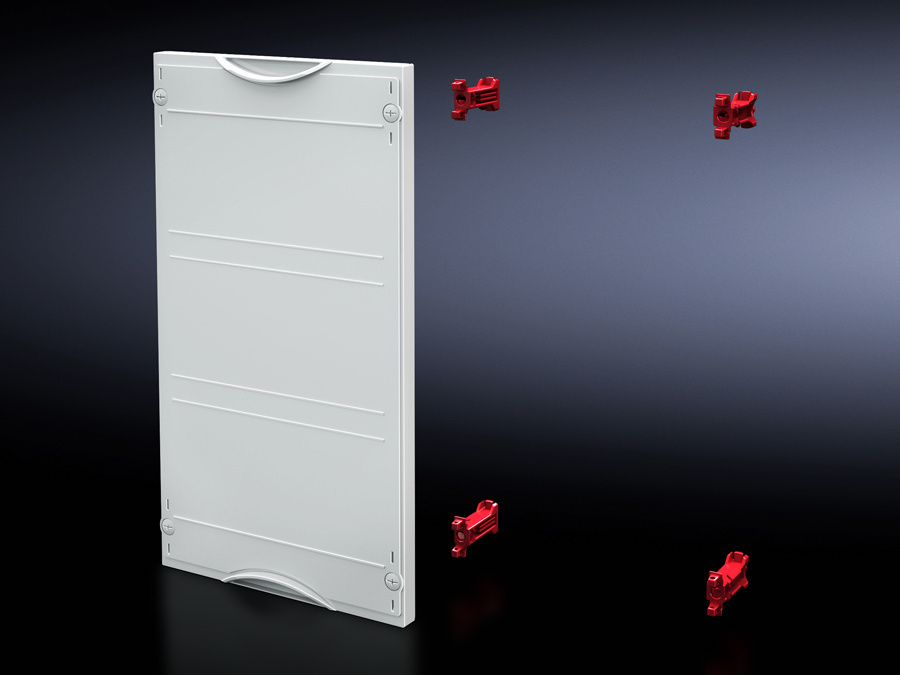

The Rittal SV 9666030 is a shock protection module (ISV) for use in enclosures and power distribution systems. It is designed for the safe covering of free installation areas to prevent unauthorized access to electrical components. The module is sized at 1 width unit (BE) at 250 mm and 4 height units (HE) at 150 mm, corresponding to a total height of 600 mm and a width of 250 mm. The cover is made of polystyrene and is finished in RAL 7035, a neutral gray tone that integrates well in industrial environments. The module is plombable, enabling secure and traceable sealing, for example, to prevent unauthorized openings in safety-critical installations.

Applications

The shock protection module is used in industrial enclosures where free mounting areas remain after component installation. It protects against direct contact with conductive parts and thus meets electrical safety requirements according to applicable standards. The plombable design makes it particularly suitable for installations that require regular inspection or certification, such as in process industry, manufacturing technology, or safety control systems.

Functions and Equipment in Detail

The module is designed for installation in standard enclosure module systems. The cover is fixed and provides full coverage of the free area. The plombable construction allows for the attachment of a security seal, making any tampering detectable. The module is supplied inclusive of mounting hardware, enabling installation without additional tools or parts. The choice of polystyrene ensures sufficient mechanical stability and weather resistance for indoor use.

Technology Explained Simply

The dimensions of 250 mm width and 600 mm height correspond to a standard module in enclosure technology, fitting into common module grids. The designation 1 BE (width unit) and 4 HE (height units) is standard in the enclosure industry, where 1 BE = 250 mm and 1 HE = 150 mm. Polystyrene is lightweight, shape-stable, and provides adequate protection against mechanical stress during normal operation. The color RAL 7035 is standard in industry and ensures uniform visual appearance of enclosures.

Compatibility and Accessories

The module is designed for use in enclosures with modular construction, particularly in systems based on standard dimensions of 250 mm width and 150 mm height.

Mounting and Installation

Installation is carried out by securing the cover to the designated mounting points in the enclosure.

Operational Advantages

The module reduces the risk of shock damage and increases safety in electrical installations. The plombable design enables traceable sealing, which is beneficial during inspections and maintenance. Standard dimensions simplify planning and integration into existing enclosure configurations. The use of polystyrene provides a cost-effective and reliable solution without complex installation procedures.

General
MaterialCover: Polystyrene
ColourRAL 7035
Scope of deliveryIncluding mounting hardware
Width250 mm
Height600 mm
Construction sizeWidth units (BE) at 250 mm: 1, Height units (HE) at 150 mm: 4


Product data sheet
Datasheet for Rittal 9666030, EAN: 4028177675940
