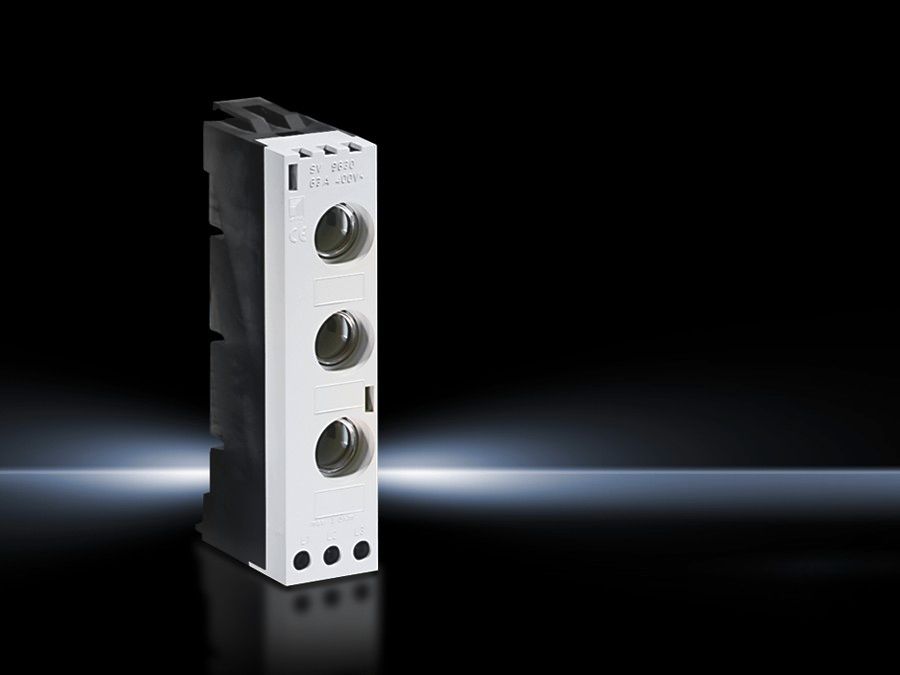

Rittal 9630000 Mini-PLS fuse carrier D02-E18 (40 mm)
|
22,73 EUR |
|
|
incl. 1,11 EUR copper surcharge ( 27,05 EUR incl. VAT ) ≈ £19.14 | ≈ $25.53 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >500 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 277574 |
| Mfg Part No: | 9630000 |
| UPC/EAN: | 4028177149908 |
| Weight: | 0.316 kg |
| Type: | SV 9630000 |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 9630000:
Material: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 9011
Cover: RAL 7035
Packs of: 1 pc(s).
EAN: 4028177149908
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001644
Number of poles: 3-pole
Dimensions: Width: 38 mm
Height: 160 mm
Rated operating voltage: 400 V
Connection for round conductor cross-sections: 1.5 mm² - 16 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 63 A
Fuse inserts: D 02-E 18 (adaptor sleeve)
Weight/pack: 0.35 kg
Fire protection corresponding to UL 94-V0
Colour: Chassis: RAL 9011
Cover: RAL 7035
Packs of: 1 pc(s).
EAN: 4028177149908
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001644
Number of poles: 3-pole
Dimensions: Width: 38 mm
Height: 160 mm
Rated operating voltage: 400 V
Connection for round conductor cross-sections: 1.5 mm² - 16 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 63 A
Fuse inserts: D 02-E 18 (adaptor sleeve)
Weight/pack: 0.35 kg
Please note...
This article contains a copper surcharge of 1,11 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
