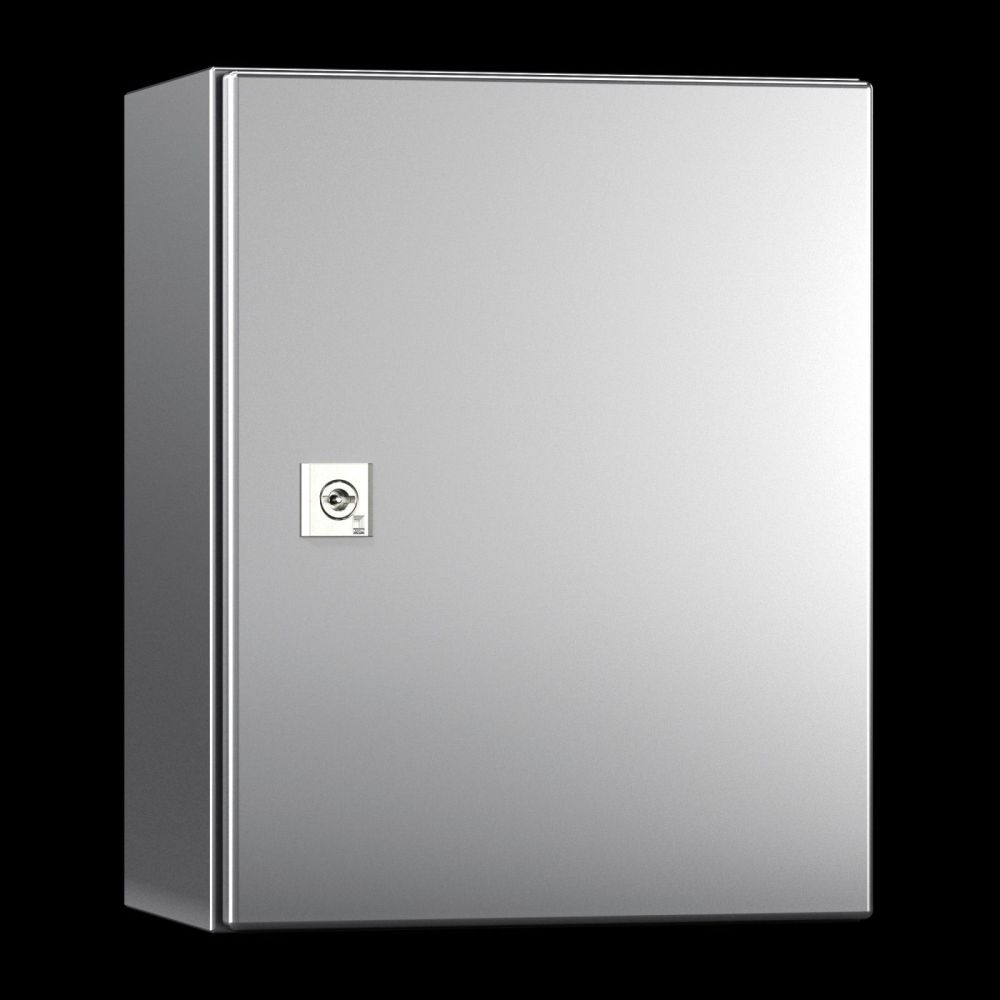

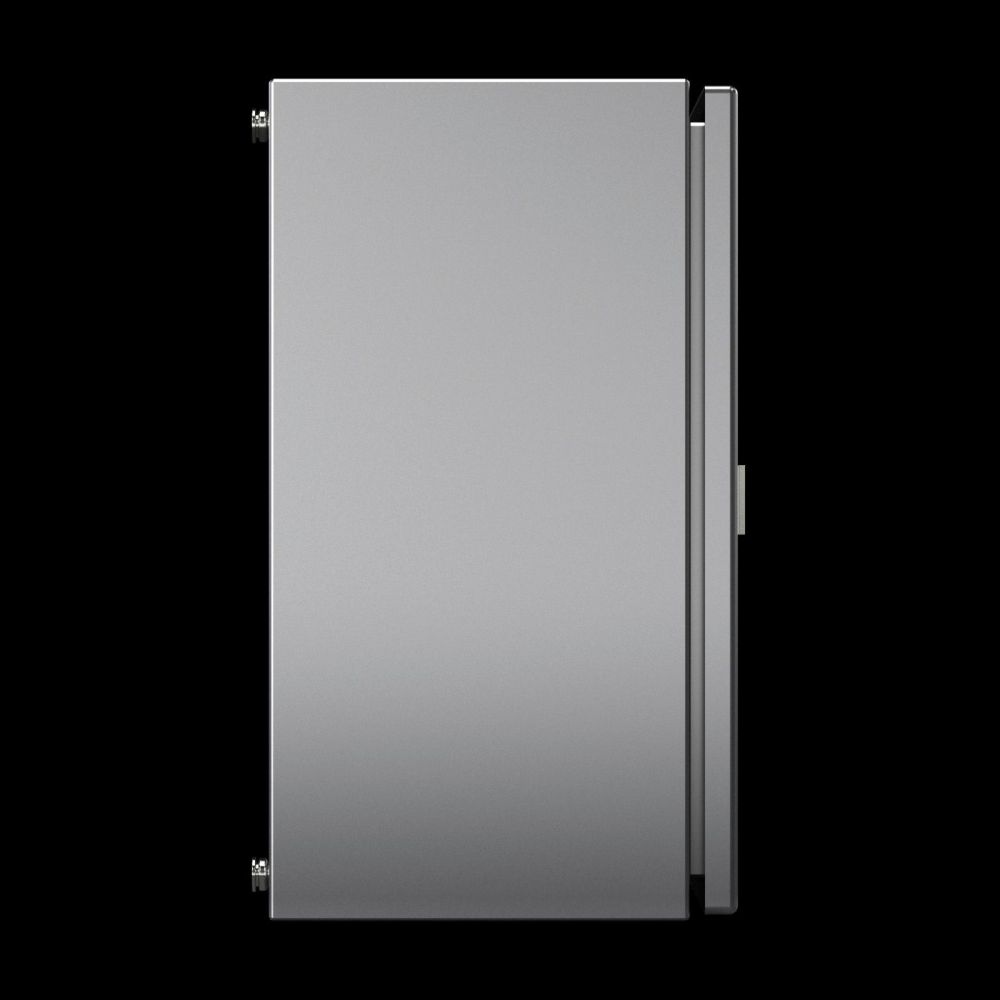

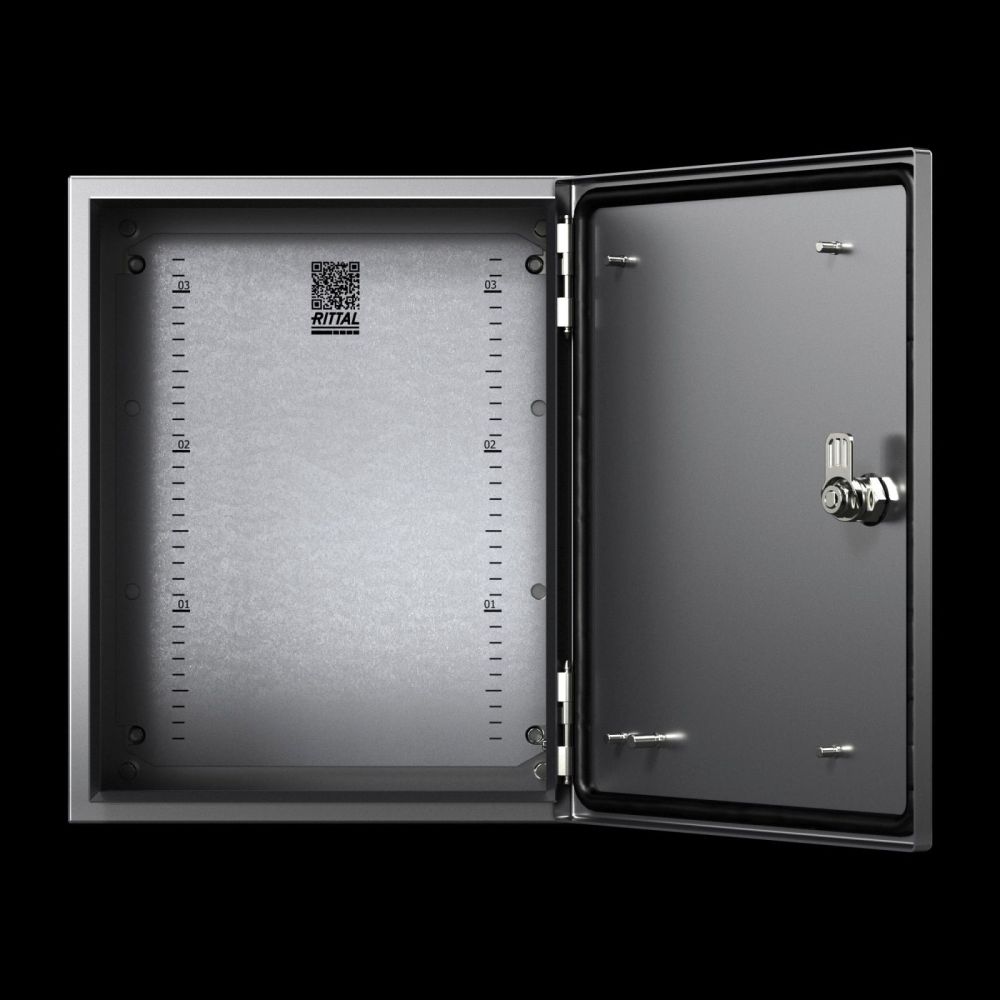

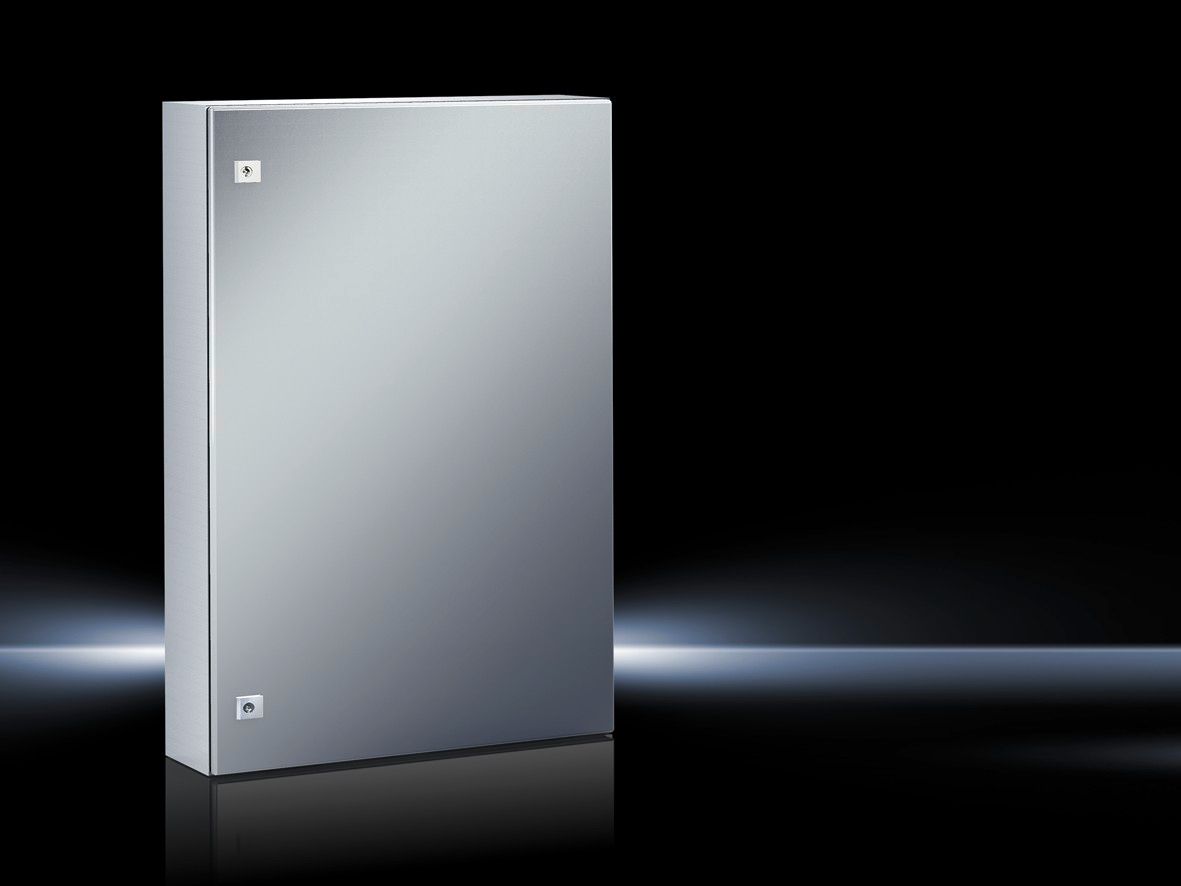

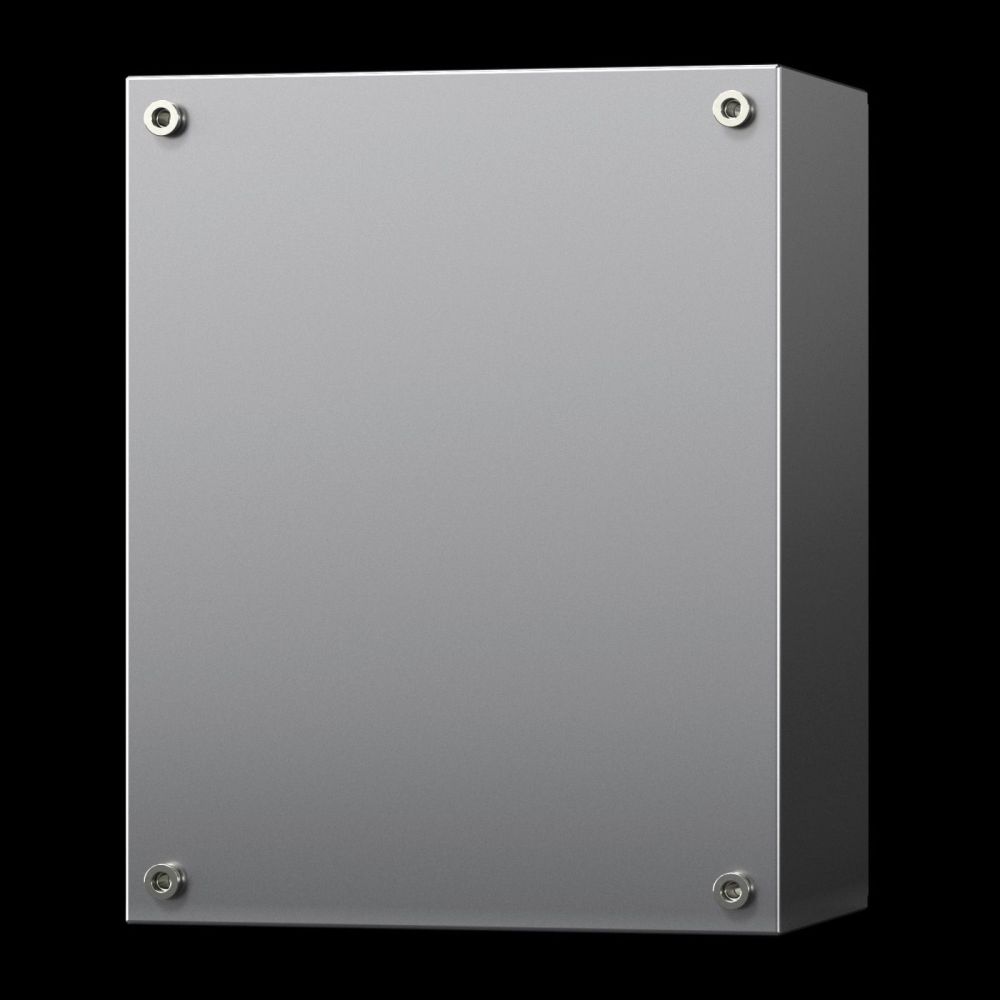

Rittal 9408600 Ex-enclosure stainless steel, empty enclosure with hinged door,
|
-8% 1.082,15 EUR 1.172,00 EUR |
|
|
( 1.287,76 EUR incl. VAT ) ≈ £914.42 | ≈ $1,209.84 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 584432 |
| Mfg Part No: | 9408600 |
| UPC/EAN: | 4028177138896 |
| Weight: | 54.5 kg |
| Type: | KEL 9408600 |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 9408600:
Applications: Zone 1 and 2 or 21 and 22 to 94/9/EC
Ambient temperature range: -30°C...+80°C
Protection type to EN 60 079: Equipment protection due to increased safety, equipment protection due to enclosure
Material: Enclosure: Stainless steel 1.4301 (AISI 304)
Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Mounting plate: Sheet steel
Surface finish: Enclosure: Brushed, grain 240
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 66
Certificates: IEC Ex PTB 09.0035U: yes
PTB 02 ATEX 1082U: yes
Supply includes: Enclosure
Door
Mounting plate
Packs of: 1 pc(s).
EAN: 4028177138896
Customs tariff number: 94032080
eCl@ss 5.1: 27180502
eCl@ss 7.0: 27180502
ETIM 6.0: EC002503
Dimensions: Width: 800 mm
Height: 1000 mm
Depth: 300 mm
Mounting plate: Width: 739 mm
Height: 955 mm
Number of cam locks: 2
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 36.3 kg
Ambient temperature range: -30°C...+80°C
Protection type to EN 60 079: Equipment protection due to increased safety, equipment protection due to enclosure
Material: Enclosure: Stainless steel 1.4301 (AISI 304)
Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Mounting plate: Sheet steel
Surface finish: Enclosure: Brushed, grain 240
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 66
Certificates: IEC Ex PTB 09.0035U: yes
PTB 02 ATEX 1082U: yes
Supply includes: Enclosure
Door
Mounting plate
Packs of: 1 pc(s).
EAN: 4028177138896
Customs tariff number: 94032080
eCl@ss 5.1: 27180502
eCl@ss 7.0: 27180502
ETIM 6.0: EC002503
Dimensions: Width: 800 mm
Height: 1000 mm
Depth: 300 mm
Mounting plate: Width: 739 mm
Height: 955 mm
Number of cam locks: 2
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 36.3 kg
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
