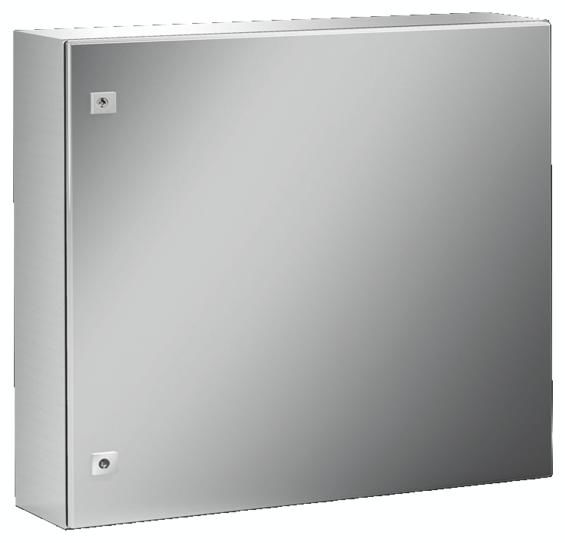

Rittal 9407600 Ex enclosures Stainless steel, empty enclosure with hinged door
|
-6% 947,14 EUR 1.011,33 EUR |
|
|
( 1.127,10 EUR incl. VAT ) ≈ £812.65 | ≈ $1,097.74 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 356064 |
|---|---|
| Mfg Part No: | 9407600 |
| UPC/EAN: | 4028177138865 |
| Weight: | 0.123 kg |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 9407600:
Applications: Zone 1 and 2 or 21 and 22 to 94/9/EC
Ambient temperature range: -30°C...+80°C
Protection type to EN 60 079: Equipment protection due to increased safety, equipment protection due to enclosure
Material: Enclosure: Stainless steel 1.4301 (AISI 304)
Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Mounting plate: Sheet steel
Surface finish: Enclosure: Brushed, grain 240
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 66
Certificates: IEC Ex PTB 09.0035U: yes
PTB 02 ATEX 1082U: yes
Supply includes: Enclosure
Door
Mounting plate
Packs of: 1 pc(s).
EAN: 4028177138865
Customs tariff number: 94032080
eCl@ss 5.1: 27180502
eCl@ss 7.0: 27180502
ETIM 6.0: EC002503
Dimensions: Width: 760 mm
Height: 760 mm
Depth: 300 mm
Mounting plate: Width: 704 mm
Height: 730 mm
Number of cam locks: 2
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 30.5 kg
Type: KEL 9407600
Ambient temperature range: -30°C...+80°C
Protection type to EN 60 079: Equipment protection due to increased safety, equipment protection due to enclosure
Material: Enclosure: Stainless steel 1.4301 (AISI 304)
Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Mounting plate: Sheet steel
Surface finish: Enclosure: Brushed, grain 240
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 66
Certificates: IEC Ex PTB 09.0035U: yes
PTB 02 ATEX 1082U: yes
Supply includes: Enclosure
Door
Mounting plate
Packs of: 1 pc(s).
EAN: 4028177138865
Customs tariff number: 94032080
eCl@ss 5.1: 27180502
eCl@ss 7.0: 27180502
ETIM 6.0: EC002503
Dimensions: Width: 760 mm
Height: 760 mm
Depth: 300 mm
Mounting plate: Width: 704 mm
Height: 730 mm
Number of cam locks: 2
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 30.5 kg
Type: KEL 9407600
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
