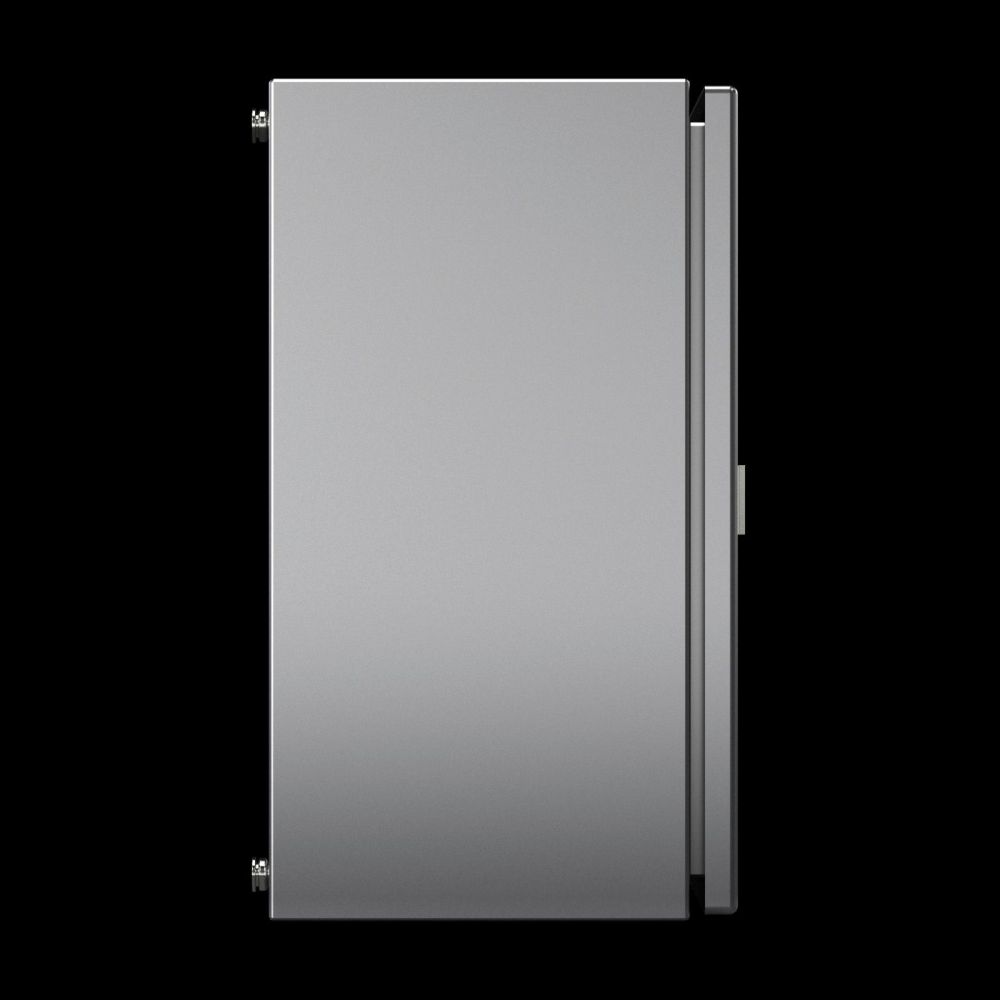

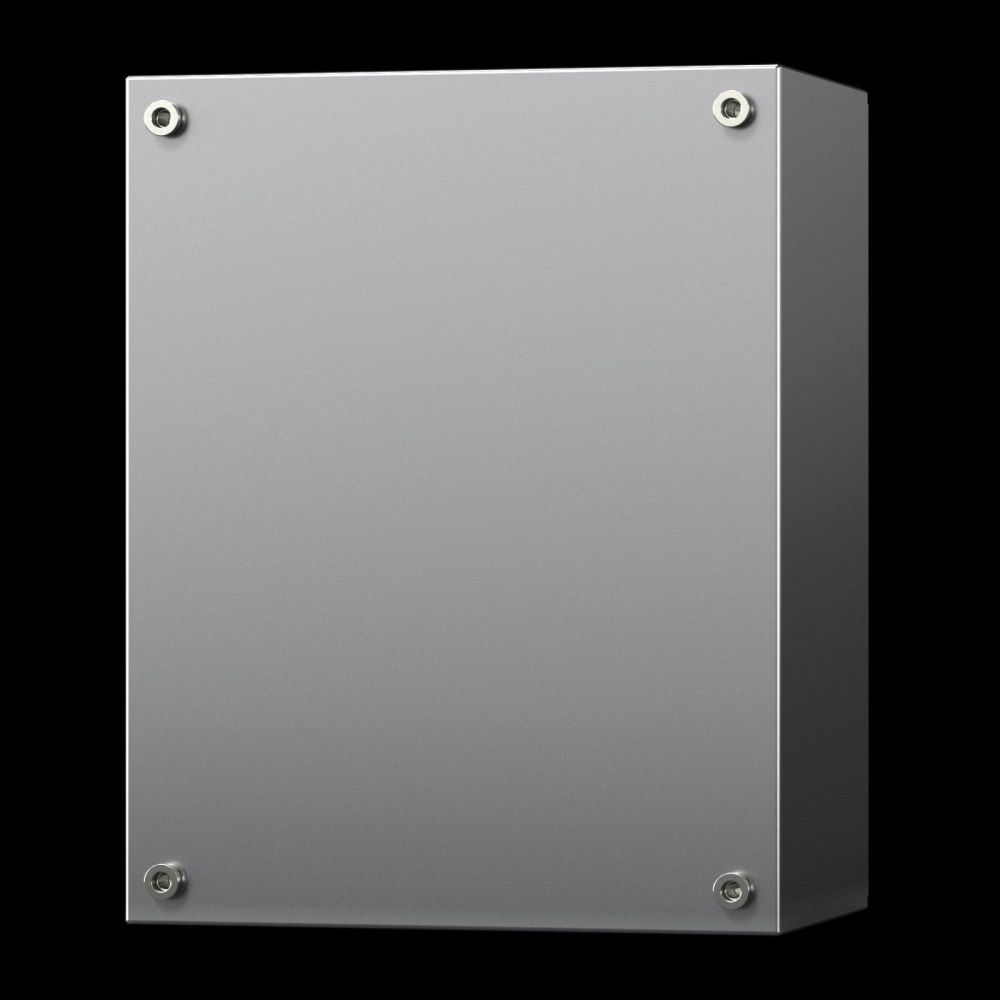

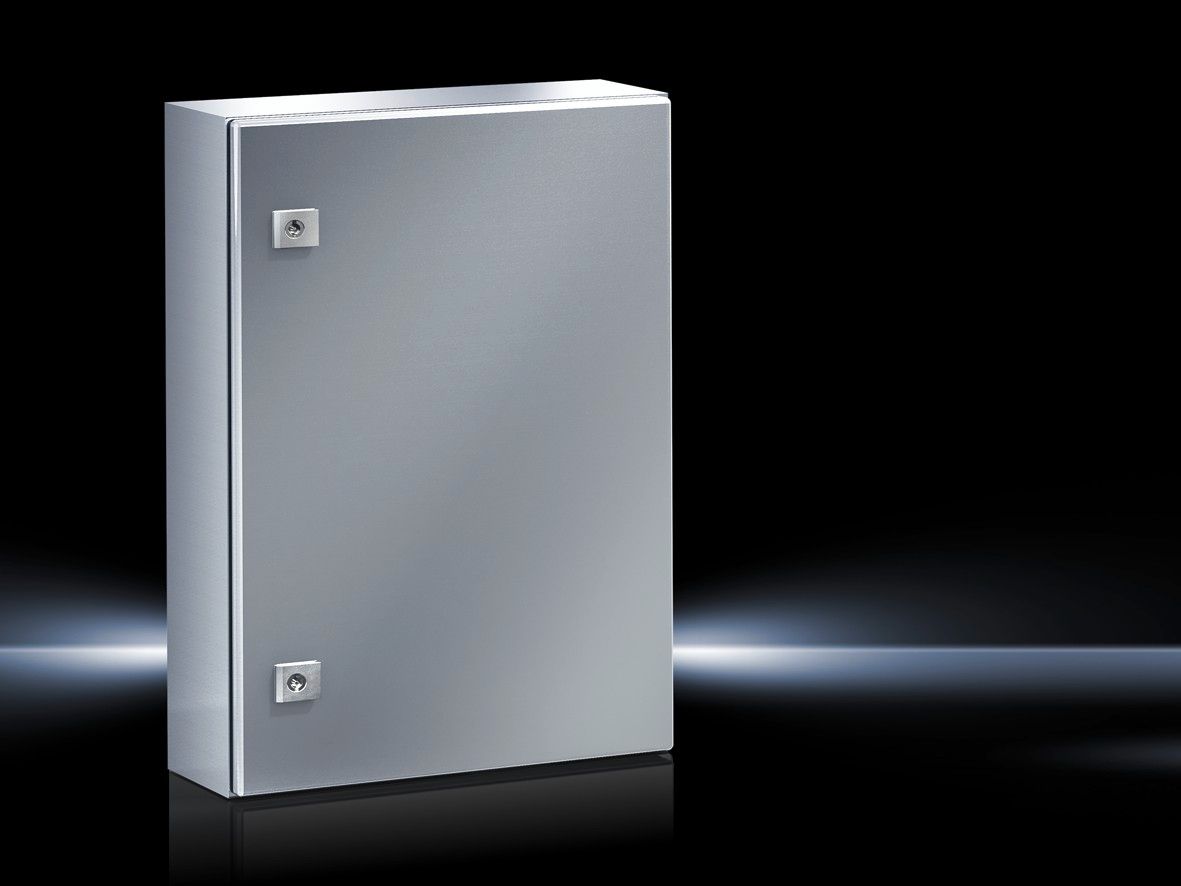

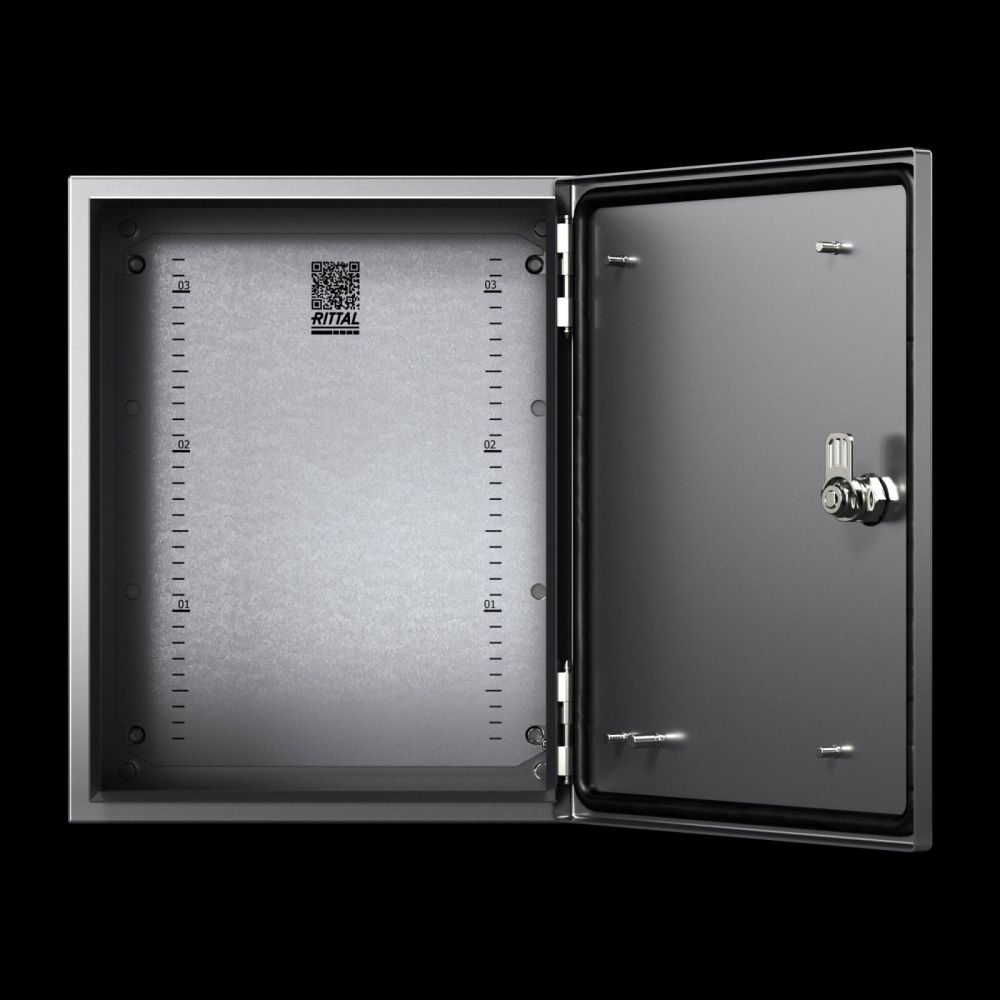

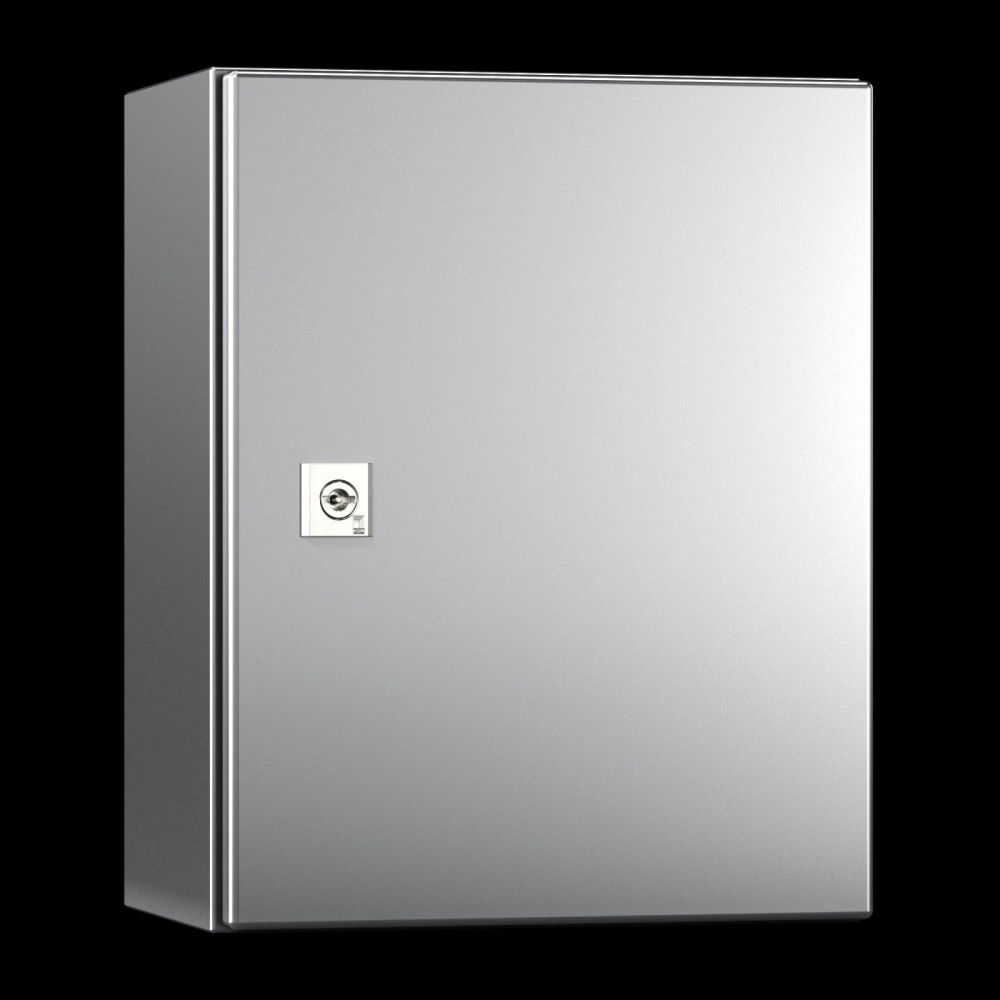

Rittal 9404600 Ex-enclosure stainless steel, empty enclosure with hinged door
|
457,59 EUR |
|
|
( 544,53 EUR incl. VAT ) ≈ £383.00 | ≈ $502.89 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 533332 |
| Mfg Part No: | 9404600 |
| UPC/EAN: | 4028177138773 |
| Weight: | 15.325 kg |
| Type: | KEL 9404600 |
Product information for Rittal 9404600:
Ambient temperature range: -30°C...+80°C
Protection type to EN 60 079: Equipment protection due to increased safety, equipment protection due to enclosure
Material: Enclosure: Stainless steel 1.4301 (AISI 304)
Door: Stainless steel 1.4301 (AISI 304), all-round foamed-in silicone seal
Mounting plate: Sheet steel
Surface finish: Enclosure: Brushed, grain 240
Mounting plate: Zinc-plated
Protection category IP to IEC 60 529: IP 66
Certificates: IEC Ex PTB 09.0035U: yes
PTB 02 ATEX 1082U: yes
Supply includes: Enclosure
Door
Mounting plate
Packs of: 1 pc(s).
EAN: 4028177138773
Customs tariff number: 94032080
eCl@ss 5.1: 27180502
eCl@ss 7.0: 27180502
ETIM 6.0: EC002503
Dimensions: Width: 380 mm
Height: 600 mm
Depth: 210 mm
Mounting plate: Width: 334 mm
Height: 570 mm
Number of cam locks: 2
Lock version: Cam
Number of locks: 2
Lock insert: 3 mm double-bit
Weight/pack: 13.3 kg
| General | |
| Model | Ex enclosure |
| Applications | Zone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -30 °C...+80 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb) |
| Material | Housing: stainless steel 1.4301 (AISI 304), Door: stainless steel 1.4301 (AISI 304), continuous foamed silicone seal, mounting plate: sheet steel |
| Surface protection | Housing: Brushed finish, grain 400, roughness < 0.8 µm, mounting plate: galvanised |
| Scope of delivery | housing, door, mounting plate |
| Width | 380 mm |
| Height | 600 mm |
| Depth | 210 mm |
| Mounting plate dimensions (W x H) | 334 mm x 570 mm |
| Base material | Stainless steel 1.4301 (AISI 304) |
| Lock | Closure type: latch, number of closures: 2, closure insert: 3 mm double barb |
| Degree of protection IP according to IEC 60 529 | IP 66 |
| NEMA degree of protection | NEMA 4X |
| Type rating according to UL 50E | Type 1, Type 4, Type 4X, Type 12 |
| Certificate IEC EX PTB 09.0035U | |
| Certificate PTB 02 ATEX 1082U | |
Questions & answers
What is the delivery time of Rittal 9404600 Ex-enclosure stainless steel, empty enclosure with hinged door?
The article Rittal 9404600 Ex-enclosure stainless steel, empty enclosure with hinged door is currently in stock
According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9404600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9404600 Ex-enclosure stainless steel, empty enclosure with hinged door always at the best possible price. We can give you a discount of 2% on Rittal 9404600 Ex-enclosure stainless steel, empty enclosure with hinged door if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
