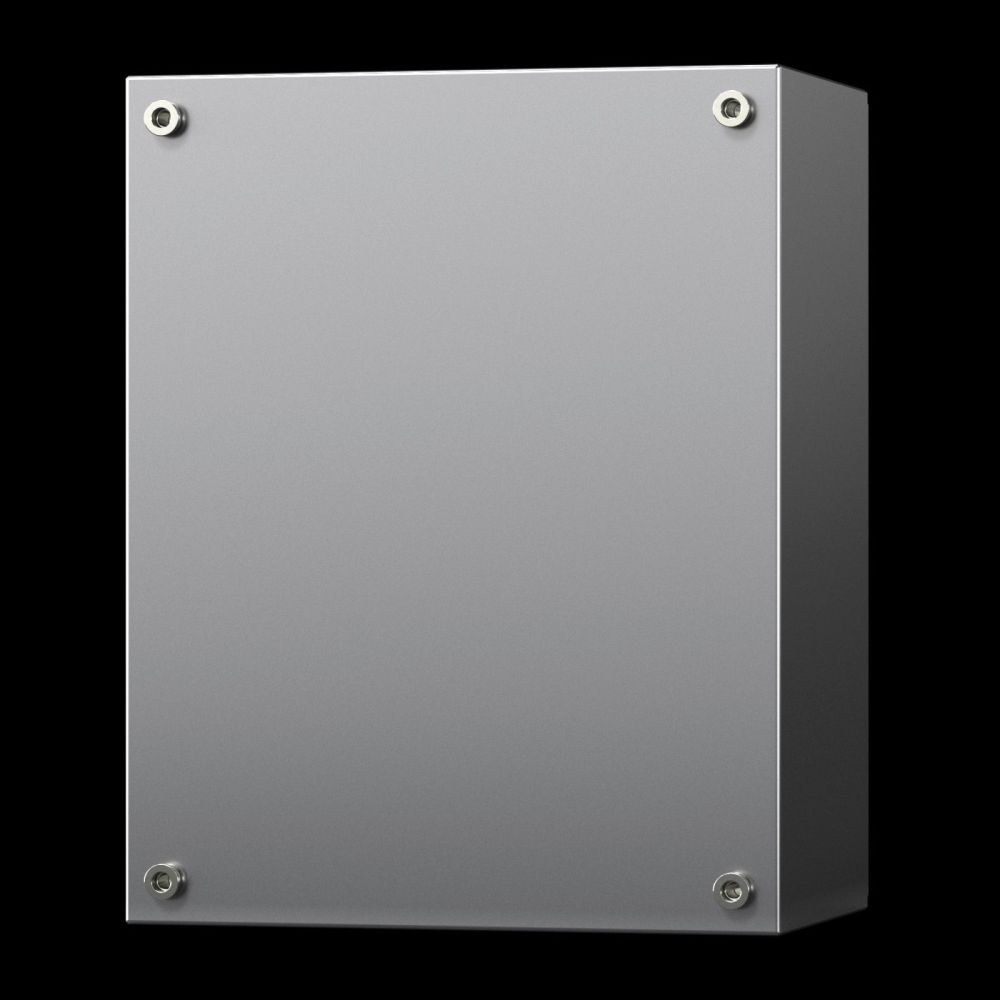

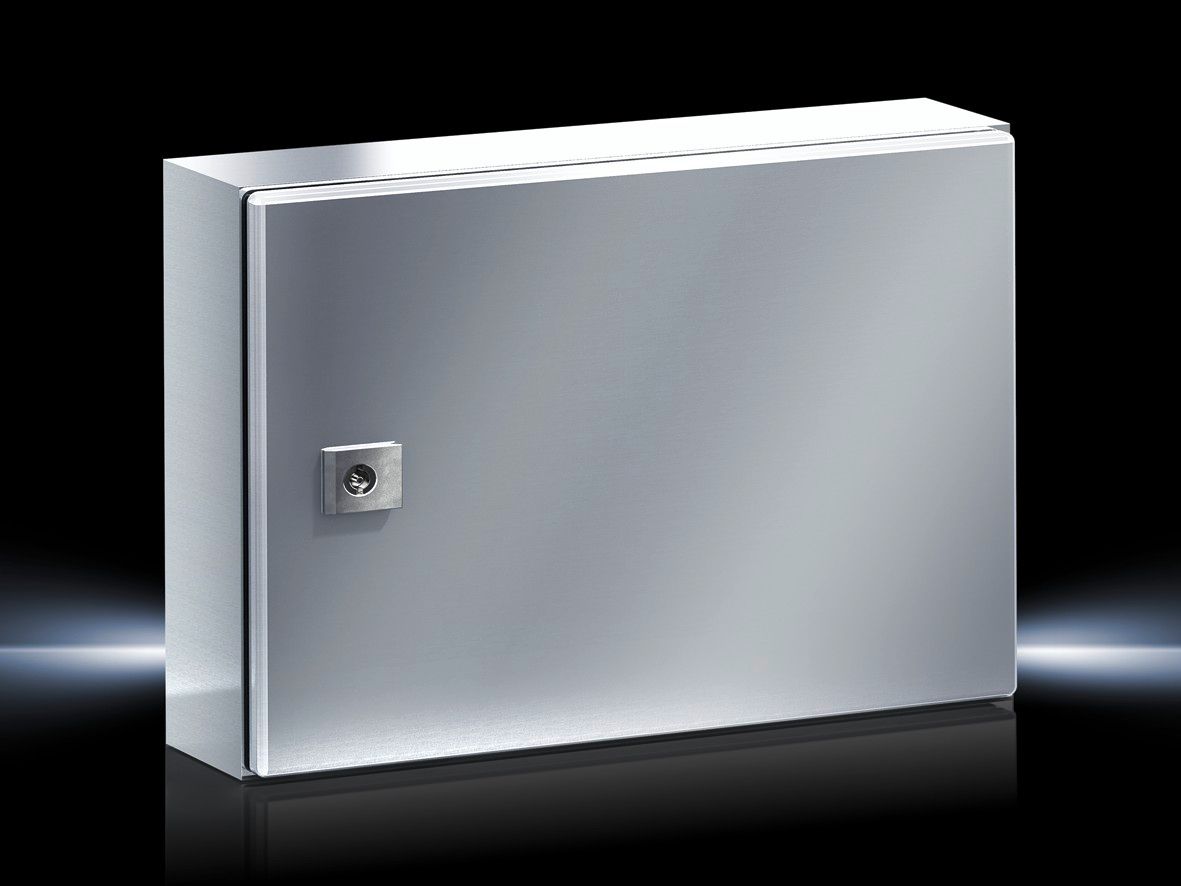

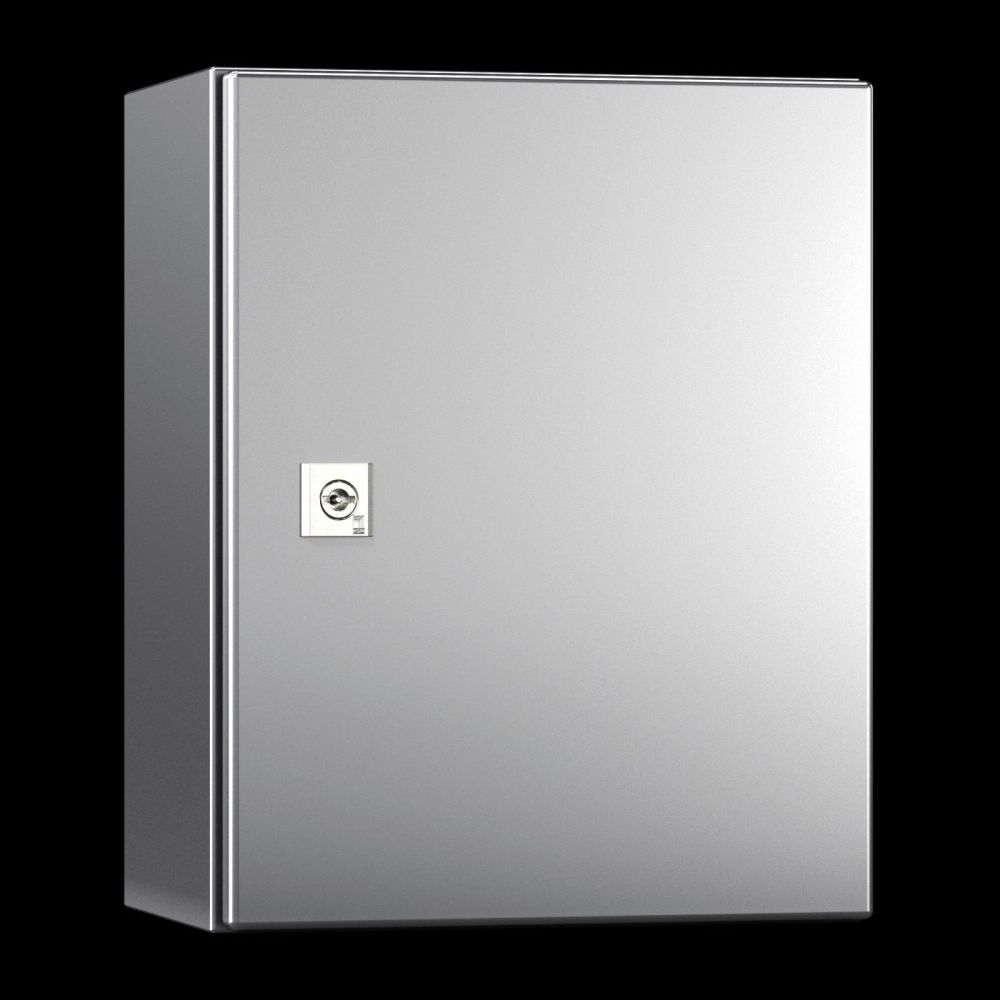

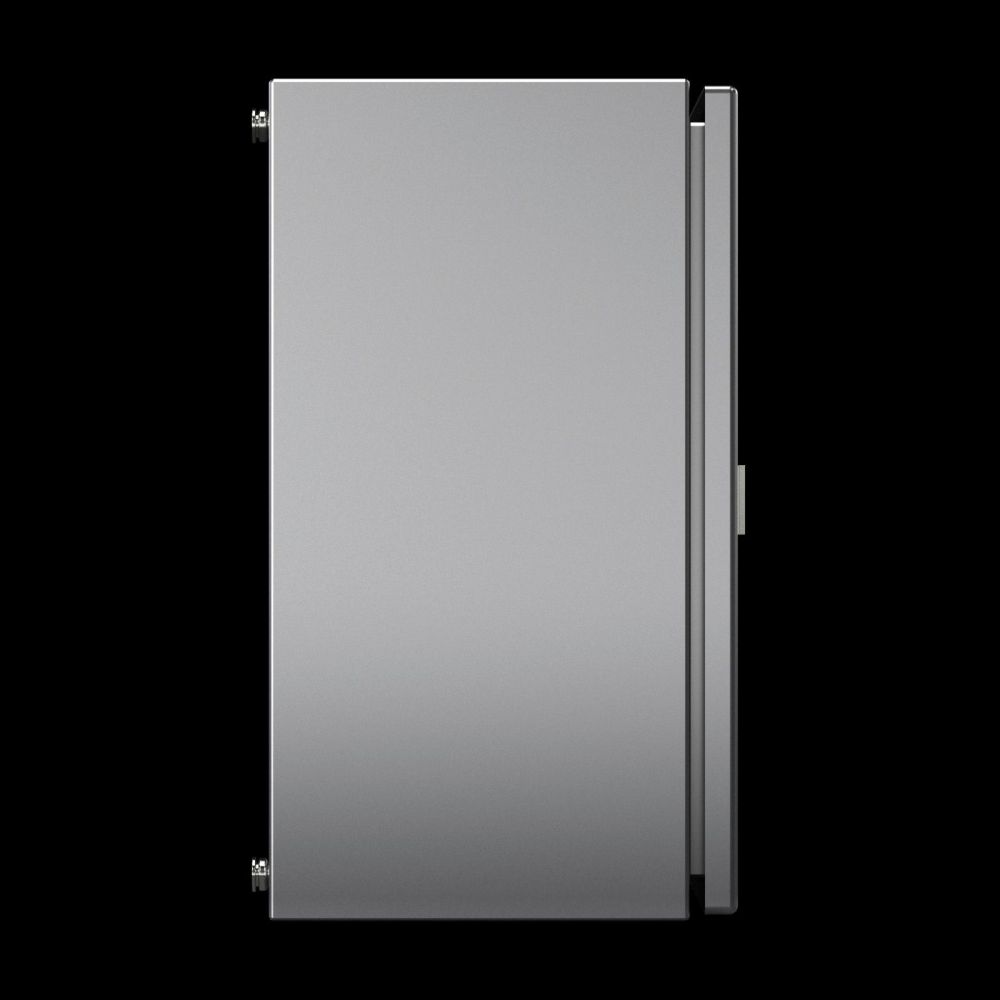

Rittal 9402600 Ex enclosure stainless steel, empty enclosure with hinged door,

Your rating:
Average rating
product review for Rittal 9402600 Ex enclosure stainless steel, empty enclosure with hinged door,
( 4.7 / 5 ) 9 ratings
Rittal 9402600
This image may differ from the desired article.
Rittal 9402600Rittal 9402600Rittal 9402600Rittal 9402600Rittal 9402600Rittal 9402600
311,65 EUR
( 370,86 EUR incl. VAT )
≈ £260.85  |  ≈ $342.50
plus delivery charges: 100,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9402600 Ex enclosure stainless steel, empty enclosure with hinged door,
Datasheet:file_download Download
Lieske Part No.:1013485
Mfg Part No: 9402600
UPC/EAN: 4028177138711
Weight:7.26 kg
Type:KEL 9402600

Product information for Rittal 9402600:

The Rittal KEL 9402600 is an Ex enclosure made of stainless steel 1.4301 (AISI 304), designed for use in explosive atmospheres in accordance with Directive 2014/34/EU. It is approved for Zone 1 and 2 as well as Zone 21 and 22 and provides protection through increased safety (Ex e) and through enclosure (Ex tb) in accordance with EN 60 079. The enclosure is supplied as an empty housing with a hinged door and includes a mounting plate made of galvanized steel sheet. Dimensions are 380 mm (width) × 300 mm (height) × 155 mm (depth), with the mounting plate measuring 334 mm × 275 mm. The surface of the enclosure is brush-finished (grit 400, roughness depth < 0.8 µm), ensuring a robust and uniform surface structure. The door is fitted with a continuously foamed silicone seal, providing a tight seal. The locking mechanism uses a cam lock with a 3 mm double-barrel lock insert, enabling secure and durable latching.

Applications
This enclosure is designed for use in explosive environments, particularly in Zone 1 and 2 (gaseous explosion hazards) and Zone 21 and 22 (dust explosion hazards). Approval under 2014/34/EU allows use in industrial facilities such as petrochemical plants, processing industries, or mining, where high safety requirements apply. The ambient temperature range is between -30 °C and +80 °C, although the actual operating temperature may be limited by installed devices.

Functions and Equipment in Detail
The enclosure offers a high degree of protection against dust and water, rated IP 66 according to IEC 60 529. This means it is dust-tight and protected against heavy splashing water and temporary immersion. The NEMA 4X rating and Type rating according to UL 50E (Type 1, Type 4, Type 4X, Type 12) further confirm its suitability for outdoor use and in humid or corrosive environments. The use of stainless steel 1.4301 ensures high corrosion resistance and mechanical strength, extending the enclosure’s service life in demanding environments.

Technology Explained Simply
The protection type Ex e (increased safety) means that electrical components are designed so they cannot act as an ignition source for an explosion. The Ex tb protection type (enclosure protection) ensures the enclosure itself does not pose an explosion hazard by preventing the formation of sparks or heat sources. The IP 66 rating guarantees that the enclosure remains undamaged even under heavy splashing water or temporary immersion, making it suitable for outdoor or moist production environments. The silicone seal ensures a tight seal that maintains its function even under temperature fluctuations.

Compatibility and Accessories
Various earthing straps are available for this enclosure, offered in different cross-sections (4 mm², 10 mm², 16 mm², 25 mm²) and lengths (170 mm, 300 mm), as well as with different threaded connections (M6-M8, M8-M8). These enable secure and reliable earthing of installed devices. Additionally, a wall mounting bracket made of stainless steel 1.4301 is available, allowing secure wall mounting and ensuring the required wall clearance.

Mounting and Installation

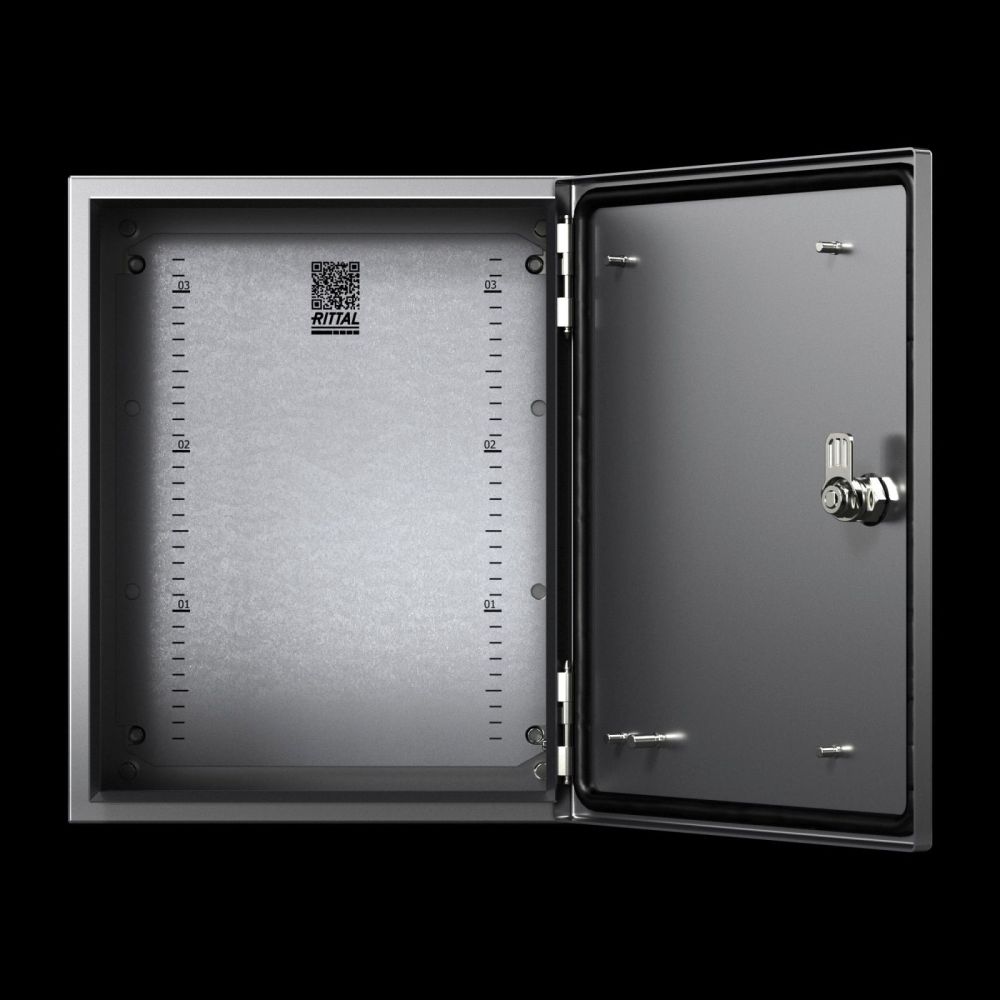

The enclosure is supplied with a mounting plate made of galvanized steel sheet, enabling secure attachment to a wall or base. The hinged door with cam lock allows easy access to the interior. The mounting plate dimensions (334 mm × 275 mm) allow for stable installation.

Operational Advantages
The enclosure provides high mechanical stability and corrosion resistance due to the use of stainless steel 1.4301. The IP 66 rating and approval for explosive atmospheres make it a reliable solution for demanding industrial applications. The integrated mounting plate and hinged door simplify installation and maintenance. The certifications IEC EX PTB 09.0035U and PTB 02 ATEX 1082U confirm compliance with applicable safety standards.

The delivery includes the enclosure, door, and mounting plate.

General
ModelEx enclosure
ApplicationsZone 1 and 2 or 21 and 22 according to 2014/34/EU, ambient temperature range: -30 °C...+80 °C, the specified temperatures may be limited by installed devices, protection type according to EN 60 079: device protection by increased safety (Ex e), device protection by enclosure (Ex tb)
MaterialHousing: stainless steel 1.4301 (AISI 304), Door: stainless steel 1.4301 (AISI 304), continuous foamed silicone seal, mounting plate: sheet steel
Surface protectionHousing: Brushed finish, grain 400, roughness < 0.8 µm, mounting plate: galvanised
Scope of deliveryhousing, door, mounting plate
Width380 mm
Height300 mm
Depth155 mm
Mounting plate dimensions (W x H)334 mm x 275 mm
Base materialStainless steel 1.4301 (AISI 304)
LockLocking mechanism type: latch, number of locks: 1, lock insert: 3 mm double barb
Degree of protection IP according to IEC 60 529IP 66
NEMA degree of protectionNEMA 4X
Type rating according to UL 50EType 1, Type 4, Type 4X, Type 12
Certificate IEC EX PTB 09.0035UJa
Certificate PTB 02 ATEX 1082UJa


Product data sheet
Datasheet for Rittal 9402600, EAN: 4028177138711
