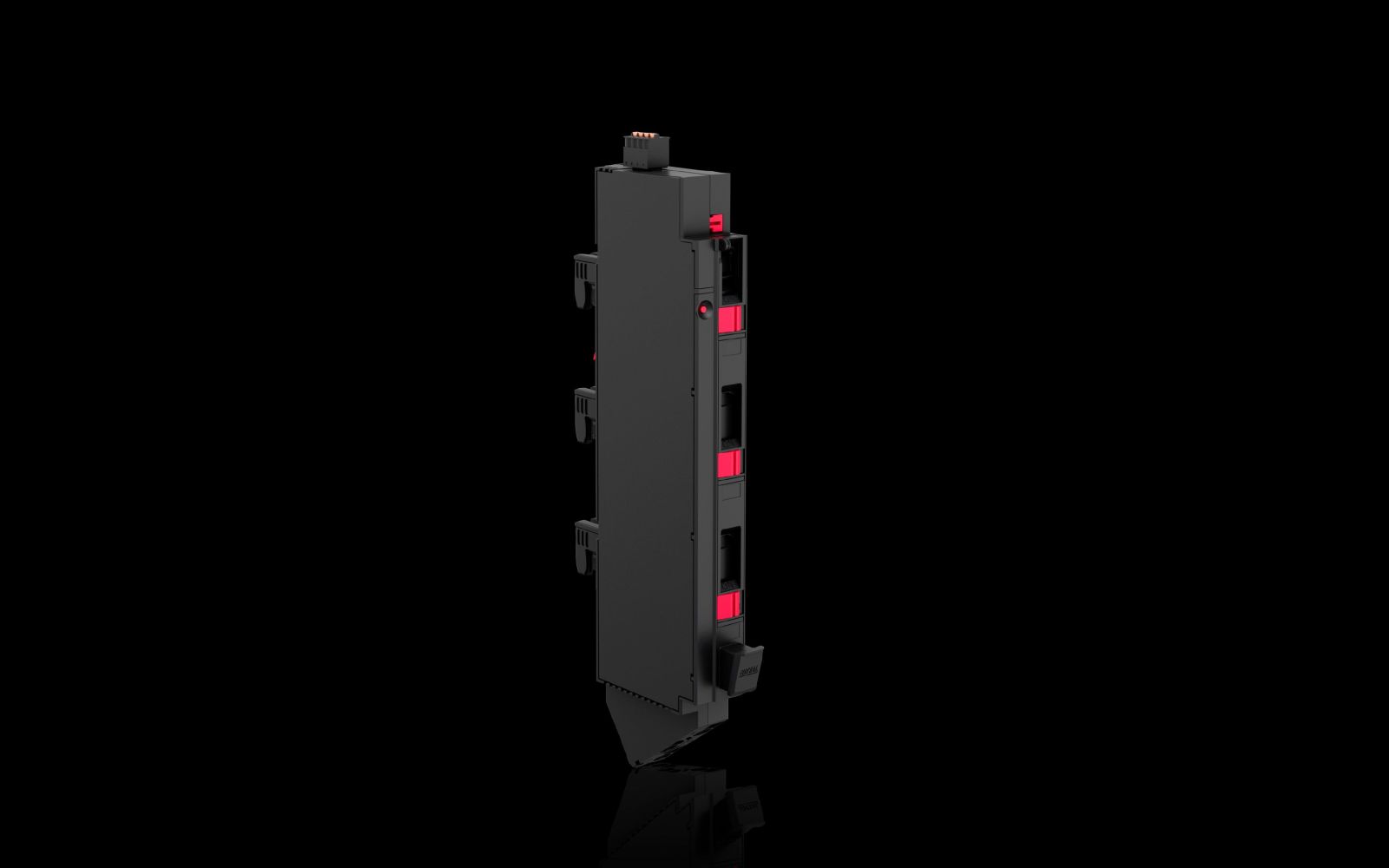

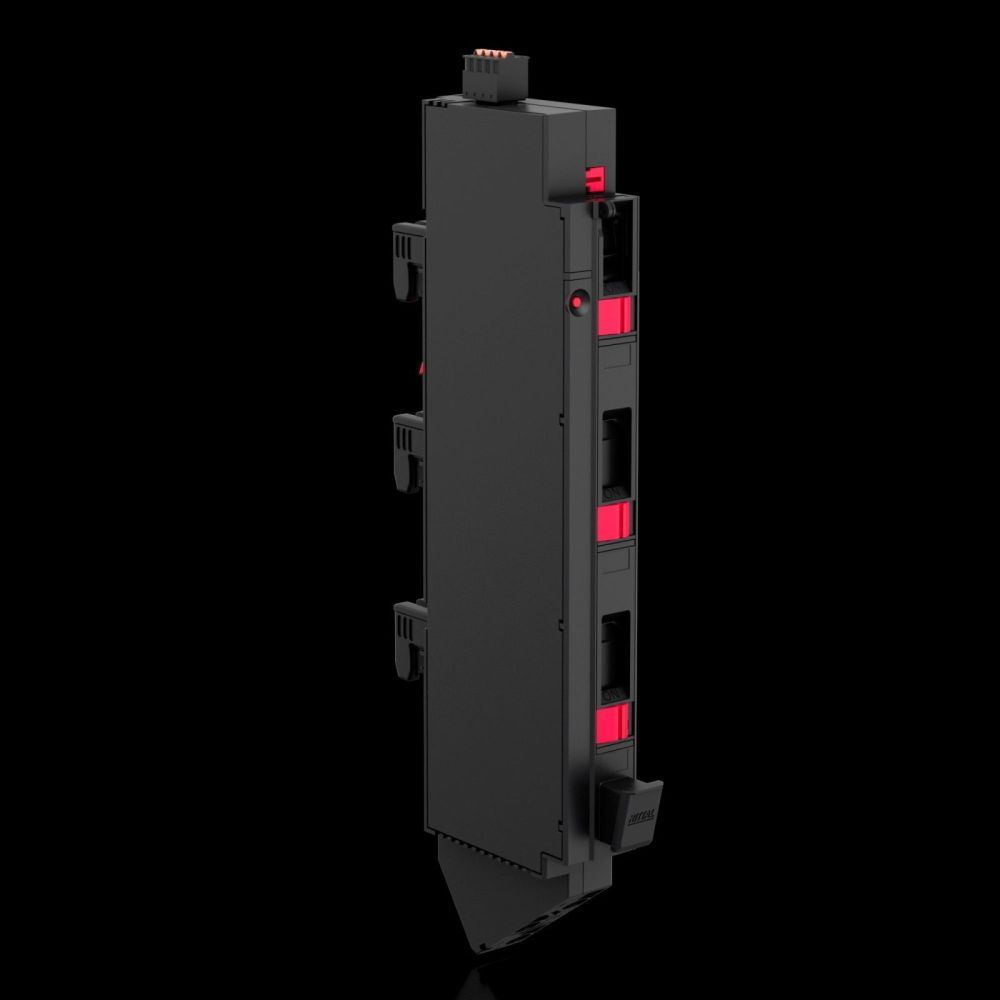

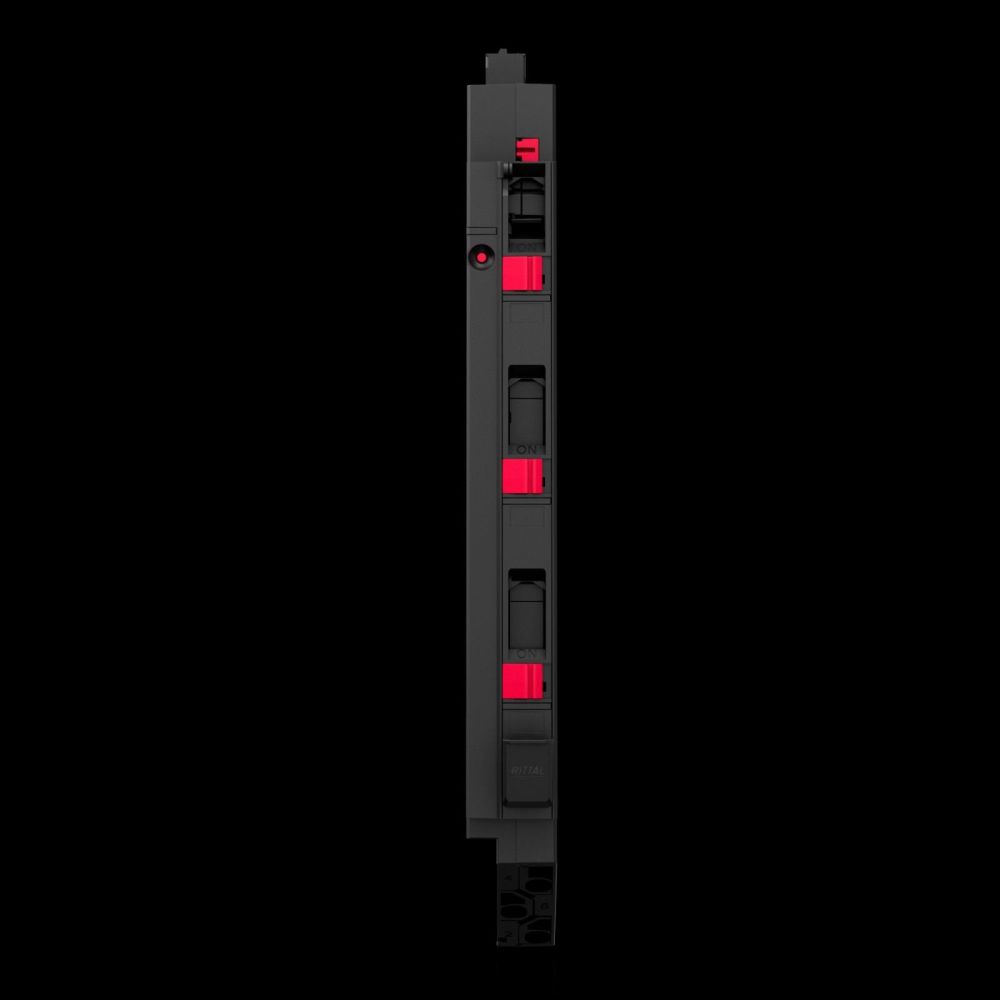

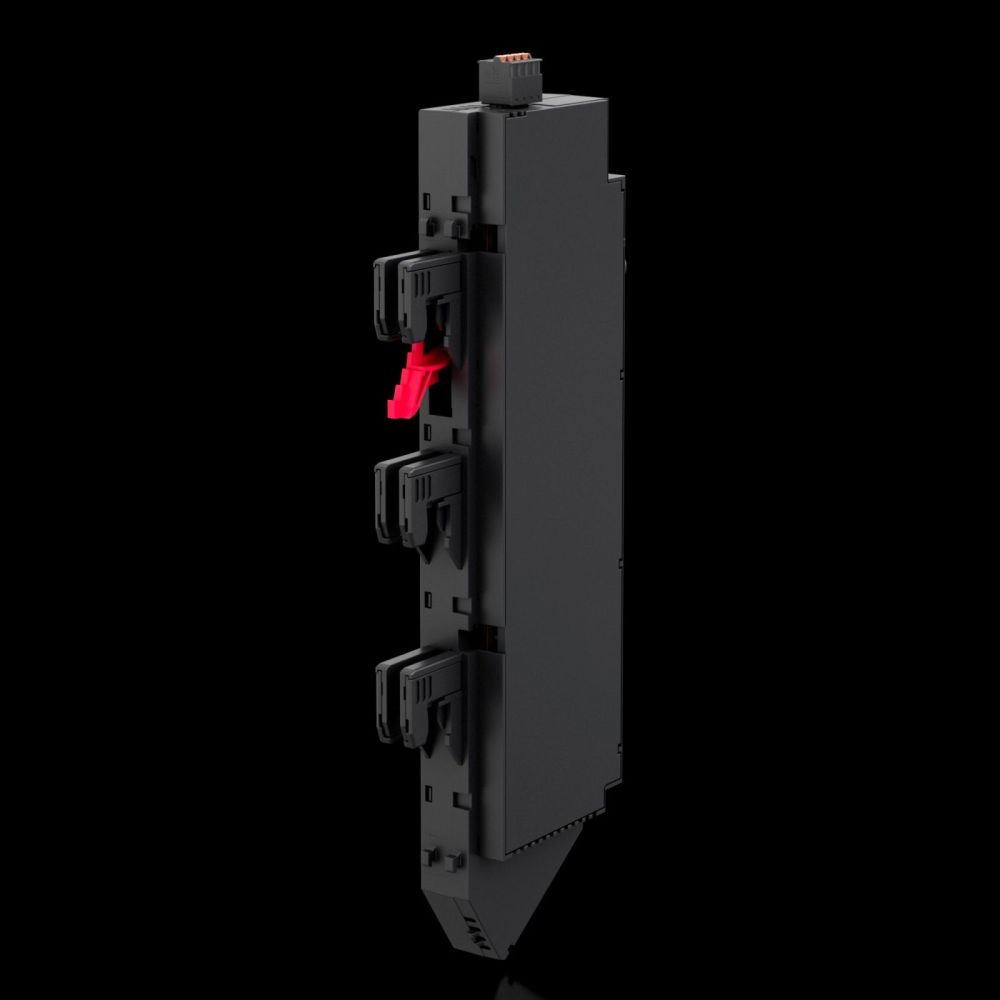

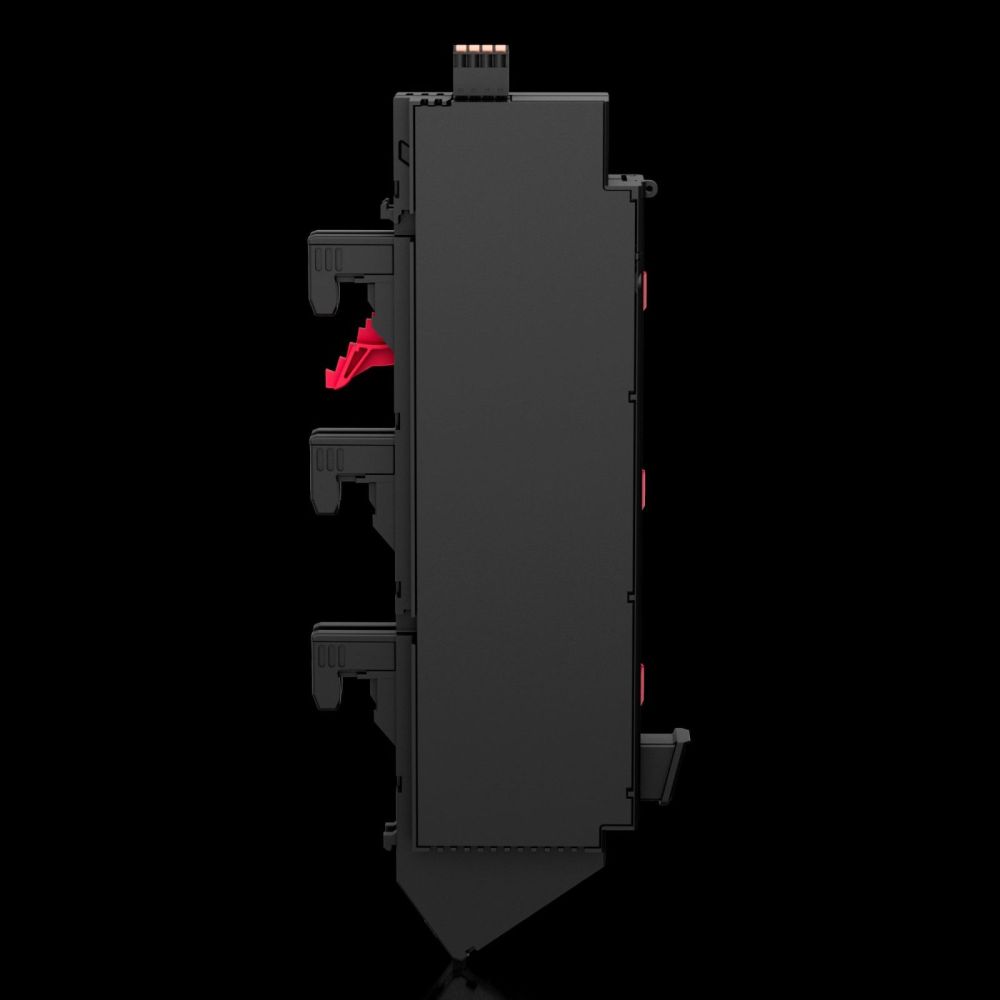

Rittal 9364024 RX fuse holder 1=4 32 A 3-pole 10x38 mm LED fuse monitoring W:27 mm

Your rating:
Average rating
product review for Rittal 9364024 RX fuse holder 1=4 32 A 3-pole 10x38 mm LED fuse monitoring W:27 mm
( 4 / 5 ) 1 ratings
Rittal 9364024
This image may differ from the desired article.
Rittal 9364024Rittal 9364024Rittal 9364024Rittal 9364024Rittal 9364024Rittal 9364024
358,11 EUR 370,76 EUR
incl. 1,61 EUR copper surcharge
( 426,15 EUR incl. VAT )
≈ £299.38  |  ≈ $395.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9364024 RX fuse holder 1=4 32 A 3-pole 10x38 mm LED fuse monitoring W:27 mm
Datasheet:file_download Download
Lieske Part No.:612135
Mfg Part No: 9364024
UPC/EAN: 4069196001938
Weight:1.412 kg
Type:RX 9364024

Product information for Rittal 9364024:

Kompaktes RiLineX Reitersicherungselement für 60 mm Sammelschienensysteme. Für Zylindersicherung 10 x 38 mm mit elektronischer und optischer LED-Sicherungsüberwachung über Meldekontakte. Zum sicheren Kontaktieren der Zylindersicherungen verfügt das Gerät über spezielle Sicherungshalter, die im geöffnetem Zustand abschließbar und im geschlossenen Zustand plombierbar sind. Für den erleichterten Leiteranschluss sorgen Zugfederklemmen bis 16 mm² im Winkel von 45°. Das Gerät eignet sich für eine werkzeuglose Aufrastmontage mit semi-automatischer Schienenanpassung für 5 und 10 mm

General
Modelwith electronic fuse monitoring (ESÜ)
Market-relevant product changes(Secondary)
MaterialPolyamide (PA 6), flammability rating according to UL 94-V0
ColourRAL 35745, RAL 9005
Electrical connection typeSpring-loaded clamp
Rated current max.32 A
Rated operating voltage400 V AC
Notefunctionality of electronic fuse monitoring only available when load is connected
Cable exitBelow
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width26,8 mm
Height262,5 mm
Depth95 mm
Connection of stranded wires, fine-stranded with ferrule1,5 ‐ 6 mm²
Connection of stranded wires, fine-stranded with ferrule AWGAWG 16 ‐ AWG 6
Connection of stranded wires, stranded1,5 ‐ 6 mm²
Connection of stranded wires, stranded AWGAWG 16 ‐ AWG 10
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage400 V AC
Over voltage category4
Pollution degree3
StandardsIEC/DIN EN 60 947-3
Rated insulation voltage Ui725 V
Maximum power dissipation3 W
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Utility categoryAC-20B (400 V/100 A)
Fuse links10 x 38 mm
Fire load4,767 MJ/m²
Copper content (kg/piece)0,043
PCF/VE (Cradle-to-Gate)9,36
With electronic fuse monitoring (ESÜ)Ja


Please note...
This article contains a copper surcharge of 1,61 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Product data sheet
Datasheet for Rittal 9364024, EAN: 4069196001938
