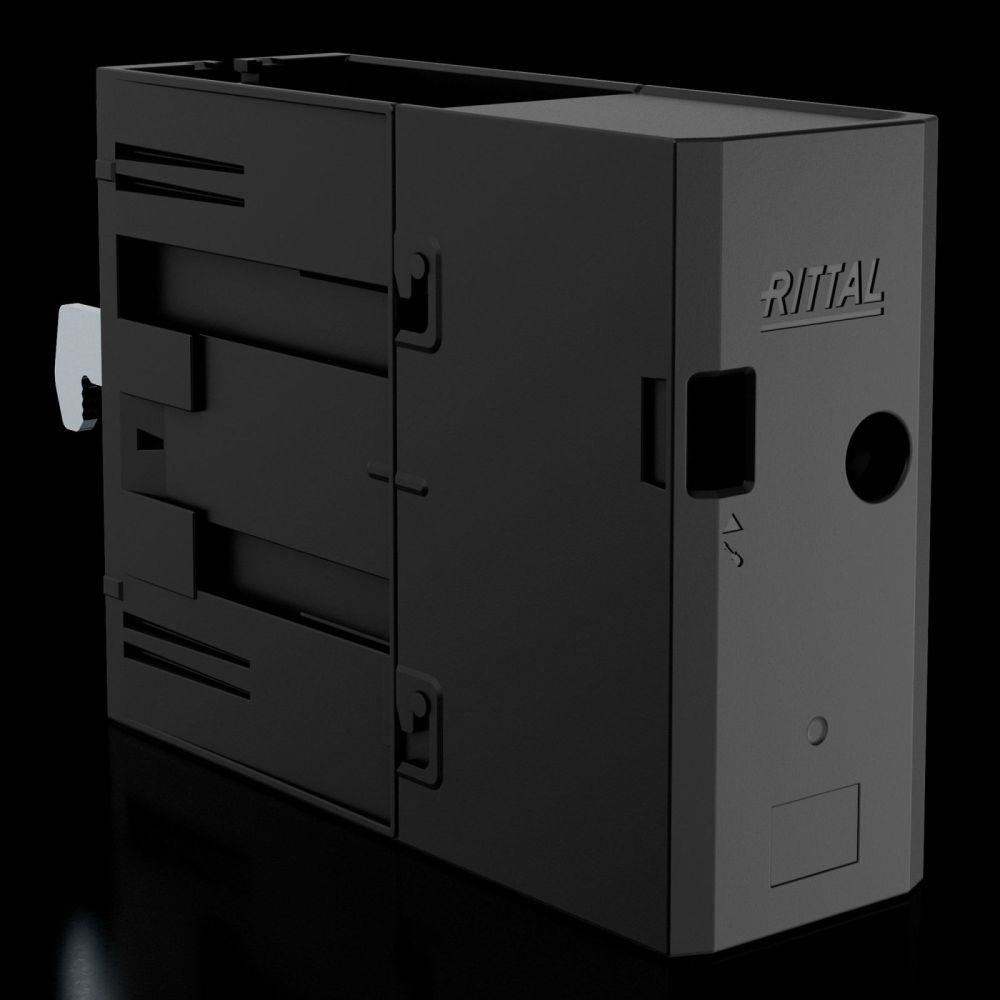

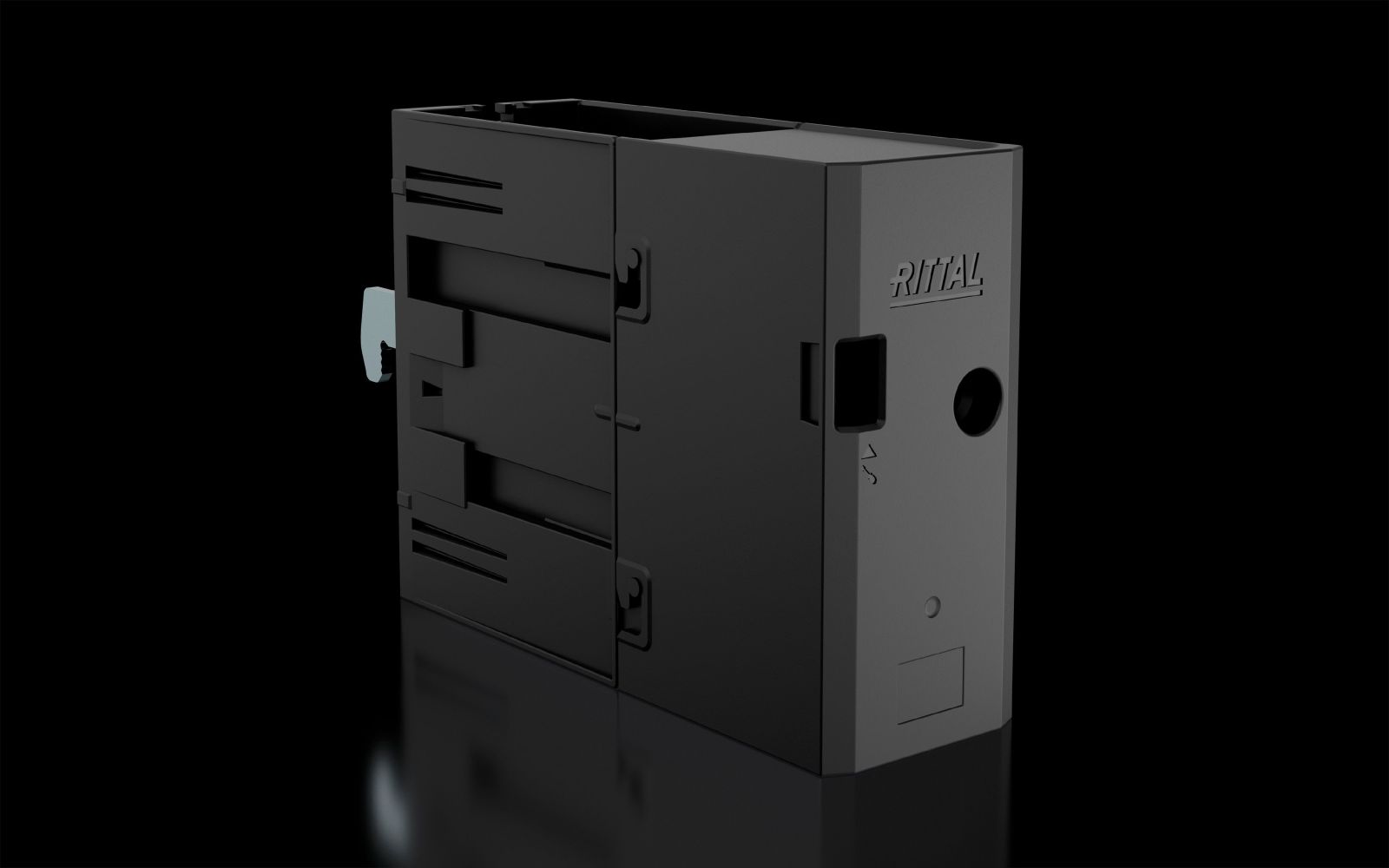

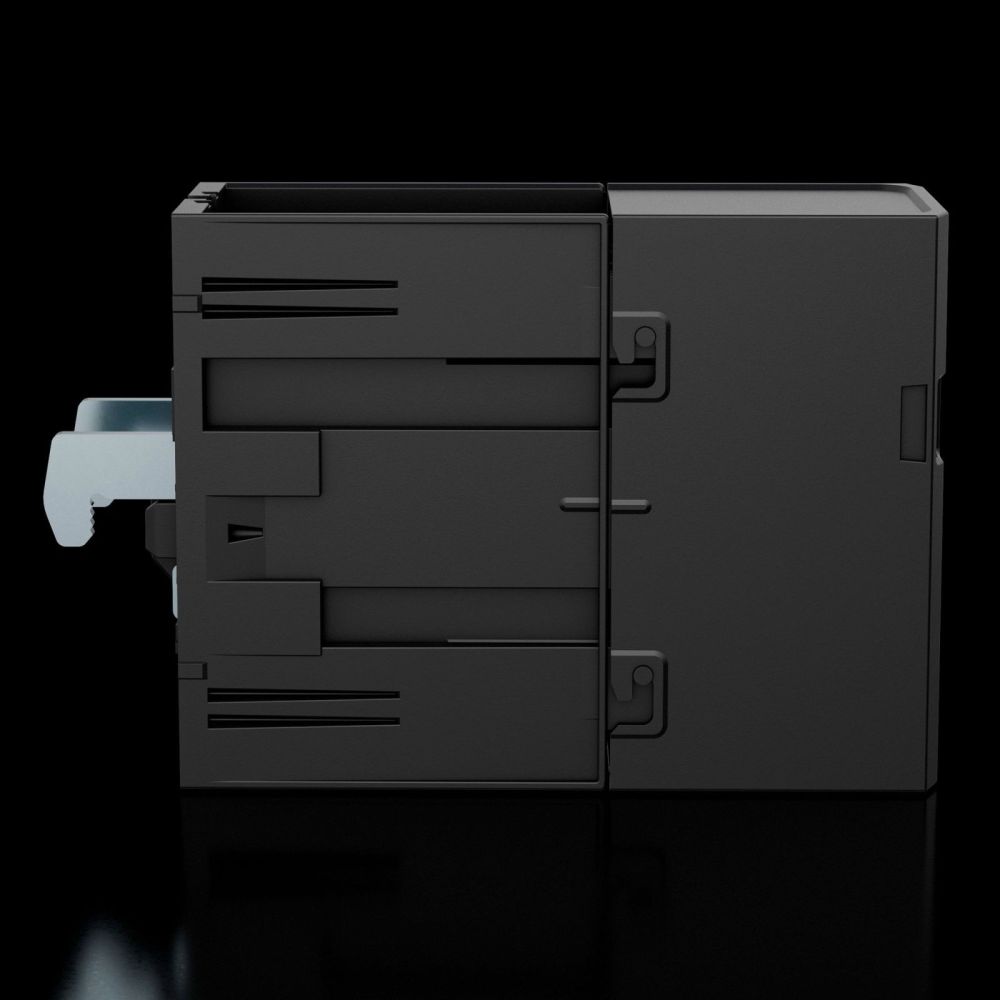

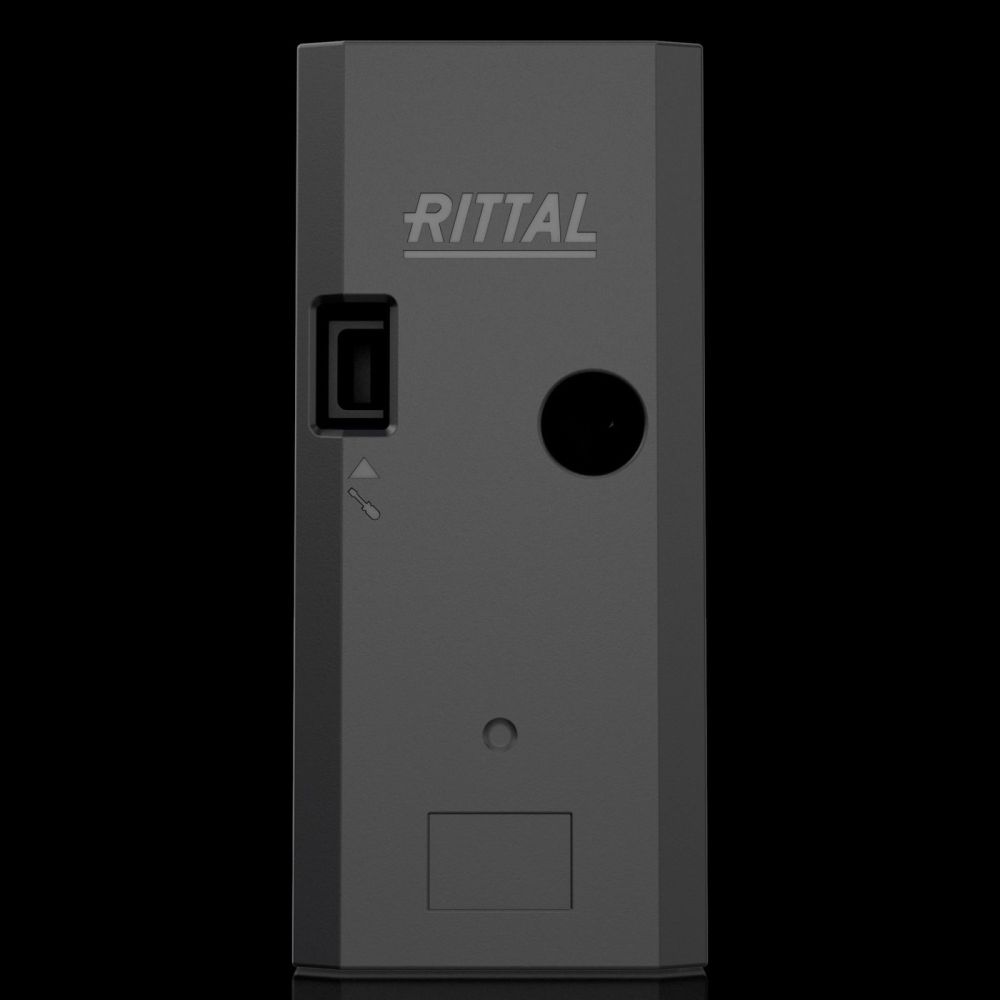

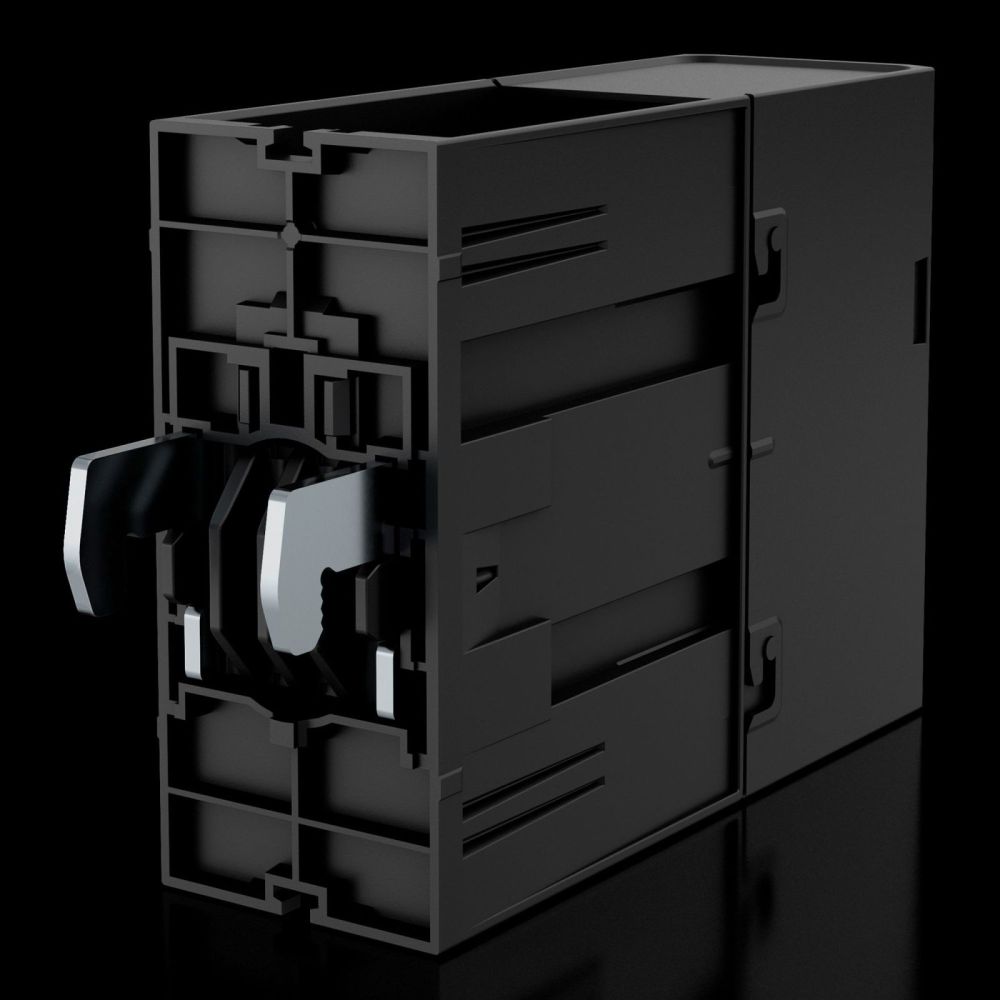

Rittal 9361315 RX connection adapter 1-pole, W x H: 54 mm, max. 300 mm²

Your rating:
Average rating
product review for Rittal 9361315 RX connection adapter 1-pole, W x H: 54 mm, max. 300 mm²
( 5 / 5 ) 1 ratings
Rittal 9361315
This image may differ from the desired article.
Rittal 9361315Rittal 9361315Rittal 9361315Rittal 9361315Rittal 9361315Rittal 9361315
-6% 97,75 EUR 104,50 EUR
( 116,32 EUR incl. VAT )
≈ £81.72  |  ≈ $108.01
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9361315 RX connection adapter 1-pole, W x H: 54 mm, max. 300 mm²
Datasheet:file_download Download
Lieske Part No.:611758
Mfg Part No: 9361315
UPC/EAN: 4069196001488
Weight:0.892 kg
Type:RX 9361315

Product information for Rittal 9361315:

The Rittal RX 9361315 is a 1-pole connection adapter for 60 mm busbar systems, specifically developed for RiLineX and RiLine60 systems. It serves as a connecting element between the busbar system and round or sector conductors, enabling a dual connection with freely selectable phase spacing. The device is designed for use in L1/L2/L3/N connections and features a compact design that ensures efficient space utilisation within the enclosure. Installation is achieved by simply snapping onto the RiLineX board, with disassembly only possible using tools.

Applications

The connection adapter is intended for industrial electrical installations in enclosures and distribution systems where secure and reliable power distribution is required. It is particularly suitable for applications with high current loads, as it offers high short-circuit withstand capability. Use in environments with an operating temperature between -5 °C and 55 °C and humidity up to 90 % (non-condensing) is permitted. The protection rating IP 2X protects against contact with fingers and larger objects, but does not provide protection against water or dust.

Functions and Equipment in Detail

The adapter allows conductor connection from both top and bottom, enabling flexible installation in various enclosure configurations. The terminals support full through-wiring, allowing for efficient and clear cabling. Fixing is done with a single screw, which simultaneously ensures contact between the busbar and conductor. The maximum conductor cross-section is 300 mm² for round conductors, with connection options available for 95 to 300 mm². Compatible busbar profiles include 15 x 10 mm, 20 x 10 mm, and 30 x 10 mm.

Technology Explained Simply

The connection adapter is made of polyamide (PA 6), a thermoplastic with good mechanical strength and heat resistance. Its flammability rating complies with UL 94, ensuring a certain level of flame retardancy. The rated voltage is 1,000 V AC and 1,500 V DC, with UL approval for 600 V AC and 600 V DC. The rated insulation voltage Ui is 1,000 V, and the rated impulse voltage Uimp is 12 kV. The maximum power loss is 105 W, indicating thermal load during operation. Pollution degree 3 indicates suitability for environments with increased contamination, such as industrial facilities.

Compatibility and Accessories

The connection adapter is specifically designed for RiLineX and RiLine60 busbar systems with a 60 mm centre-to-centre spacing. Accessories include encircling protection profiles (e.g. RX 9365025, length 1200 mm) and mounting clips (e.g. RX 9365027), which provide additional safety during installation. These components enable shock protection, which is easy to install and enhances operational safety.

Mounting and Installation

Installation is done by simply snapping onto the RiLineX board, ensuring quick and secure fixation. No additional tools are required for mounting to the busbar system, although disassembly requires tools. Cable connections can be made from top or bottom, increasing flexibility in planning and executing cabling.

Operational Advantages

The connection adapter offers high short-circuit withstand capability, making it suitable for demanding industrial applications. Its compact design and through-wiring capability reduce installation time and improve cable clarity. The use of a single screw connection for both busbar and conductor fixation simplifies installation and enhances connection reliability. Approvals according to IEC/EN 61439-1 and UL 508 ensure compliance with international safety and quality standards.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Rated current (reference value, IEC)864 A
Rated current round conductor max. (IEC)1.060 A
Rated current for round conductor max. (UL)980 A
Electrical values UL (SCCR)27.5 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Circuit Breaker max. 600 A, DIVQ/7, 100 kA - 600 V, Fuse Class L max. 2000 A, JDDZ/7
Cable exitAbove/under
For rail systems with centre spacing60 mm
Number of poles1-pole
Suitable for busbar systemRiLineX, RiLine60
Width54,1 mm
Height119,4 mm
Depth163,4 mm
Connection of ring conductors95 ‐ 300 mm²
Suitable for busbars15 x 10 mm, 20 x 10 mm, 30 x 10 mm
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC/EN 61439-1, UL 508
Rated impulse voltage Uimp12 kV
Rated insulation voltage Ui1.000 V
Maximum power dissipation105 W
Degree of protection IP according to IEC 60 529IP 2X
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Number of connections2
Fire load5,947 MJ/m²
PCF/VE (Cradle-to-Gate)4,47


Product data sheet
Datasheet for Rittal 9361315, EAN: 4069196001488
