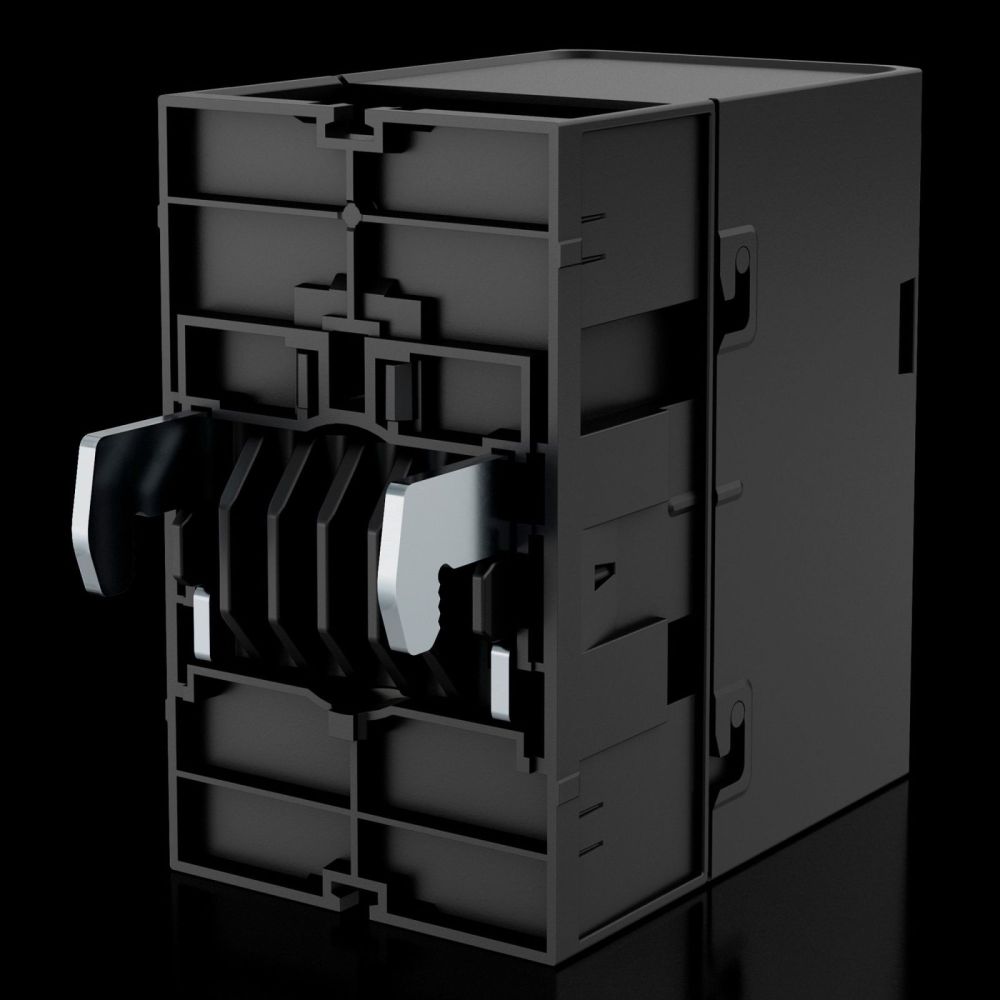

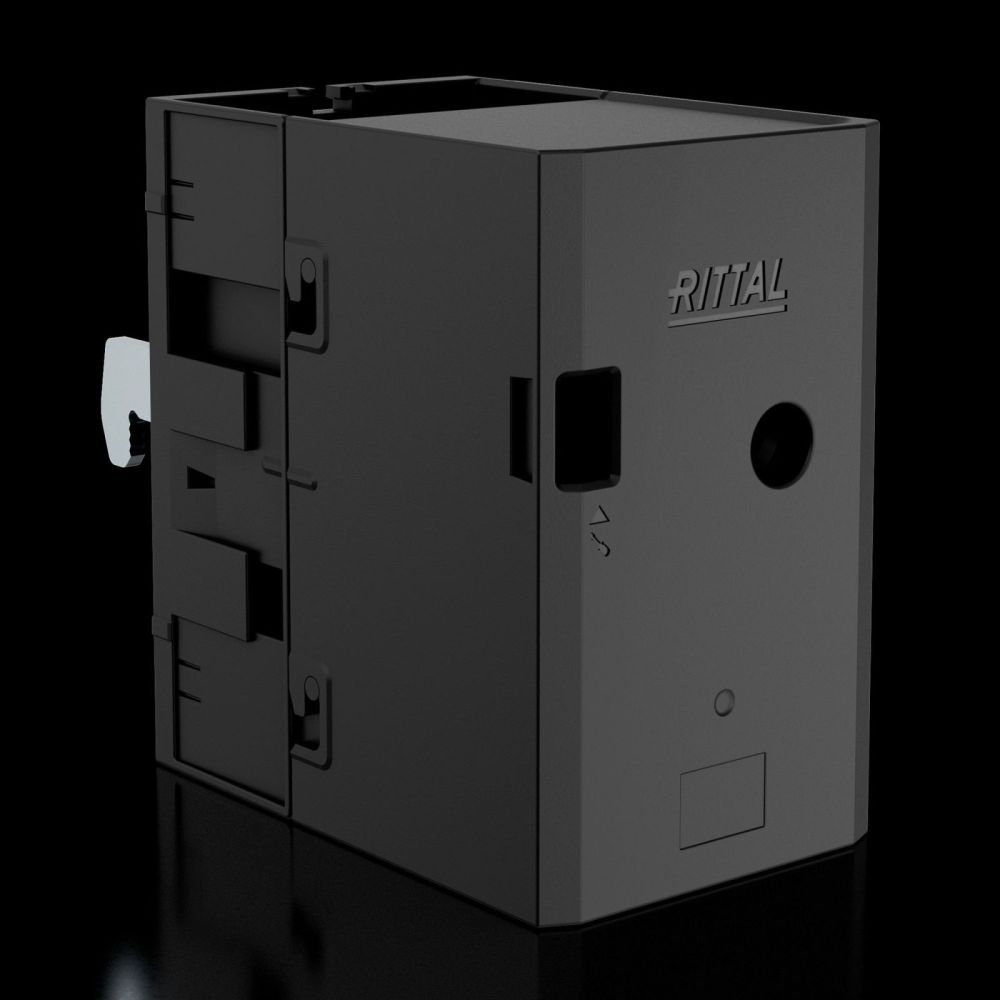

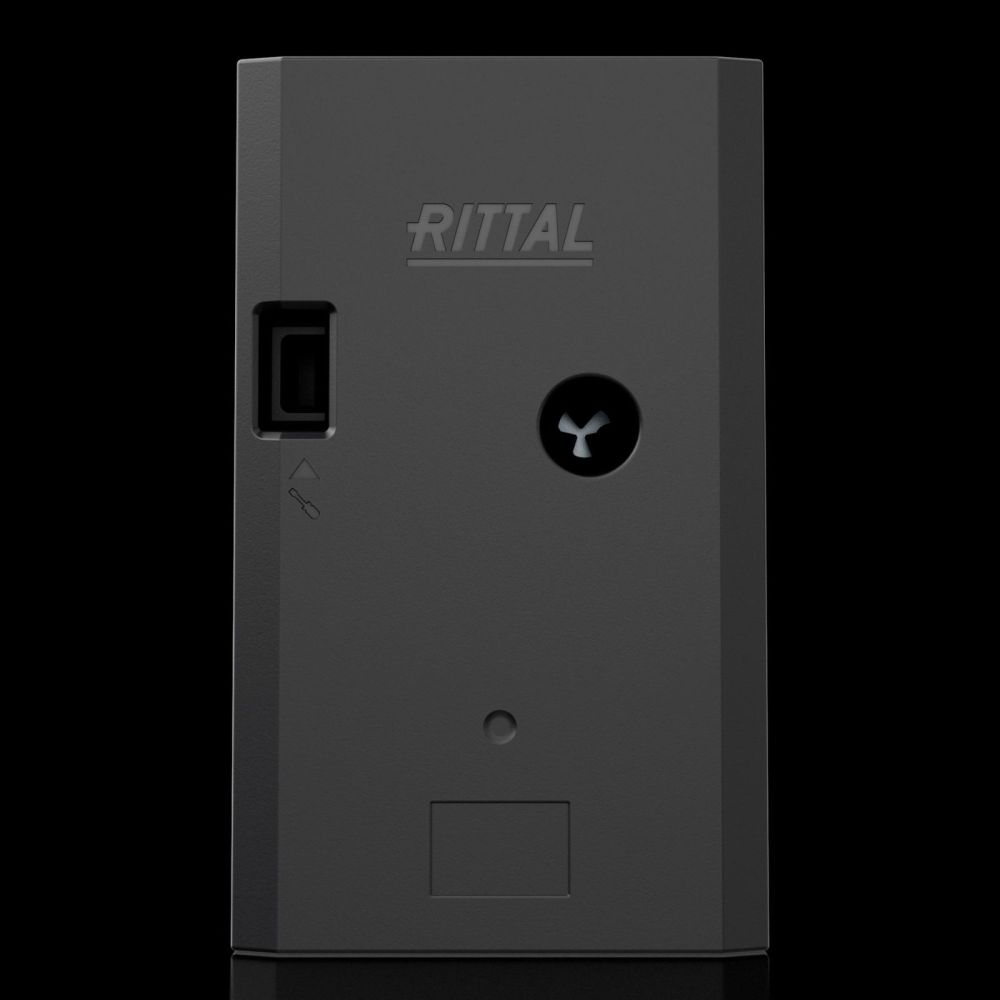

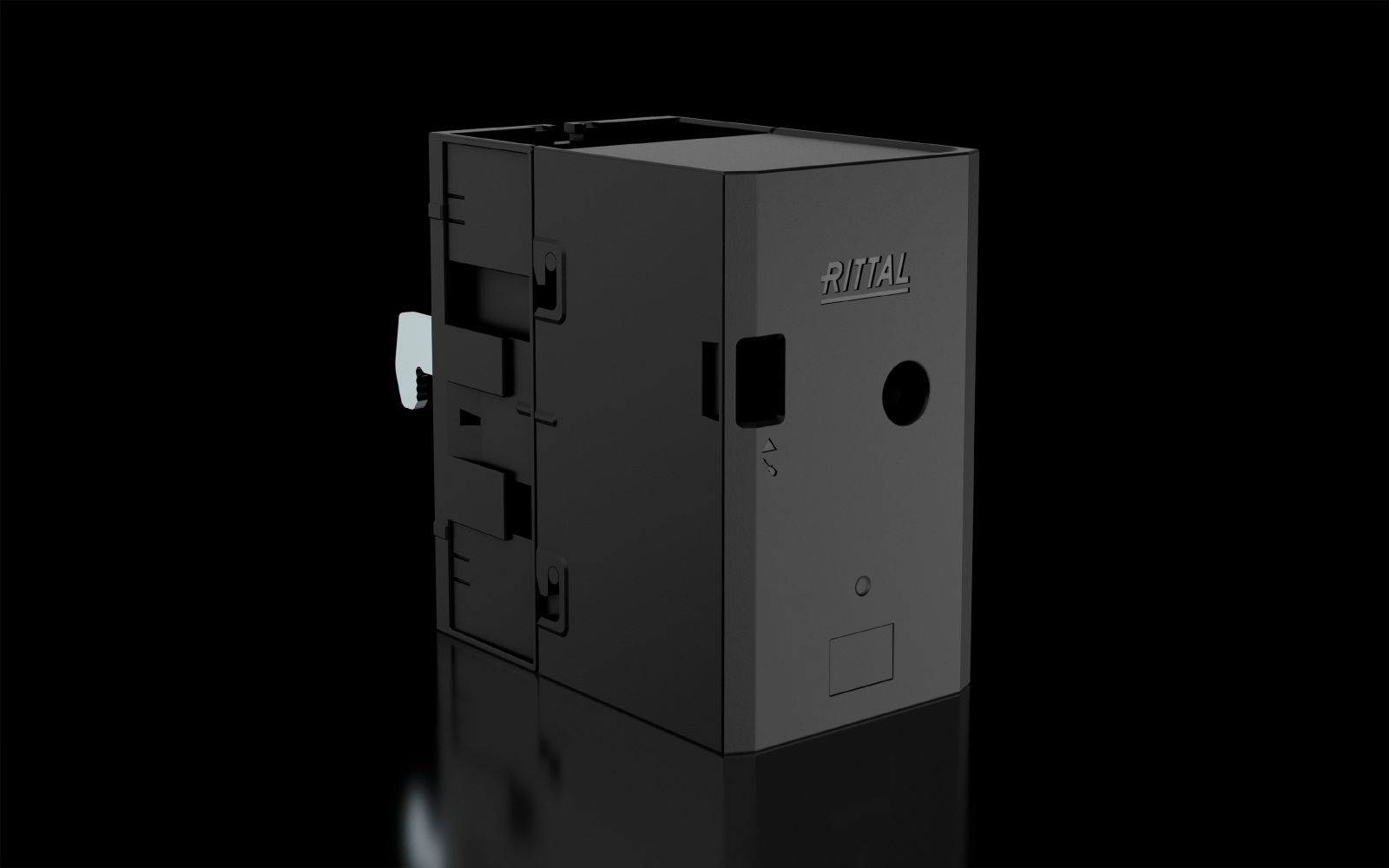

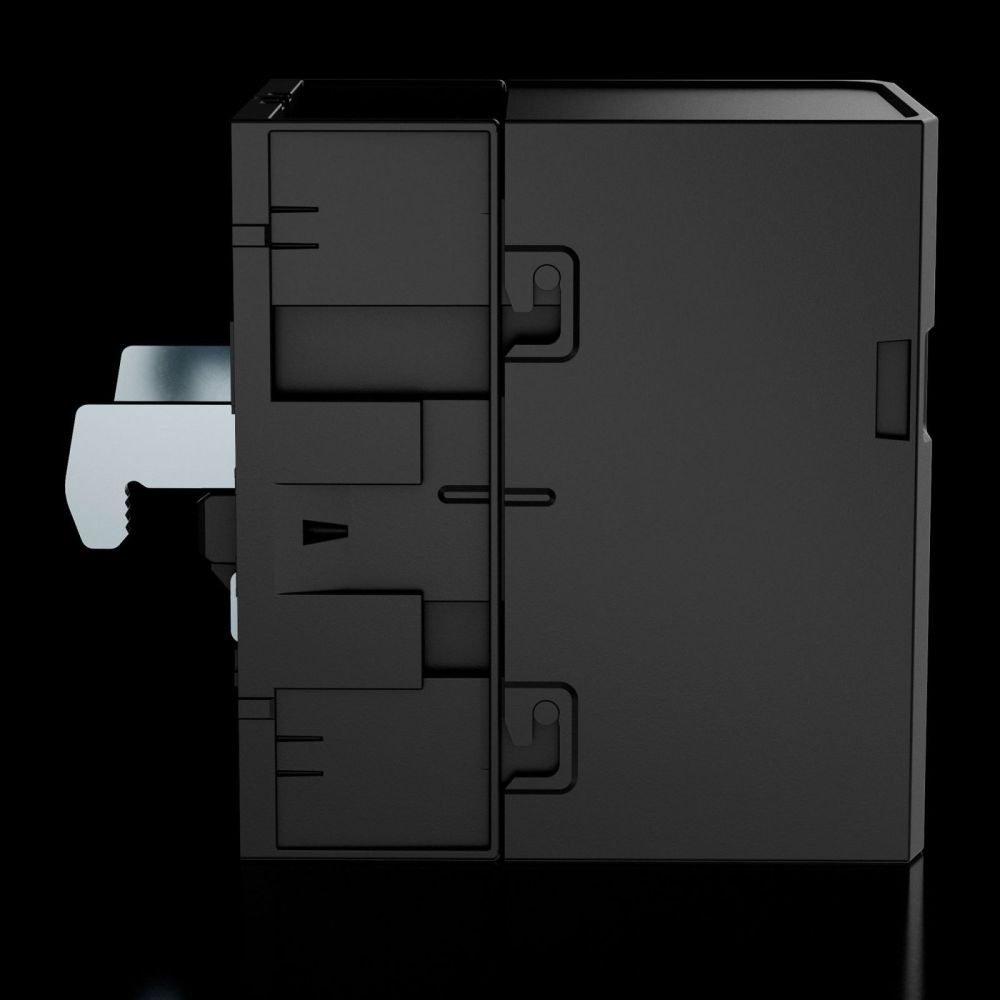

Rittal 9361300 RX connection adapter 1-pole W:72 mm terminal space W x H:50x20 mm

Your rating:
Average rating
product review for Rittal 9361300 RX connection adapter 1-pole W:72 mm terminal space W x H:50x20 mm
( 0 / 5 ) 0 ratings
Rittal 9361300
This image may differ from the desired article.
Rittal 9361300Rittal 9361300Rittal 9361300Rittal 9361300Rittal 9361300Rittal 9361300Rittal 9361300
-6% 80,50 EUR 86,07 EUR
( 95,80 EUR incl. VAT )
≈ £67.30  |  ≈ $88.95
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 2 pieces
1x Rittal 9361300 RX connection adapter 1-pole W:72 mm terminal space W x H:50x20 mm
Datasheet:file_download Download
Lieske Part No.:611756
Mfg Part No: 9361300
UPC/EAN: 4069196001471
Weight:0.688 kg
Type:RX 9361300

Product information for Rittal 9361300:

The Rittal RX 9361300 is a 1-pole connection adapter for 60 mm busbar systems, specifically developed for mounting on flat copper busbars in the RiLineX and RiLine60 systems. The device enables a secure and compact connection of electrical conductors to the busbar, with the conductor connection possible from both above and below. Installation is achieved by simply snapping onto the RiLineX board, enabling quick and tool-free assembly. Dismantling is only possible using tools.

Applications

The connection adapter is designed for use in industrial enclosures and power distribution systems where reliable and safe power distribution is required. It is suitable for phases L1, L2, L3 as well as the neutral conductor N. The free choice of phase spacing allows for flexible arrangement within the enclosure. Compatibility with RiLineX and RiLine60 makes it a universal component for modern switchgear installations.

Functions and Equipment in Detail

The device features a clamping space with dimensions 50 x 20 mm, designed for laminated copper busbars with cross-sections of 15 x 10 mm, 20 x 10 mm, and 30 x 10 mm. The terminals allow for complete through-wiring, simplifying wiring in complex installations. Mounting is achieved with a single screw, which simultaneously ensures electrical contact between the busbar and conductor. The adapter’s colour is RAL 9005, ensuring good visibility and uniform design within the enclosure.

Technology Explained Simply

The connection adapter is made of polyamide (PA 6), a material with good mechanical strength and heat resistance. Its flammability rating complies with UL 94 standards, ensuring safe use in electrical installations. The rated voltage is 1,000 V AC and 1,500 V DC, with UL approval also valid for 600 V AC and 600 V DC. The rated insulation voltage Ui is 1,000 V, and the rated impulse voltage Uimp is 12 kV. The protection class IP 2X protects against finger contact and larger objects, but not against splashing water or dust. Pollution degree 3 indicates suitability for environments with heavy contamination. The operating temperature range is between -5 °C and 55 °C, and the storage temperature range is between -25 °C and 75 °C.

Compatibility and Accessories

The adapter is specifically designed for busbar systems with a 60 mm centre-to-centre spacing, making it compatible with RiLineX and RiLine60. Accessories such as grip protection profiles (e.g. RX 9365025) and mounting clips (e.g. RX 9365027) are available, providing additional safety during installation and operation. These components can be used to enhance shock protection and mechanical stability.

Mounting and Installation

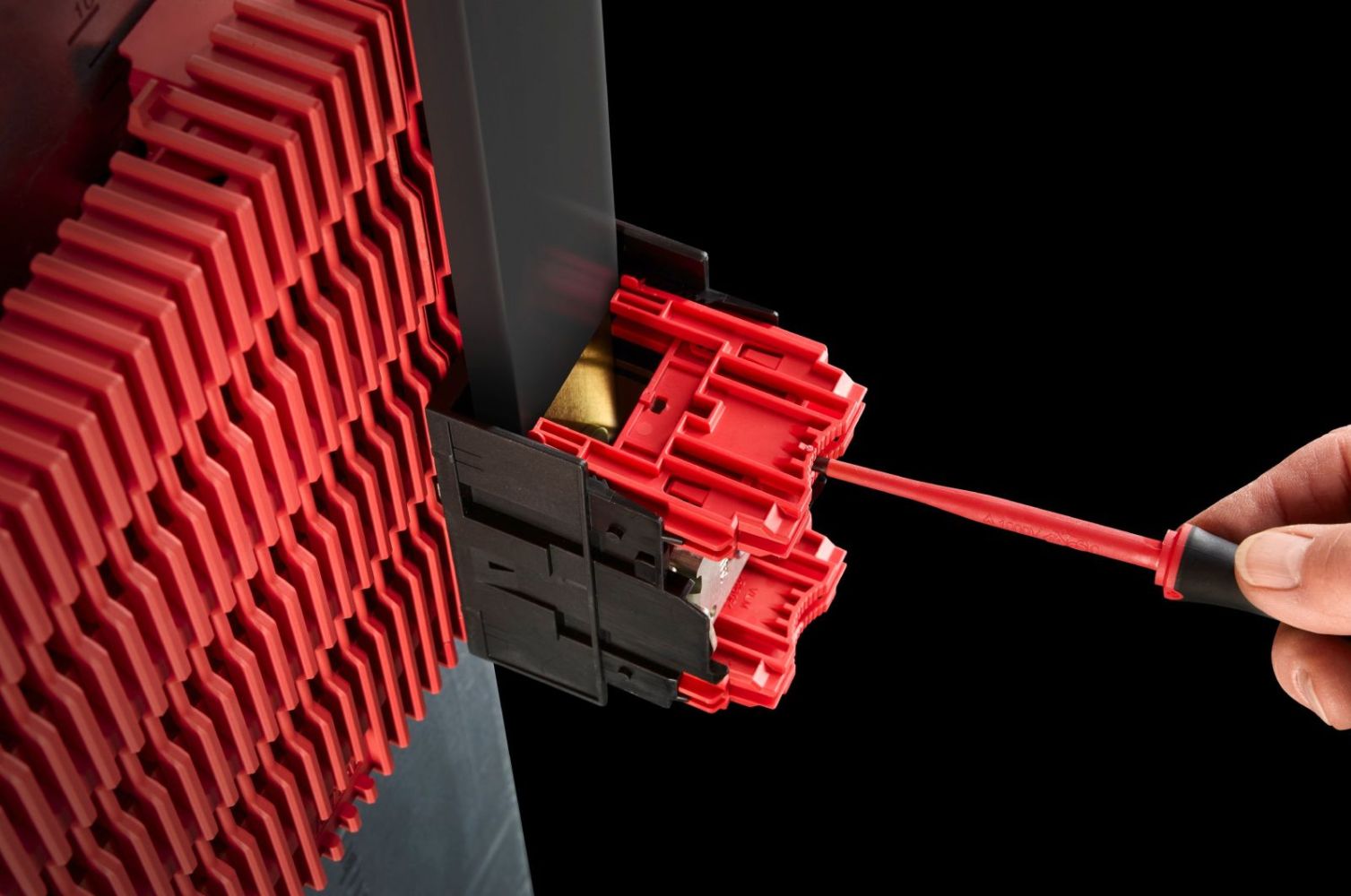

Installation is achieved by simply snapping onto the RiLineX board, enabling quick and tool-free assembly. Mounting to the busbar is done with a screw, which simultaneously ensures electrical contact. The cable connection can be made from above or below, increasing flexibility during wiring. Dismantling requires tools to prevent unintended removal.

Advantages in Operation

The connection adapter offers high short-circuit withstand capability, enhancing safety within the installation. Its compact design saves space in the enclosure and allows for dense wiring. Complete through-wiring of the terminals simplifies wiring and maintenance. The shock protection function is easy to install and increases operator safety. Approvals according to IEC/EN 61439-1 and UL 508 ensure compliance with international safety standards.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Rated current (reference value, IEC)1.318 A
Rated current laminated copper busbar max. (IEC)1.500 A
Rated current laminated copper busbar max. (UL)1.380 A
Electrical values UL (SCCR)52.5 kA - 600 V, RMS, unprotected, 100 kA - 480 V, Circuit Breaker max. 800 A, DIVQ/7, 100 kA - 600 V, Fuse Class L max. 2000 A, JDDZ/7
Cable exitAbove/under
For rail systems with centre spacing60 mm
Number of poles1-pole
Suitable for busbar systemRiLineX, RiLine60
Width72,3 mm
Height119,4 mm
Depth117,4 mm
Terminal space for laminated copper busbars (B x H)50 x 20 mm
Suitable for busbars15 x 10 mm, 20 x 10 mm, 30 x 10 mm
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC/EN 61439-1, UL 508
Rated impulse voltage Uimp12 kV
Rated insulation voltage Ui1.000 V
Degree of protection IP according to IEC 60 529IP 2X
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Number of connections2
Fire load5,704 MJ/m²
PCF/VE (Cradle-to-Gate)2,69


Product data sheet
Datasheet for Rittal 9361300, EAN: 4069196001471
