Rittal 9360805 RX fuse holder 1=4 element 63 A 3-pole D02-E18 LED fuse monitoring W:36 mm

Your rating:
Average rating
product review for Rittal 9360805 RX fuse holder 1=4 element 63 A 3-pole D02-E18 LED fuse monitoring W:36 mm
( 0 / 5 ) 0 ratings

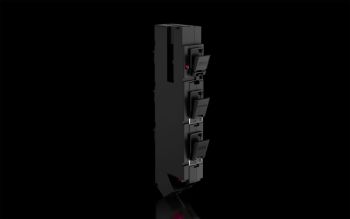

Rittal 9360805
This image may differ from the desired article.
Rittal 9360805Rittal 9360805Rittal 9360805Rittal 9360805Rittal 9360805Rittal 9360805Rittal 9360805
363,40 EUR 377,94 EUR
( 432,45 EUR incl. VAT )
≈ £303.80  |  ≈ $401.56
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 9360805 RX fuse holder 1=4 element 63 A 3-pole D02-E18 LED fuse monitoring W:36 mm
Datasheet:file_download Download
Lieske Part No.:611737
Mfg Part No: 9360805
UPC/EAN: 4069196001433
Weight:1.8 kg
Type:RX 9360805

Product information for Rittal 9360805:

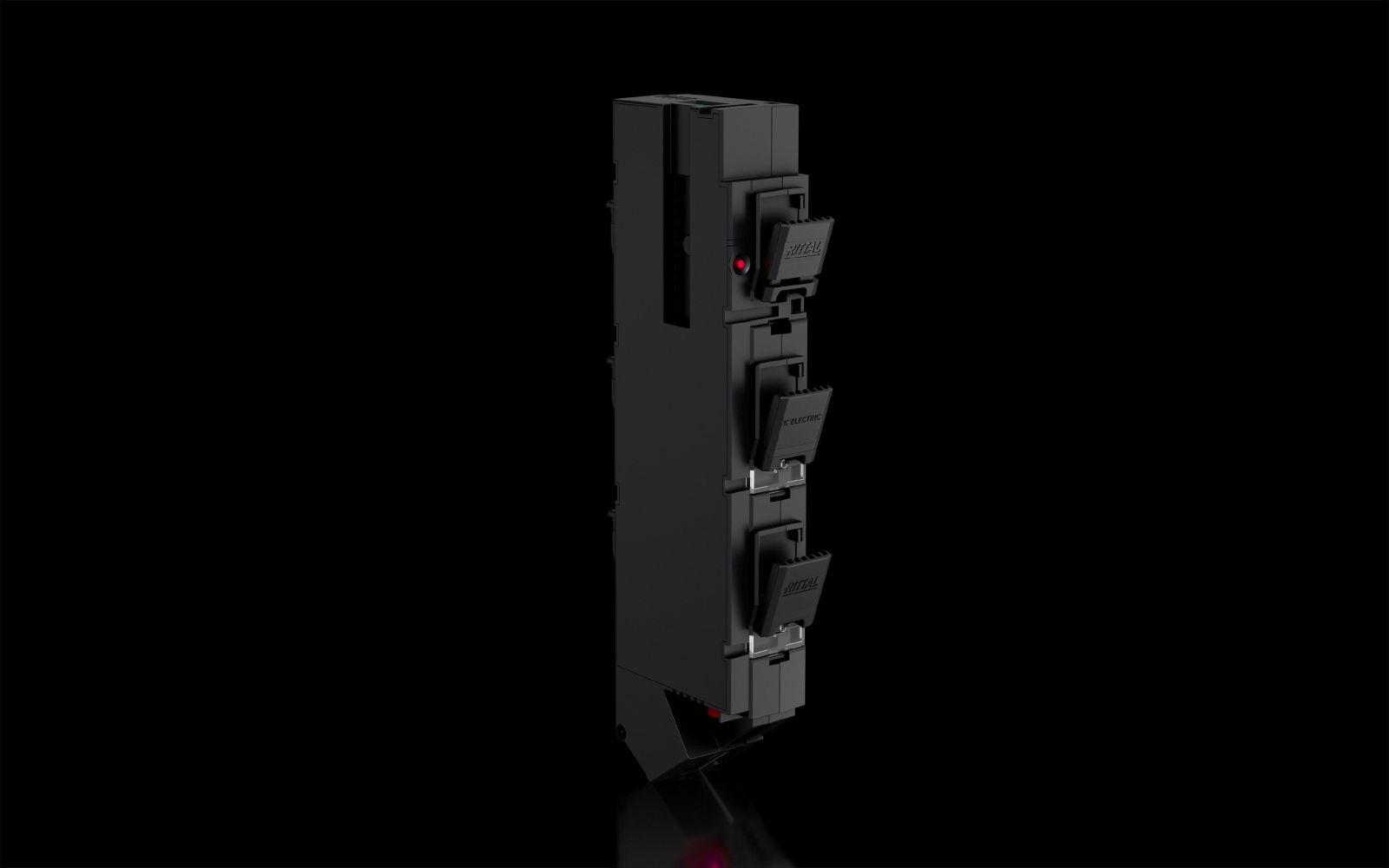

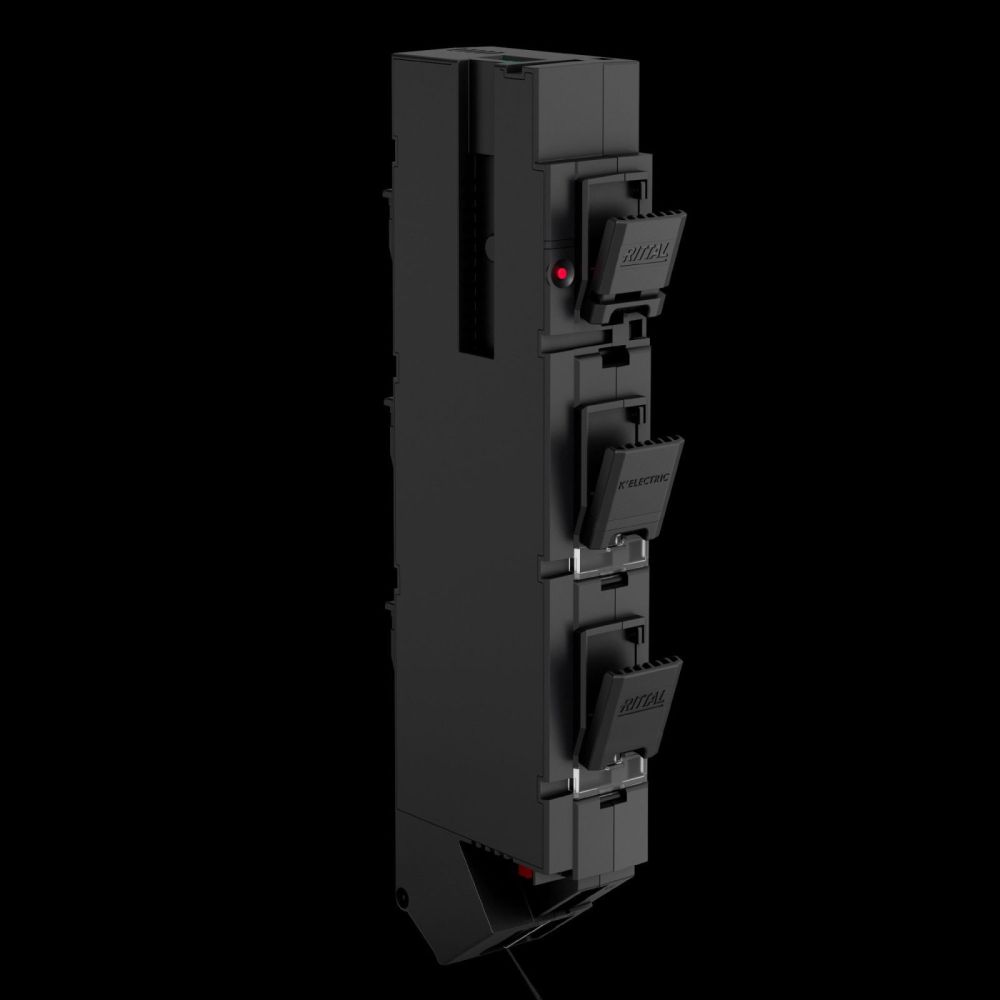

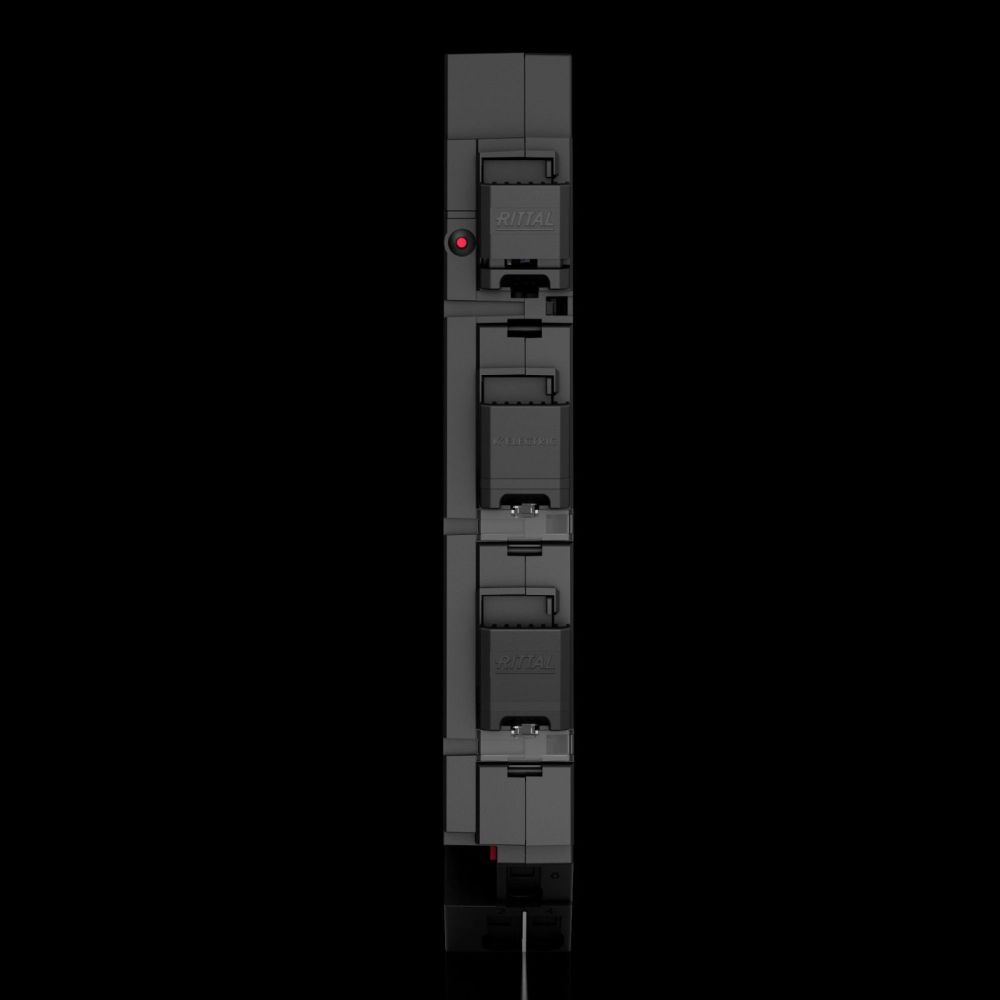

The Rittal fuse carrier RX 9360805 is a 3-pole fuse element for 60 mm busbar systems, specifically designed for RiLineX and RiLine60 systems. It is intended for the safe mounting and monitoring of fuses of types D 01 (with retaining ring) and D 02 (E18) in industrial electrical installations. The device features electronic fuse monitoring (ESÜ) operating via alarm contacts, and an optical LED indicator to visually check the fuse status. The functionality of the ESÜ requires a connected load. The fuse inserts are installed using swivelling holders, eliminating the need for screw caps. These holders are lockable in the open position and sealable in the closed position, ensuring secure and controlled handling.

Applications
This fuse carrier is designed for use in industrial power distribution systems, particularly in enclosures where reliable and monitored fuse protection is required. It is suitable for applications with a rated operational voltage of 400 V AC and a maximum rated current of 63 A. The overvoltage category 4 and pollution degree 3 make it suitable for environments with increased electrical stress and contamination risk. The usage category AC-21B (400 V/100 A) defines the application range for switching operations in AC installations.

Functions and Equipment in Detail

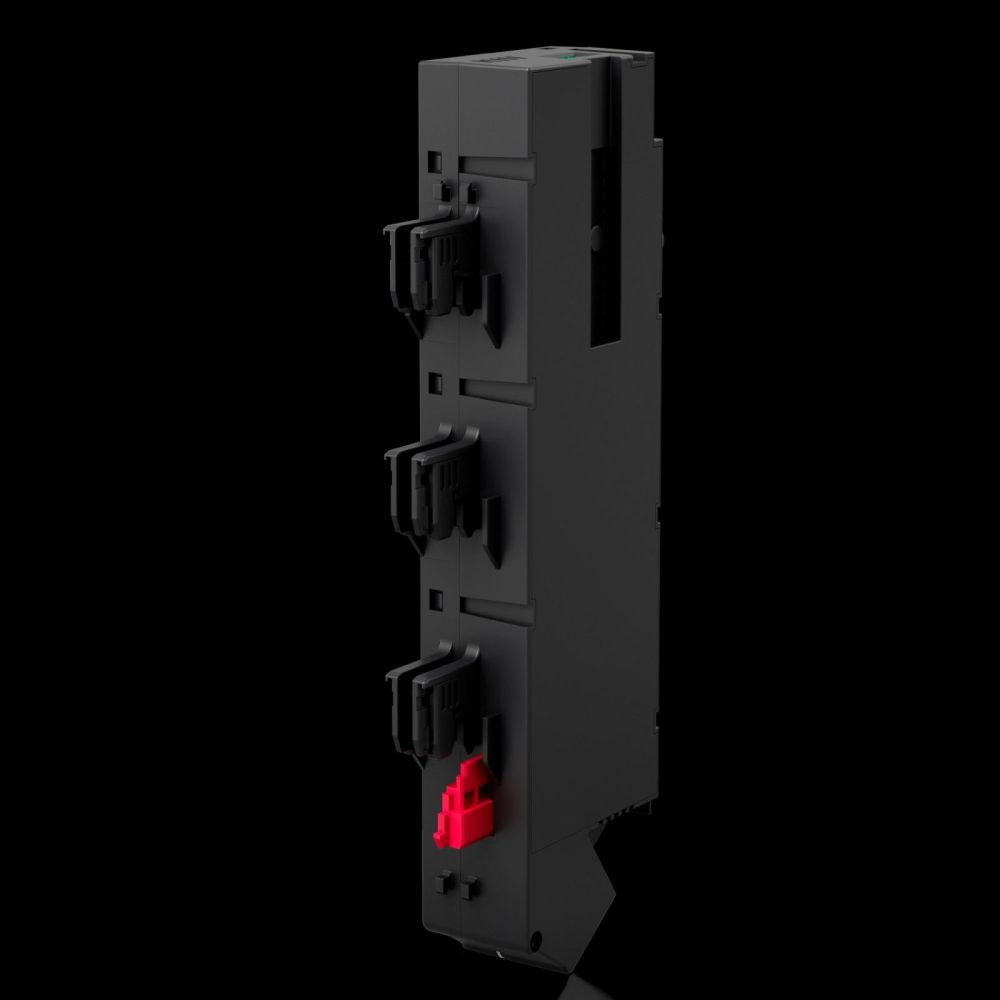

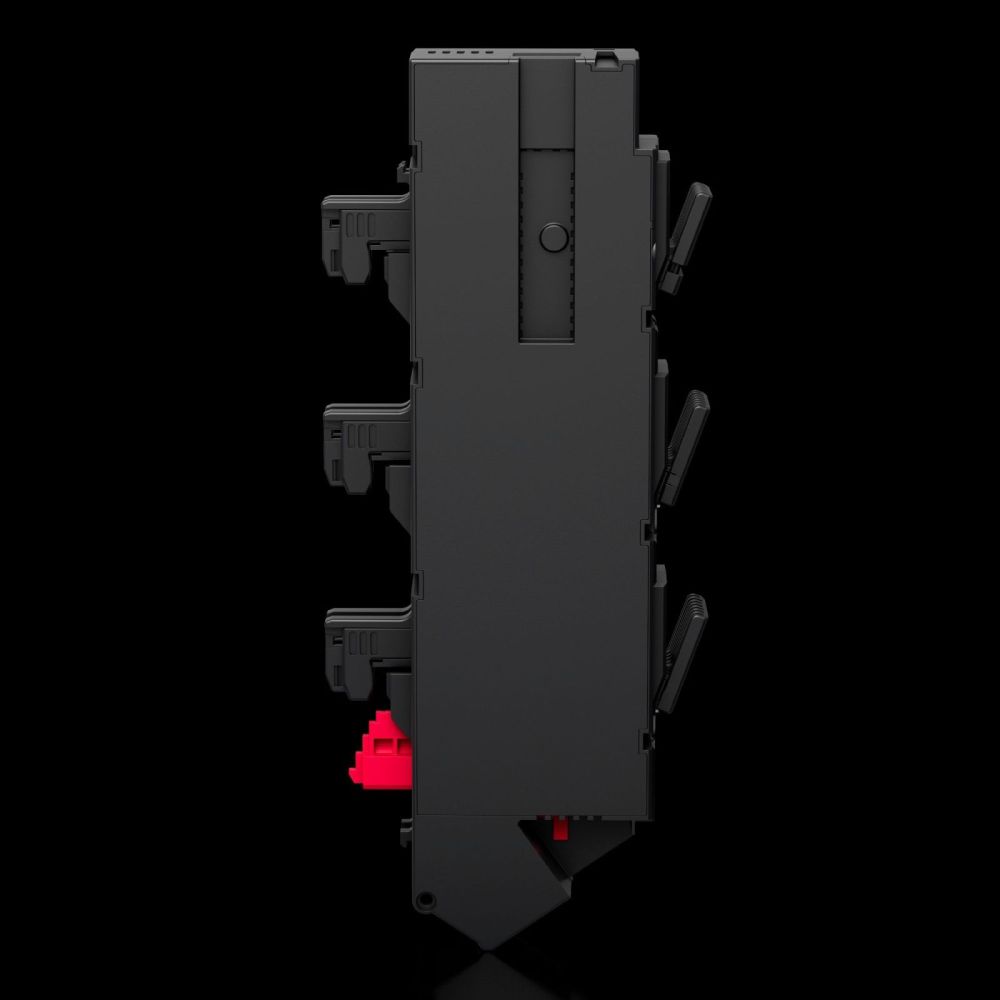

The device offers tool-free snap-in mounting, enabling quick and secure attachment to the busbars. The semi-automatic busbar adaptation adjusts to busbar thicknesses of 5 mm and 10 mm, allowing installation on various busbar profiles (15 x 5/10, 20 x 5/10, 30 x 5/10 mm). The conductor connection is made via a spring clamp, designed for round conductors up to 16 mm² and arranged at a 45° angle. This ensures a maintenance-free and secure connection. The cable exit is at the bottom, supporting orderly cabling. Complete shock protection is achieved without additional screw caps, simplifying installation and enhancing safety.

Technology Explained Simply
The electronic fuse monitoring (ESÜ) checks the fuse status and signals a fault via alarm contacts. The optical LED indicator allows visual inspection of the fuse condition. The spring clamp ensures a secure and durable connection without requiring additional tools. The material polyamide (PA 6) with flame resistance according to UL 94-V0 ensures high mechanical stability and fire resistance. The protection rating IP 2XB protects against finger contact and vertical dripping water, which is sufficient for use in enclosed enclosures. The operating temperature range is between -5 °C and 55 °C, and the storage temperature range is between -25 °C and 75 °C. The maximum operating air humidity is 90 %, non-condensing.

Compatibility and Accessories
The fuse carrier is designed for RiLineX and RiLine60 busbar systems. It is compatible with fuses D 01 (with retaining ring) and D 02 (E18). Accessories include encircling protection profiles (e.g. RX 9365025, length 1200 mm) and mounting clips (e.g. RX 9365027), which support shock protection and installation. The fit is for busbar heights of 5 mm and 10 mm.

Mounting and Installation

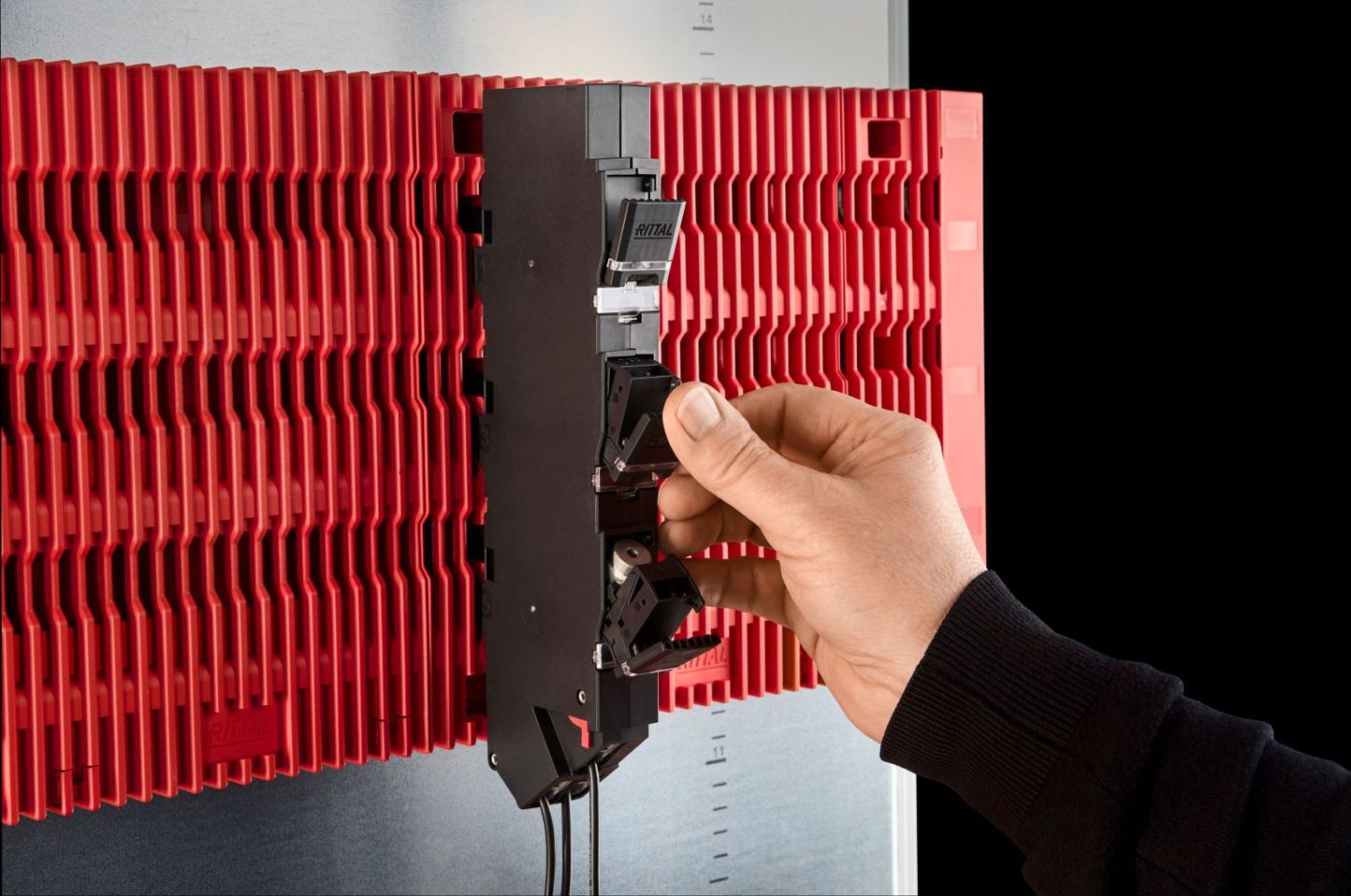

Mounting is tool-free via snap-in to the busbar. The semi-automatic adaptation to busbar thickness (5 mm or 10 mm) is achieved through mechanical adjustment elements. The spring clamps enable simple and secure conductor connection. The fuse inserts are installed into the swivelling holders, which are sealable in the closed position.

Operational Advantages
The fuse carrier offers high operational safety through electronic and optical fuse monitoring. The tool-free mounting and semi-automatic busbar adaptation reduce installation time and effort. The spring clamp ensures a maintenance-free connection, and complete shock protection without additional screw caps enhances safety. The materials and construction are designed for industrial use, with an operating temperature range of -5 °C to 55 °C and a maximum air humidity of 90 % (non-condensing). The standard IEC/DIN EN 60 947-3 ensures compliance with relevant safety and functional requirements. The rated insulation voltage Ui is 440 V, and the maximum power loss is 5.5 W. The delivery includes a pack of 4 fuse carriers and 12 reduction pieces for fuses D 01.

General
Modelwith electronic fuse monitoring (ESÜ)
Market-relevant product changes(Secondary)
MaterialPolyamide (PA 6), flammability rating according to UL 94-V0
ColourRAL 35745, RAL 9005
Scope of delivery4 fuse carrier elements, 12 reducers for fuses D 01
Electrical connection typeSpring-loaded clamp
Rated current max.63 A
Rated operating voltage400 V AC
Notefunctionality of electronic fuse monitoring only available when load is connected
Cable exitBelow
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width35,8 mm
Height253,8 mm
Depth89,8 mm
Connection of ring conductors16 mm²
Suitable for busbarsHeight: 5, 10 mm
Rated voltage400 V AC
Over voltage category4
Pollution degree3
StandardsIEC/DIN EN 60 947-3
Rated insulation voltage Ui440 V
Maximum power dissipation5,5 W
Degree of protection IP according to IEC 60 529IP 2XB
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Utility categoryAC-21B (400 V/100 A)
Fuse linksD 02-E 18
Fire load5,995 MJ/m²
Copper content (kg/piece)0,07
PCF/VE (Cradle-to-Gate)12,02
With electronic fuse monitoring (ESÜ)Ja


Product data sheet
Datasheet for Rittal 9360805, EAN: 4069196001433
