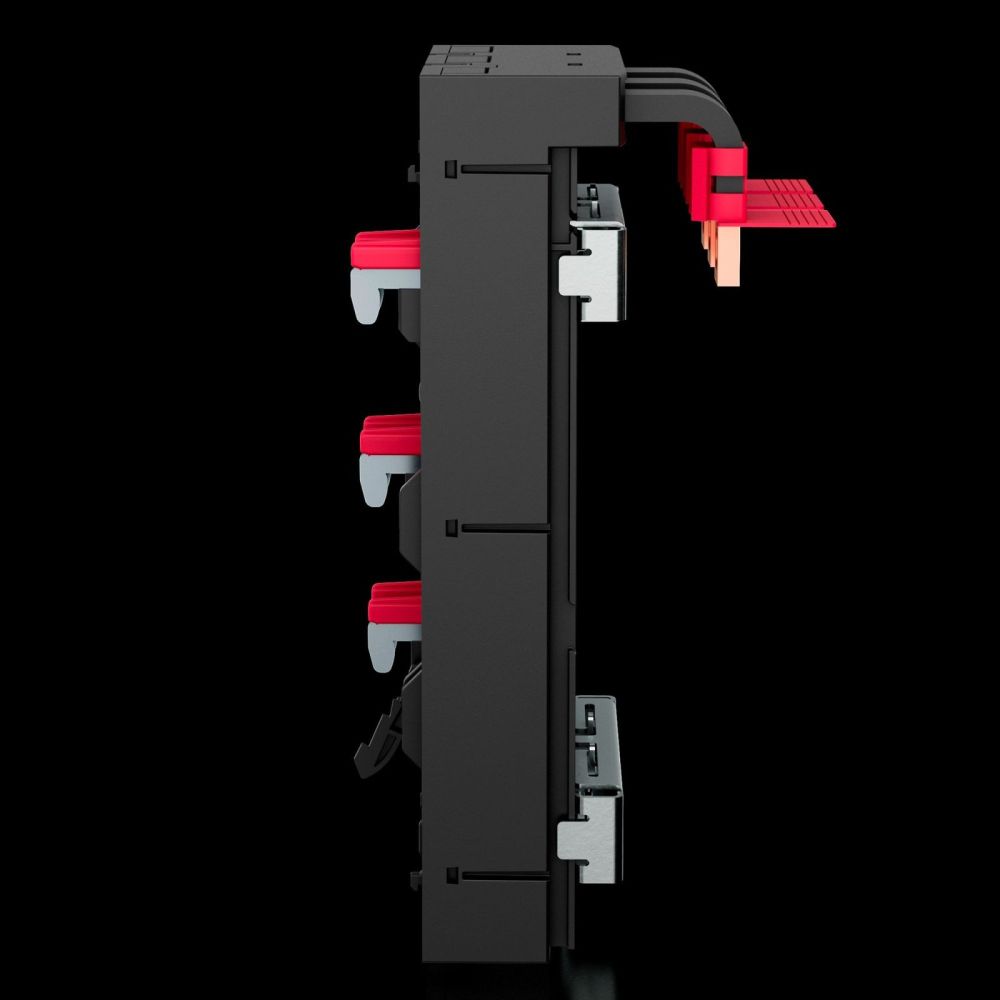

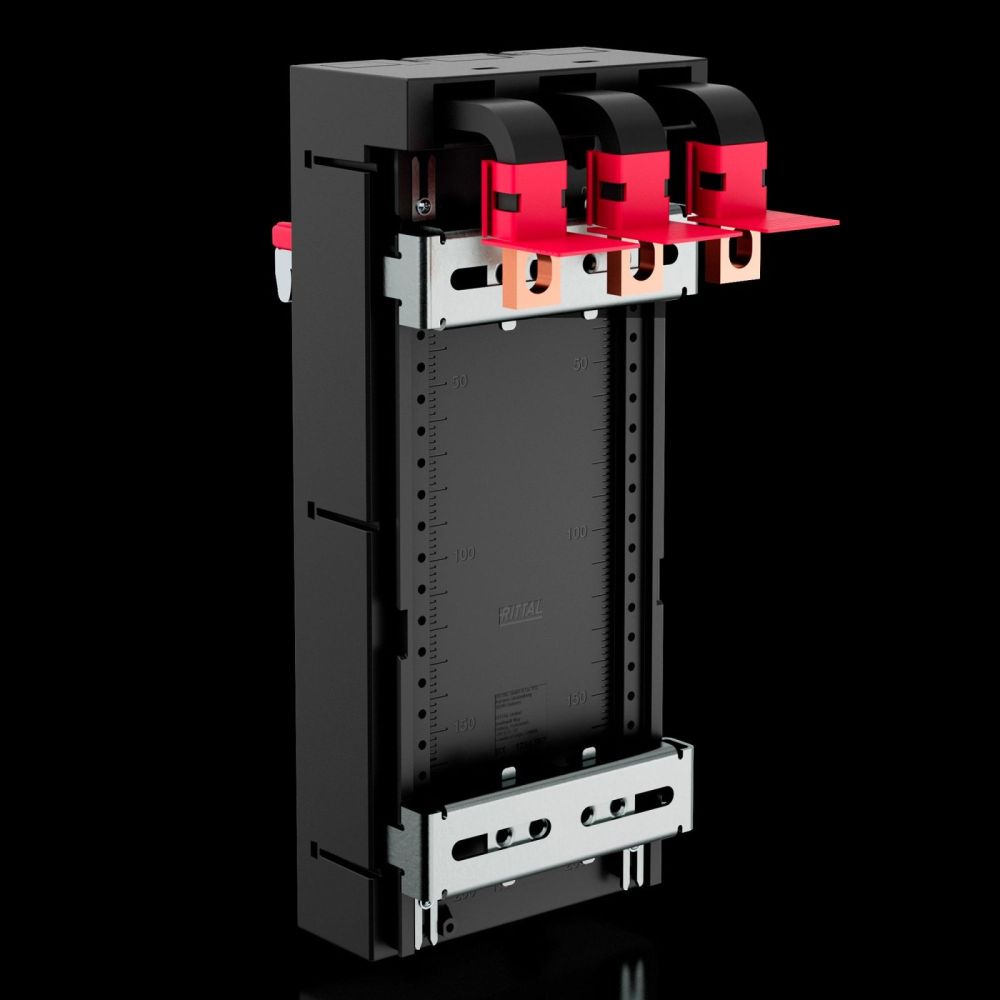

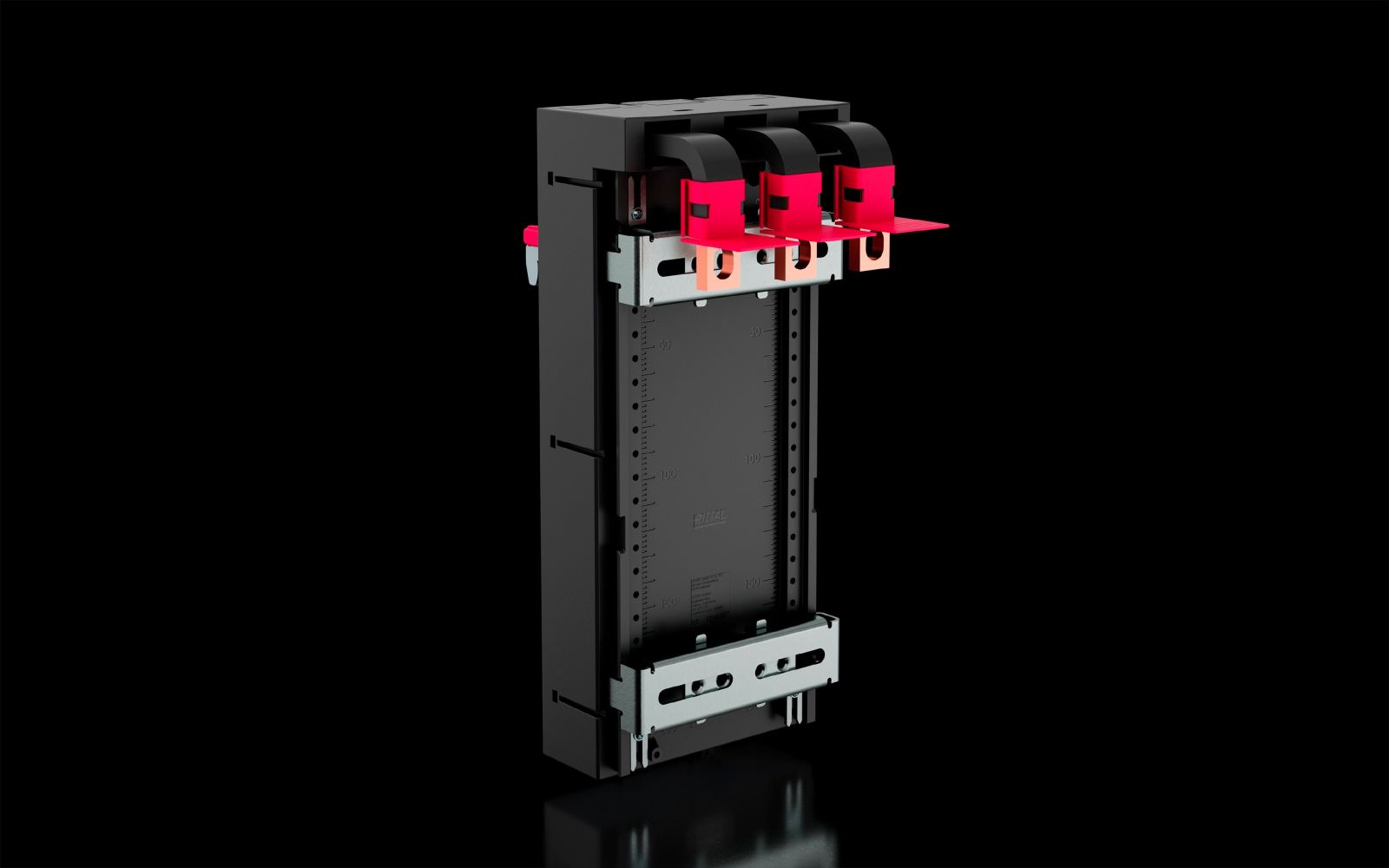

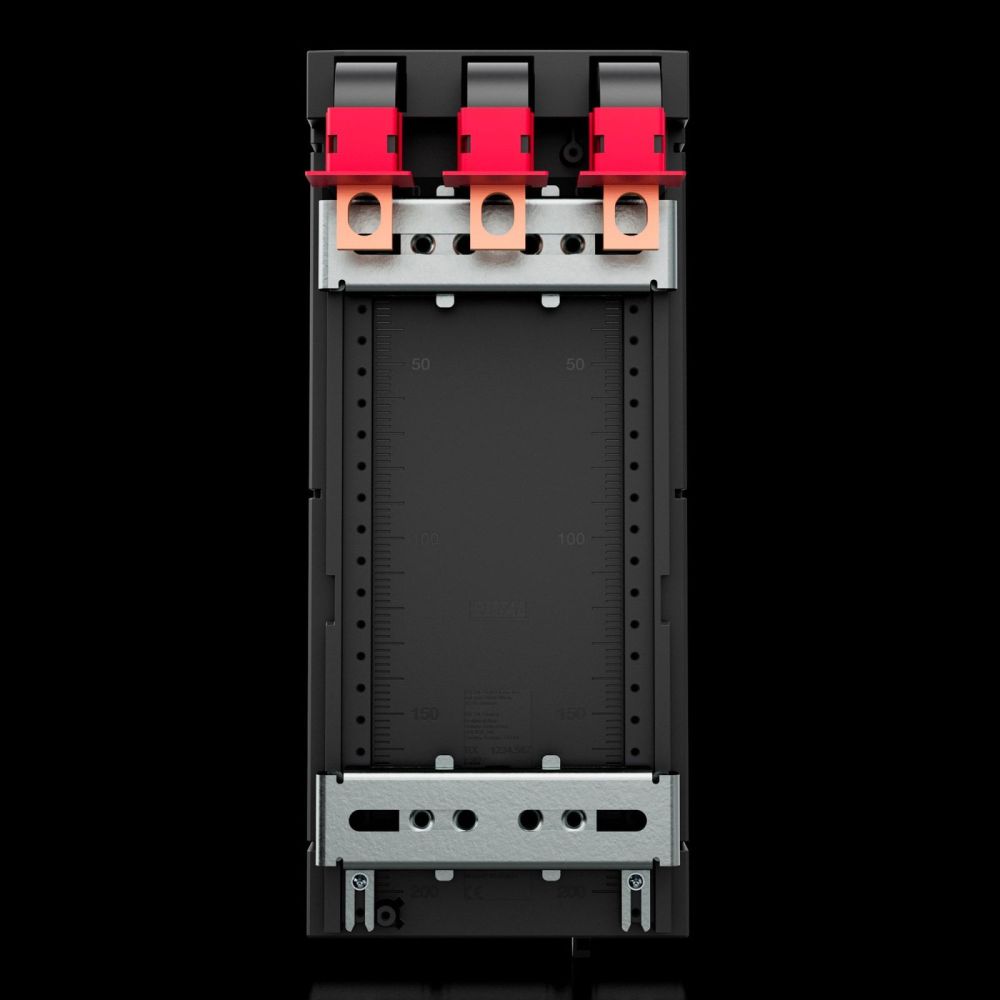

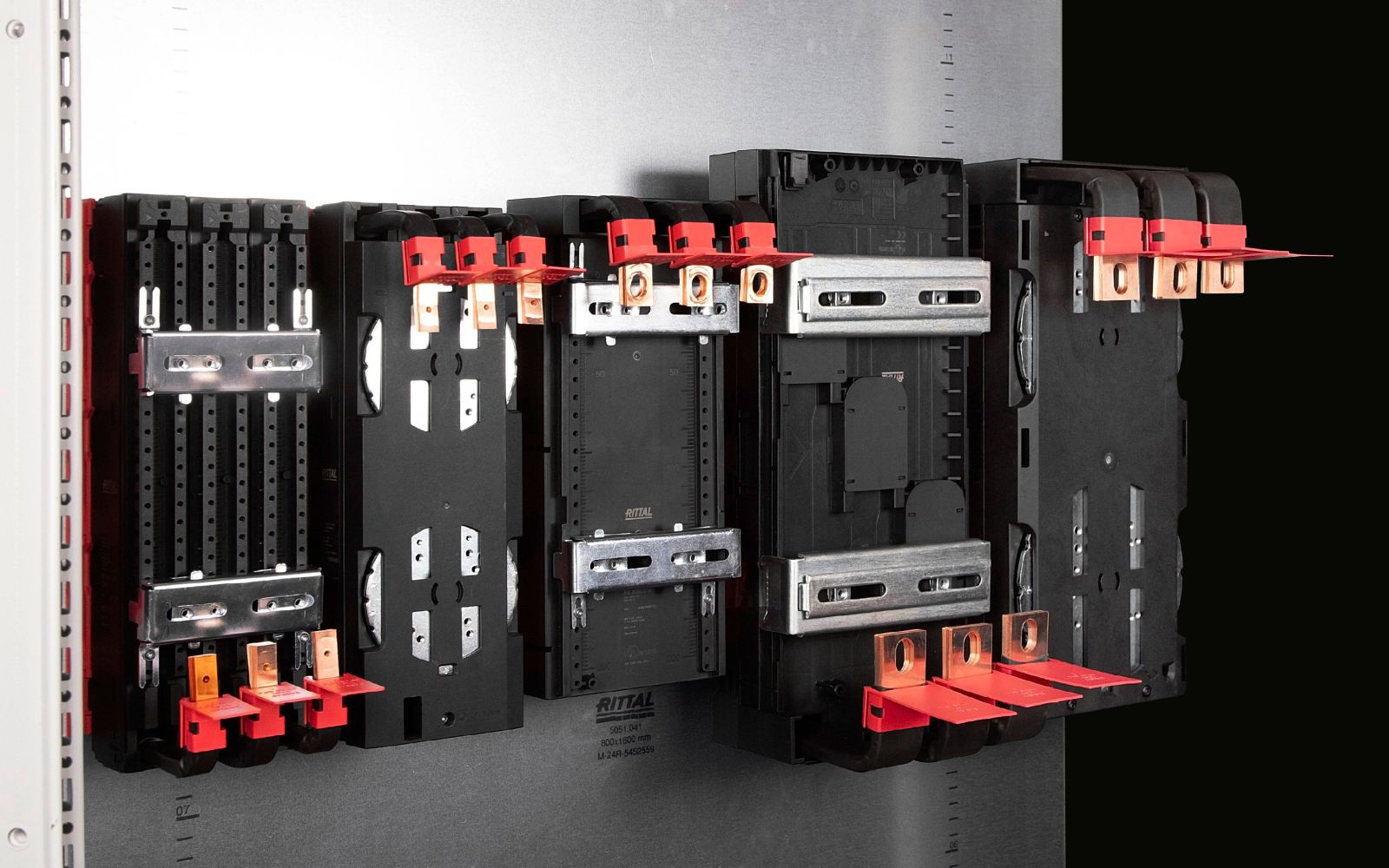

Rittal 9360612 RX CB-device adapter 250 A 3-pole universal W:105 mm

Your rating:
Average rating
product review for Rittal 9360612 RX CB-device adapter 250 A 3-pole universal W:105 mm
( 4.7 / 5 ) 3 ratings
Rittal 9360612
This image may differ from the desired article.
Rittal 9360612Rittal 9360612Rittal 9360612Rittal 9360612Rittal 9360612Rittal 9360612Rittal 9360612
73,60 EUR 76,54 EUR
( 87,58 EUR incl. VAT )
≈ £61.53  |  ≈ $81.33
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9360612 RX CB-device adapter 250 A 3-pole universal W:105 mm
Datasheet:file_download Download
Lieske Part No.:1571799
Mfg Part No: 9360612
UPC/EAN: 4028177997080
Weight:1.474 kg
Type:RX 9360612

Product information for Rittal 9360612:

The Rittal RX 9360612 is a CB-device adapter for 60 mm busbar systems, specifically designed for mounting compact power circuit breakers (MCCB) in industrial applications. The universal version with sliding nuts enables flexible and tool-free push-on mounting, allowing quick installation of circuit breakers up to 250 A without additional tools. The device width is 105 mm, and the adapter is designed for bottom cable exit, making it suitable for standard arrangements in enclosures.

Applications

The adapter is intended for use in industrial enclosures, particularly in systems with RiLineX or RiLine60 busbars. It enables direct mounting of market-standard power circuit breakers onto the board, allowing pre-assembly outside the enclosure. This reduces installation time and facilitates maintenance. Compatibility with various busbar thicknesses (15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm) increases flexibility in system planning.

Functions and Equipment in Detail

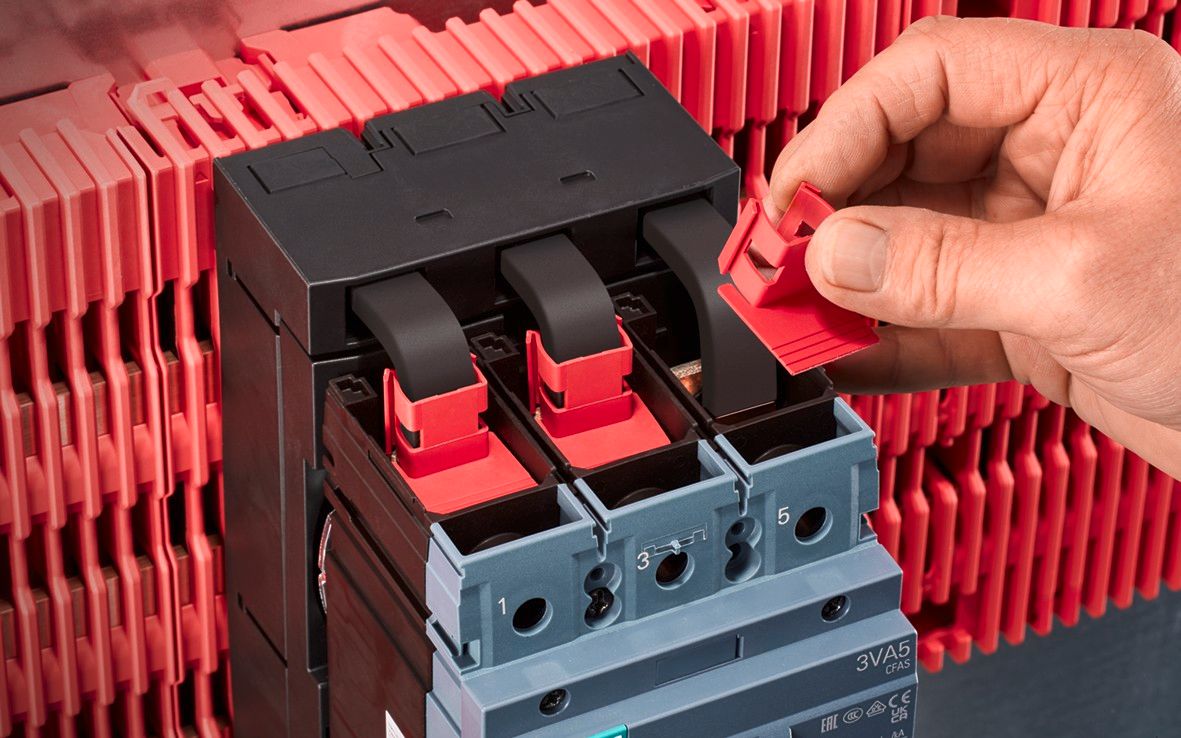

The adapter features tool-free push-on mounting achieved via sliding nuts. These allow quick and secure fastening of the circuit breaker to the busbar. Mounting is done without additional tools, reducing installation time and minimizing error potential. The connection type is via M8 screws, supporting cross-sections from 6 mm² to 15 mm². The delivery includes 3 connection space covers, which secure access to the connection areas and enhance operational safety.

Technology Explained Simply

The adapter is made of polyamide (PA 6), a thermoplastic with high mechanical strength and heat resistance. The material meets flammability requirements according to UL 94, which is relevant for use in electrical installations. The protection rating IP 2XB according to IEC 60 529 protects against solid foreign objects with a diameter of at least 12.5 mm and provides protection against vertically falling water. The rated voltage is 690 V AC (600 V AC according to UL), and the rated insulation voltage Ui is 1,000 V. The rated impulse voltage Uimp is 8 kV, highlighting the adapter’s ability to withstand electrical overvoltages. The pollution degree 3 indicates suitability for environments with heavy contamination, such as industrial production facilities.

Compatibility and Accessories

The adapter is designed for use with RiLineX and RiLine60 busbar systems. It is compatible with busbars in dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. Suitable accessories include enclosure protection profiles (RX 9365025) and mounting clips (RX 9365027), which support installation and protect the busbars. Selection of the appropriate device adapter can be made using the selection aid available in the manufacturer’s download section.

Mounting and Installation

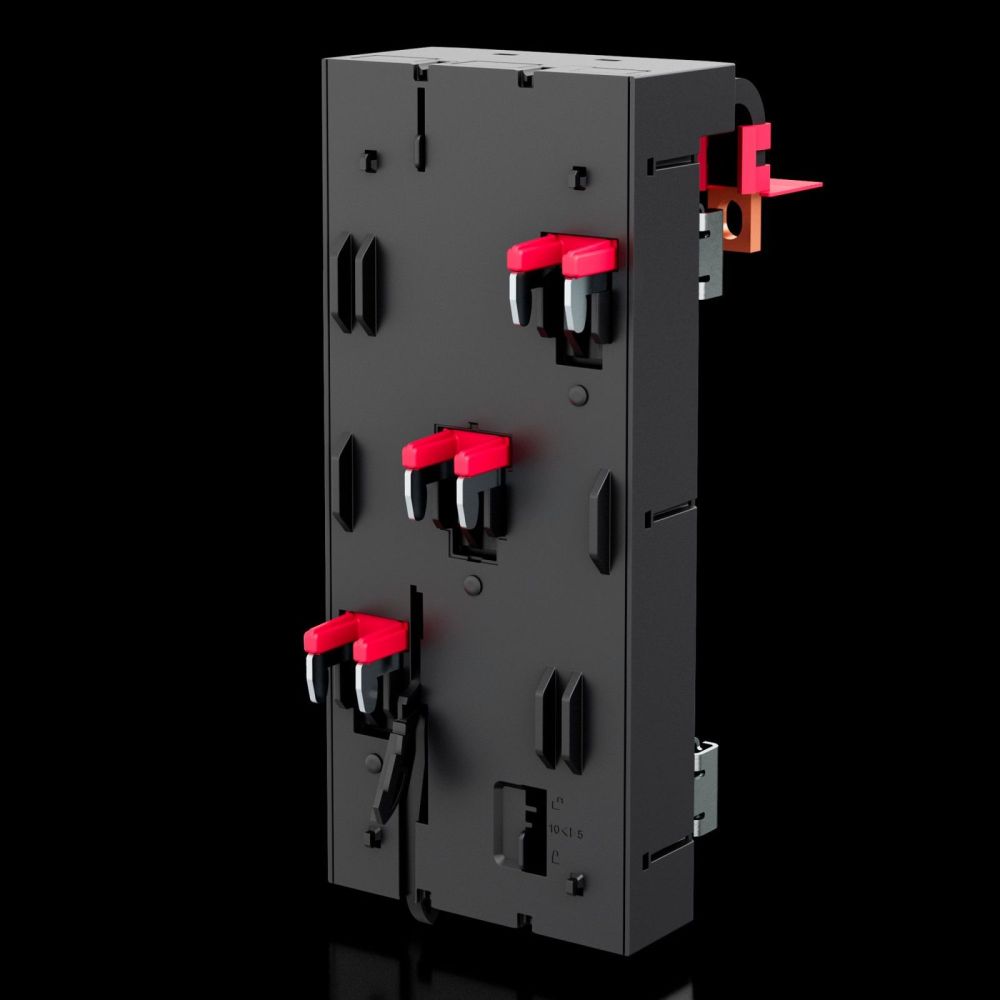

Mounting is done by pushing the adapter onto the busbar, with sliding nuts enabling the fastening. The tool-free mounting reduces installation time and minimizes the need for special tools. The device width of 105 mm and dimensions of 109 mm (width), 251.4 mm (height), and 62.8 mm (depth) are designed for standard enclosure configurations. The operating temperature range is from -25 °C to 55 °C, and the storage temperature range is from -25 °C to 75 °C. The operating humidity must not be condensing and ranges from 10 % to 90 %.

Operational Advantages

The adapter offers high mounting flexibility due to its universal design and tool-free push-on mounting. Direct mounting of power circuit breakers onto the board reduces installation time and improves maintainability. The use of polyamide (PA 6) ensures high mechanical stability and heat resistance. The protection rating IP 2XB and pollution degree 3 make the adapter suitable for industrial environments. The maximum power loss is 10.5 W, limiting thermal load during operation. The frequency of the fundamental wave is in the range of 50 to 60 Hz, enabling use in standard power networks.

General
ModelUniversal
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding 3 connection compartment covers
Degree of protection IP according to IEC 60 529IP 2XB
Electrical values UL (SCCR)65 kA - 480 V, Circuit Breaker max. 250 A, DIVQ/7
Rated impulse voltage Uimp8 kV
Rated voltage690 V AC, 600 V AC (UL)
Rated insulation voltage Ui1.000 V
Pollution degree3
Number of poles3-pole
Cable exitBelow
Electrical connection typeM8 screw
Cross section15 mm², 6 mm²
Suitable for manufacturer (type)Easily find the appropriate device adapter using our selection guide in the Downloads section.
Suitable for busbar systemRiLineX, RiLine60
Maximum power dissipation10,5 W
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...75 °C
Width109 mm
Height251,4 mm
Depth62,8 mm
Fire load8,086 MJ/m²
Copper content (kg/piece)0,608
PCF/VE (Cradle-to-Gate)9,96


Product data sheet
Datasheet for Rittal 9360612, EAN: 4028177997080
