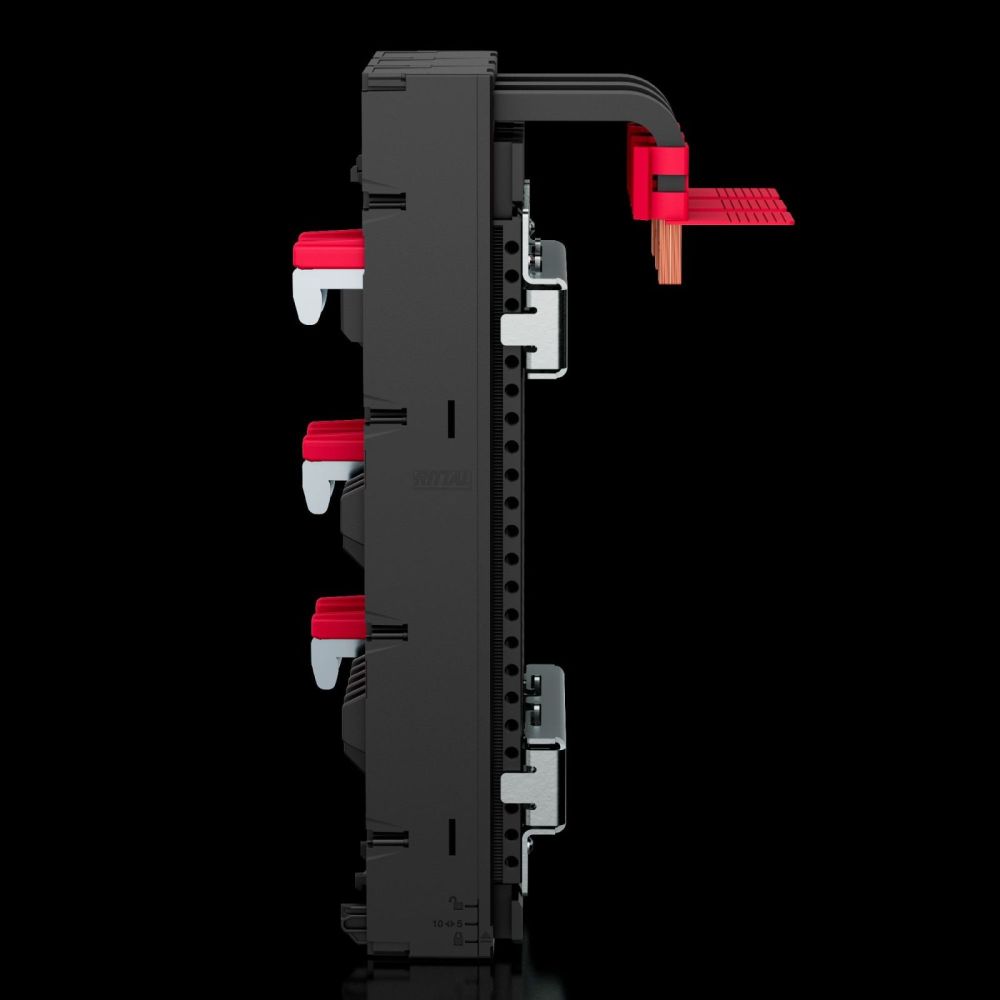

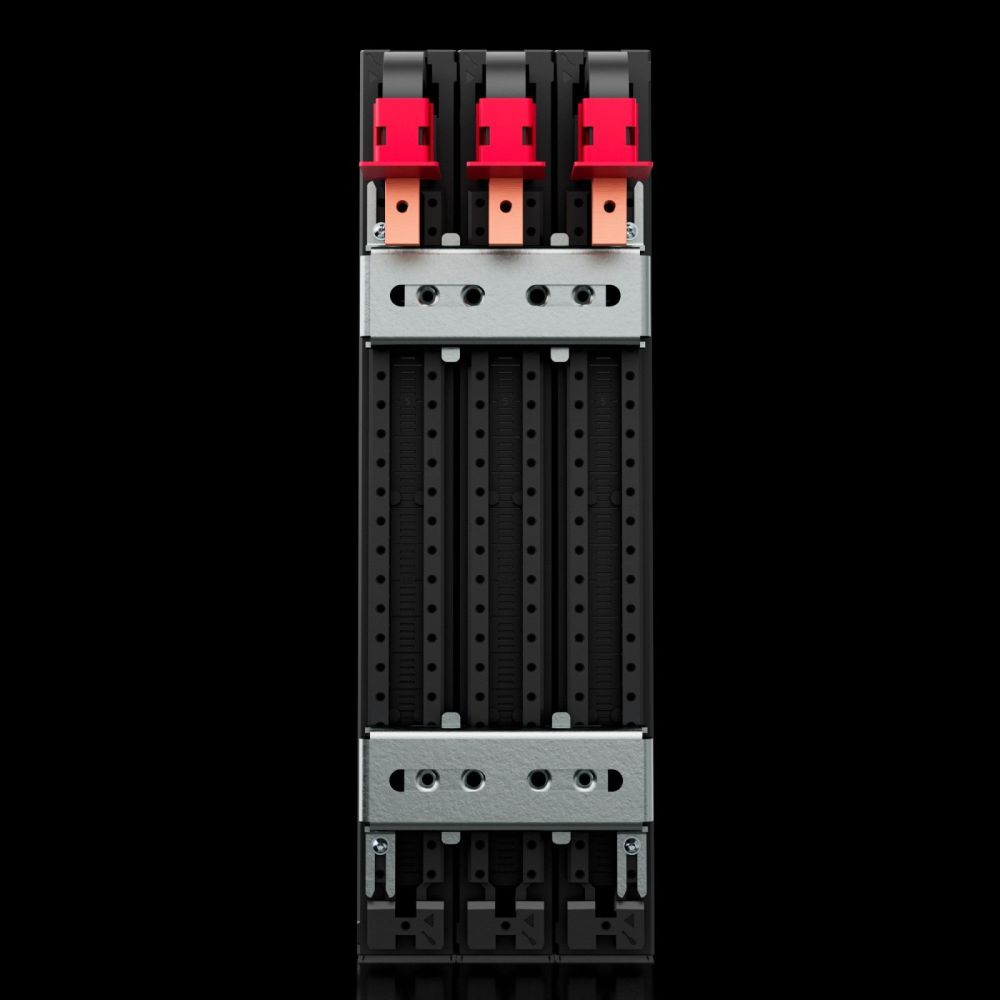

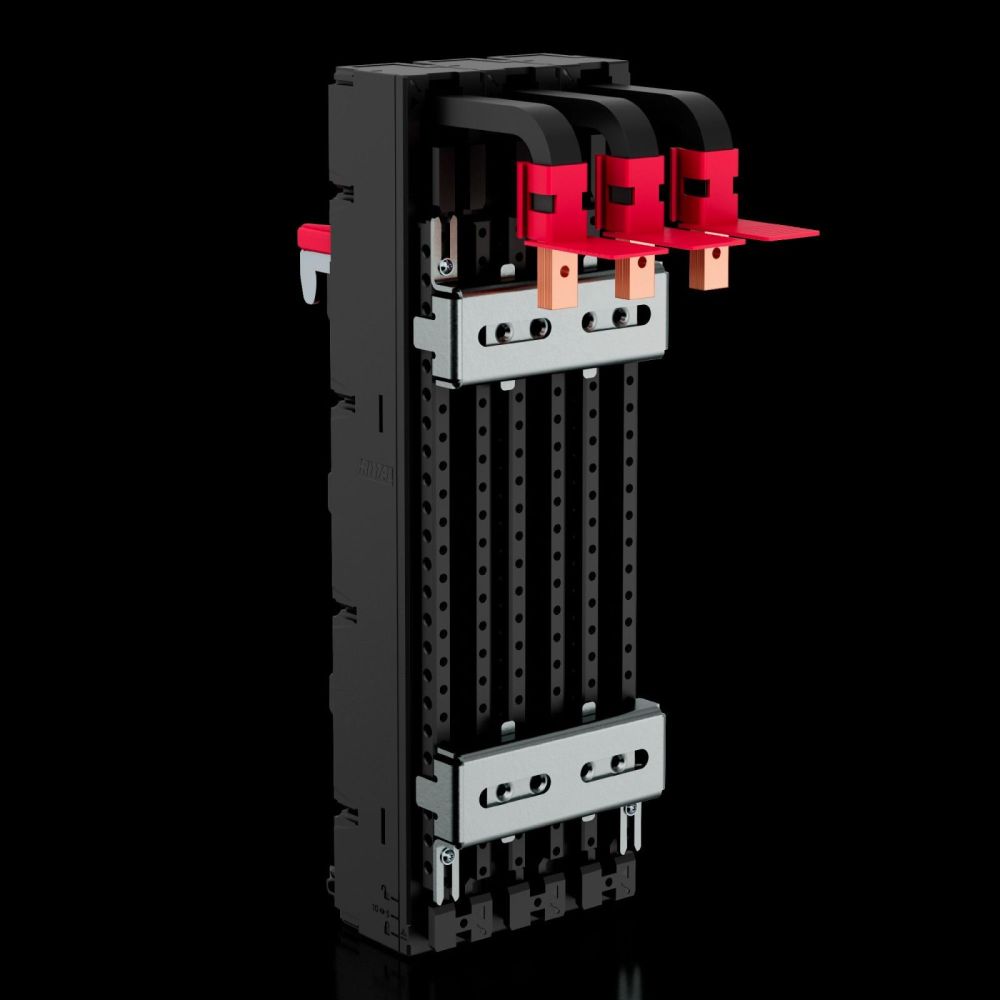

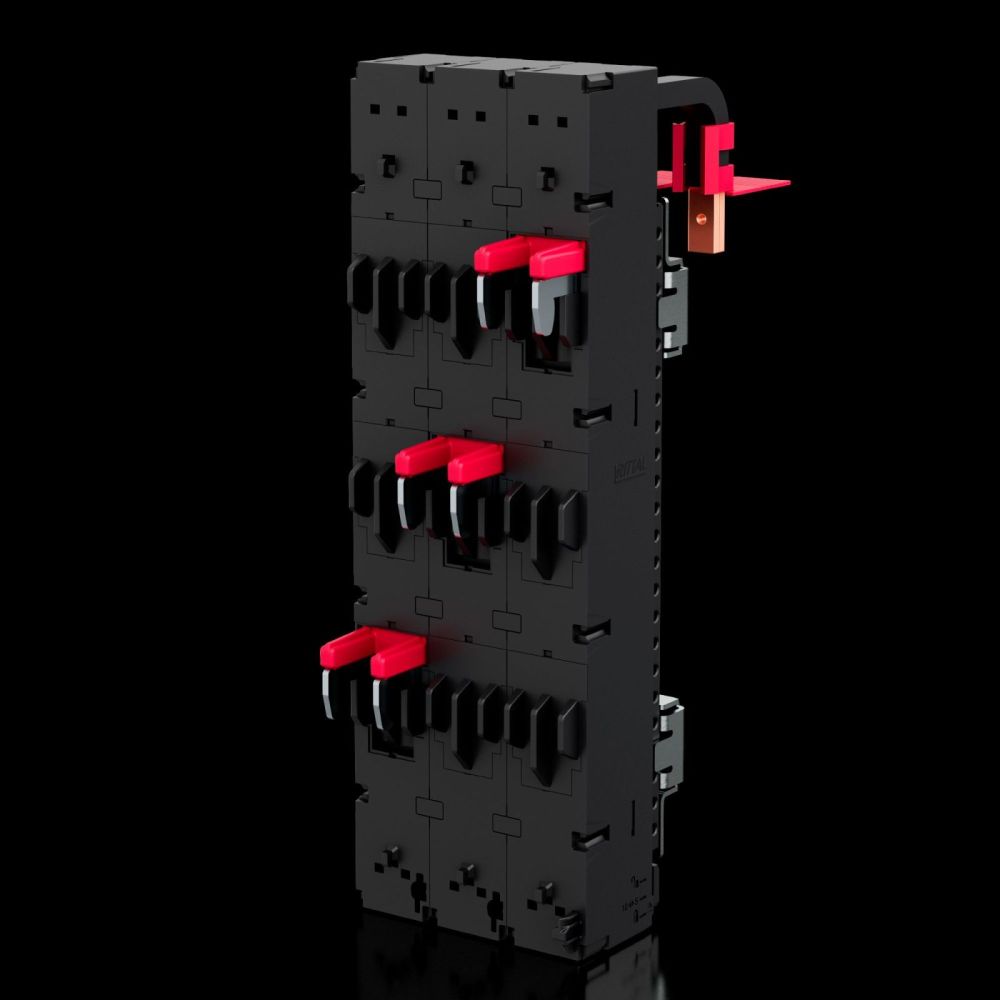

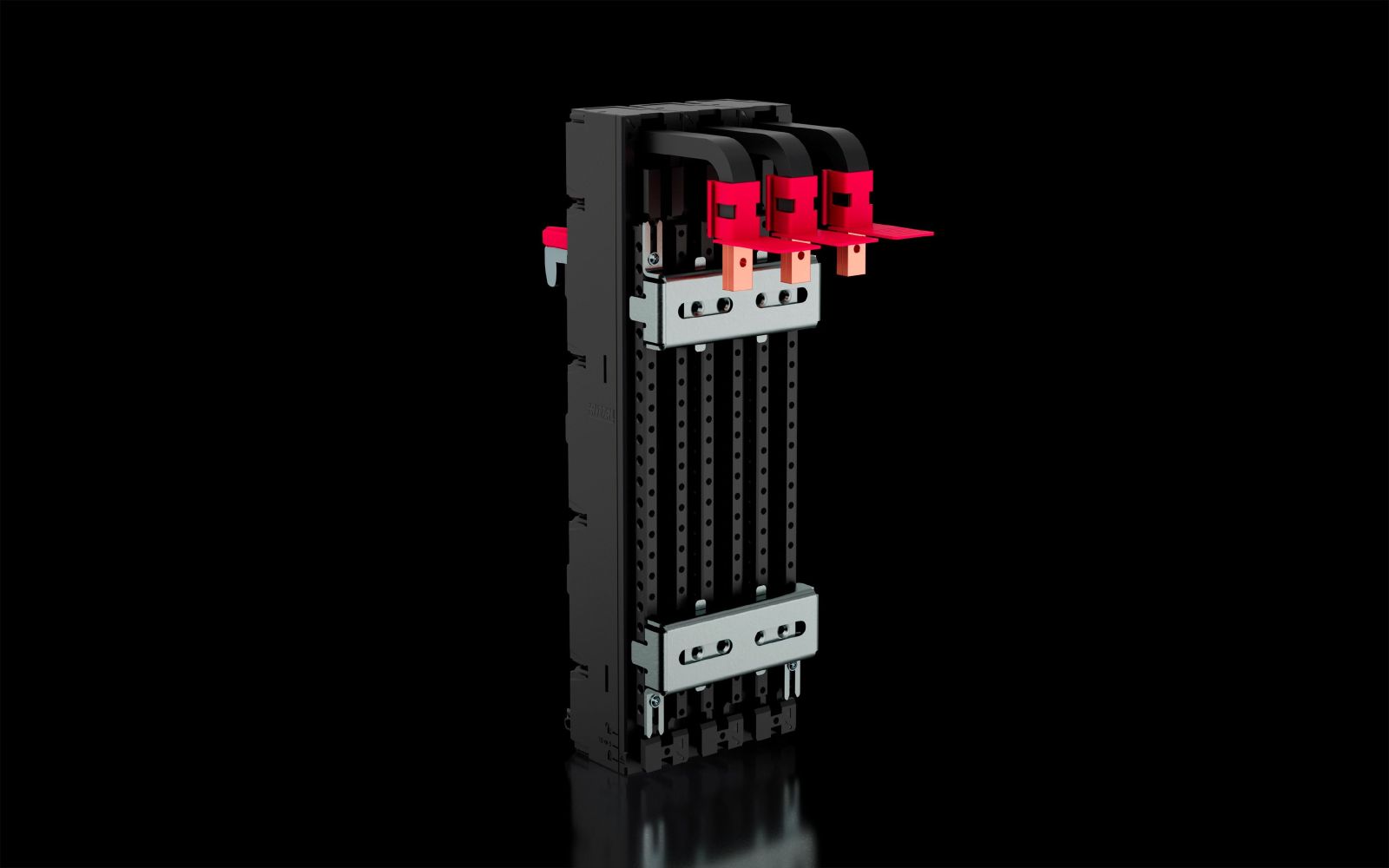

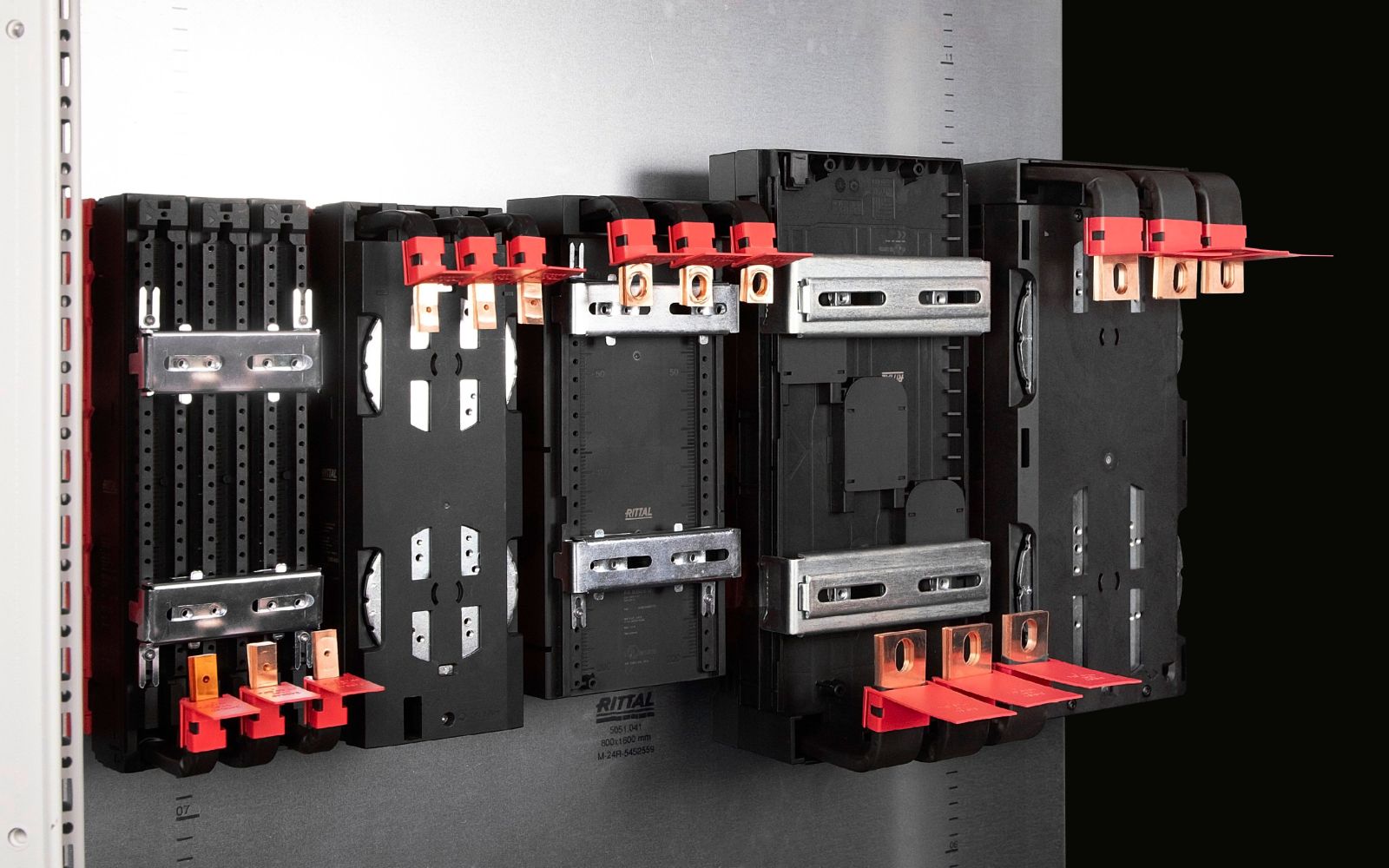

Rittal 9360600 RX CB-device adapter 160 A 3-pole universal W:81 mm

Your rating:
Average rating
product review for Rittal 9360600 RX CB-device adapter 160 A 3-pole universal W:81 mm
( 4.7 / 5 ) 3 ratings
Rittal 9360600
This image may differ from the desired article.
Rittal 9360600Rittal 9360600Rittal 9360600Rittal 9360600Rittal 9360600Rittal 9360600Rittal 9360600
48,30 EUR 50,23 EUR
( 57,48 EUR incl. VAT )
≈ £40.38  |  ≈ $53.37
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9360600 RX CB-device adapter 160 A 3-pole universal W:81 mm
Datasheet:file_download Download
Lieske Part No.:1571798
Mfg Part No: 9360600
UPC/EAN: 4028177997103
Weight:1.22 kg
Type:RX 9360600

Product information for Rittal 9360600:

The Rittal RX 9360600 is a CB device adapter for 60 mm busbar systems, specifically designed for mounting compact circuit breakers (MCCB) in industrial and enclosure applications. The universal version with sliding nuts enables flexible adaptation to various switch types and offers a tool-free snap-in mounting, accelerating installation. The adapter is rated for a maximum nominal current of 160 A and supports direct mounting of MCCBs onto the board, allowing for quick and easy pre-assembly outside the enclosure. The design is intended for cable exit at the bottom, facilitating wiring in the lower section of the enclosure.

Applications
This adapter is intended for use in industrial electrical installations, particularly in enclosures with RiLineX or RiLine60 busbar systems. It is suitable for applications requiring flexible and rapid mounting of circuit breakers, such as in manufacturing automation, power distribution, or machine control. The universal design makes it compatible with various switch manufacturers, provided they feature a frame terminal.

Functions and Equipment in Detail
The adapter features tool-free snap-in mounting, enabling quick fastening without additional tools. The sliding nuts allow semi-automatic adjustment to various busbar thicknesses from 5 mm to 10 mm, making it suitable for busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. The connection type is via a frame terminal, rated for cross-sections of 6 mm² and 9 mm². The device width is 81 mm, with overall dimensions of 82 mm (width) × 251.4 mm (height) × 50.8 mm (depth).

Technology Explained Simply
The adapter is made of polyamide (PA 6), a robust plastic with good mechanical strength and heat resistance. The material complies with the flammability standard UL 94, ensuring safe use in electrical installations. The protection rating IP 2XB according to IEC 60 529 protects against solid foreign objects larger than 12.5 mm and offers some protection against finger contact, but not against water or dust. The rated voltage is 690 V AC (600 V AC according to UL), and the rated insulation voltage is specified as 1,000 V. The rated impulse withstand voltage Uimp is 8 kV, highlighting the adapter’s ability to withstand electrical surges. The pollution degree 3 indicates suitability for environments with heavy contamination, such as industrial facilities with dust or chemical influences.

Compatibility and Accessories
The adapter is specifically designed for MCCBs with frame terminals and fits busbar systems of types RiLineX and RiLine60. Available accessories include grip protection profiles (e.g. RX 9365025) and mounting clips (e.g. RX 9365027), which support installation and protect connections.

Mounting and Installation
Mounting is done by snapping the adapter onto the busbar, with sliding nuts enabling adjustment to the respective busbar thickness. The tool-free mounting reduces installation time and minimizes the need for special tools. The delivery includes 3 connection space covers, used to secure the connection areas. Mounting is designed for an operating temperature range of -25 °C to 55 °C, with a storage temperature up to 75 °C. The operating humidity should be between 10 % and 90 % (non-condensing).

Operational Advantages
The adapter offers high mounting flexibility and reduces installation time through tool-free fastening. The universal design allows use with various switch types, simplifying planning and maintenance of enclosures. The power loss is limited to a maximum of 8 W, minimizing thermal load in the enclosure. Certifications according to IEC and UL (SCCR 65 kA at 480 V, max. 125 A for the switch) ensure safety and reliability in industrial applications. The color variants RAL 9005 and RAL 35745 enable visual harmonization with existing enclosure components.

General
Modeluniversal, NOTE: Only suitable for MCCBs with frame terminals!
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding 3 connection compartment covers
Degree of protection IP according to IEC 60 529IP 2XB
Electrical values UL (SCCR)65 kA - 480 V, Circuit Breaker max. 125 A, DIVQ/7
Rated impulse voltage Uimp8 kV
Rated voltage690 V AC, 600 V AC (UL)
Rated insulation voltage Ui1.000 V
Pollution degree3
Number of poles3-pole
Cable exitBelow
Electrical connection typeFrame clamp
Cross section9 mm², 6 mm²
Suitable for manufacturer (type)Easily find the appropriate device adapter using our selection guide in the Downloads section.
Suitable for busbar systemRiLineX, RiLine60
Maximum power dissipation8 W
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...75 °C
Width82 mm
Height251,4 mm
Depth50,8 mm
Fire load22,045 MJ/m²
Copper content (kg/piece)0,375
PCF/VE (Cradle-to-Gate)12,73


Product data sheet
Datasheet for Rittal 9360600, EAN: 4028177997103
