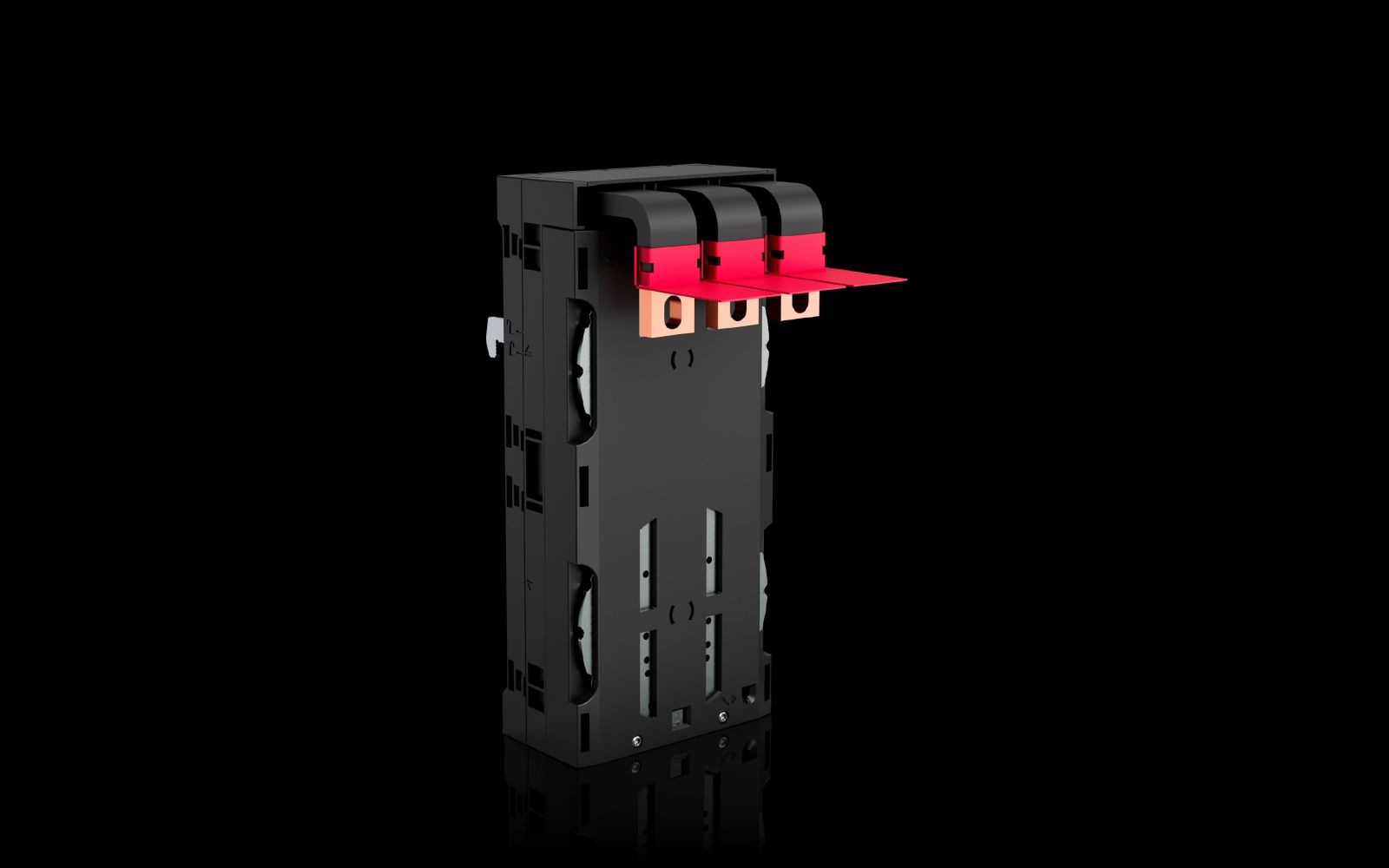

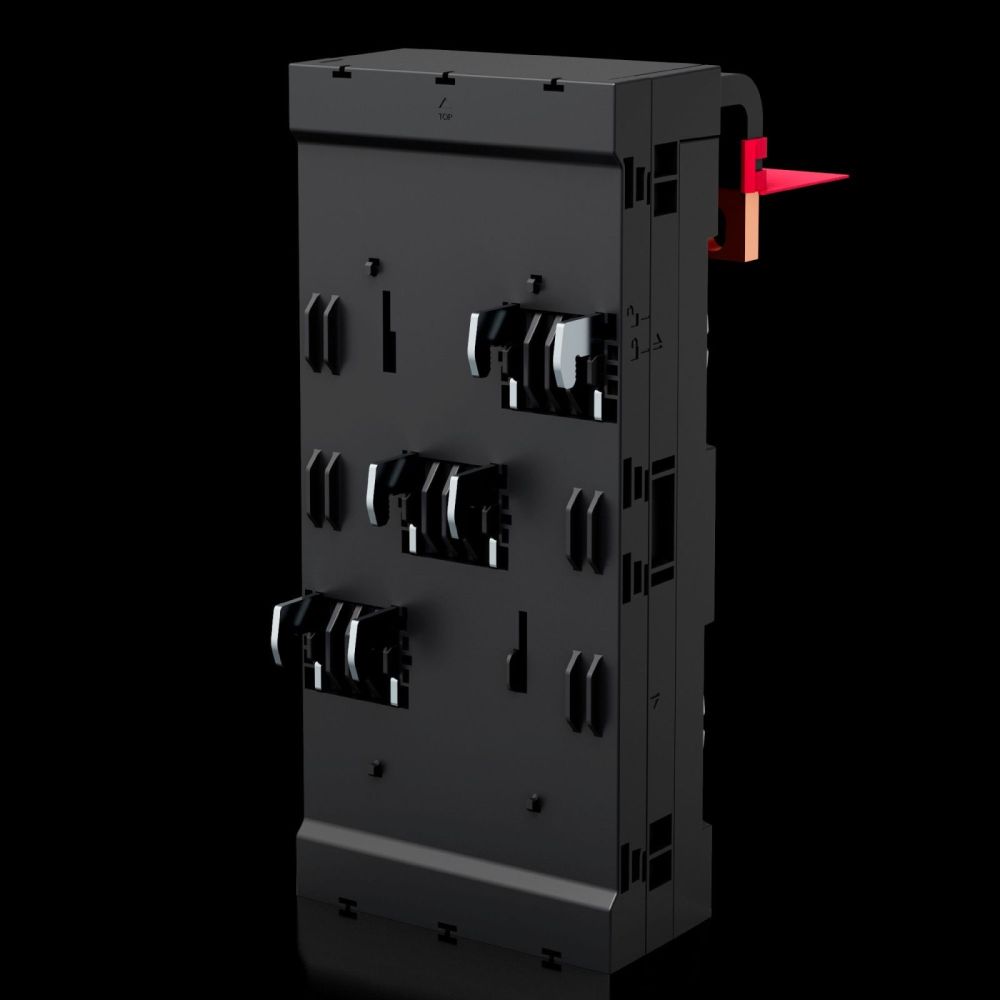

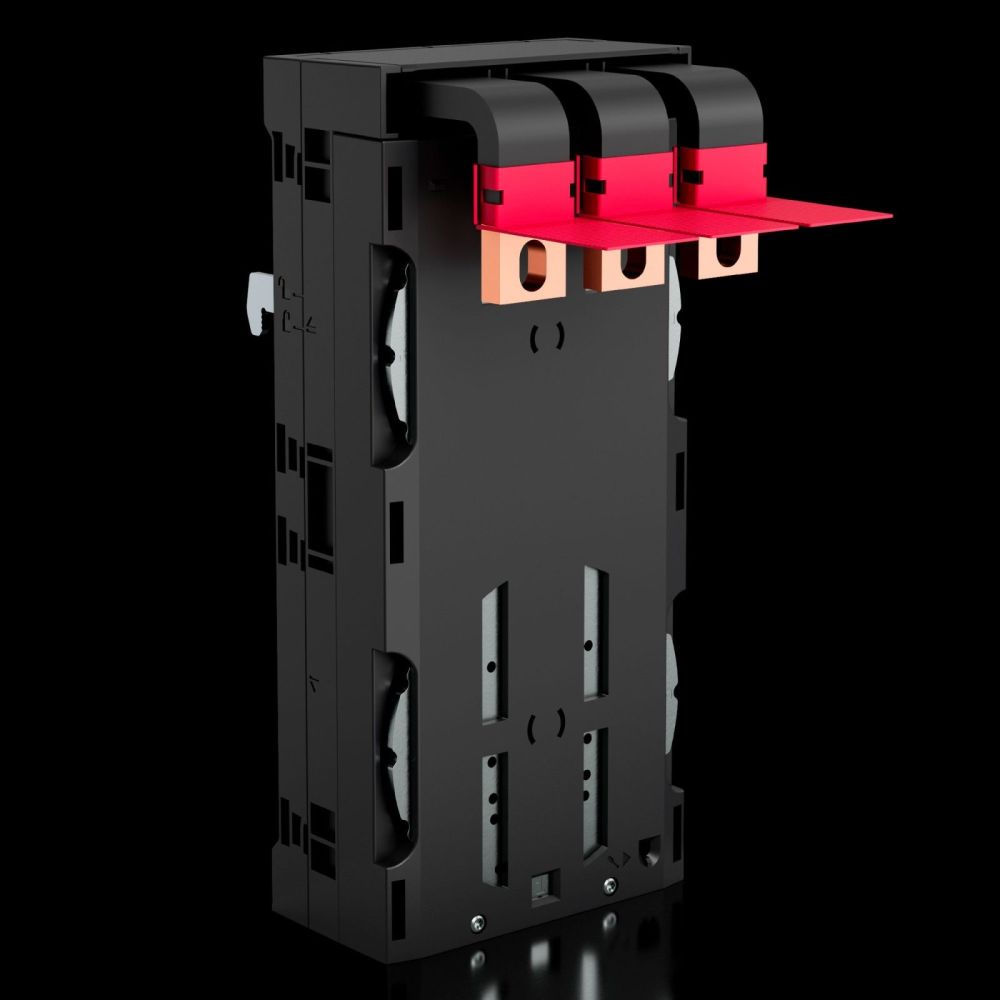

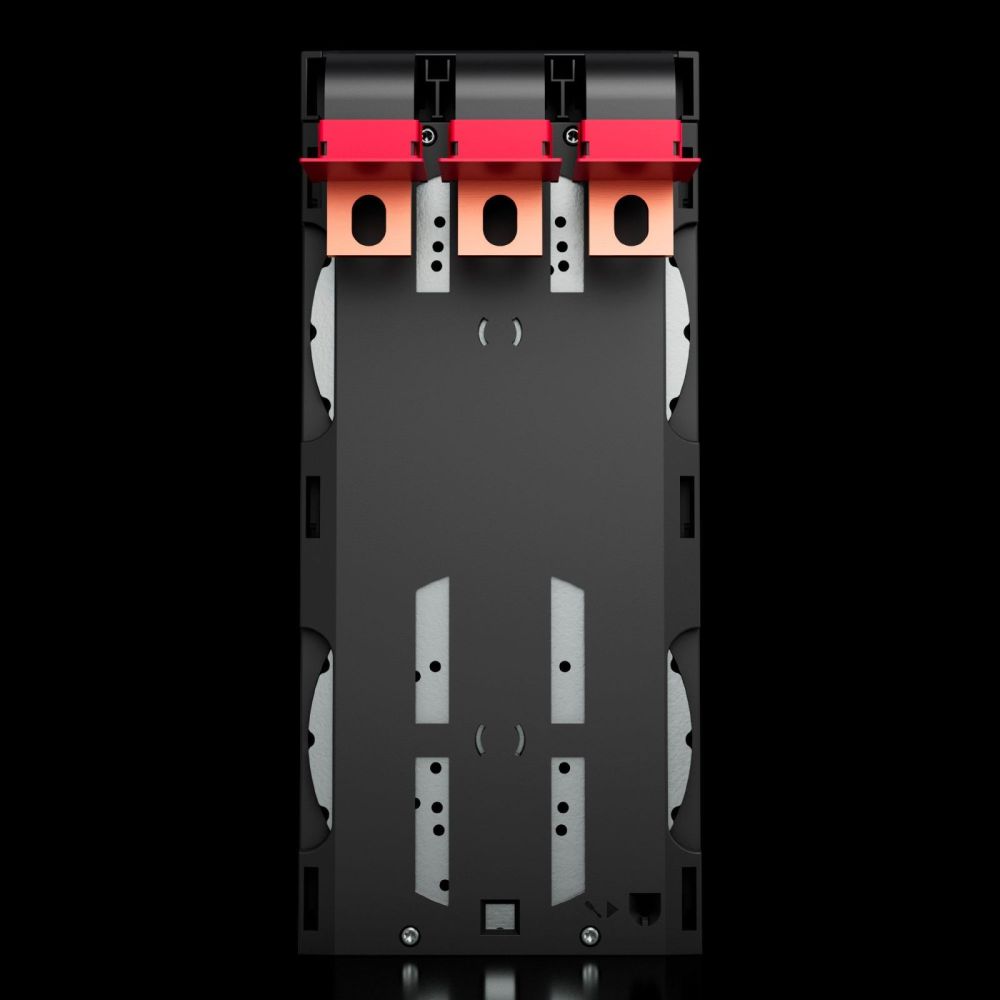

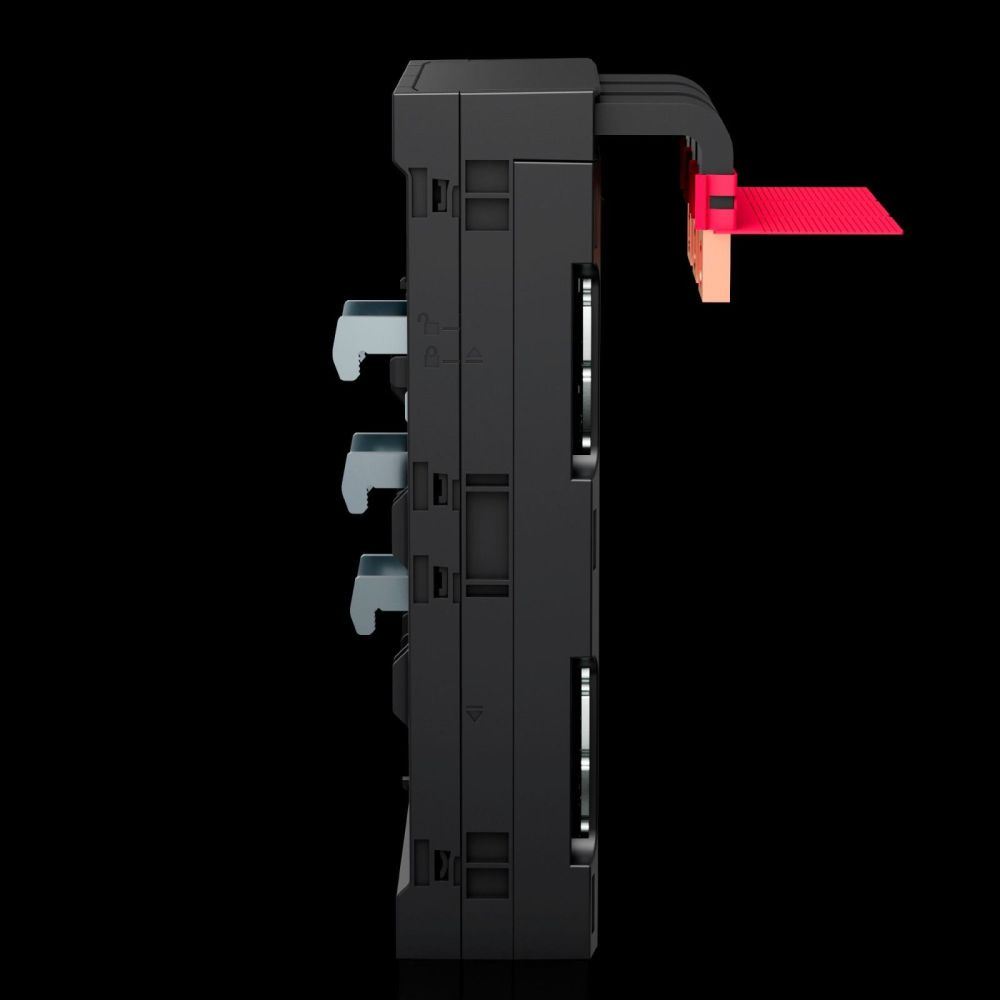

Rittal 9360535 RX CB-device adapter 630 A 3-pole Easy Fix W:140 mm

Your rating:
Average rating
product review for Rittal 9360535 RX CB-device adapter 630 A 3-pole Easy Fix W:140 mm
( 5 / 5 ) 1 ratings
Rittal 9360535
This image may differ from the desired article.
Rittal 9360535Rittal 9360535Rittal 9360535Rittal 9360535Rittal 9360535Rittal 9360535
-6% 178,25 EUR 190,57 EUR
( 212,12 EUR incl. VAT )
≈ £149.02  |  ≈ $196.97
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9360535 RX CB-device adapter 630 A 3-pole Easy Fix W:140 mm
Datasheet:file_download Download
Lieske Part No.:611491
Mfg Part No: 9360535
UPC/EAN: 4028177997110
Weight:5.206 kg
Type:RX 9360535

Product information for Rittal 9360535:

The Rittal RX 9360535 is a CB-device adapter for 60 mm busbar systems, specifically designed for mounting compact circuit breakers (MCCB) in industrial applications. The device is 3-pole and supports a maximum rated current of 630 A. The device width is 140 mm, with physical dimensions of the adapter being 145 mm (width) × 325.8 mm (height) × 76.4 mm (depth). The design follows the Easy-Fix concept, enabling tool-free snap-in mounting and allowing the adapter to be mounted independently of the actual switch. This facilitates pre-assembly of switches outside the enclosure and accelerates installation in operation.

Applications

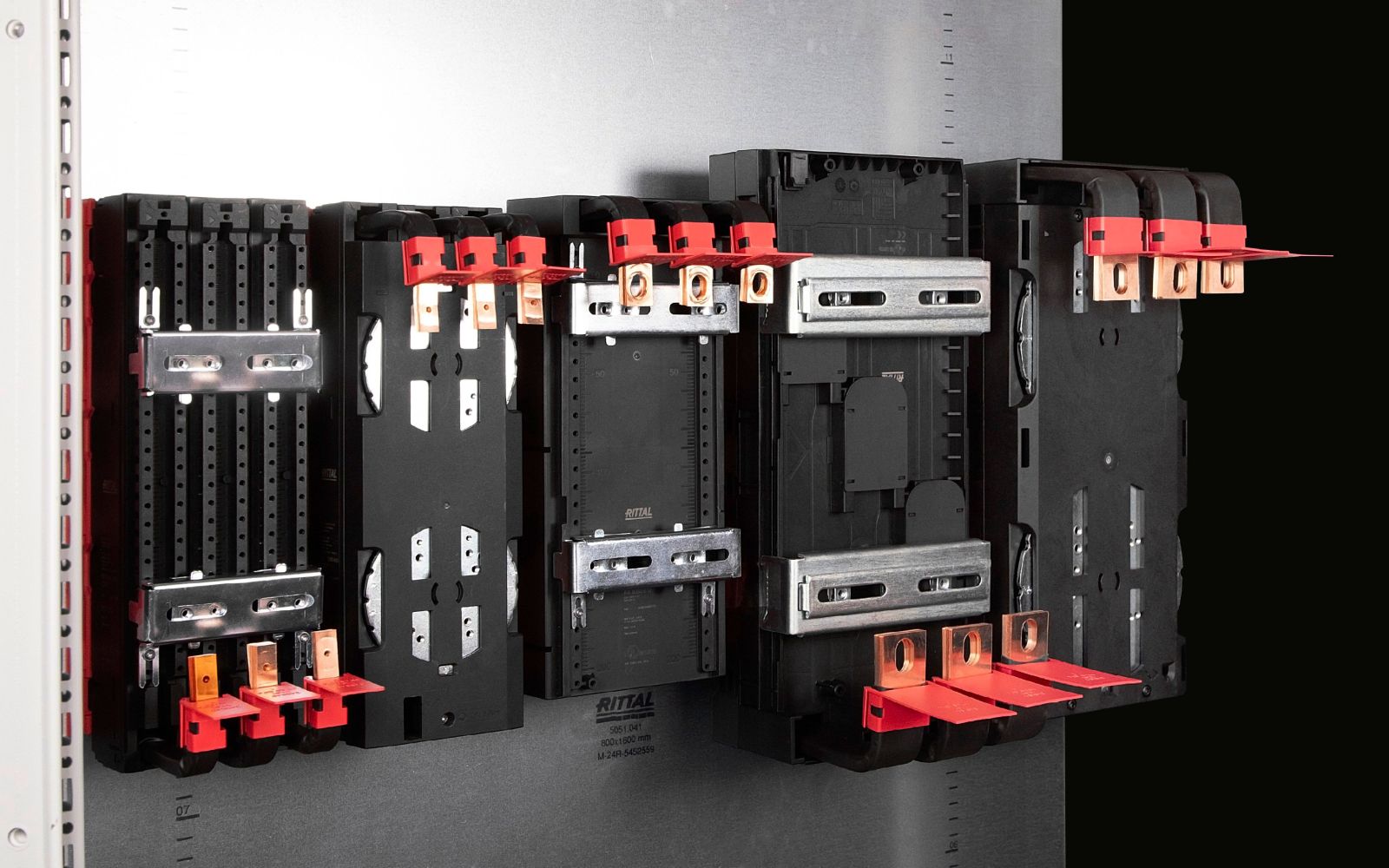

The adapter is designed for use in industrial enclosures and power distribution systems, particularly in systems with RiLineX or RiLine60 busbar systems. It is suitable for applications requiring fast and flexible mounting of circuit breakers, such as in manufacturing automation, power distribution, or machine building. Compatibility with common manufacturers of compact circuit breakers is ensured by the Easy-Fix system, enabling universal use.

Functions and Equipment in Detail

The adapter features tool-free snap-in mounting, allowing quick attachment to the busbar. The busbar thickness setting (5 mm or 10 mm) is semi-automatic, enabling easy and secure adjustment to different busbar profiles. The cable exit can be easily changed from top to bottom or vice versa, enabling flexible integration into existing installations. Electrical connection is made via a M10 screw, supporting cross-sections from 6 mm² to 29 mm². The delivery includes 3 terminal covers, which secure the connection points.

Technology Explained Simply

The adapter is made of polyamide (PA 6), a thermoplastic with high mechanical strength and heat resistance. The material meets the flammability standard UL 94, ensuring safe use in electrical installations. The protection rating IP 2XB according to IEC 60 529 protects against finger contact and vertical dripping water, making it suitable for use in enclosed enclosures. The pollution degree 3 is intended for environments with increased pollution risk, as commonly found in industrial plants. The rated voltage is 690 V AC (600 V AC UL), the rated insulation voltage Ui is 800 V for 5 mm busbar thickness and 1,000 V for 10 mm busbar thickness. The rated impulse voltage Uimp is 8 kV, ensuring electrical strength under transient voltage stress.

Compatibility and Accessories

The adapter is designed for RiLineX and RiLine60 busbar systems and adapts to busbar profiles with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. As accessories, the enclosure protection profile RX 9365025 (length 1200 mm) and the mounting clip RX 9365027 are available, which can provide additional securing and protection of connection points. The use of these components is optional and depends on installation requirements.

Mounting and Installation

Mounting is tool-free, achieved by snapping the adapter onto the busbar. The busbar thickness setting is adjusted via integrated adjustment knobs, allowing adaptation to 5 mm or 10 mm busbar thickness. Mounting the switch onto the adapter is independent of this, accelerating installation in the enclosure. The connection terminals are designed for cross-sections from 6 mm² to 29 mm², with screw connections using M10 screws. Changing the cable exit from top to bottom or vice versa is possible by simply modifying the exit opening.

Operational Advantages

Using the Easy-Fix adapter significantly reduces mounting time in the enclosure, as switches and adapters can be mounted independently. The tool-free mounting and flexible adaptation to various busbar thicknesses increase flexibility during planning and installation. High electrical strength and protection rating IP 2XB ensure safe and reliable operation in industrial environments. Power loss is limited to a maximum of 24 W, minimizing thermal load in the enclosure. The operating temperature range extends from -25 °C to +55 °C, making the adapter suitable for use in demanding climatic conditions.

Operational and Environmental Conditions

The adapter is designed for an operating temperature of -25 °C to +55 °C and can be operated at air humidity levels of 10 % to 90 % (non-condensing). The storage temperature range is -25 °C to +75 °C. The fundamental frequency is between 50 Hz and 60 Hz, enabling use in European and international power supply systems. The fire load is 22.239 MJ/m², and the copper content per unit is 2.64 kg. The environmental footprint (PCF/VE Cradle-to-Gate) is 30.05, reflecting the ecological assessment of the product.

Color and Material

The adapter is available in the colors RAL 9005 (black) and RAL 35745 (gray). The polyamide (PA 6) material offers high mechanical strength and heat resistance, ensuring reliable operation even under demanding operating conditions. The surface is smooth and easy to clean, simplifying maintenance in operation.

General
ModelEasy Fix
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Scope of deliveryIncluding 3 terminal covers
Degree of protection IP according to IEC 60 529IP 2XB
Rated impulse voltage Uimp8 kV
Rated voltage690 V AC, 600 V AC (UL)
Rated insulation voltage Uiat rail thickness 5 mm: 800 V, at rail thickness 10 mm: 1,000 V
Pollution degree3
Number of poles3-pole
Cable exitAbove/under
Electrical connection typeM10 screw
Cross section29 mm², 6 mm²
Suitable for manufacturer (type)Easily find the appropriate device adapter using our selection guide in the Downloads section.
Suitable for busbar systemRiLineX, RiLine60
Maximum power dissipation24 W
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...75 °C
Width145 mm
Height325,8 mm
Depth76,4 mm
Fire load22,239 MJ/m²
Copper content (kg/piece)2,64
PCF/VE (Cradle-to-Gate)30,05


Product data sheet
Datasheet for Rittal 9360535, EAN: 4028177997110
