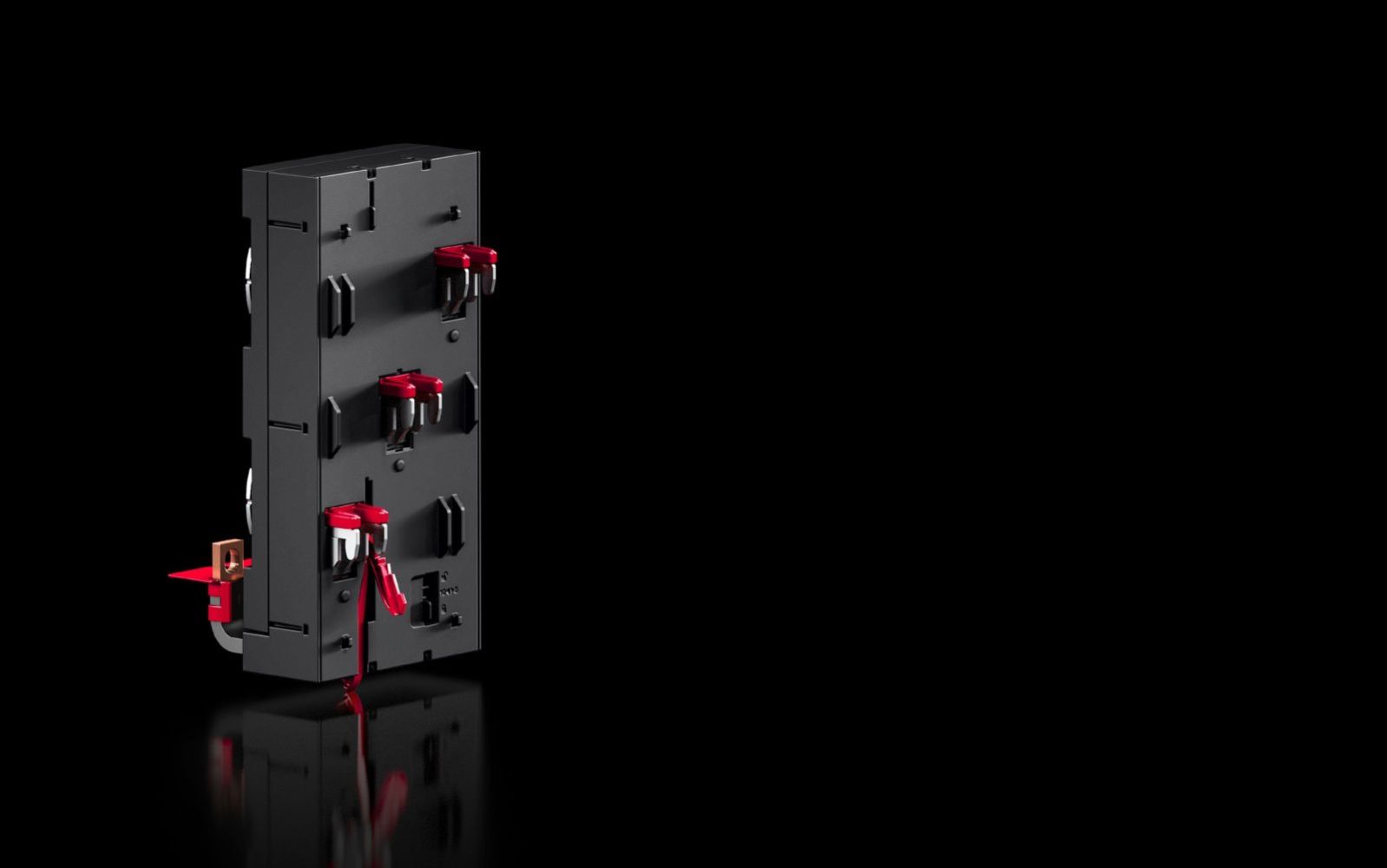

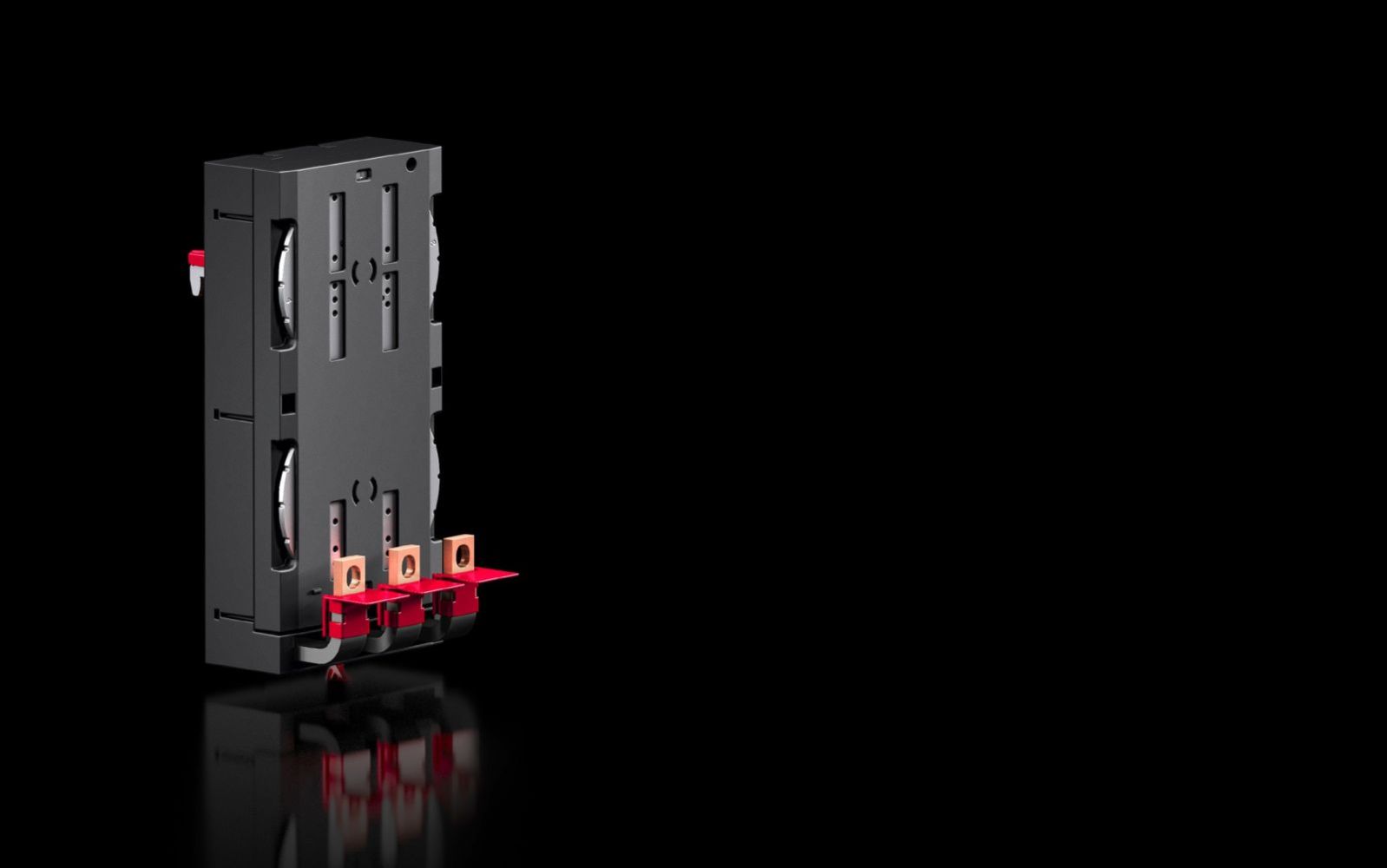

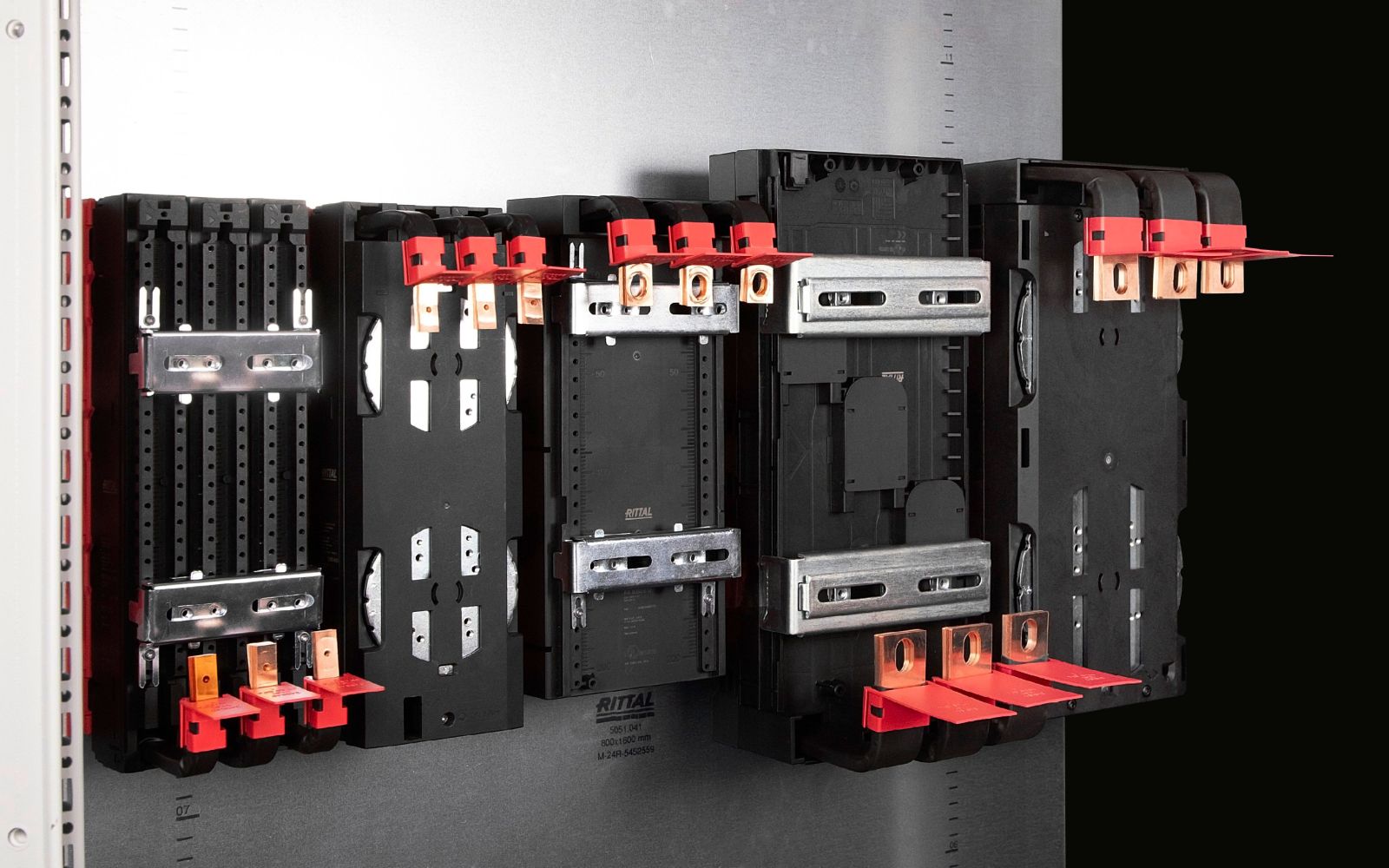

Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix

Your rating:
Average rating
product review for Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix
( 0 / 5 ) 0 ratings
Rittal 9360513
This image may differ from the desired article.
Rittal 9360513Rittal 9360513Rittal 9360513
94,67 EUR 98,78 EUR
( 112,66 EUR incl. VAT )
≈ £79.14  |  ≈ $104.61
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix
Datasheet:file_download Download
Lieske Part No.:895283
Mfg Part No: 9360513
UPC/EAN: 4069196011210
Weight:1.799 kg
Type:RX 9360513

Product information for Rittal 9360513:

The Rittal RX 9360513 is a RiLineX CB-device adapter for 60 mm busbar systems, designed for mounting compact power circuit breakers (MCCB) in industrial applications. The device is 3-pole and supports switches with a maximum rated current of 250 A. The device width is 105 mm, with the physical dimensions of the adapter being 109 mm (width) × 252 mm (height) × 63 mm (depth). The design follows the Easy-Fix concept, enabling tool-free snap-in mounting and allowing the adapter to be mounted independently of the actual switch. This facilitates pre-assembly of switches outside the enclosure and reduces installation time within the enclosure. The cable exit is arranged at the top, supporting typical wiring arrangements in enclosures.

Applications

The adapter is designed for use in industrial enclosures, particularly in systems with RiLineX or RiLine60 busbars. It is suitable for applications requiring quick and flexible mounting of power switches, such as in automation technology, machine building, or installation of distribution enclosures. Compatibility with various switch manufacturers makes it universally applicable.

Functions and Equipment in Detail

The adapter features a terminal space for laminated copper busbars with dimensions 15 x 6 mm. It is designed for busbars with cross-sections of 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm, with semi-automatic adjustment of busbar thickness between 5 and 10 mm possible. The electrical connection is made via an M8 screw. The maximum power loss is 10.5 W, limiting thermal load during operation. The frequency of the fundamental wave is in the range of 50 to 60 Hz, enabling use in European and North American power networks.

Technology Explained Simply

The protection rating IP 2XB according to IEC 60 529 protects against finger contact and solid foreign objects, but not against water or dust. The rated voltage is 690 V AC (600 V AC UL), the rated insulation voltage Ui is 1,000 V. The rated impulse withstand voltage Uimp is 8 kV, ensuring electrical strength under transient voltage stresses. Pollution degree 3 indicates that the adapter is designed for environments with heavy contamination, such as industrial production halls. The electrical values according to UL (SCCR) are 65 kA at 480 V, with the switch maximum rated current being 250 A (DIVQ/7). The material polyamide (PA 6) complies with UL 94 flammability test standard, ensuring good flame retardancy.

Compatibility and Accessories

The adapter is suitable for busbar systems RiLineX and RiLine60. Suitable accessories include encircling protection profiles (e.g. RX 9365025, length 1200 mm) and mounting clips (e.g. RX 9365027), which contribute to safe and proper installation. These components support compliance with safety regulations and simplify installation.

Mounting and Installation

The tool-free snap-in mounting enables quick and secure attachment of the adapter to the busbar. Mounting is done by simply snapping into place, with semi-automatic adjustment to busbar thickness ensuring precise fit. The switch mounting is independent of this, making installation in the enclosure more flexible. The operating temperature range is -25 °C to 55 °C, and the storage temperature range is -25 °C to 75 °C. The operating humidity must not be condensing and is in the range of 10 % to 90 %.

Advantages in Operation

Using the Rittal RX 9360513 reduces installation time and increases flexibility when installing power switches. The tool-free mounting and independence between adapter and switch mounting simplify maintenance and replacement. The high electrical strength and robust construction from polyamide ensure reliable performance in industrial environments. Compatibility with various switch manufacturers and busbar systems increases the product’s range of applications.

General
ModelEasy Fix
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005, RAL 35745
Degree of protection IP according to IEC 60 529IP 2XB
Electrical values UL (SCCR)65 kA - 480 V, Circuit Breaker max. 250 A, DIVQ/7
Rated impulse voltage Uimp8 kV
Rated voltage690 V AC, 600 V AC (UL)
Rated insulation voltage Ui1.000 V
Pollution degree3
Terminal space for laminated copper busbars (B x H)15 x 6 mm
Number of poles3-pole
Cable exitAbove
Electrical connection typeM8 screw
Suitable for busbar systemRiLineX, RiLine60
Maximum power dissipation10,5 W
Frequency of fundamental wave50...60 Hz
Humidity (non-condensing)10...90 %
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Operating temperature range-25 °C...55 °C
Storage temperature range-25 °C...75 °C
Width109 mm
Height252 mm
Depth63 mm
Fire load9,996 MJ/m²
PCF/VE (Cradle-to-Gate)10,84


Product data sheet
Datasheet for Rittal 9360513, EAN: 4069196011210

Questions & answers

What is the delivery time of Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix?

The article Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9360513 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix always at the best possible price. We can give you a discount of 2% on Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.




Fitting accessory for Rittal 9360513 RX RiLineX CB-device adapter 250 A 3-pole Easy Fix
