Rittal 9360240 RX connection adapter 3-pole W:145 mm max. 300 mm² terminal space

Your rating:
Average rating
product review for Rittal 9360240 RX connection adapter 3-pole W:145 mm max. 300 mm² terminal space
( 4.5 / 5 ) 2 ratings

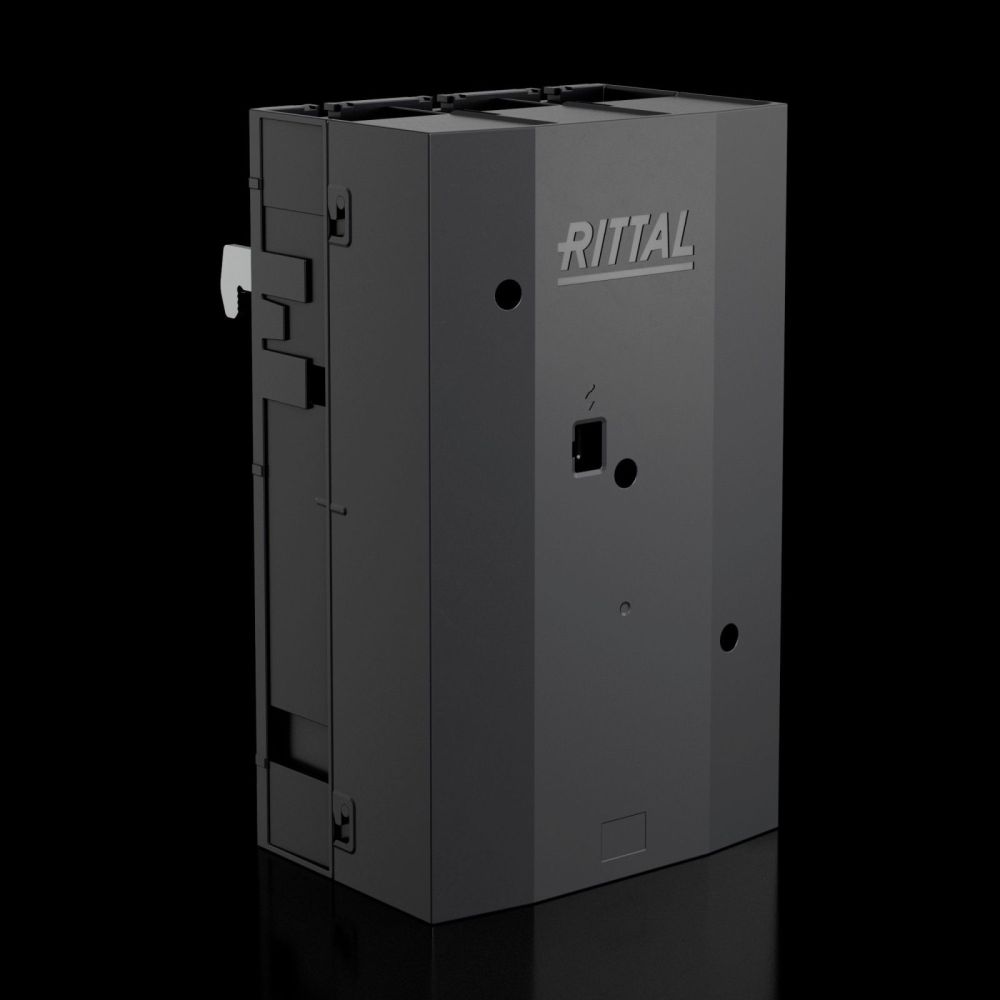

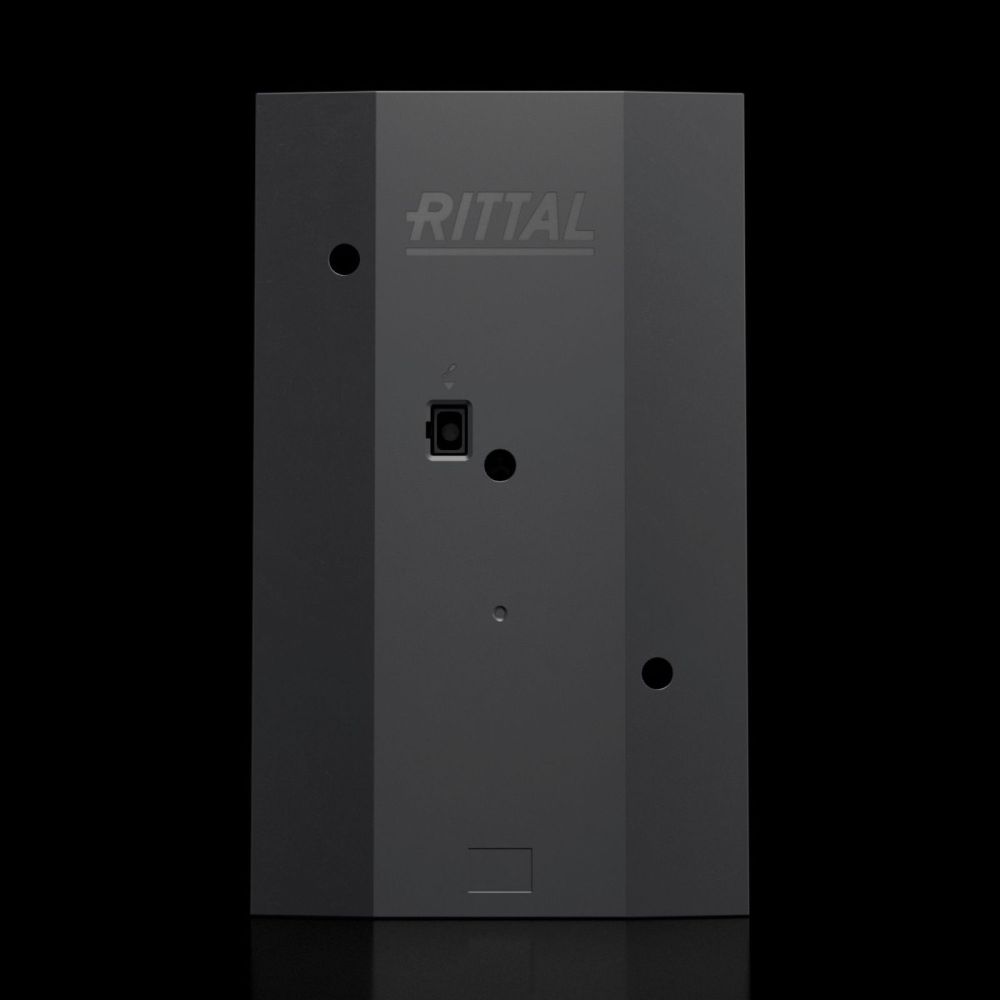

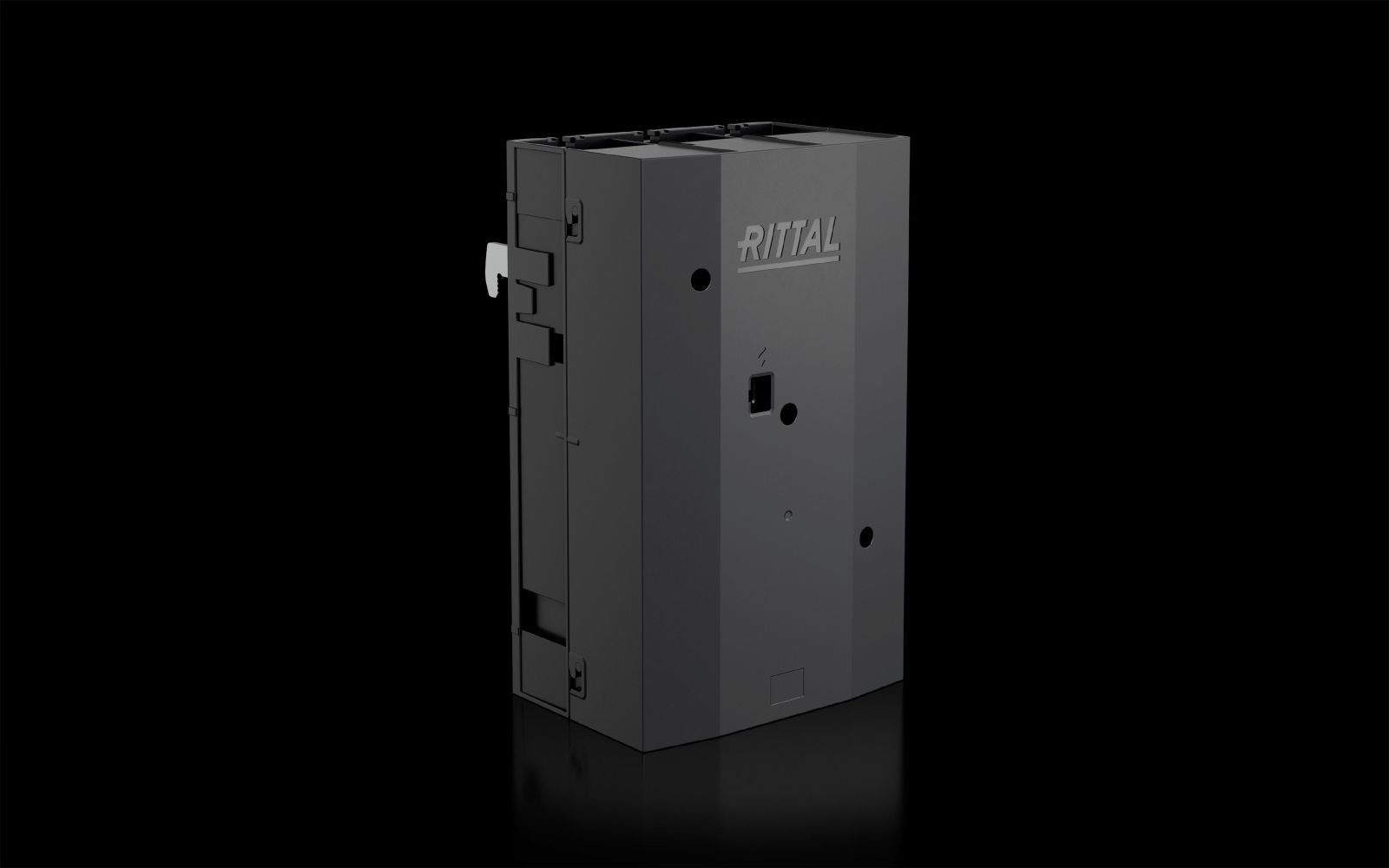

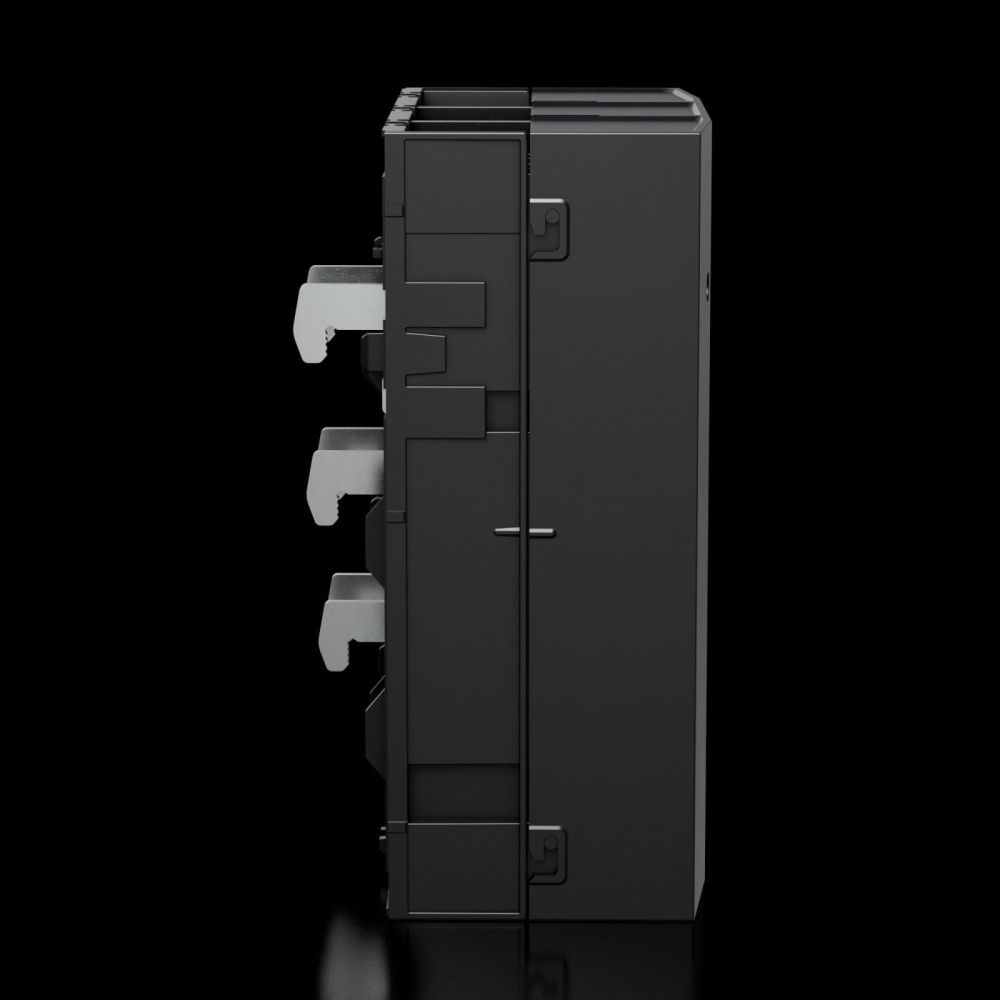

Rittal 9360240
This image may differ from the desired article.
Rittal 9360240Rittal 9360240Rittal 9360240Rittal 9360240Rittal 9360240Rittal 9360240Rittal 9360240
66,70 EUR 69,37 EUR
( 79,37 EUR incl. VAT )
≈ £55.76  |  ≈ $73.70
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >5 pieces
1x Rittal 9360240 RX connection adapter 3-pole W:145 mm max. 300 mm² terminal space
Datasheet:file_download Download
Lieske Part No.:1571796
Mfg Part No: 9360240
UPC/EAN: 4028177997219
Weight:1.849 kg
Type:RX 9360240

Product information for Rittal 9360240:

The Rittal RX 9360240 is a connection adapter for 60 mm busbar systems, specifically developed for use in industrial plants and power distribution systems. The device enables safe and efficient connection of conductors to busbars in the RiLineX and RiLine60 systems. It allows mounting on the busbar system and cable connection with only one screw, simplifying installation. The design is compact and permits tool-assisted disassembly. The conductor connection is possible from both top and bottom, increasing flexibility during installation.

Applications

The connection adapter is designed for use in industrial electrical installations where reliable power distribution via busbars is required. It is particularly suitable for installations with high current loads, as it is rated for a rated current (reference value, IEC) of 432 A. The maximum rated current is 680 A for round conductors (IEC) and 870 A for laminated copper busbars (IEC). Use in environments with an operating temperature of -5 °C to 55 °C and humidity up to 90 % (non-condensing) is permitted. The protection rating IP 2X protects against finger contact and larger solid objects, but not against water or dust.

Functions and Equipment in Detail

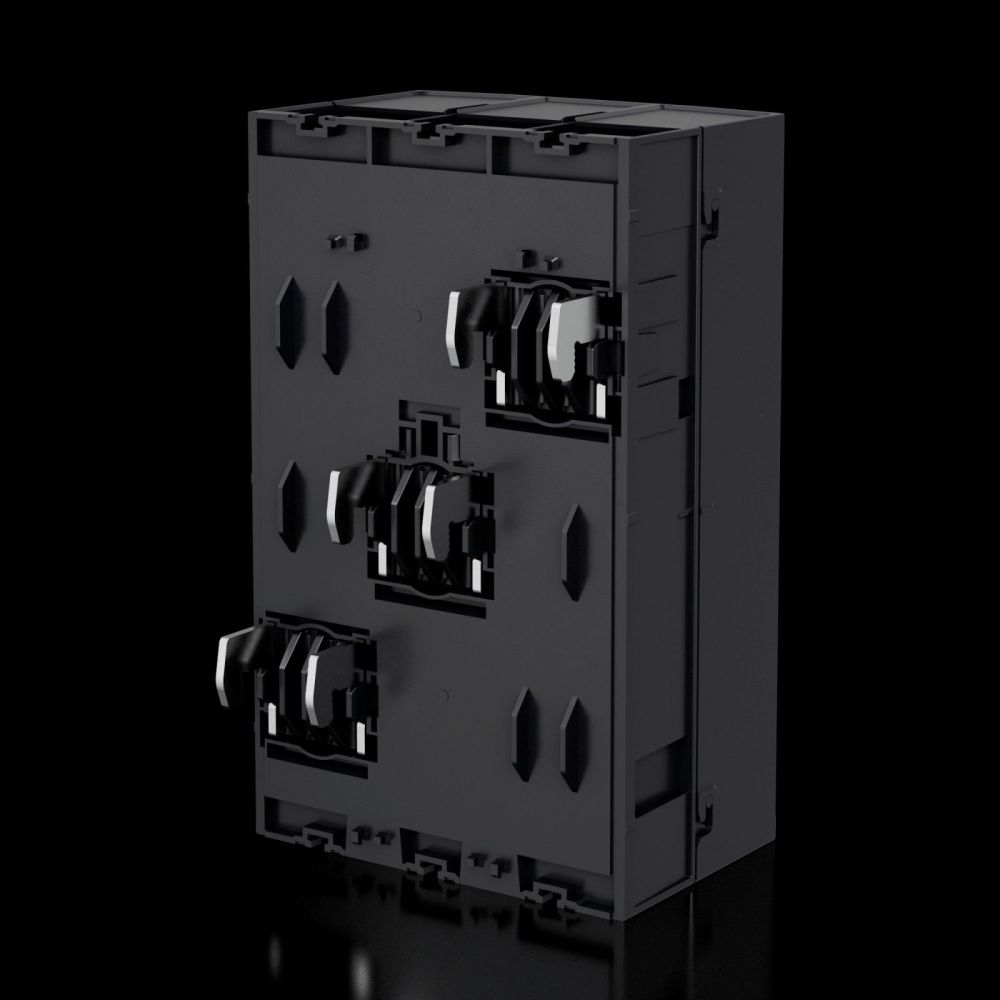

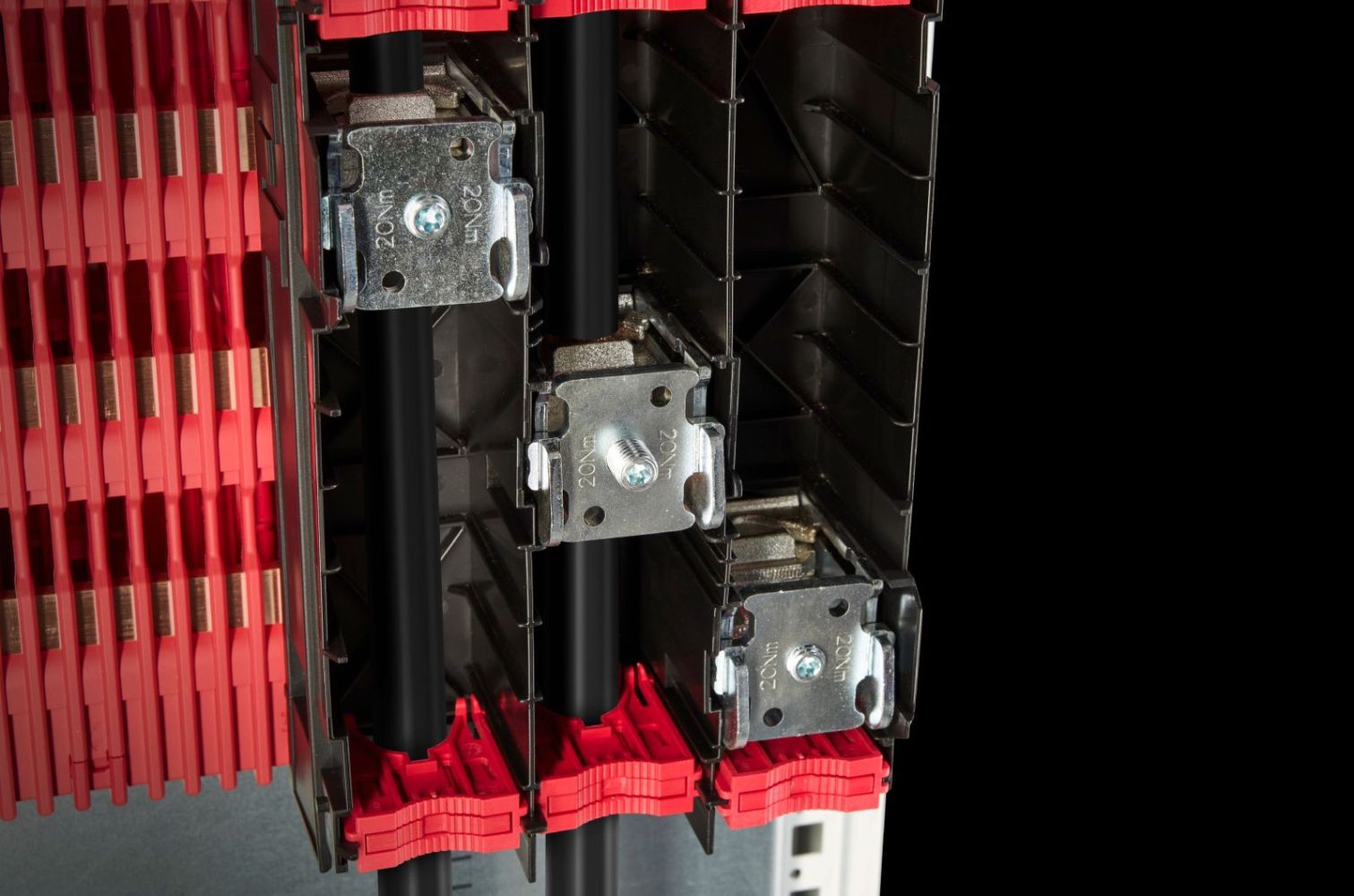

The device features a split connection terminal, which simplifies inserting the connection conductor. The terminal is designed for round conductors with a cross-section of 95 to 300 mm². For laminated copper busbars, the adapter provides a clamping space of 32 x 20 mm. The screw fastening allows simultaneous contact of the busbar and conductor, and can be adjusted to various busbar thicknesses from 5 to 10 mm. The adapter is designed for 3-pole applications and can be mounted on both RiLineX and RiLine60 busbar systems.

Technology Explained Simply

The rated voltage is 1,000 V AC and 1,500 V DC (IEC), as well as 600 V AC/DC (UL). The rated insulation voltage Ui is specified as 1,000 V, indicating the maximum voltage the insulation can withstand over time. The rated impulse voltage Uimp of 12 kV indicates the ability to withstand short-term voltage surges. The power loss is limited to 28 W, describing heat generation under load. The short-circuit withstand rating (SCCR) is 27.5 kA at 600 V (unprotected) and 100 kA at 600 V with circuit breaker (max. 600 A) or fuse (Class L, max. 1600 A). These values ensure safety during short-circuit events.

Compatibility and Accessories

The adapter is suitable for busbars with dimensions 15 x 5/10 mm, 20 x 5/10 mm, and 30 x 5/10 mm. It is specifically developed for the RiLineX and RiLine60 busbar systems. As accessories, the enclosure protection profile RX 9365025 (L: 1200 mm) and the mounting clip RX 9365027 are available, enhancing safety and aiding installation. Mounting is achieved by snapping onto the RiLineX board, ensuring quick and secure fastening.

Installation and Mounting

Installation is performed by simply snapping onto the RiLineX board. The screw fastening allows simultaneous contact of the busbar and conductor. Connection conductors can be connected from top or bottom, providing flexible installation options. The split terminal facilitates inserting the conductors. Disassembly is only possible with tools.

Operational Advantages

The connection adapter offers high short-circuit withstand capability and an easily mountable shock protection. The compact design and the option to connect from top or bottom increase installation flexibility. The screw fastening allows precise adjustment to various busbar thicknesses. The use of polyamide (PA 6) with flame resistance according to UL 94 ensures high thermal and mechanical stability. Compliance with standards IEC/EN 61439-1 and UL 508 ensures conformity with international safety standards. The operating temperature range of -5 °C to 55 °C makes the adapter suitable for a wide range of industrial environments.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Rated current (reference value, IEC)432 A
Rated current round conductor max. (IEC)680 A
Rated current for round conductor max. (UL)640 A
Rated current laminated copper busbar max. (IEC)870 A
Rated current laminated copper busbar max. (UL)840 A
Electrical values UL (SCCR)27.5 kA - 600 V, RMS, unprotected, 100 kA - 600 V, Circuit Breaker max. 600 A, DIVQ/7, 100 kA - 600 V, Fuse Class L max. 1600 A, JDDZ/7
Cable exitAbove/under
For rail systems with centre spacing60 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width145 mm
Height239,4 mm
Depth104,6 mm
Connection of ring conductors95 ‐ 300 mm²
Terminal space for laminated copper busbars (B x H)32 x 20 mm
Suitable for busbars15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage1.000 V AC, 1.500 V DC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC/EN 61439-1, UL 508
Rated impulse voltage Uimp12 kV
Rated insulation voltage Ui1.000 V
Maximum power dissipation28 W
Degree of protection IP according to IEC 60 529IP 2X
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
Fire load15,903 MJ/m²
PCF/VE (Cradle-to-Gate)10,57


Product data sheet
Datasheet for Rittal 9360240, EAN: 4028177997219
