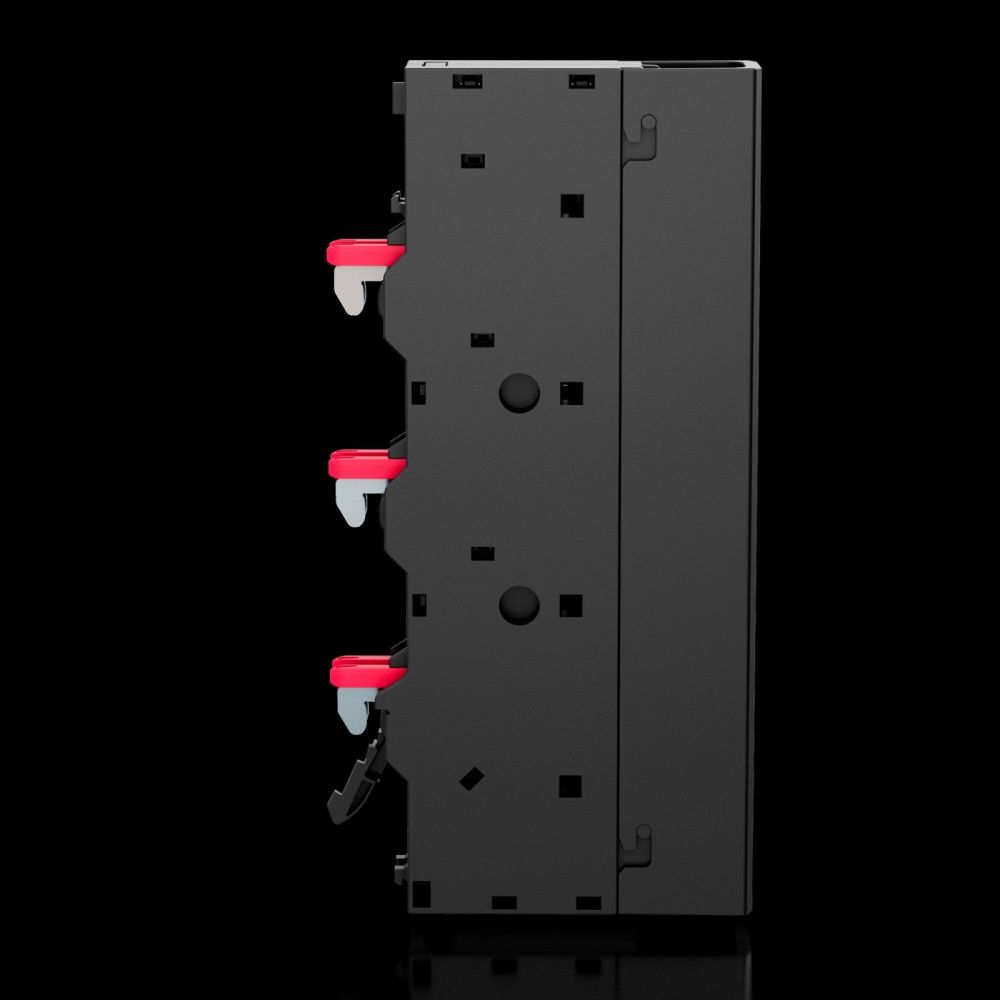

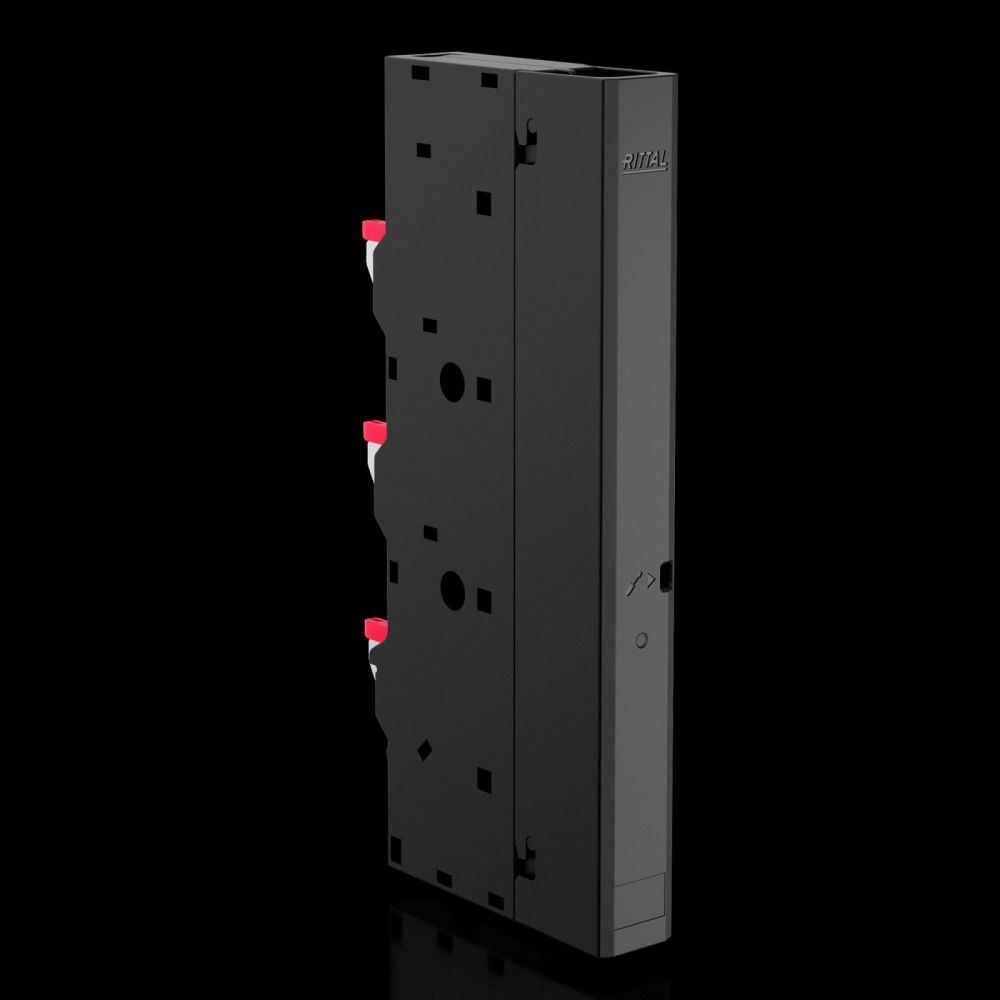

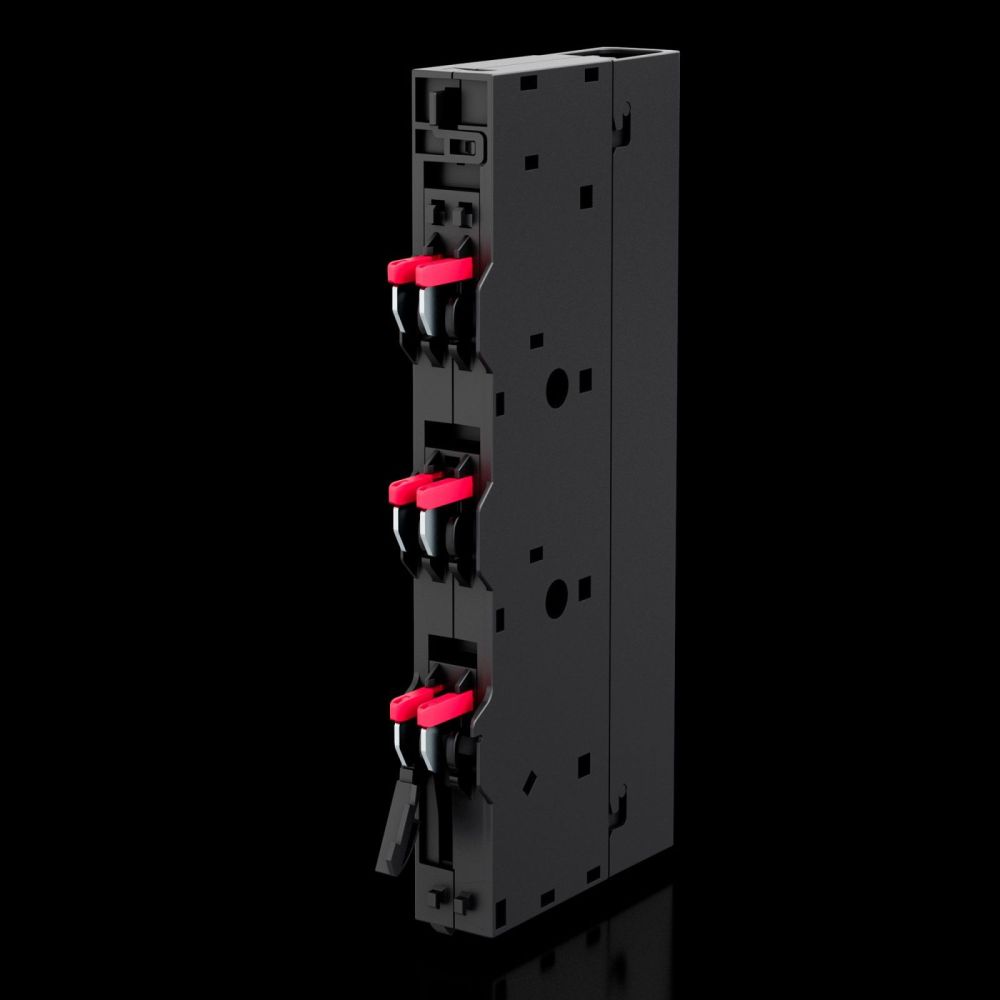

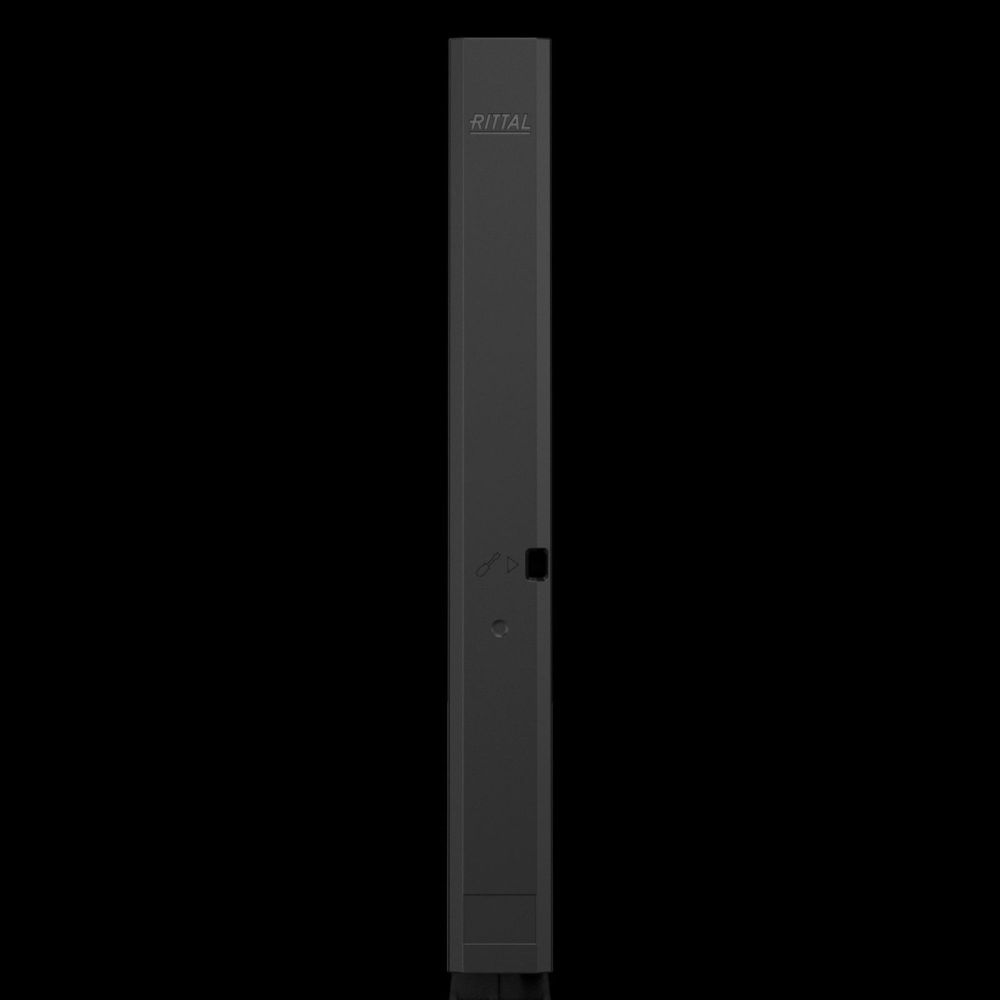

Rittal 9360200 RX connection adapter 3-pole W:27 mm max.16 mm² pack of 4

Your rating:
Average rating
product review for Rittal 9360200 RX connection adapter 3-pole W:27 mm max.16 mm² pack of 4
( 5 / 5 ) 3 ratings
Rittal 9360200
This image may differ from the desired article.
Rittal 9360200Rittal 9360200Rittal 9360200Rittal 9360200Rittal 9360200
71,30 EUR 74,15 EUR
( 84,85 EUR incl. VAT )
≈ £59.61  |  ≈ $78.79
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: 5 pieces
1x Rittal 9360200 RX connection adapter 3-pole W:27 mm max.16 mm² pack of 4
Datasheet:file_download Download
Lieske Part No.:157177
Mfg Part No: 9360200
UPC/EAN: 4028177997264
Weight:1.656 kg
Type:RX 9360200

Product information for Rittal 9360200:

The Rittal connection adapter RX 9360200 is a 3-pole adapter for 60 mm busbar systems, specifically designed for RiLineX and RiLine60 busbar systems. The device serves for the safe and efficient supply of electrical power into industrial enclosures and distribution systems. It features a compact design and easy installation, with mounting achieved by snap-fitting onto the RiLineX board. Removal requires tools, ensuring safe and controlled handling.

Applications

The connection adapter is intended for use in industrial electrical installations, particularly in enclosures where reliable power distribution via busbars is required. It is suitable for applications with a rated voltage up to 800 V AC and 800 V DC, with UL certification specifying a maximum voltage of 600 V AC and 600 V DC. Operating conditions include temperatures from -5 °C to 55 °C and maximum humidity of 90 % (non-condensing). Storage is possible in the range of -25 °C to 75 °C.

Functions and Equipment in Detail

The device features a push-in conductor connection, simplifying the connection of round conductors with a cross-section of 1.5 to 16 mm². Conductor exits are possible from both top and bottom, enabling flexible integration into existing control systems. A universal shock protection, which adapts to the used conductor cross-section, enhances safety. The semi-automatic adjustment of busbar thickness between 5 and 10 mm allows adaptation to various busbar thicknesses, ensuring compatibility with different busbar profiles (12 x 5/10 mm, 15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm).

Technology Explained Simply

The connection adapter is made of polyamide (PA 6), which according to UL 94 exhibits specific flammability characteristics, enhancing safety in case of fire. The protection class IP 2X protects against contact with solid objects larger than 12.5 mm, but not against water or dust. The rated insulation voltage is 800 V, and the rated impulse withstand voltage Uimp is 8 kV. The maximum power loss is 7 W. The nominal current (reference value, IEC) is 67 A, the rated current for round conductors (IEC) is 76 A and (UL) is 66 A. The short-circuit withstand rating (SCCR) according to UL is 5 kA at 600 V (unprotected), 35 kA at 480 V (Circuit Breaker max. 60 A, DIVQ/7), and 100 kA at 600 V (Fuse Class J max. 100 A, JDDZ/7). Standards IEC/EN 61439-1 and UL 508 are met, confirming compliance with international safety standards.

Compatibility and Accessories

The adapter is specifically developed for busbar systems with a center-to-center spacing of 60 mm. It is compatible with RiLineX and RiLine60 busbar systems. Accessories include grip protection profiles (e.g. RX 9365025, length 1200 mm) and mounting clips (e.g. RX 9365027), which support installation and protect connections.

Mounting and Installation

Mounting is achieved by simple snap-fitting onto the RiLineX board, enabling quick and tool-free installation. Removal, however, requires tools to ensure safe disassembly. The connection terminals for round conductors are designed for push-in connection, accelerating the wiring process and reducing error susceptibility.

Operational Advantages

The connection adapter offers high current-carrying capacity and short-circuit withstand capability, making it suitable for demanding industrial applications. The semi-automatic adjustment of busbar thickness and universal shock protection increase flexibility and safety. The compact design and easy installation reduce installation time and costs. Certifications according to IEC/EN 61439-1 and UL 508 guarantee compliance with international safety and quality standards.

General
MaterialPolyamide (PA 6), flammability according to UL 94
ColourRAL 9005
Rated current (reference value, IEC)67 A
Rated current round conductor max. (IEC)76 A
Rated current for round conductor max. (UL)66 A
Electrical values UL (SCCR)5 kA - 600 V, RMS, unprotected, 35 kA - 480 V, Circuit Breaker max. 60 A, DIVQ/7, 100 kA - 600 V, Fuse Class J max. 100 A, JDDZ/7
Cable exitAbove/under
For rail systems with centre spacing60 mm
Number of poles3-pole
Suitable for busbar systemRiLineX, RiLine60
Width26,8 mm
Height239,2 mm
Depth103,3 mm
Connection of ring conductors1,5 ‐ 16 mm²
Suitable for busbars12 x 5/10 mm, 15 x 5/10 mm, 20 x 5/10 mm, 30 x 5/10 mm
Rated voltage800 V AC, 800 V DC, 600 V AC (UL), 600 V DC (UL)
Pollution degree3
StandardsIEC/EN 61439-1, UL 508
Rated impulse voltage Uimp8 kV
Rated insulation voltage Ui800 V
Maximum power dissipation7 W
Degree of protection IP according to IEC 60 529IP 2X
Operating air humidity max.90 %
Operating temperature range-5 °C...55 °C
Storage temperature range-25 °C...75 °C
Humidity (non-condensing)10...90 %
For rail thickness5 ‐ 10 mm
Fire load6,79 MJ/m²
PCF/VE (Cradle-to-Gate)13,4


Product data sheet
Datasheet for Rittal 9360200, EAN: 4028177997264
