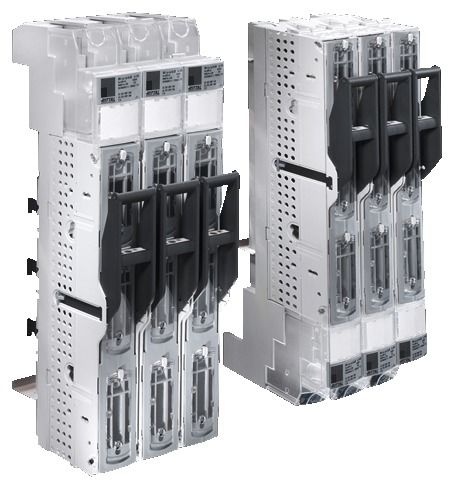

Rittal 9346030 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 100 mm
|
80,54 EUR |
|||||||||||
|
incl. 3,44 EUR copper surcharge ( 95,84 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 358605 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9346030 | ||||||||||
| UPC/EAN: | 4028177628779 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9346030:
Fire protection corresponding to UL 94-V0
Contact tracks: Silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Handle: RAL 7016
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Supply includes: 3 mounting hooks
Packs of: 1 pc(s).
EAN: 4028177628779
Customs tariff number: 85365080
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001046
Design: Size: 00
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 100 mm
Dimensions: Width: 50 mm
Height: 400 mm
Type of electrical connection: Screw M8
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
Weight/pack: 1.22 kg
Type: SV 9346.030
