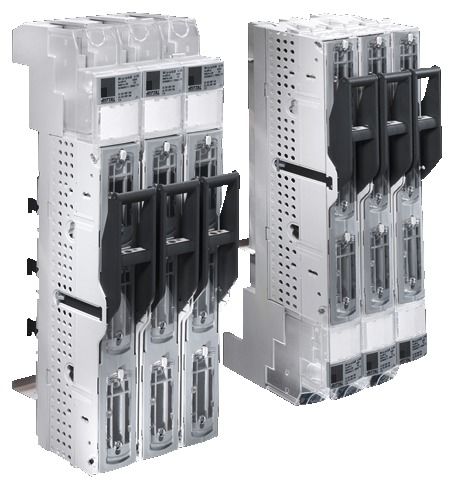

Rittal 9346010 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, 60 mm
|
6.897,61 EUR |
|
|
incl. 6.833,09 EUR copper surcharge ( 8.208,16 EUR incl. VAT ) ≈ £5,918.15 | ≈ $7,994.33 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 150364 |
|---|---|
| Mfg Part No: | 9346010 |
| UPC/EAN: | 4028177628755 |
| Weight: | 0.123 kg |
Product information for Rittal 9346010:
Fire protection corresponding to UL 94-V0
Contact tracks: Silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Handle: RAL 7016
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Supply includes: 3 mounting hooks
Packs of: 1 pc(s).
EAN: 4028177628755
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001046
Design: Size: 00
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 50 mm
Height: 400 mm
Type of electrical connection: Screw M8
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
Weight/pack: 1.26 kg
Type: SV 9346010
