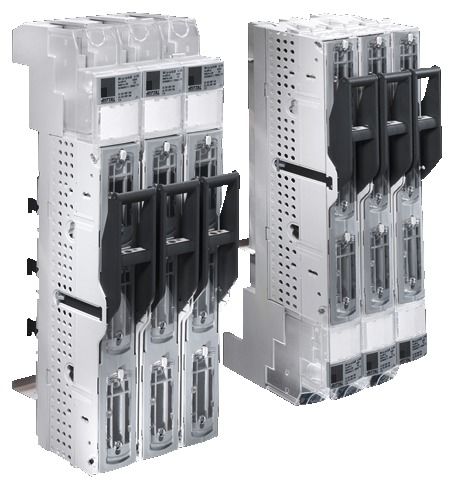

Rittal 9346000 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm
|
85,59 EUR |
|||||||||||
|
incl. 3,97 EUR copper surcharge ( 101,85 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 610960 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9346000 | ||||||||||
| UPC/EAN: | 4028177628748 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9346000:
Fire protection corresponding to UL 94-V0
Contact tracks: Silver-plated hard copper
Colour: Chassis: RAL 7035
Cover: RAL 7001
Handle: RAL 7016
Basis of test: IEC/DIN EN 60 947-3
DIN EN 60 269-2 (fuse inserts)
Supply includes: 3 mounting hooks
Packs of: 1 pc(s).
EAN: 4028177628748
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001046
Design: Size: 00
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 50 mm
Height: 400 mm
Type of electrical connection: Box terminal
Rated operating voltage: 690 V, 3~
Connection for round conductor cross-sections: 2.5 mm² - 95 mm²
Rated operating current max.: 160 A
Cable outlet: Top/bottom
Weight/pack: 1.26 kg
Type: SV 9346.000
Questions & answers
What is the delivery time of Rittal 9346000 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm?
The article Rittal 9346000 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9346000 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9346000 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm always at the best possible price. We can give you a discount of 2% on Rittal 9346000 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Rittal 9346000 SV NH slimline fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal, 60 mm we can offer you a price of 84,37 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
