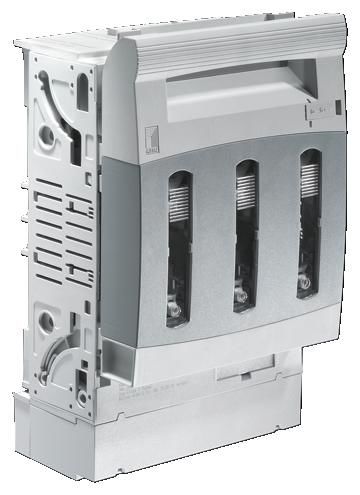

Rittal 9345400 SV Fuse holder, Class J, 201-400 A, 600 V, 3-pole, (60 mm)
|
-5% 526,11 EUR 551,75 EUR |
|||||||||||
|
incl. 11,11 EUR copper surcharge ( 626,07 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 358573 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 9345400 | ||||||||||
| UPC/EAN: | 4028177615670 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 9345400:
Fire protection corresponding to UL 94-V0
Contact tracks: Electrolytic copper, silver-plated
Colour: Chassis: RAL 7035
Cover: RAL 7035/7001
Approvals: UL 4248-1
UL 4248-8
CSA C22.2 No. 4248.1-07
CSA C22.2 No. 4248.8-07
Packs of: 1 pc(s).
EAN: 4028177615670
Customs tariff number: 85365080
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400613
ETIM 6.0: EC001900
Design: For busbar systems
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 250 mm
Height: 328 mm
Type of electrical connection: Box terminal
Rated operating voltage: 600 V, 3~
Connection for round conductor cross-sections: AWG 4/0 – MCM 600
Rated operating current min.: 201 A
Rated operating current max.: 400 A
Cable outlet: Top/bottom
To fit fuses: Fuse type (class): J
Fuse standard: UL 4248-8
Ø x length: 54 mm x 181 mm mm
Weight/pack: 5.32 kg
Type: SV 9345.400
Questions & answers
What is the delivery time of Rittal 9345400 SV Fuse holder, Class J, 201-400 A, 600 V, 3-pole, (60 mm)?
The article Rittal 9345400 SV Fuse holder, Class J, 201-400 A, 600 V, 3-pole, (60 mm) is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9345400 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9345400 SV Fuse holder, Class J, 201-400 A, 600 V, 3-pole, (60 mm) always at the best possible price. We can give you a discount of 2% on Rittal 9345400 SV Fuse holder, Class J, 201-400 A, 600 V, 3-pole, (60 mm) if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Rittal 9345400 SV Fuse holder, Class J, 201-400 A, 600 V, 3-pole, (60 mm) we can offer you a price of 518,39 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
