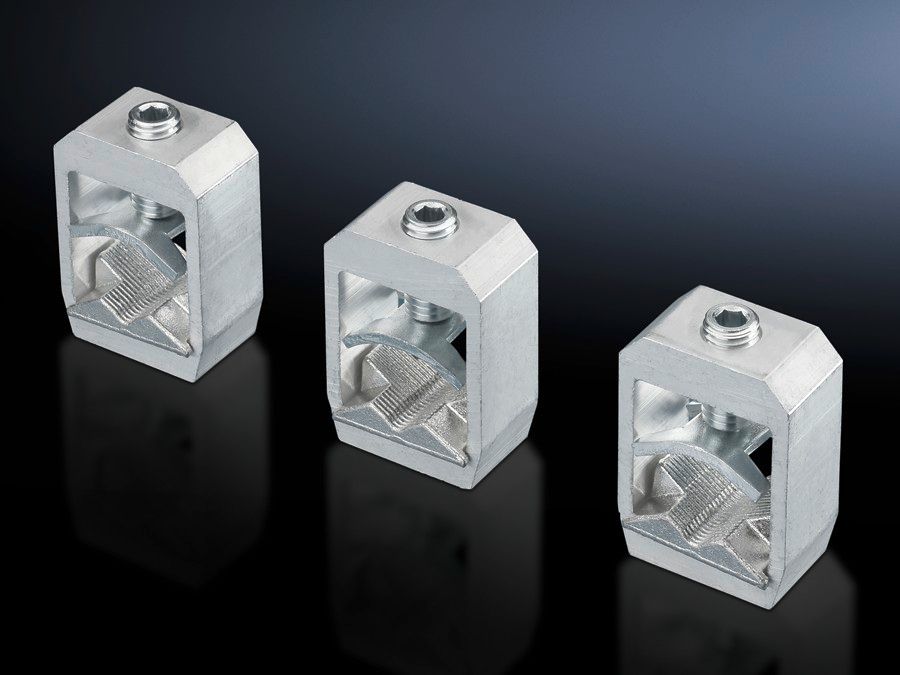

Rittal 9344620 frame terminal for NH disconnector size 2/3
|
-11% 22,54 EUR 25,41 EUR |
|
|
( 26,82 EUR incl. VAT ) ≈ £18.98 | ≈ $25.31 plus delivery charges: 53,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 724371 |
| Mfg Part No: | 9344620 |
| UPC/EAN: | 4028177541016 |
| Weight: | 0.397 kg |
| Type: | SV 9344620 |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 9344620:
For direct connection of round and sector-shaped conductors and laminated copper bars.
Material: Cast brass
Surface finish: Nickel-plated
Packs of: 3 pc(s).
EAN: 4028177541016
Customs tariff number: 85389099
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400609
ETIM 6.0: EC001894
For NH fuse-switch disconnectors: 2
3
Clamping area for laminated copper bars: Width: 32 mm
Height: 20 mm
Connection for round conductor cross-sections: 95 mm² - 300 mm²
Connection for sector-shaped conductor cross-sections: 120 mm² - 300 mm²
Weight/pack: 0.4 kg
Material: Cast brass
Surface finish: Nickel-plated
Packs of: 3 pc(s).
EAN: 4028177541016
Customs tariff number: 85389099
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27400609
ETIM 6.0: EC001894
For NH fuse-switch disconnectors: 2
3
Clamping area for laminated copper bars: Width: 32 mm
Height: 20 mm
Connection for round conductor cross-sections: 95 mm² - 300 mm²
Connection for sector-shaped conductor cross-sections: 120 mm² - 300 mm²
Weight/pack: 0.4 kg
Questions & answers
What is the delivery time of Rittal 9344620 frame terminal for NH disconnector size 2/3?
The article Rittal 9344620 frame terminal for NH disconnector size 2/3 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 9344620 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 9344620 frame terminal for NH disconnector size 2/3 always at the best possible price. We can give you a discount of 2% on Rittal 9344620 frame terminal for NH disconnector size 2/3 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
